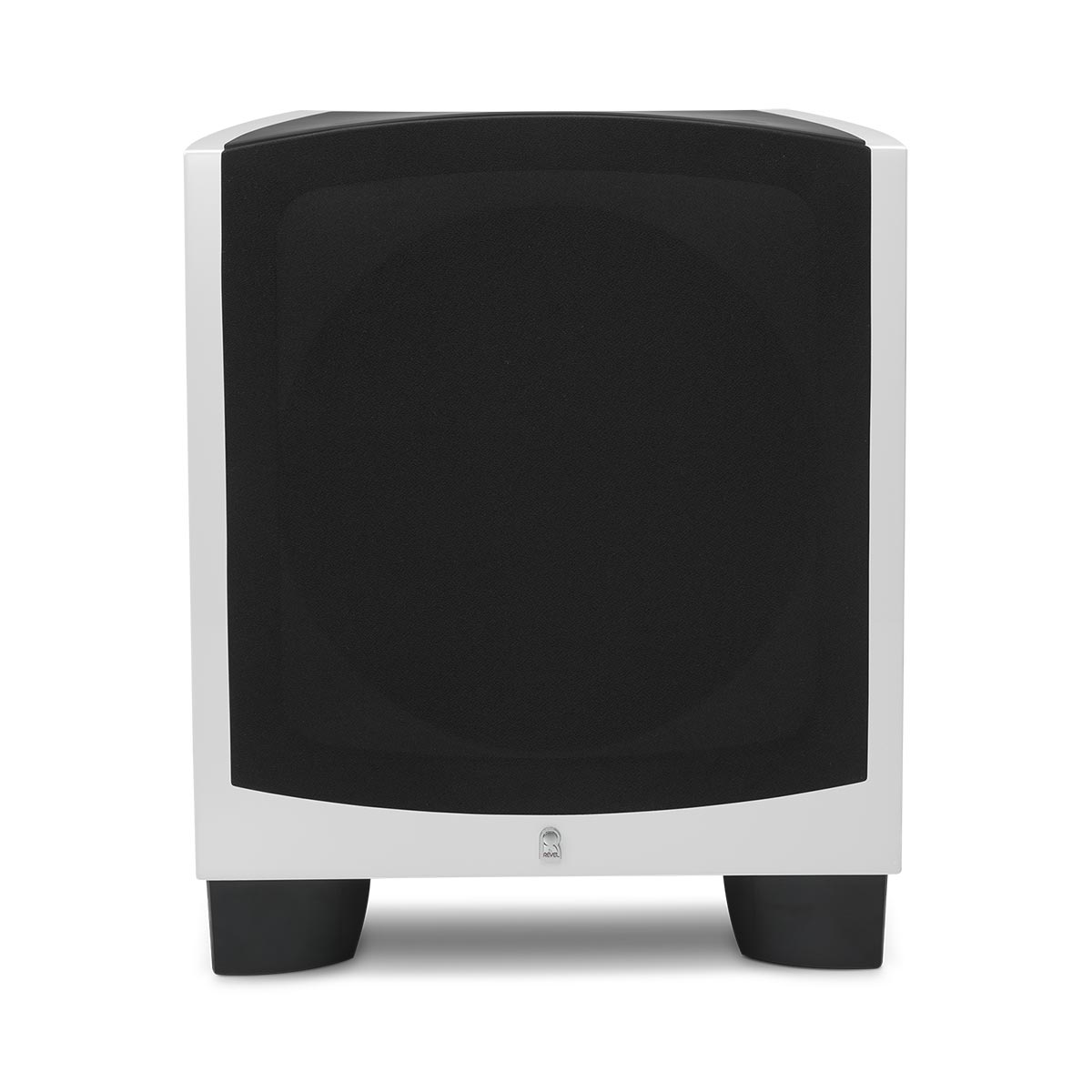

B110v2 10" 1000W Powered Subwoofer
The Revel Performa3 B110v2 subwoofer sets a new standard for low frequency detail, musicality and refinement. Featuring brute force visceral impact and high fidelity bass performance of unprecedented sophistication, the B110v2 is a must-have for home entertainment systems.
The Revel Performa3 B110v2 is the newest generation of Revel’s popular and successful B110 subwoofer, outfitted with the latest advancements in acoustic science and technology.

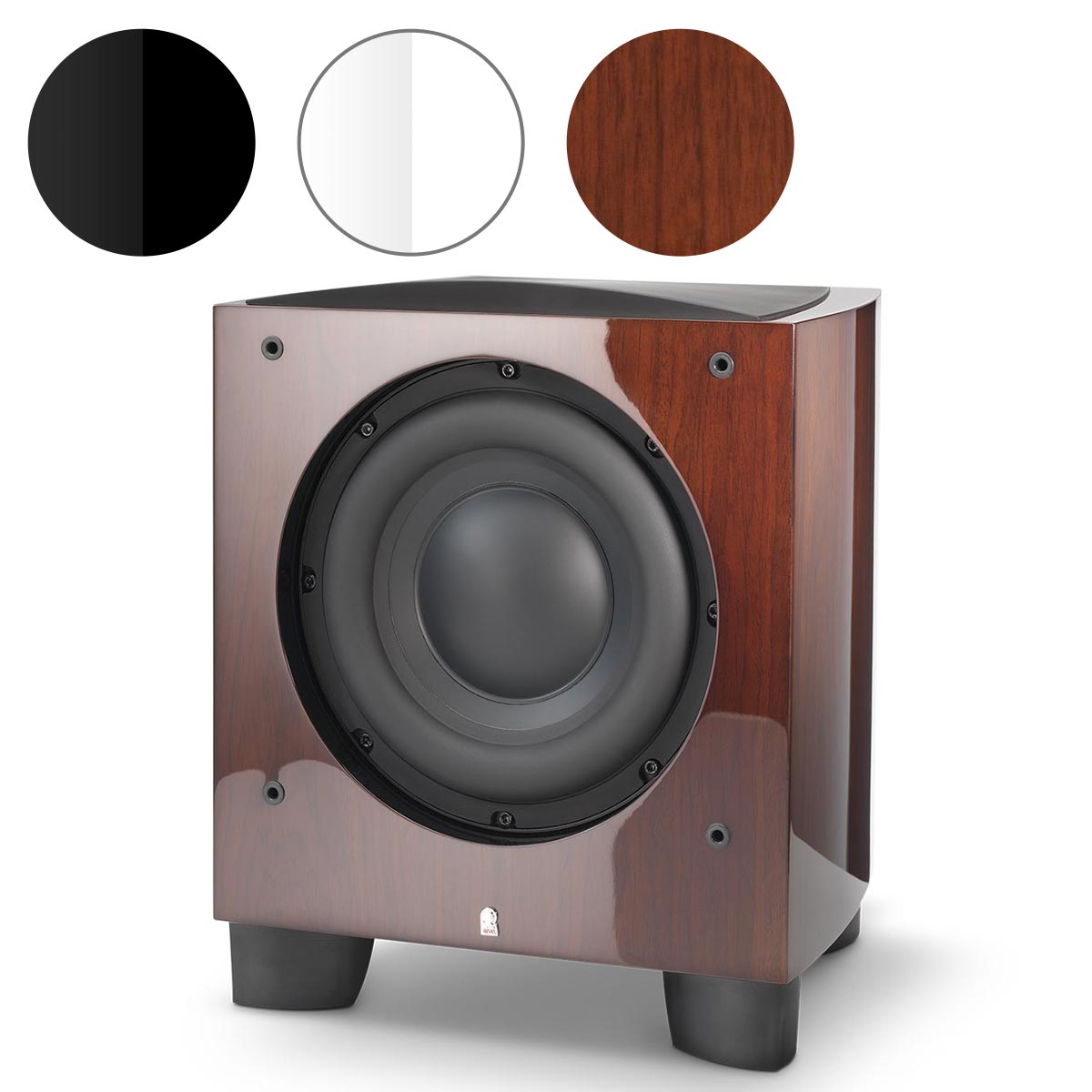

At the heart of the B110v2’s engineering is a new and improved woofer with 82% more linear excursion than the B110. The transducer’s 19.2 lb Klippel-optimised magnet assembly features a double-stacked ceramic 5 magnet with a flared vent for improved airflow. As a result, turbulence is reduced, output is increased, and distortion is minimised.

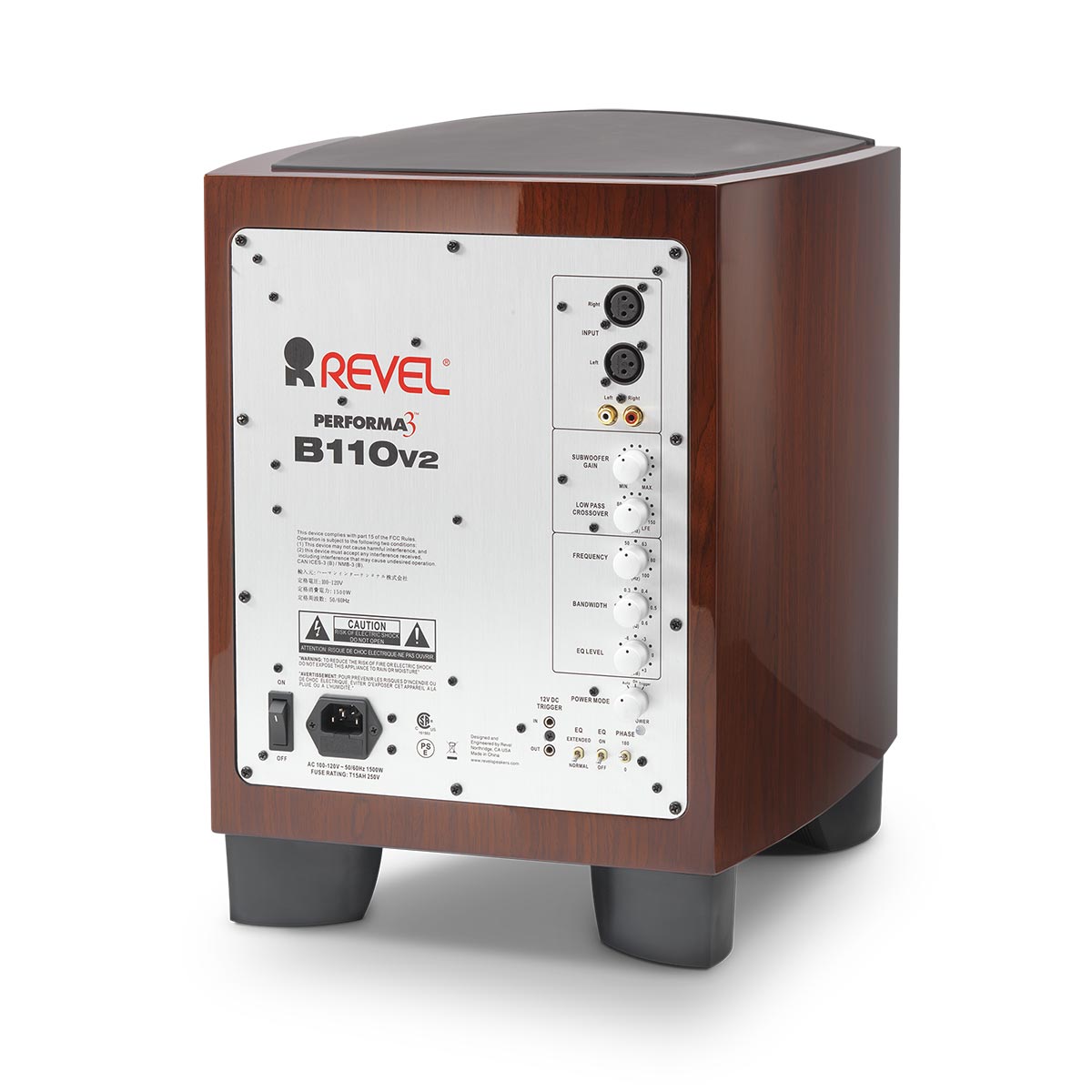

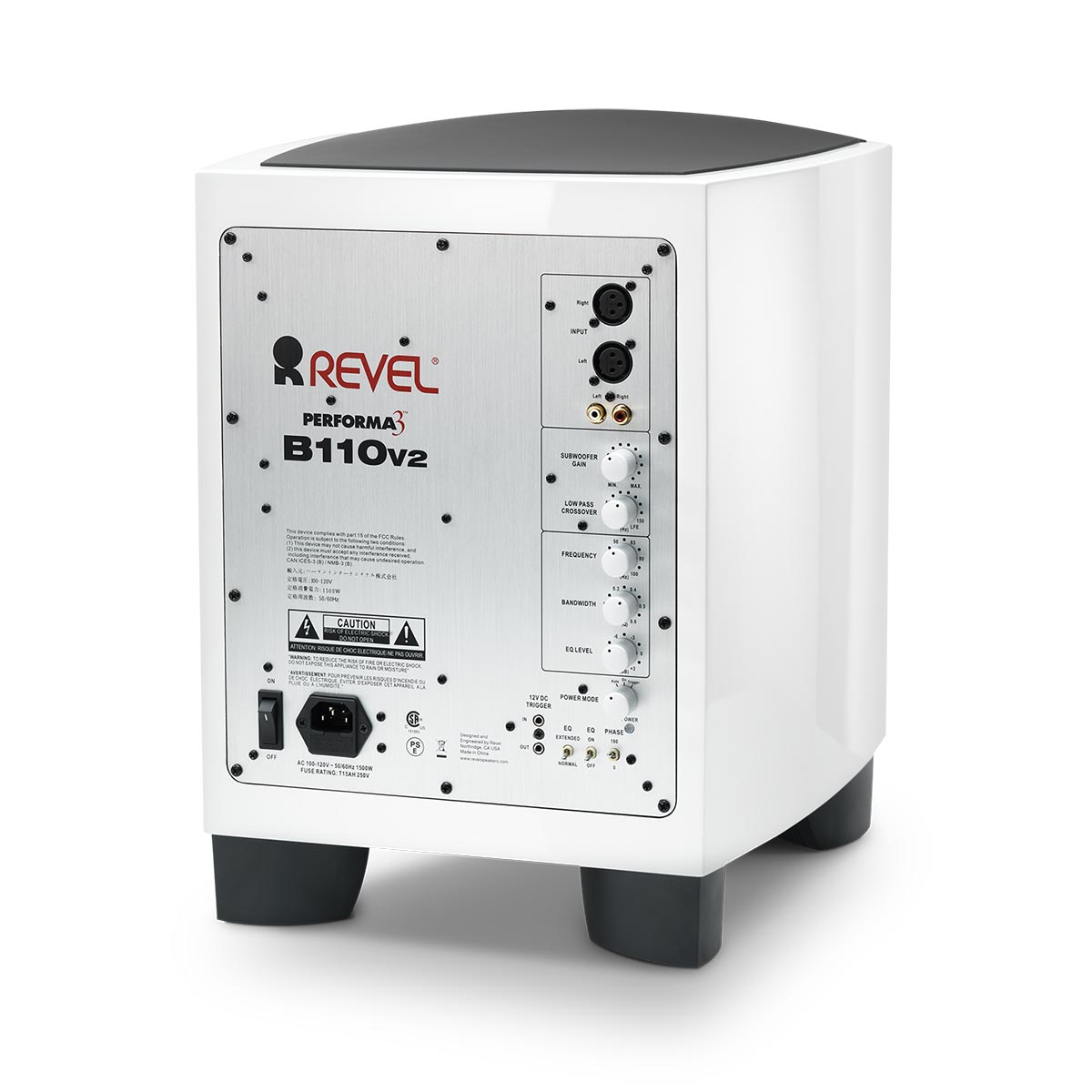

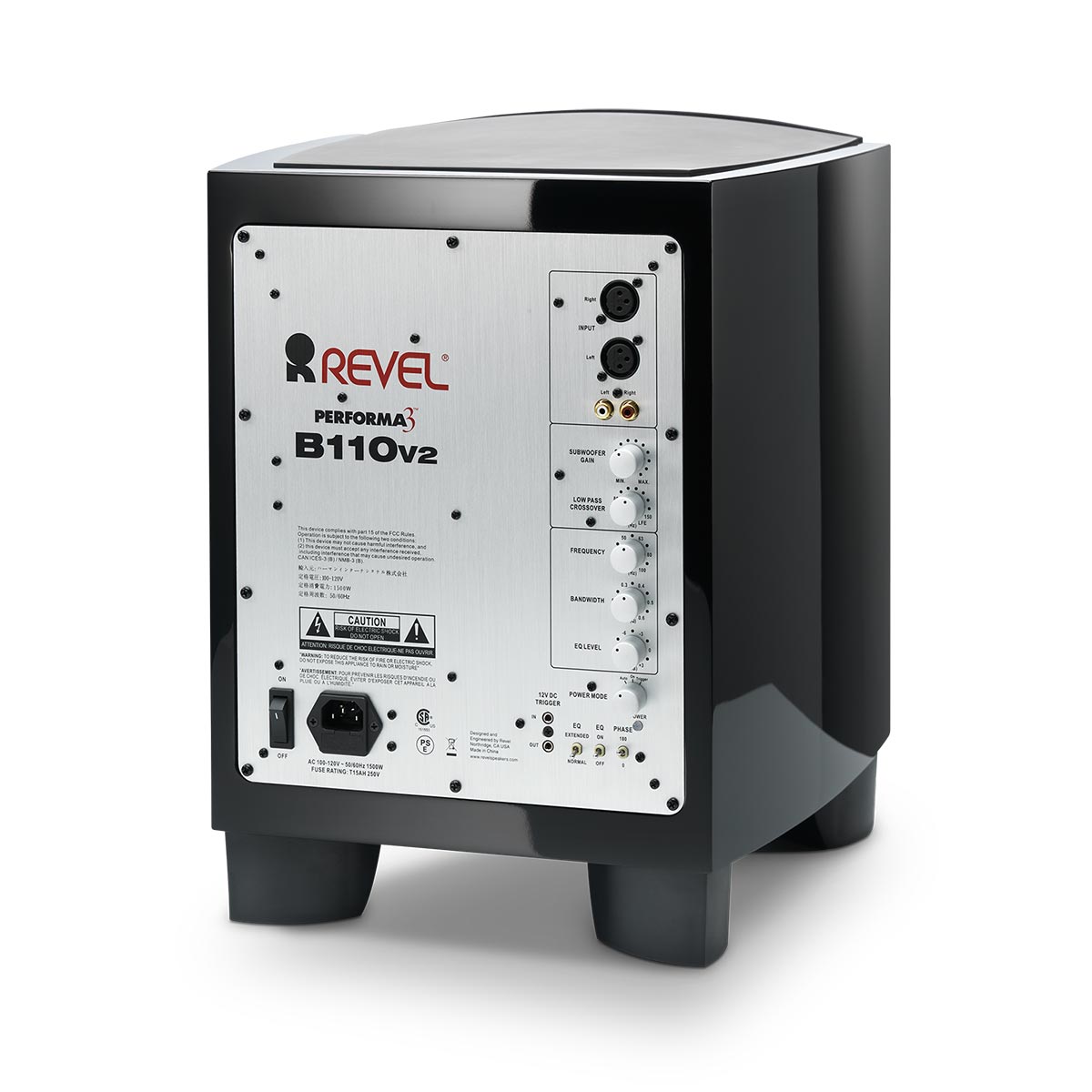

Additional cooling vents in the back plate increase power handling while reducing compression. The cast aluminium frame is fully vented to minimize acoustic losses from excessive back pressure. A 50mm two-layer copper voice coil wound on a high heat-tolerant fibreglass former gives the transducer significant range of travel. The parametric EQ is now localized onboard, rather than software-based, for easy adjustments in real time, as you listen.

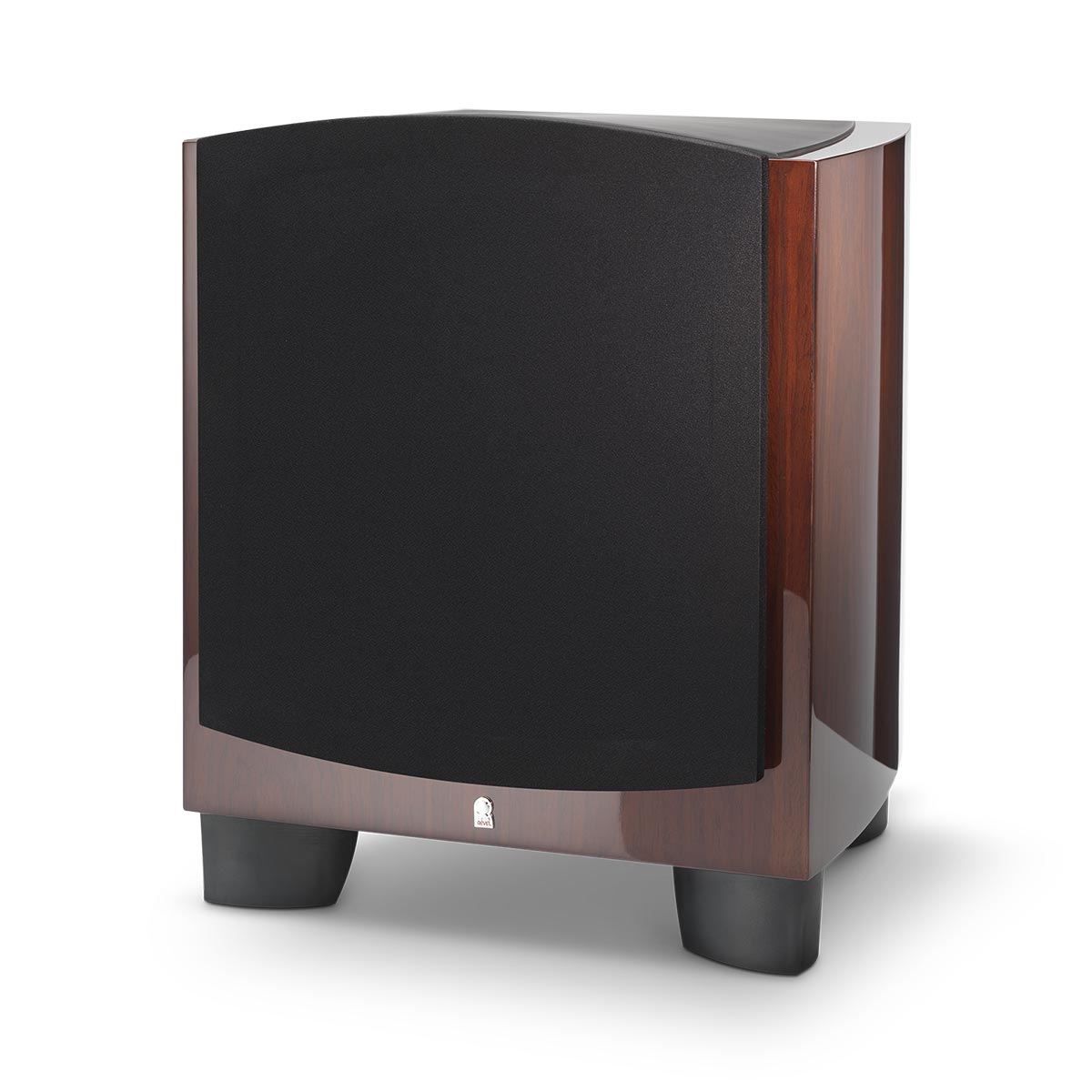

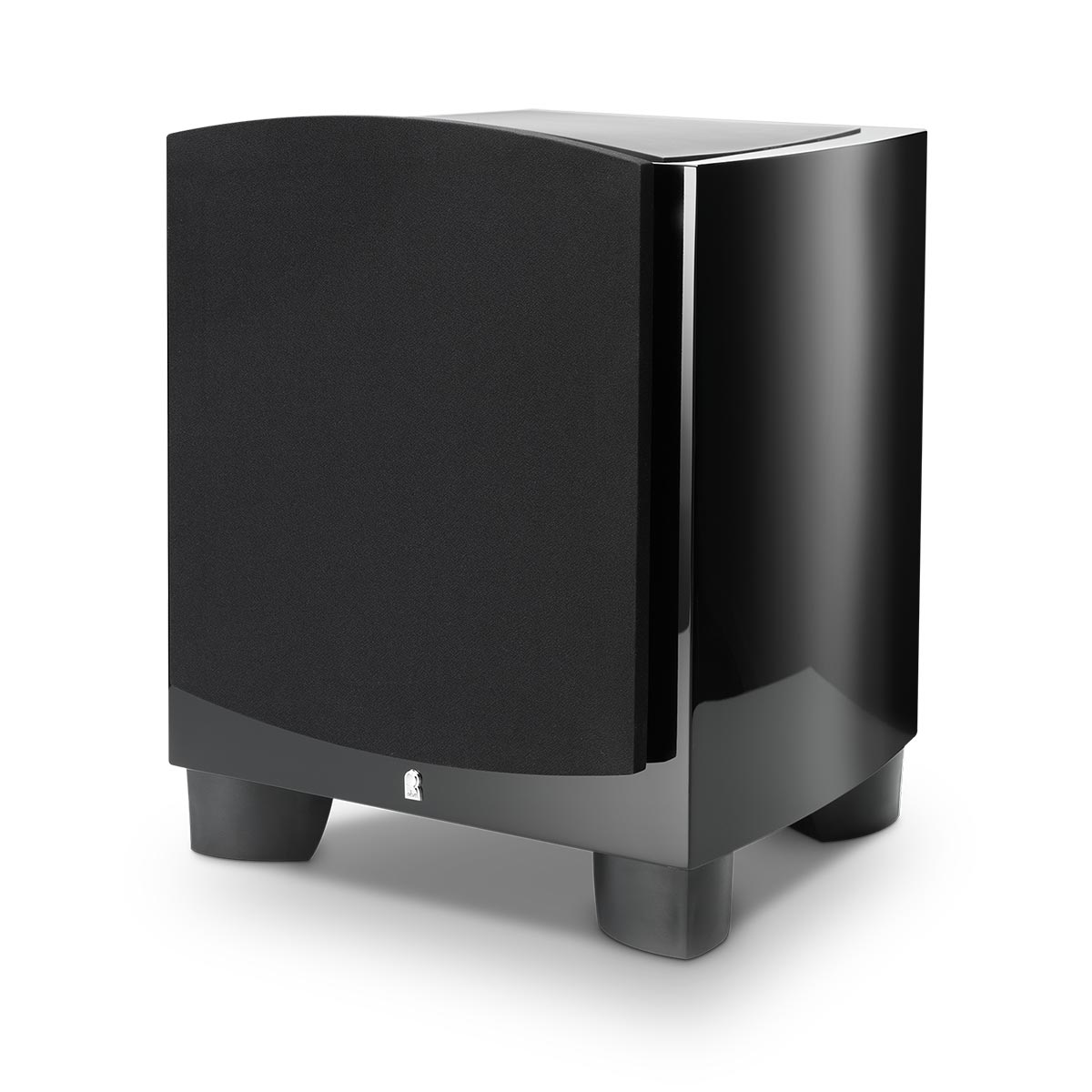

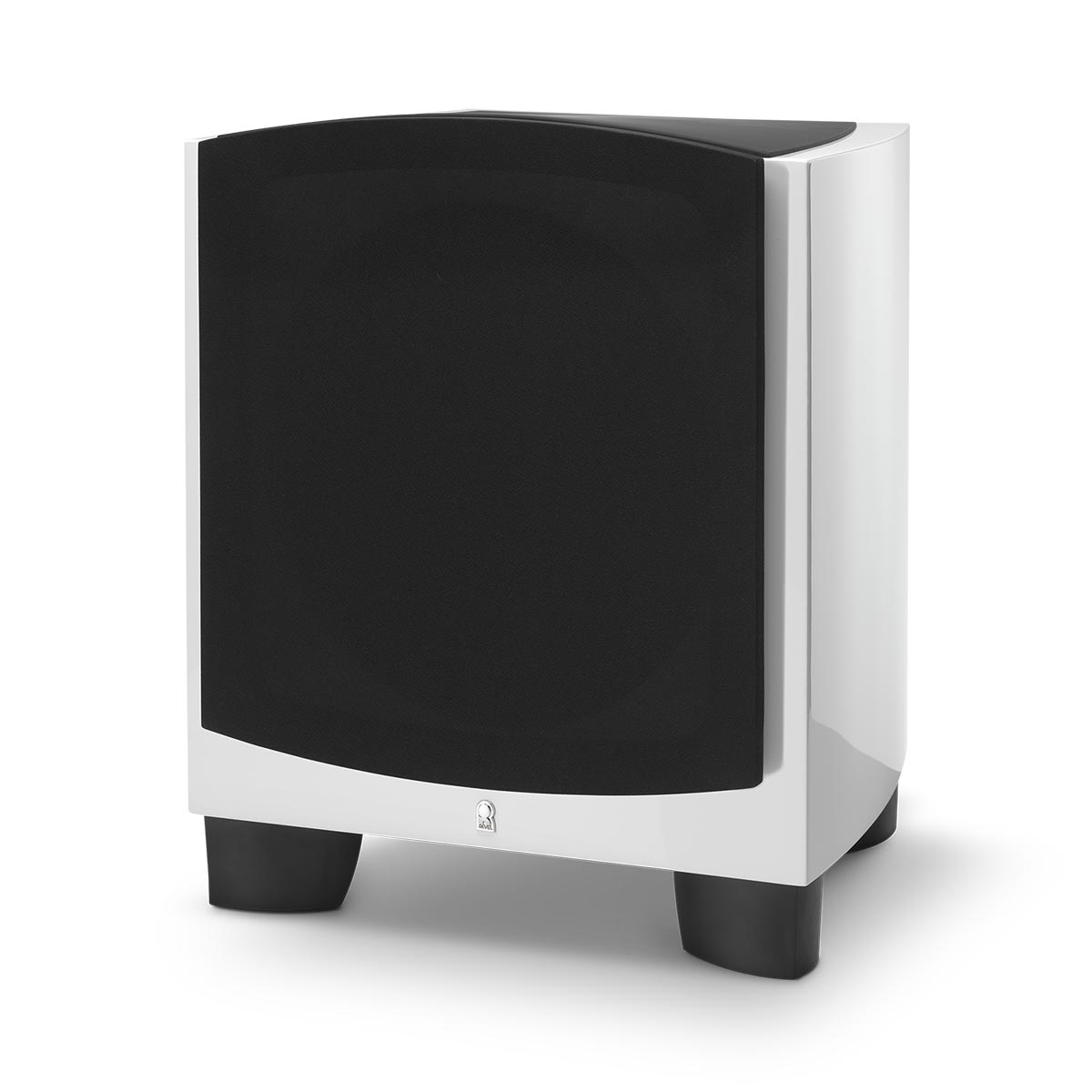

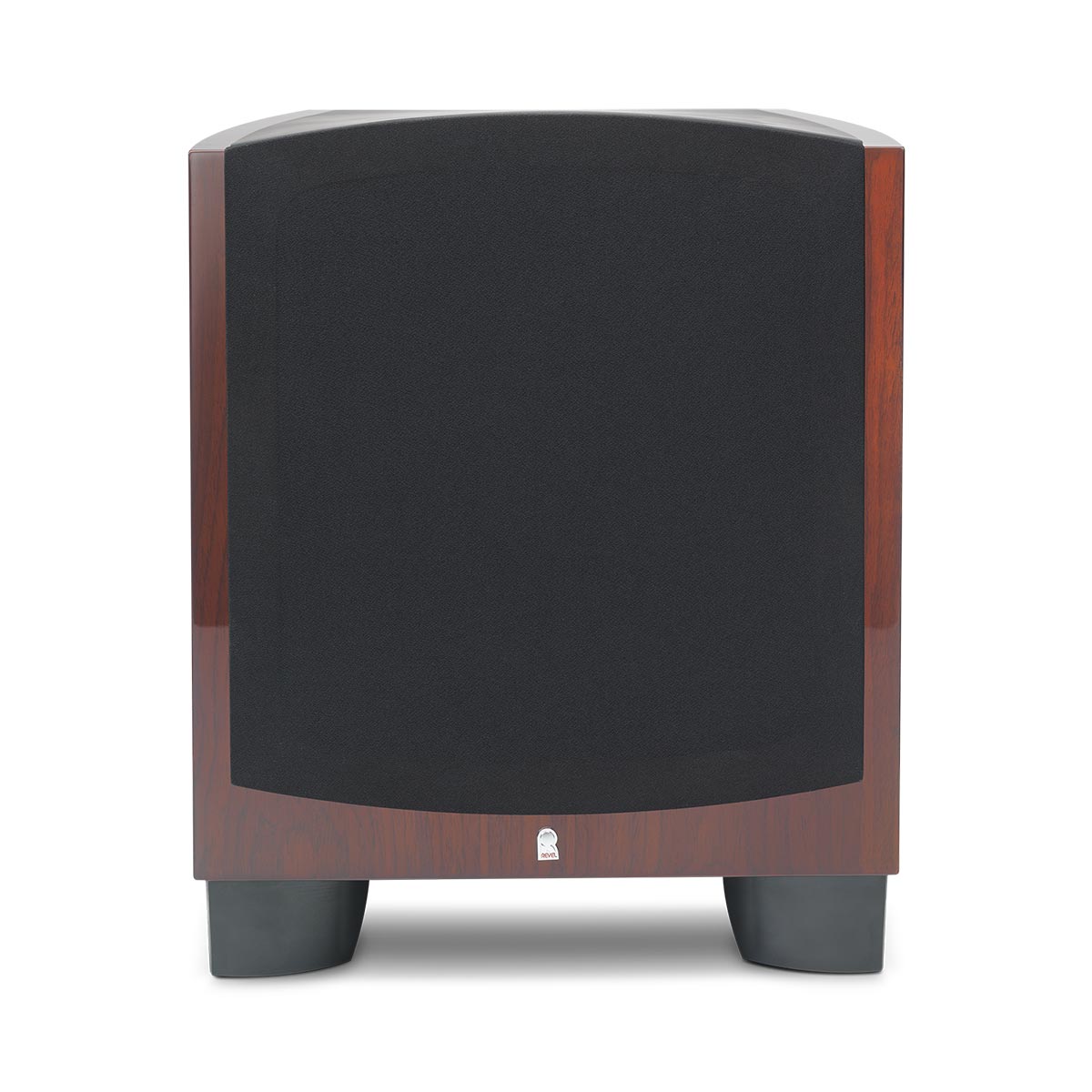

The elegant cabinet, available in premium high-gloss black, white and walnut, is formed with contiguous wood layers to prevent splitting. Strategically oriented internal bracing virtually eliminates unwanted cabinet vibration, and thereby coloration.
All Revel loudspeakers, including the B110V2, undergo double-blind, position-independent competitive tests during development, utilising the latest psychoacoustic research and processes, to ensure that when you’re buying Revel, you’re buying the best.
|Drive Components||Coated Paper/Pulp Cone with 50 mm Two-Layer Copper Voice Coil, Vented Ceramic 5 Magnet Assembly and Vented Die-Cast Aluminium Frame|
|Amplifier Power||1,000 Watts RMS|
|Low Frequency Extension (Normal Mode)||27 Hz (-10 dB); 30 Hz (-6 dB); 34.4 Hz (-3 dB)|
|Low Frequency Extension (Extended Mode)||24 Hz (-10 dB); 27 Hz (-6 dB); 30 Hz (-3 dB)|
|Crossover Frequencies||50 Hz - 150 Hz low-Pass Filter with LFE Bypass|
|Input Sensitivity||400 mV (Full Power)/20k Ohms (Balanced); 14k Ohms (Unbalanced)|
|Inputs||Balanced (XLR), Unbalanced (RCA)|
|Dimensions (H x W x D)||428 x 364 x 342 mm (16.875" x 14.31" x 13.44")|
|Weight||24.4 kg (53.8 lb)|
|Finishes||Piano Black, Piano White or High Gloss Walnut|
