DALI SUB P-10 DSS 10" Active Subwoofer

Brand: DALI
Product Code: DAL-SUBP10DSS
Warranty: Driver: 5 Years / Amplifier: 2 Years
Colour: *

$6,499.00
Qty:
DALI
Truck
Free Shipping On Orders Over $99
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

SUB P-10 DSS

The DALI SUB P-10 DSS sets the highest standards for subwoofer performance in any listening room or dedicated home theatre. Featuring a 10" down-firing woofer and two side-mounted passive radiators, the SUB P-10 DSS delivers an award-winning performance.


High-Yield Amplifier

DALI subwoofer amplifiers have the stamina to maintain high-yield performance and the headroom to handle the most challenging audio.

Flexible Connectivity

With LFE and LINE inputs, DALI subwoofers are compatible with almost any amplifier or receiver.

Elegant, Simple Design

The cabinet and driver are perfectly matched to deliver a powerful bass performance.

Rigid Cone Structure

The rigid aluminium or carbon fibre cone eliminates the need for a dust cap and provides linear, piston-like driver movement.

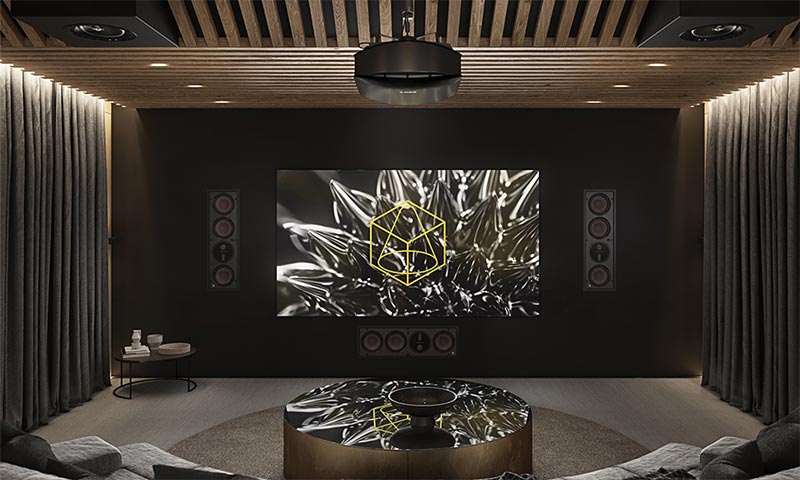

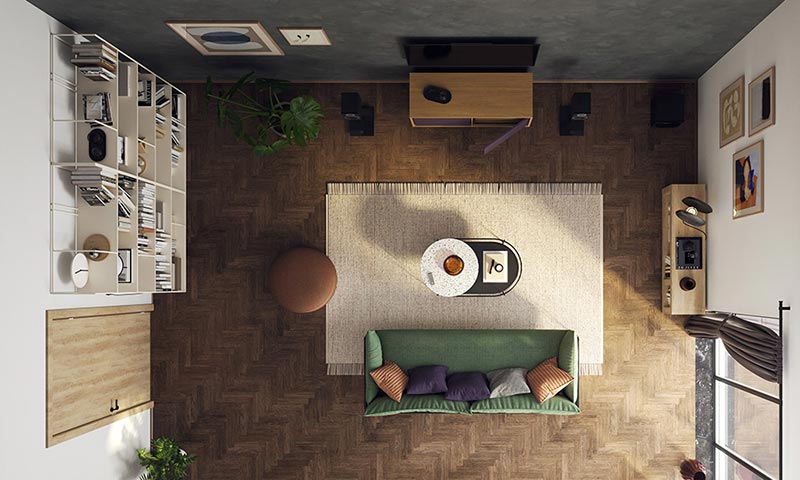

Perfect Placement

Maximising the bass output and distribution around the room.

Placing a subwoofer is a large part of creating the perfect audio reproduction. To maximise the bass output and distribution around the room, we recommend placing the SUB P-10 DSS in a corner or, if that's not possible, along a wall. The design, technology and construction make it a great match for mid and high-end stereo and home theatre systems featuring speakers from our EPICON or RUBICON series.

DALI SUB P-10 DSS Subwoofer

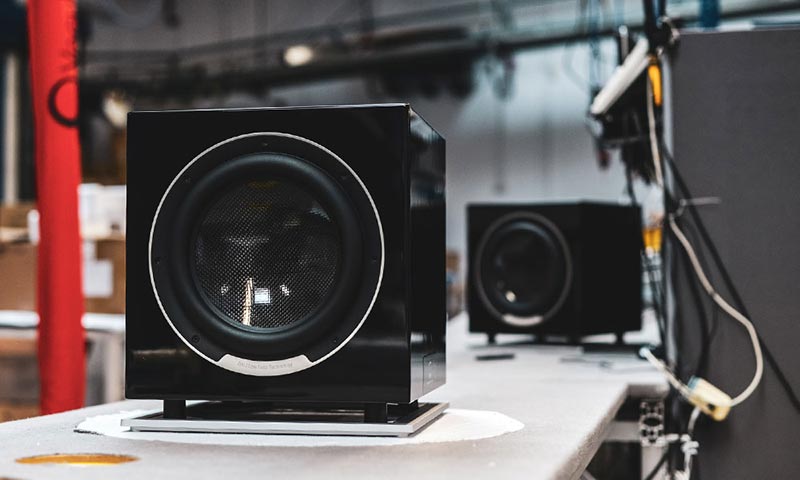

Active Woofer

A rigid cone with superior breakup characteristics.

The SUB P-10 DSS is equipped with an active 10" down-firing woofer. The cone is a sandwich construction with carbon fibre at the front paired with paper pulp at the back. The geometry and the material applied to it eliminate the need for a dust cap. The result is a rigid yet lightweight and agile cone with superior breakup characteristics that delivers precise bass reproduction and fully renders the dynamics of the signal.

DALI SUB P-10 DSS Subwoofer

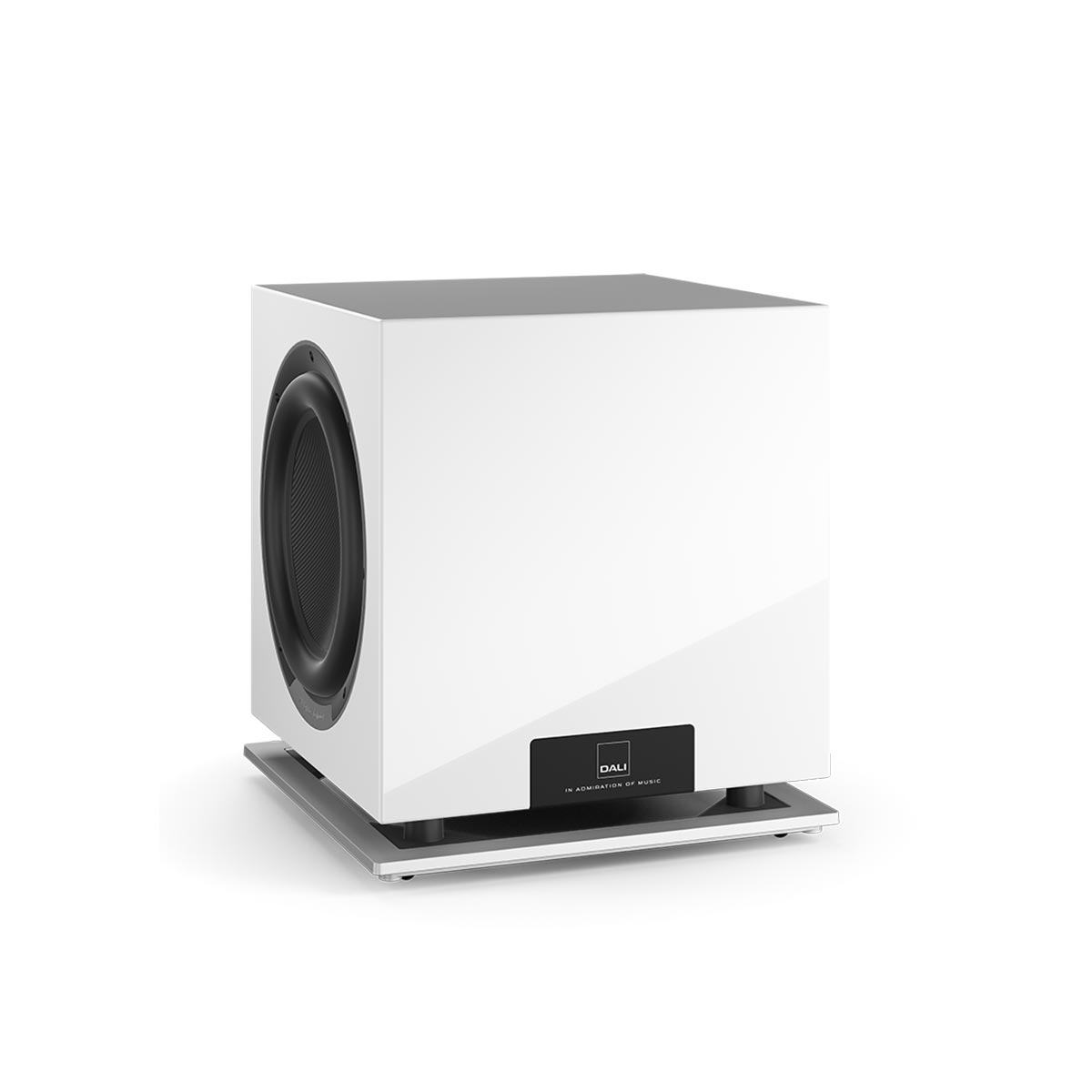

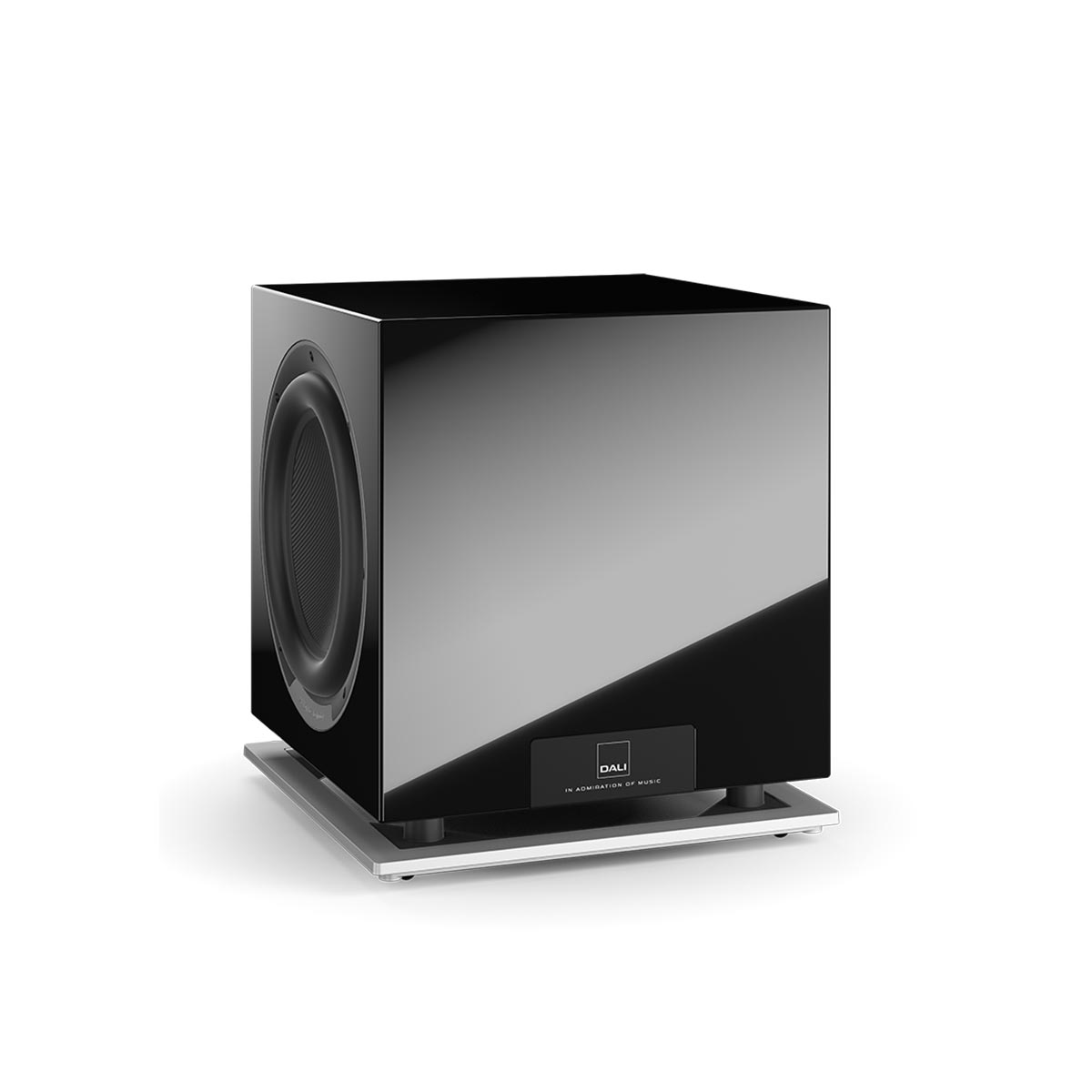

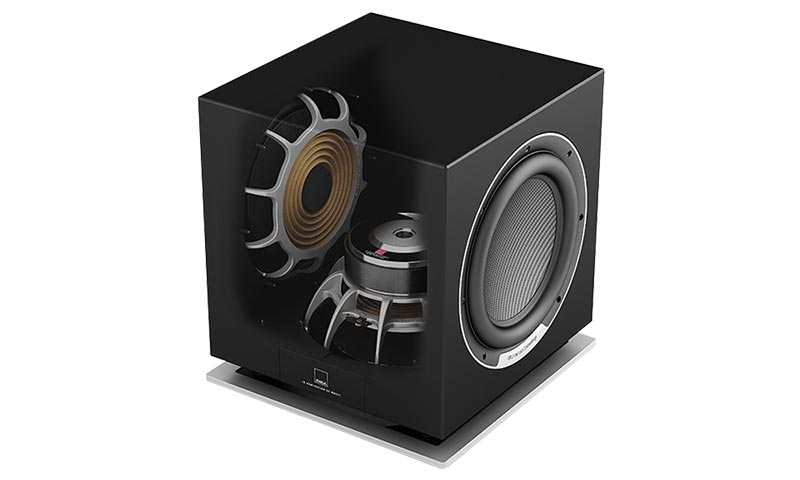

Passive Woofers

Designed with the same tonal balance as the active driver.

The two side-mounted passive woofers share much of the same technology as the active driver. The cone geometry and carbon fibre material are identical to the down-firing woofer, while the 'upper' part of the chassis, with 10 legs and suspension, is also the same. Unlike the active driver, the passive units only include one spider and of course no voice coil or magnet system. The purpose of each passive radiator is to emulate the movements of the active woofer and to achieve the same tonal balance – something which we've spent hundreds of hours perfecting.

DALI SUB P-10 DSS Subwoofer

Class D Amplifier

Stamina to keep pushing and headroom to draw out that little extra.

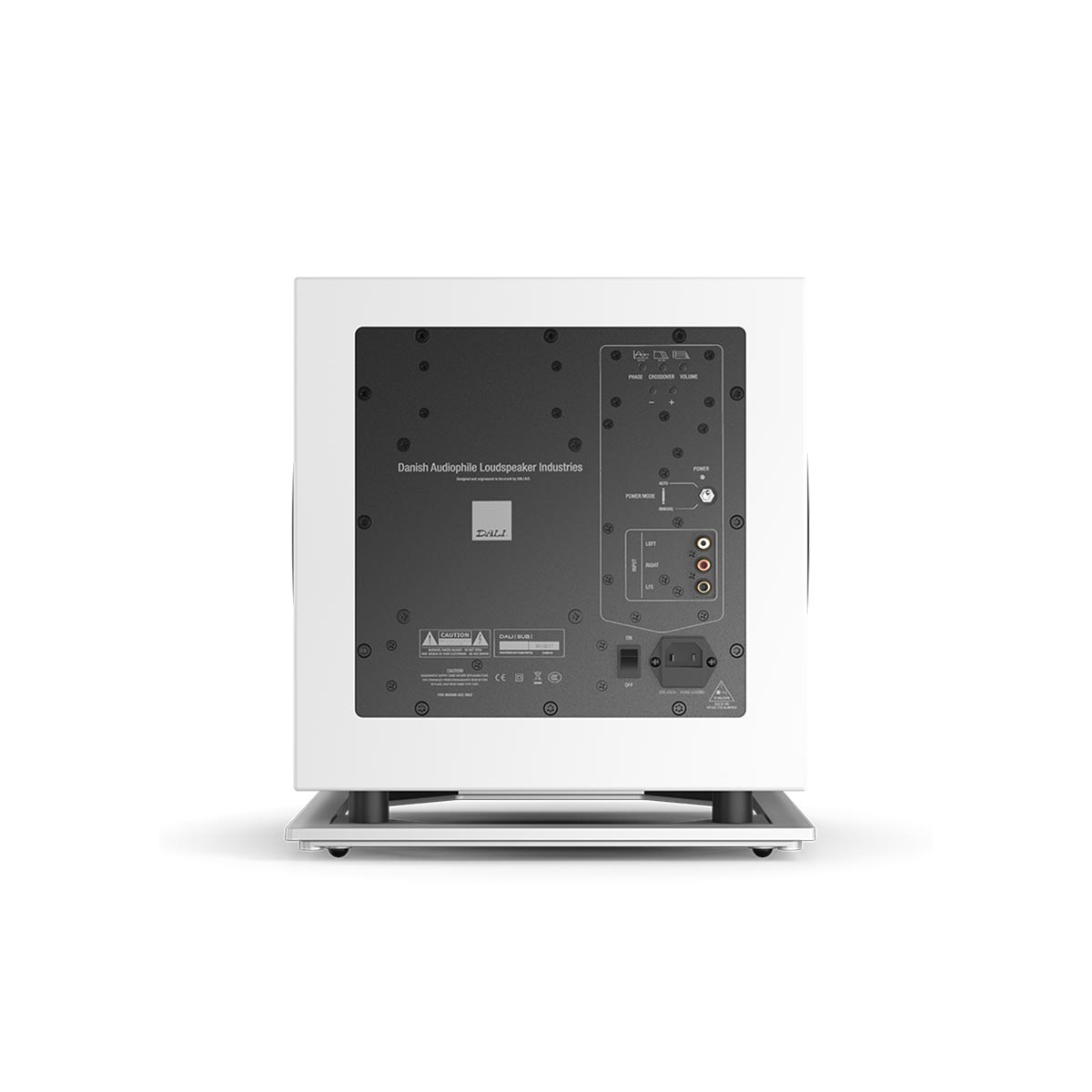

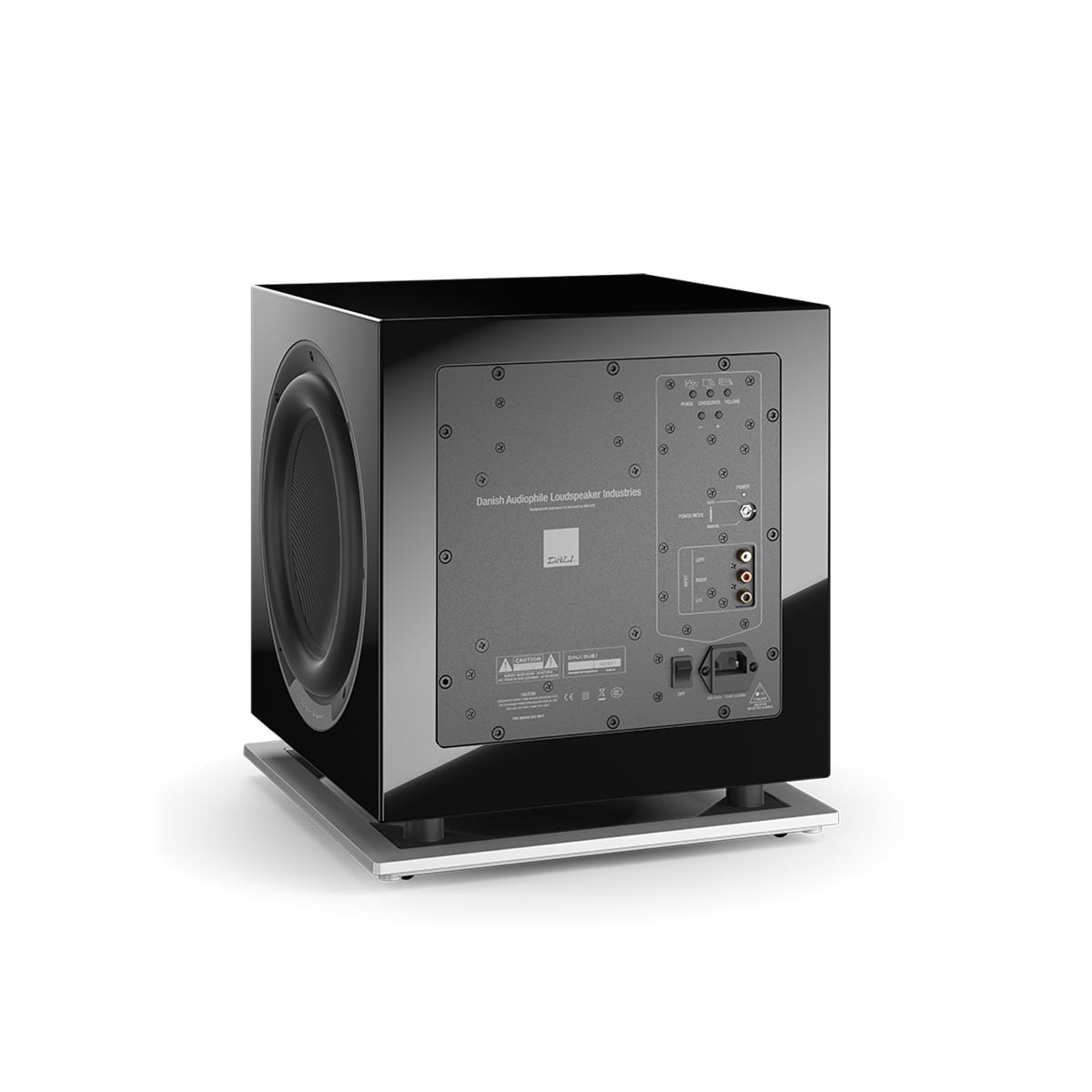

The powerful, integrated 300 Watt RMS Class D amplifier is highly linear and renders audio with absolute integrity. Designed for maximum continuous power, the SUB P-10 DSS also delivers 500 Peak Watts, which is highly relevant for both music and movie audio. With a choice of LFE and LINE inputs, the SUB P-10 DSS can be connected to almost any amplifier, receiver or processor.

DALI SUB P-10 DSS Subwoofer

Hi-Fi & Cinema Mode

Tailoring the sound to your listening material.

Using the SUB P-10 DSS remote control, you can fine-tune the sound to suit what you're watching or listening to. For realistic and powerful rendering of explosions and other high-action audio effects in a movie, CINEMA mode amplifies the lowest frequencies to recreate the most realistic experience. For a more neutral and linear performance, Hi-Fi mode delivers precise rendering of the musical details, while optimising the integration with your front speakers.

DALI SUB P-10 DSS Subwoofer

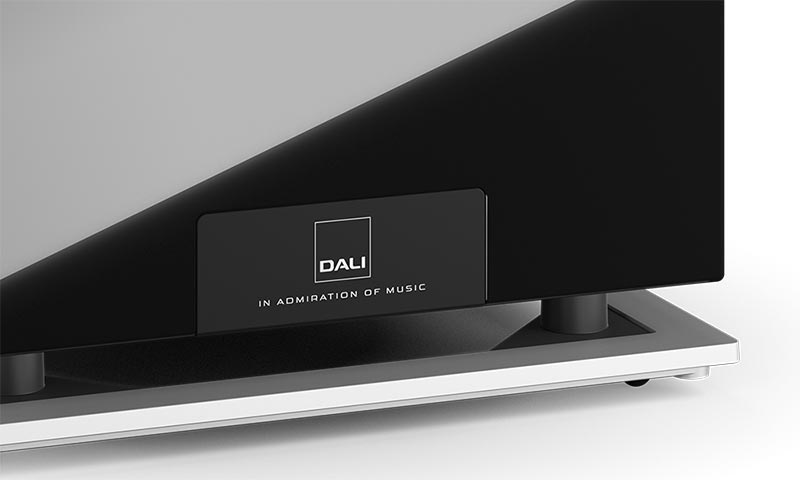

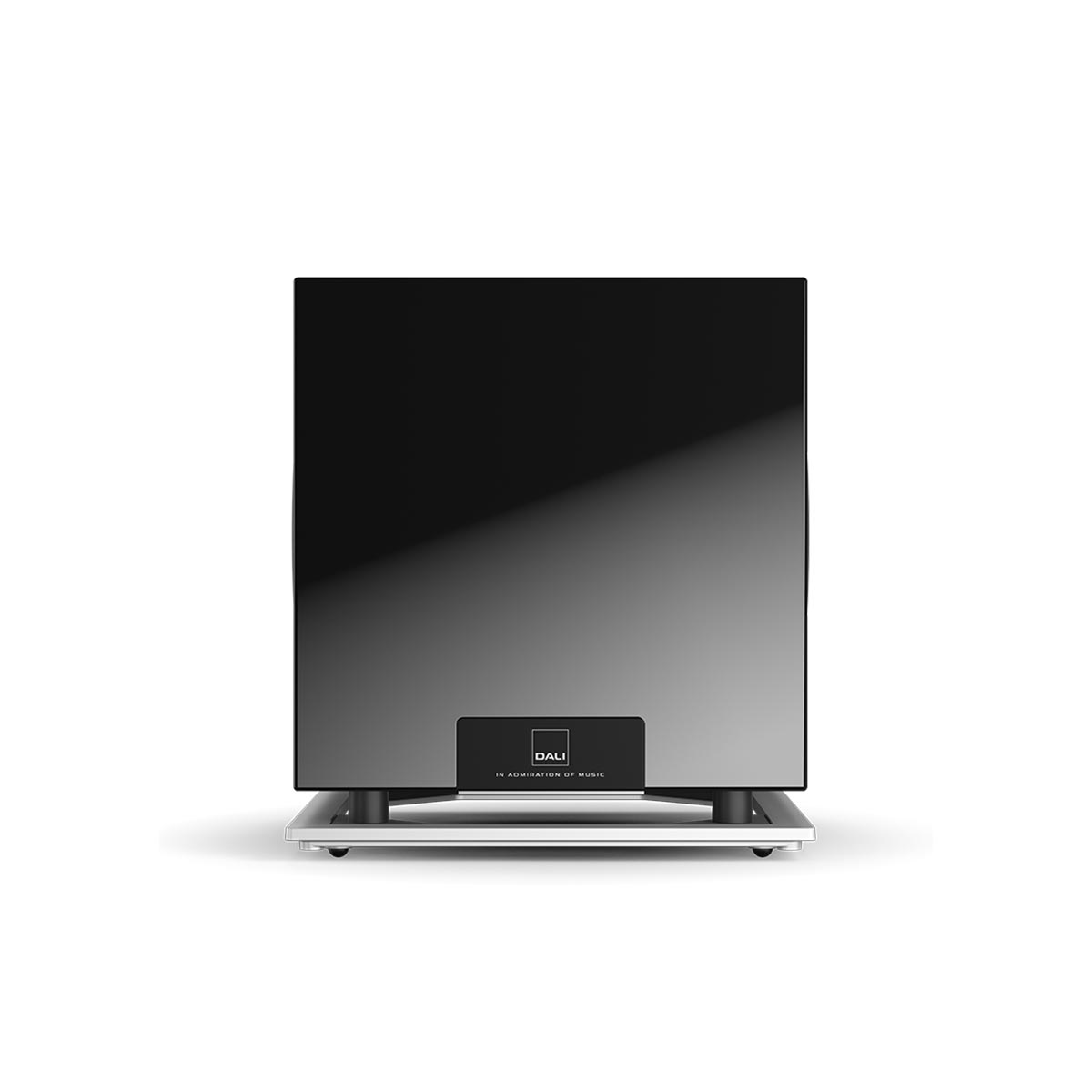

Cabinet Design

Robust down-firing woofer that moves lots of air.

The SUB P-10 DSS features a solid down-firing woofer that's able to move plenty of air. To ensure a stable, resonance-free platform for the 10” woofer, the base of the cabinet is made from 25 mm wood laminate, onto which the woofer is firmly mounted. To eliminate potential turbulence underneath the subwoofer, the sleek aluminium base and spacers raise the cabinet by 45 mm, effectively decoupling it from the floor. This also increases the overall efficiency and creates a seamless acoustic coupling to the room.

DALI SUB P-10 DSS Subwoofer
Specifications
Frequency Range (+/-3 dB) 24 - 250 Hz
Maximum SPL 112 dB
Crossover Frequency 40 - 120 Hz
Low Frequency Driver - Quantity 1 x 10" Long Stroke
Low Frequency Driver - Diaphragm Type Carbon Fibre Cone
Low Frequency Passive Driver - Quantity 2 x 10" Long Stroke
Low Frequency Driver - Diaphragm Type Carbon Fibre Cone
Enclosure Type Closed Box with Dual Passive Radiators
Max. Amplifier Power Output 500 Watts RMS
Continous IEC Power Output 300 Watts RMS
Input Impedance 26k Ohms
Connection Input Mono (LFE), RCA, Stereo (Low-Pass Filtered)
Magnetic Shielding No
Recommended Placement Floor
Recommended Distance From Wall >5 cm
Functions Cinema/Hi-Fi Switch, Crossover Frequency, Standby (Auto Power) On/Off Switch, Variable Phase Control, Volume (Gain)
Max. Power Consumption 550 W
Dimensions with Base (H x W x D) 370 x 340 x 340 mm
Weight 19.5 kg
Accessories Included Manual, Remote Control, Spikes (M10)
