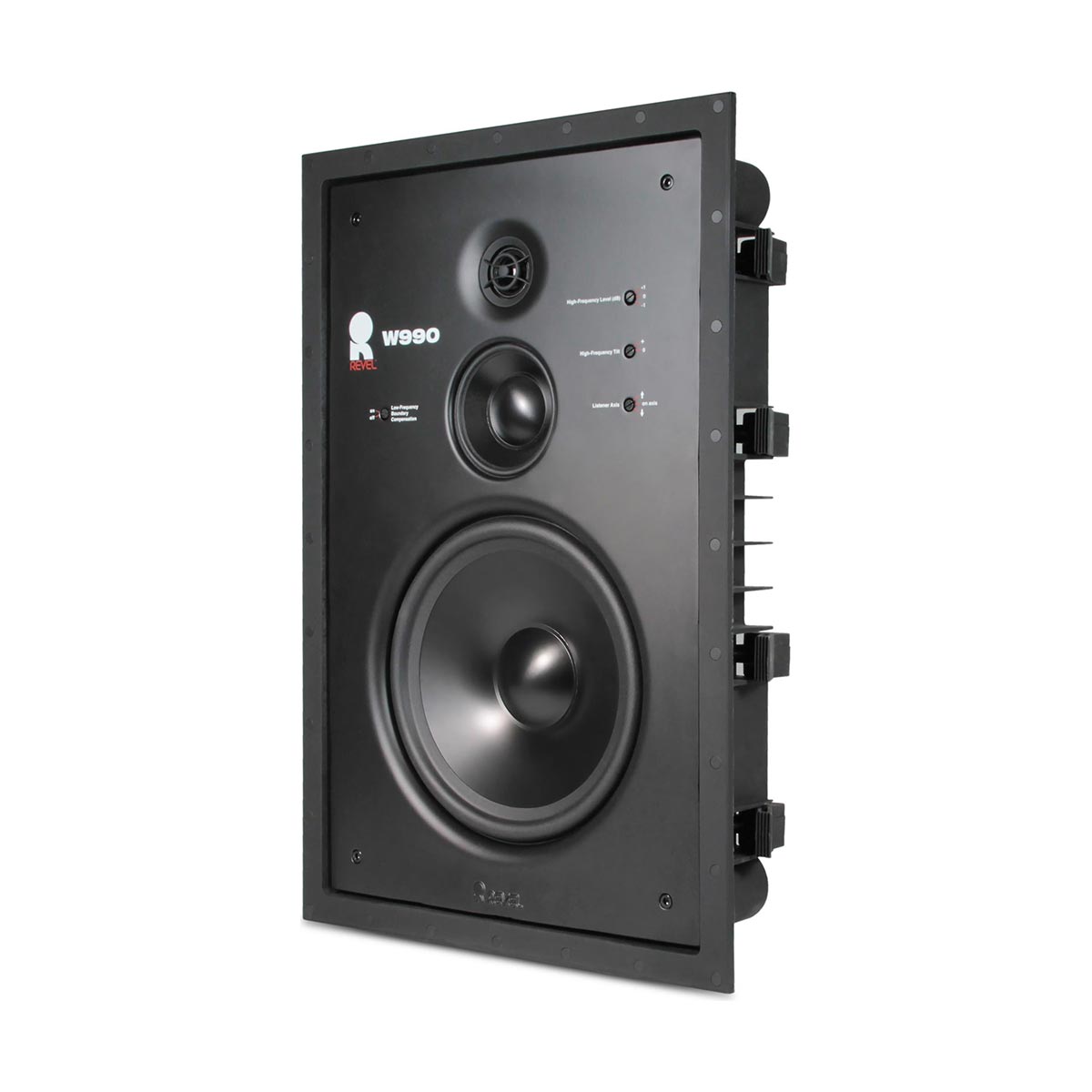

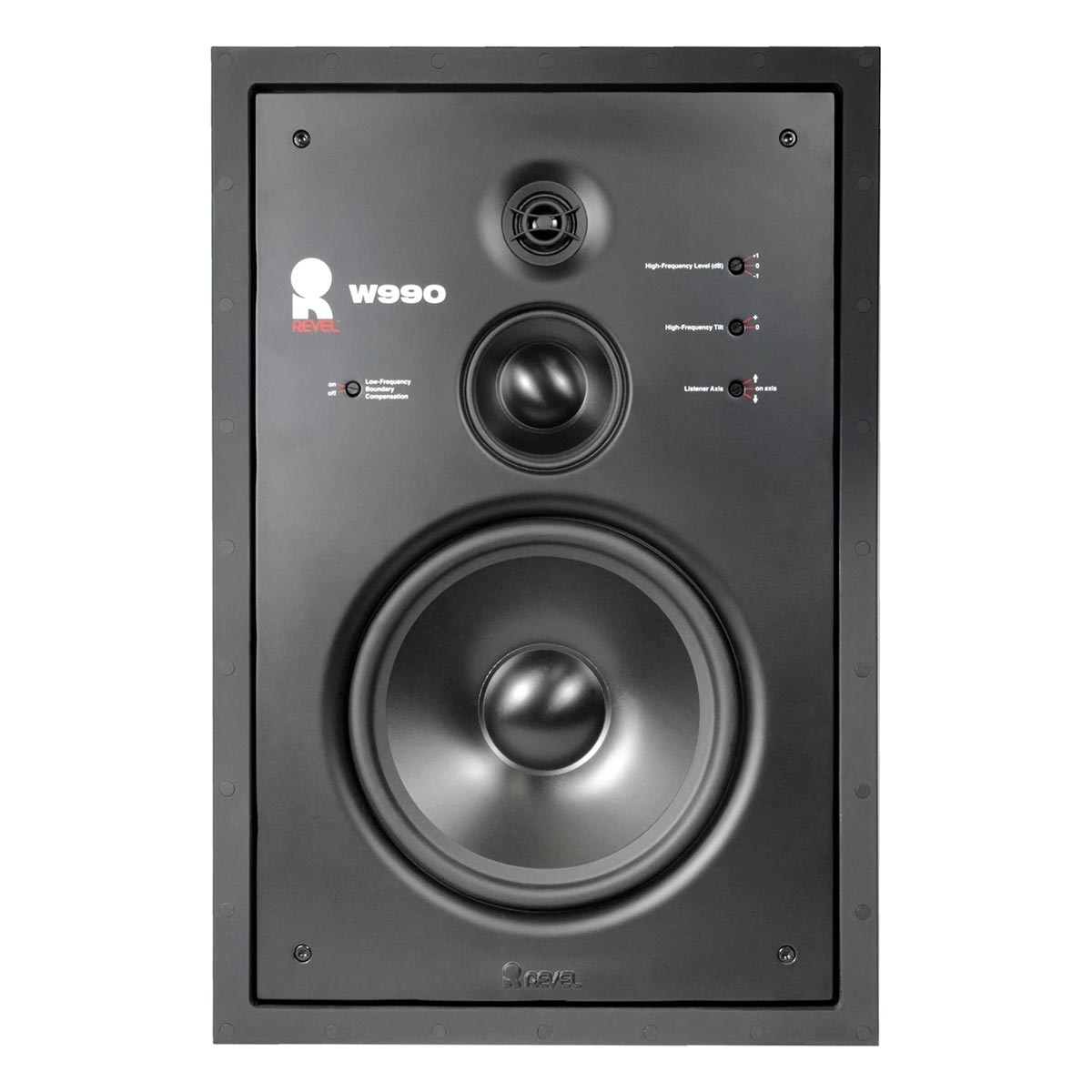

W990 9" Low-Distortion In Wall Loudspeaker

The W990 features Revel’s low-distortion motor structure designs with aluminium tweeters and Micro Ceramic Composite (MCC) cone woofers for true audiophile grade performance and easy timbre-matching to Revel floorstanding, monitor and centre channel loudspeakers.

Installation is quick and easy with a patented installation mechanism that doesn’t require any tools for clamping to the drywall and accommodates a wide variety of wall thicknesses and construction types.

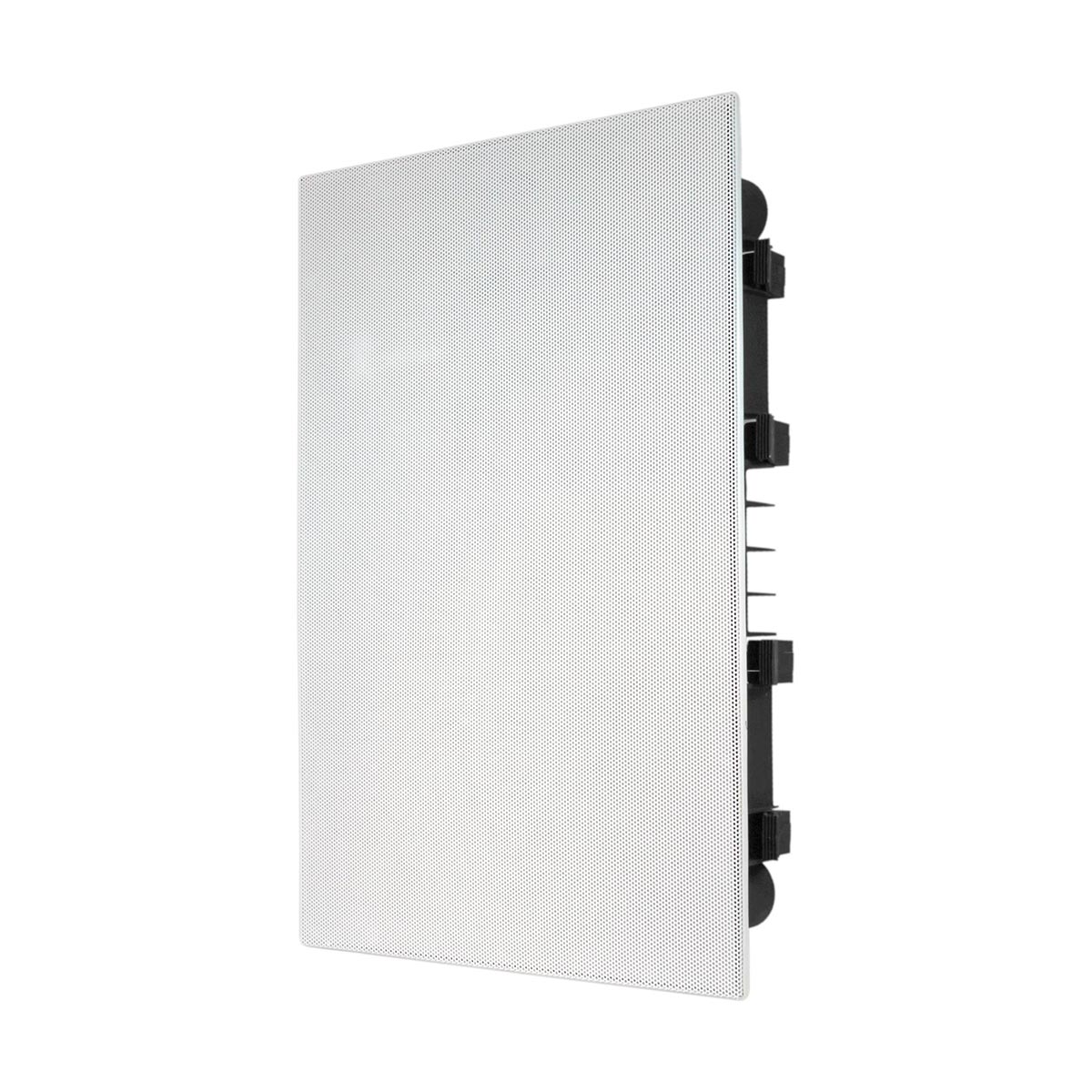

For the finishing touch, frameless grilles attach magnetically giving the loudspeaker an elegant, yet unobtrusive look. All eleven in-wall loudspeaker models include square grilles to provide a perfect match for existing wall fixtures and lighting. With this new in-wall loudspeaker product line, there is a loudspeaker to suit any application from background audio to high-end multichannel home theatre installations proving once again that Revel builds the World’s Finest Loudspeakers.

Key Features

  • Long-throw woofers with cast aluminium frames, MCC (Micro Ceramic Composite) cones and rubber surrounds provide high output with low distortion
  • 1-inch (25 mm) aluminium-dome tweeter with an integrated waveguide provides optimised response both on and off axis

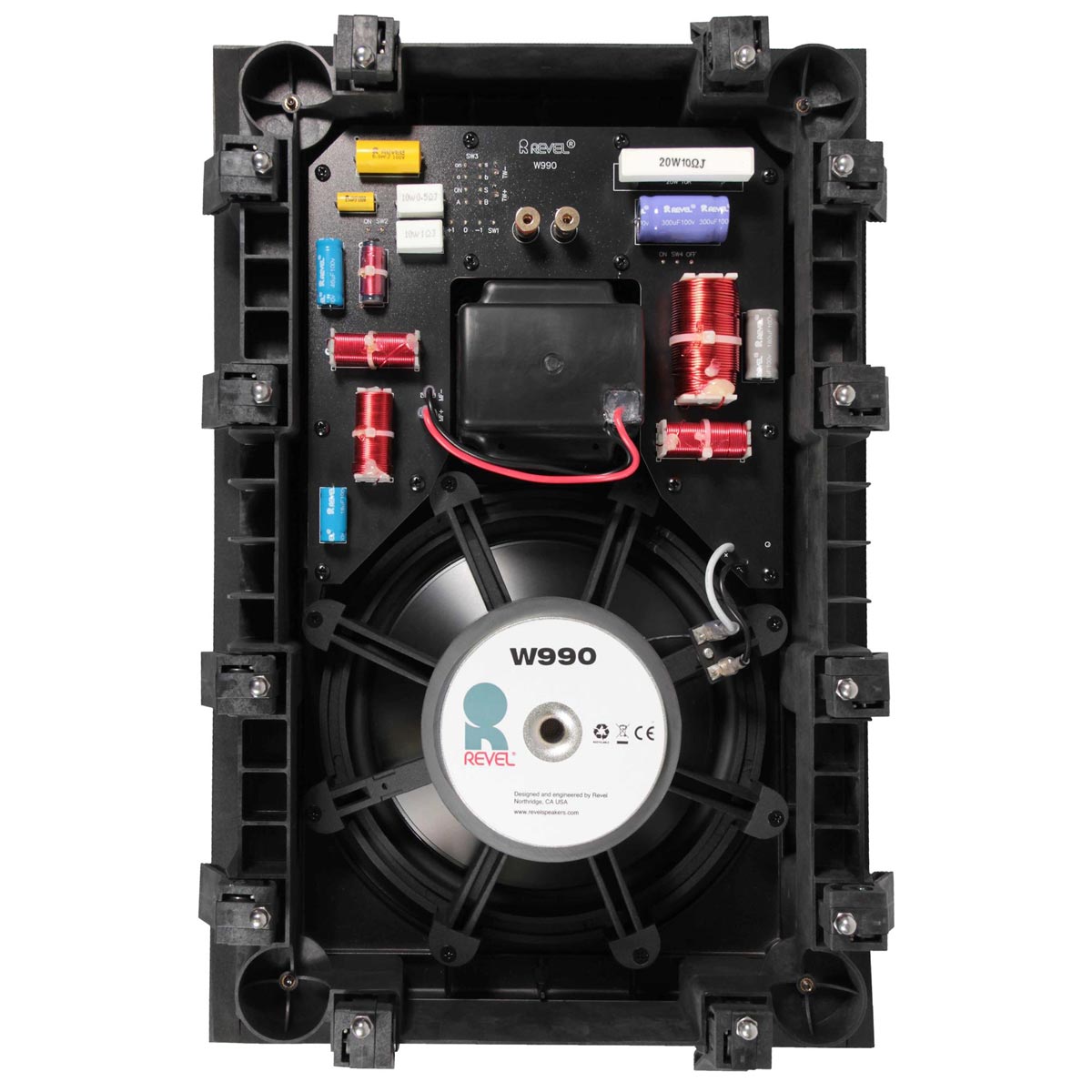

  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
  • Boundary compensation switch lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling
  • Three-position tweeter level control lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
  • High-frequency tilt and listener axis controls help compensate for less-than-ideal speaker placement
Cutout Dimensions (H x W) 486 mm x 318 mm
Mounting Depth 94 mm
Weight 7.7 kg
Shipping Weight 8.8 kg
High-Frequency Driver Components 1" Aluminium Dome High Output Tweeter with Waveguide
Mid-Frequency Driver Components 3.5" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminium Frame High Output Midrange
Low-Frequency Driver Components 9" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminium Frame High Output Woofer
Sensitivity 89 dB @ 2.83 V, 1 m
Recommended Amplifier Power 10 - 200 Watts RMS
