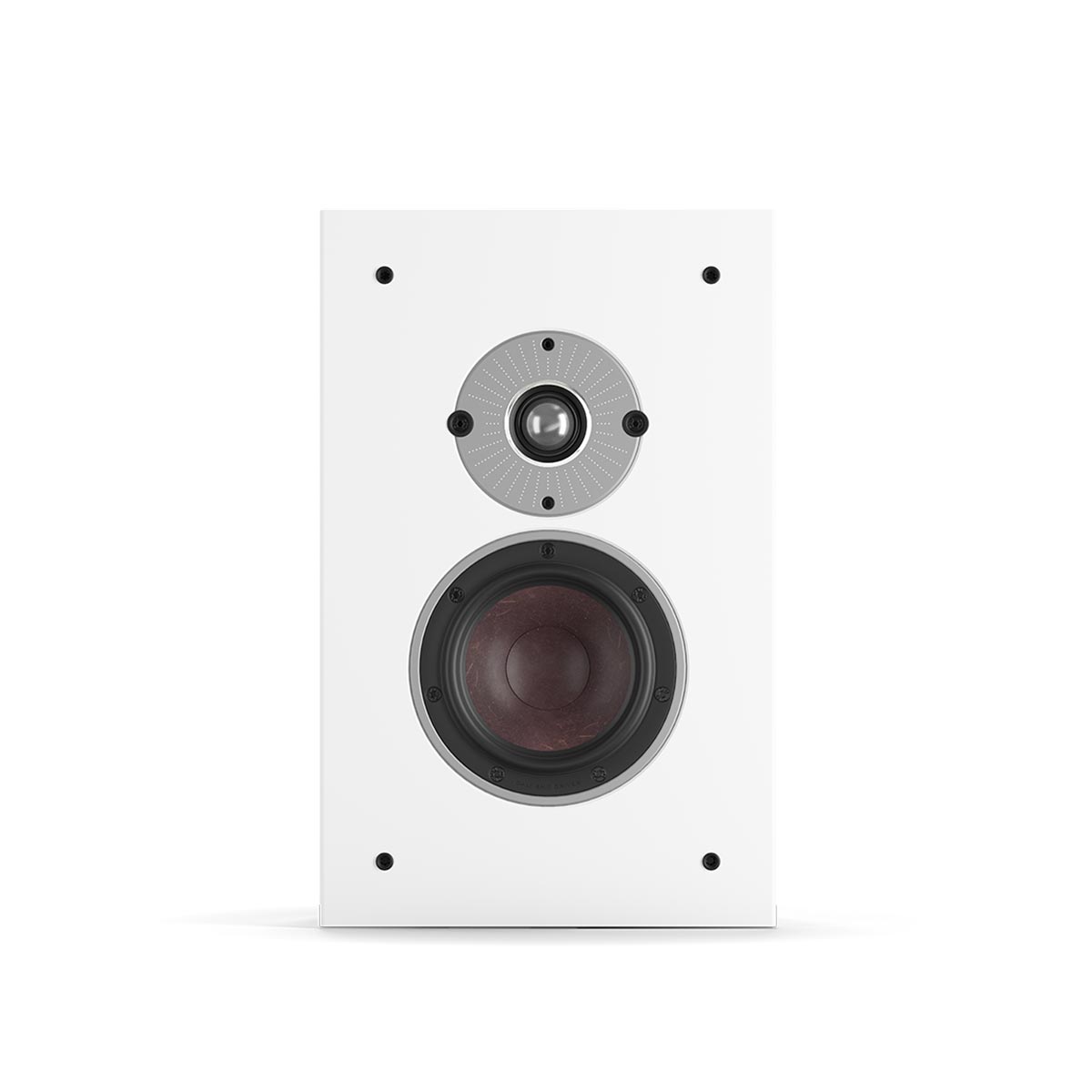

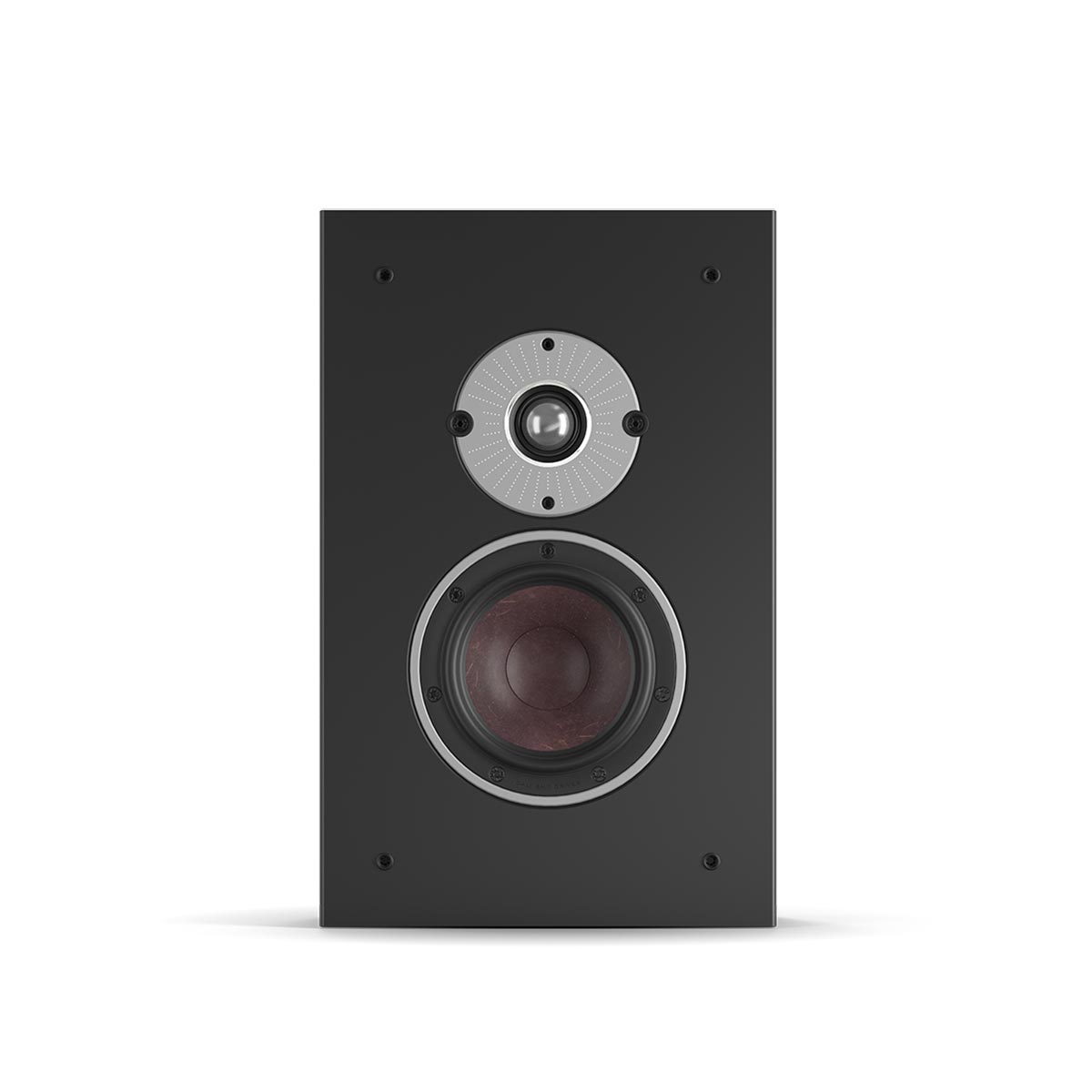

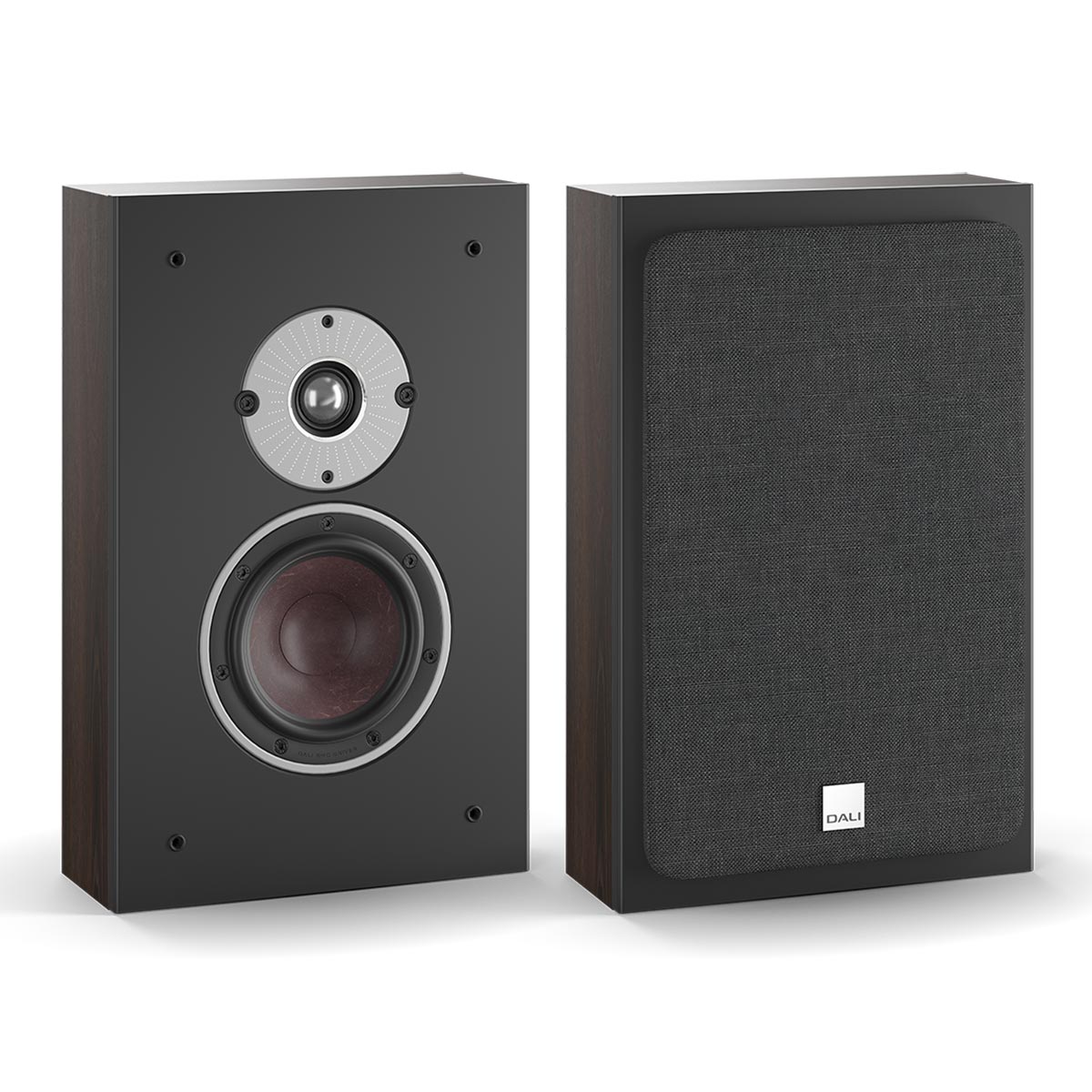

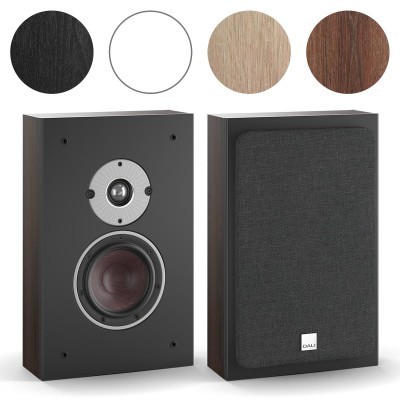

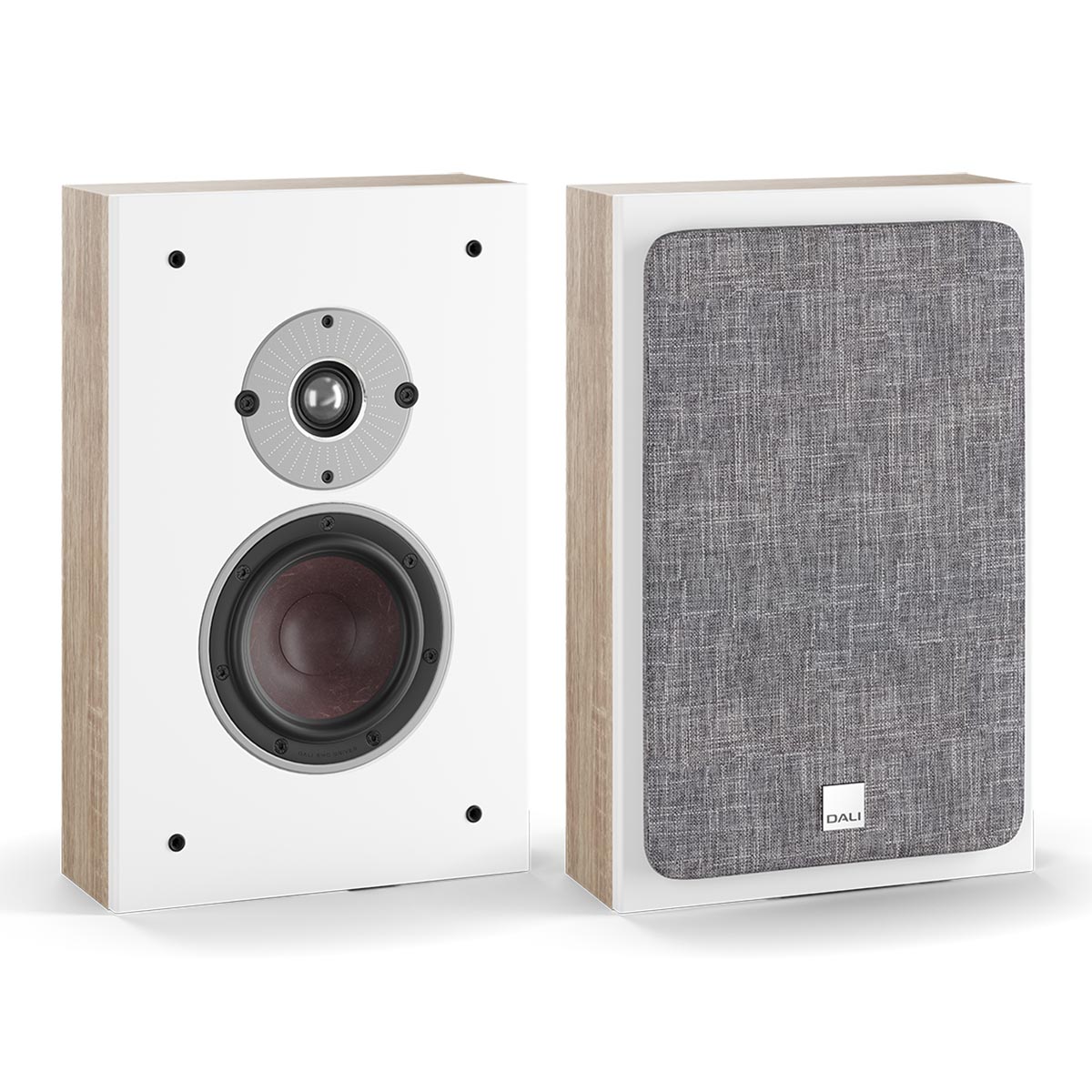

The DALI OBERON ON-WALL is a slim, discreet and surprisingly powerful on-wall speaker. Featuring a unique down-firing bass port system, the OBERON ON-WALL renders large-speaker audio in an attractive, compact design.
Easy to Position
The wide dispersion pattern of the drivers ensures well-integrated sound that drastically reduces off-axis harmonic distortion.

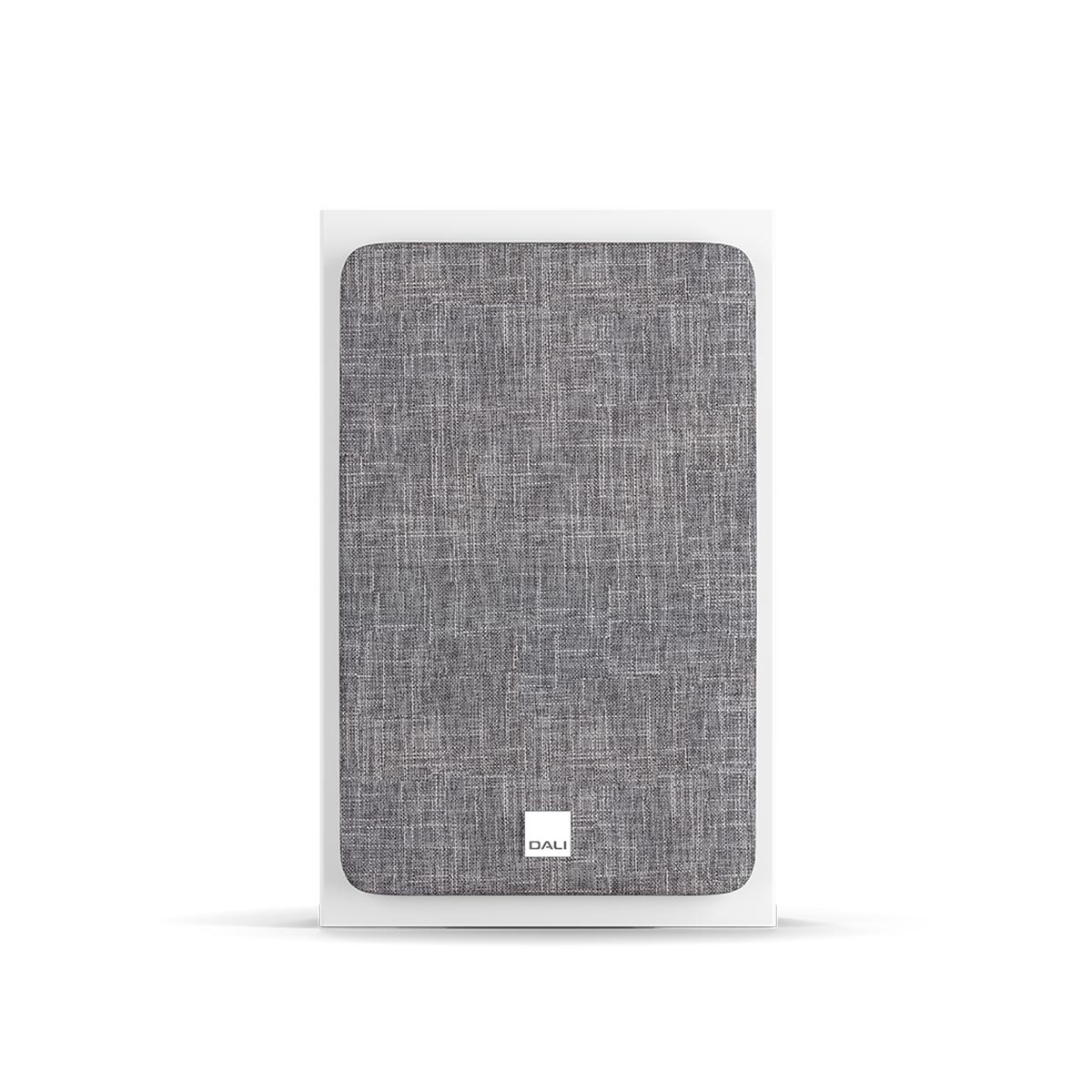

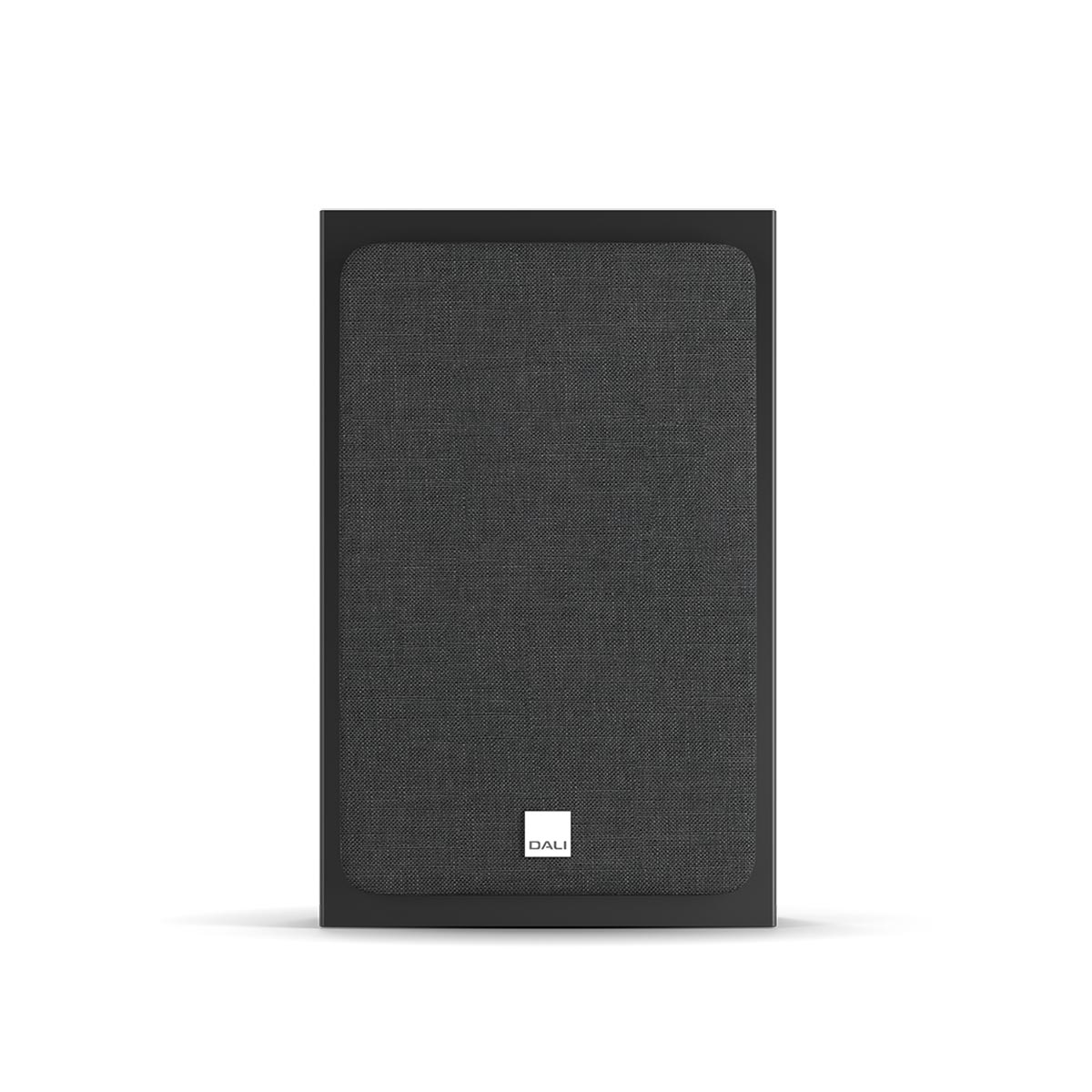

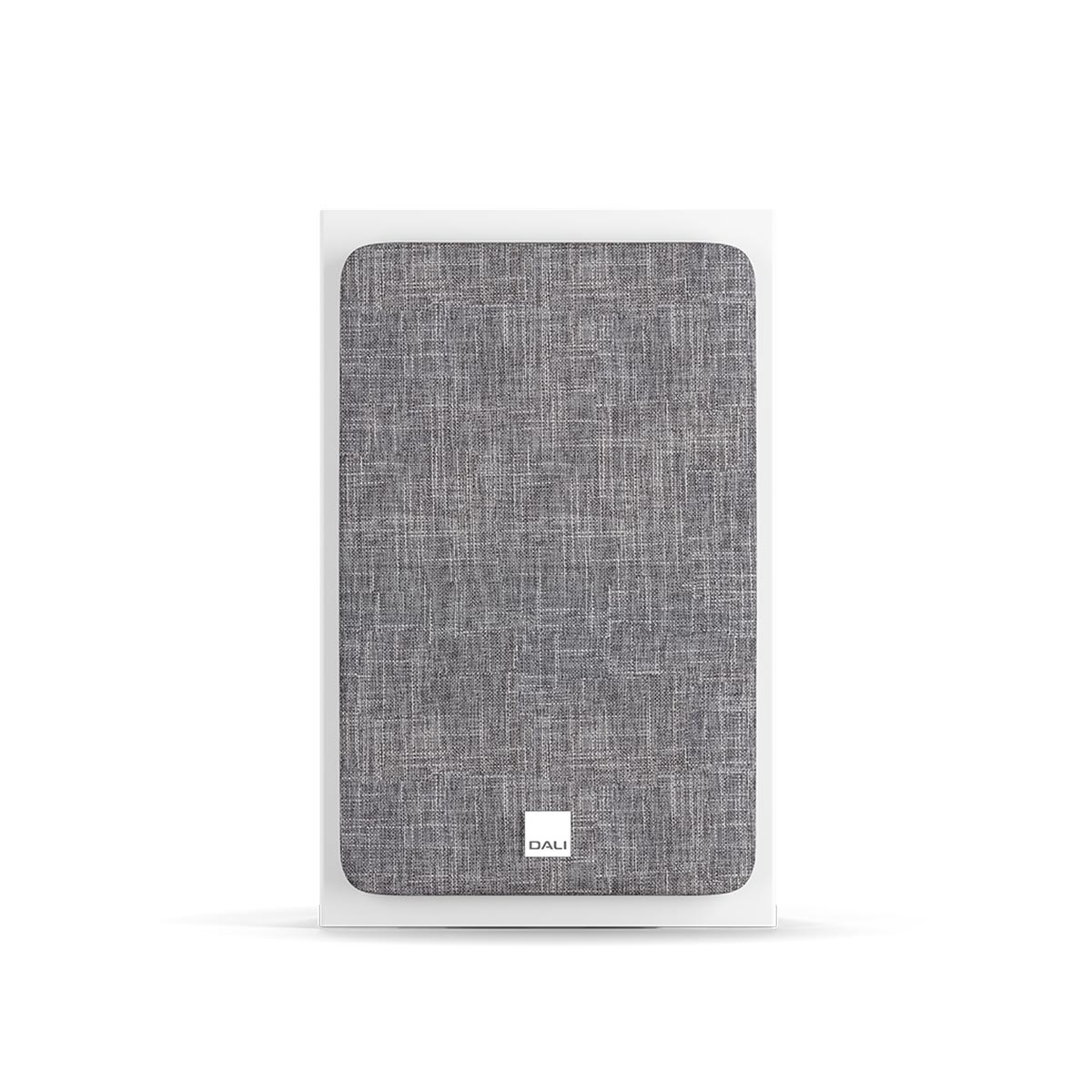

The rounded edges and grille fabric add a lighter and more contemporary look, enhanced by the elegantly shaped aluminium base on the floorstanding models.
Wood Fibre Cones
The stiff, lightweight structure of the reinforced wood fibre cone reproduces details that are uncoloured and highly accurate.
The woofer magnet's iron pole-piece includes a patented SMC disc that greatly reduces mechanical distortion for a relaxed midrange and lots of detail.
The perfect choice for stereo and surround sound.
With the OBERON ON-WALL, we've combined the best elements from our existing speaker range to create an on-wall speaker that delivers on audio quality, looks and versatility. The unique down-firing bass port design lets the OBERON ON-WALL use the wall to extend the bass performance, making it the perfect choice for both stereo and surround-sound setups. We've also made it easy to integrate the speaker into any room, as the driver materials and geometry create a wide dispersion pattern in the listening area so you can experience well-integrated sound, even off axis.
Wood Fibre Cone
Optimised with a new wood fibre structure.

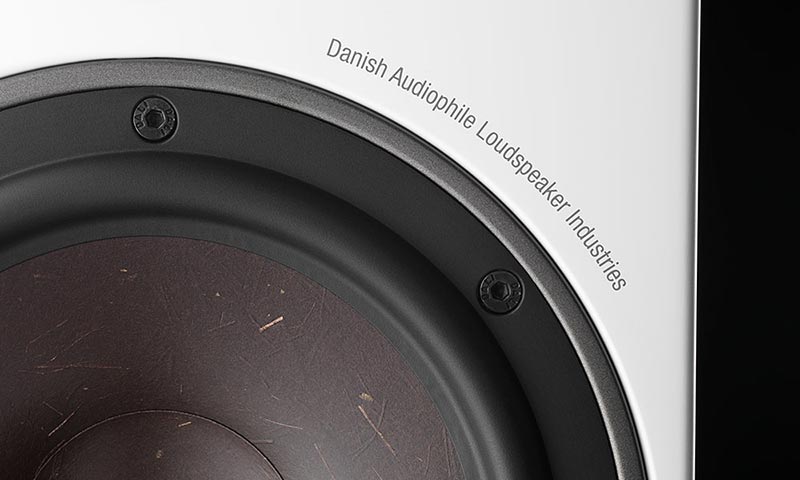

The 5¼" low loss woofer used in the OBERON ON-WALL has been optimised with a new wood fibre structured cone dedicated to reproducing the delicate midrange and bass frequency area. Constructed from a blend of fine-grain paper pulp reinforced with wood fibres, the woofer has a stiff, yet lightweight structure. And when combined with the low loss surround and spider suspension, the OBERON ON-WALL woofer reproduces the most minute details in the signal, unfiltered and with high accuracy.
DALI's patented SMC (Soft Magnetic Compound).
The use of SMC (Soft Magnetic Compound) in the OBERON ON-WALL greatly reduces mechanical distortion caused by hysteresis and eddy currents. The result is a magnet motor system with a drastic reduction in third-order distortion, which allows the OBERON ON-WALL to deliver extended listening pleasure, a relaxed midrange and a surprising amount of detailing in its class.
Oversized Soft Dome
Combining well-proven technologies with new features.
The oversized 29 mm ultra-lightweight soft dome tweeter was specifically developed for the OBERON series, combining well-proven technologies from our existing DALI ranges with new features. The large size of the membrane lets the tweeter generate higher sound pressure with less excursion, keeping the voice-coil motion to a controlled minimum. The tweeter front plate near the dome has been designed with similar geometry to the OPTICON and RUBICON tweeters to create the optimal working conditions for the soft dome. This results in extended frequency response, wide dispersion and low colouration.
A rigid structure that practically eliminates resonance.
The OBERON ON-WALL cabinet is constructed from a high density, CNC machined MDF board dressed in high-grade vinyl. The extremely rigid structure is achieved with solid bracings across the inside of the cabinet, which practically eliminates cabinet resonance. To optimise the timing, the speaker is fitted with acoustic damping material internally along the sides, top and bottom. This creates a more direct contact between the woofer and bass port, which delivers more precise bass and increased midrange attack.
|Frequency Range (+/-3 dB)||55 Hz - 26 kHz|
|Sensitivity (2.83 V/1 m)||86.5 dB|
|Nominal Impedance||6 Ohms|
|Maximum SPL||107 dB|
|Recommended Amplifier Power||25 - 100 Watts|
|Crossover Frequency||2,100 Hz|
|Crossover Principle||2 Way|
|High Frequency Driver - Quantity||1 x 1.14" (29 mm)|
|High Frequency Driver - Diaphragm Type||Soft Textile Dome|
|Low Frequency Driver - Quantity||1 x 5.25" (133 mm)|
|Low Frequency Driver - Diaphragm Type||Wood Fibre Cone|
|Enclosure Type||Bass Reflex|
|Bass Reflex Tuning Frequency||50 Hz|

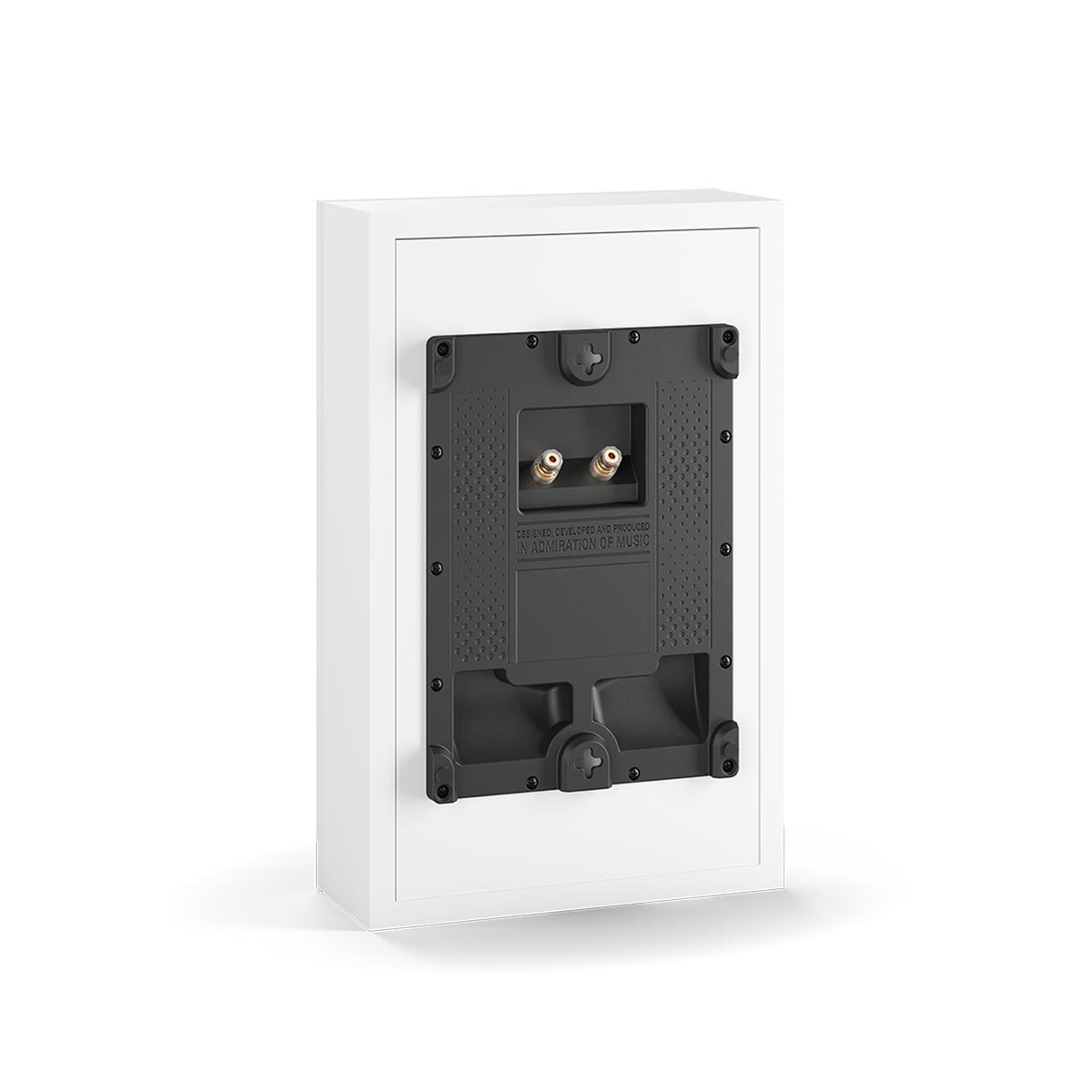

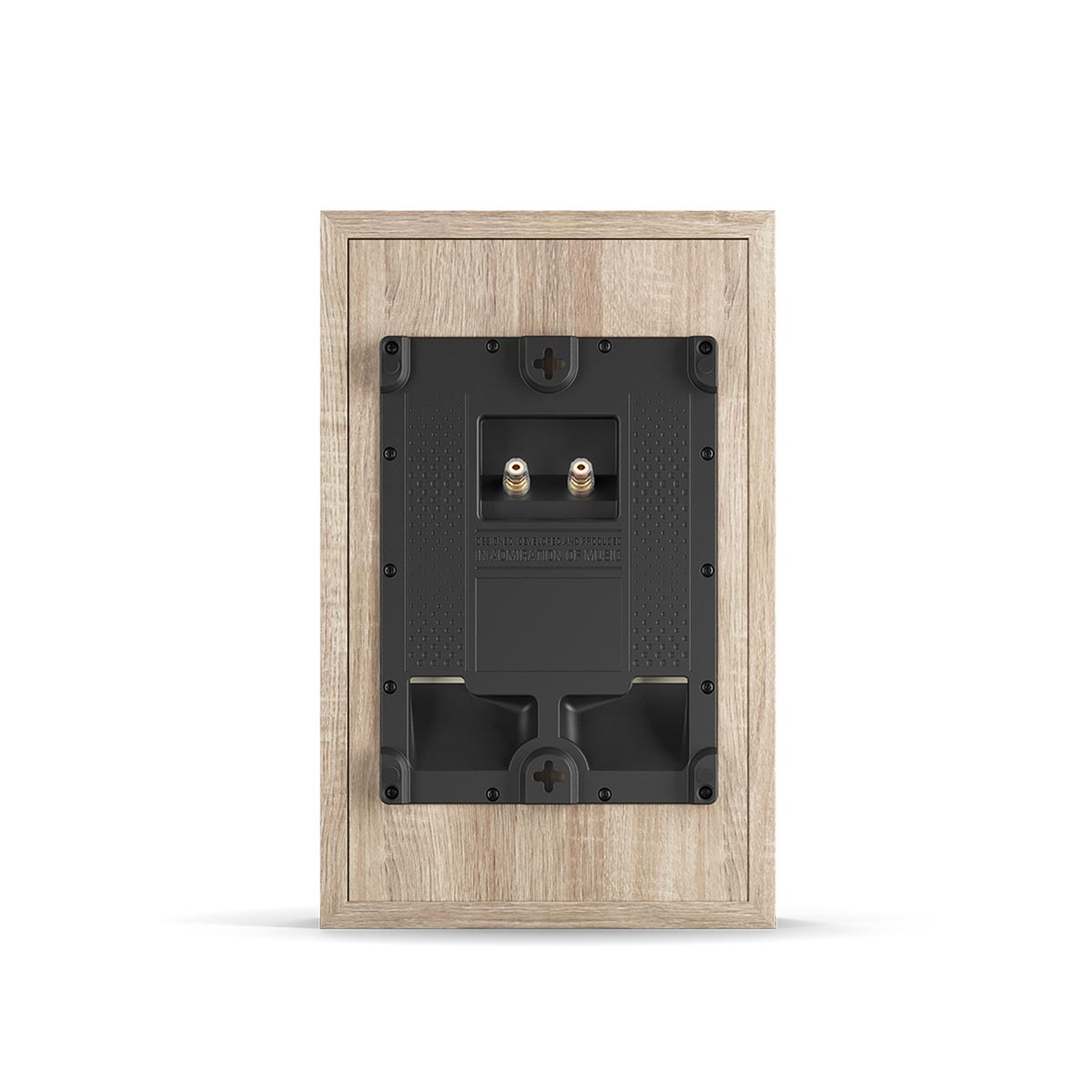

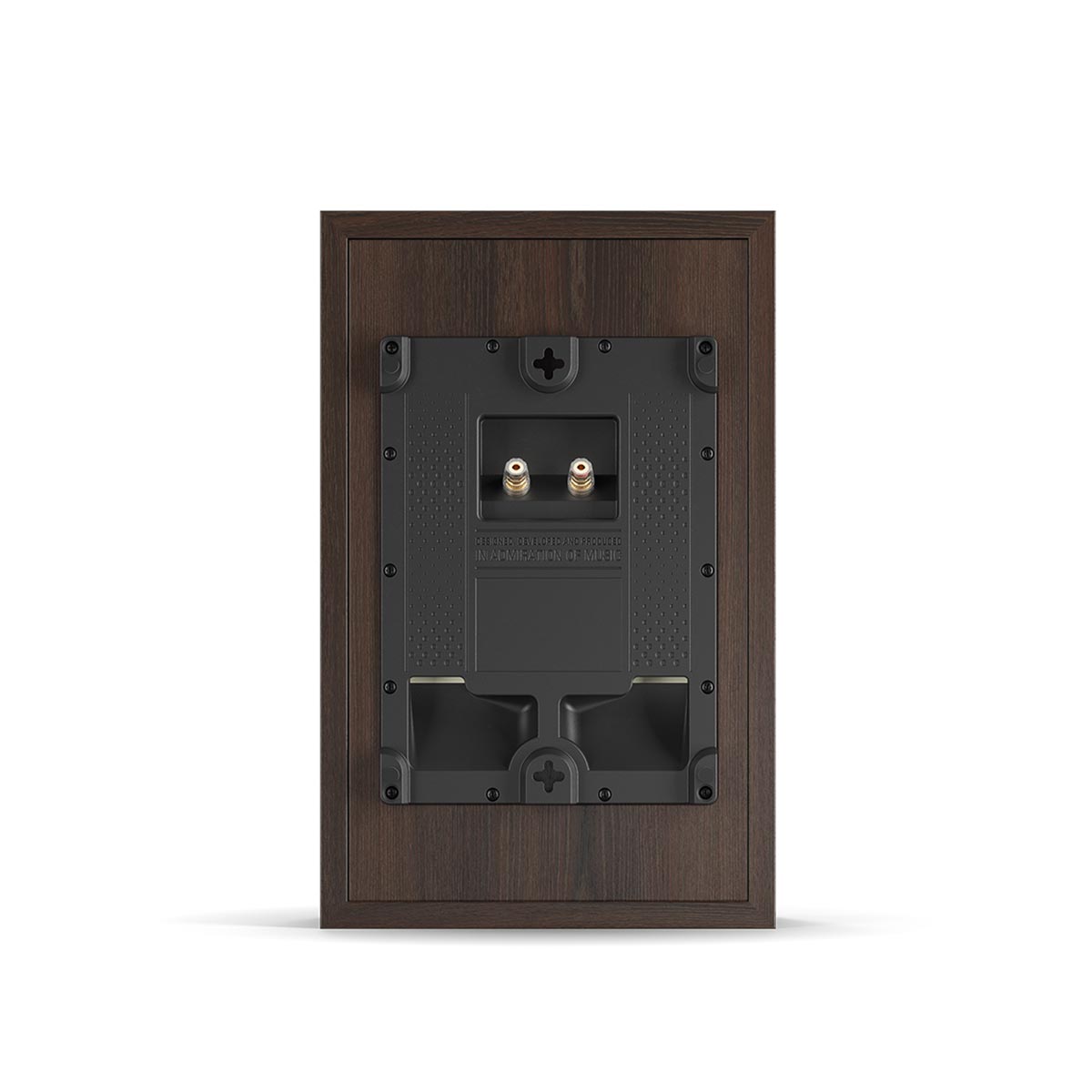

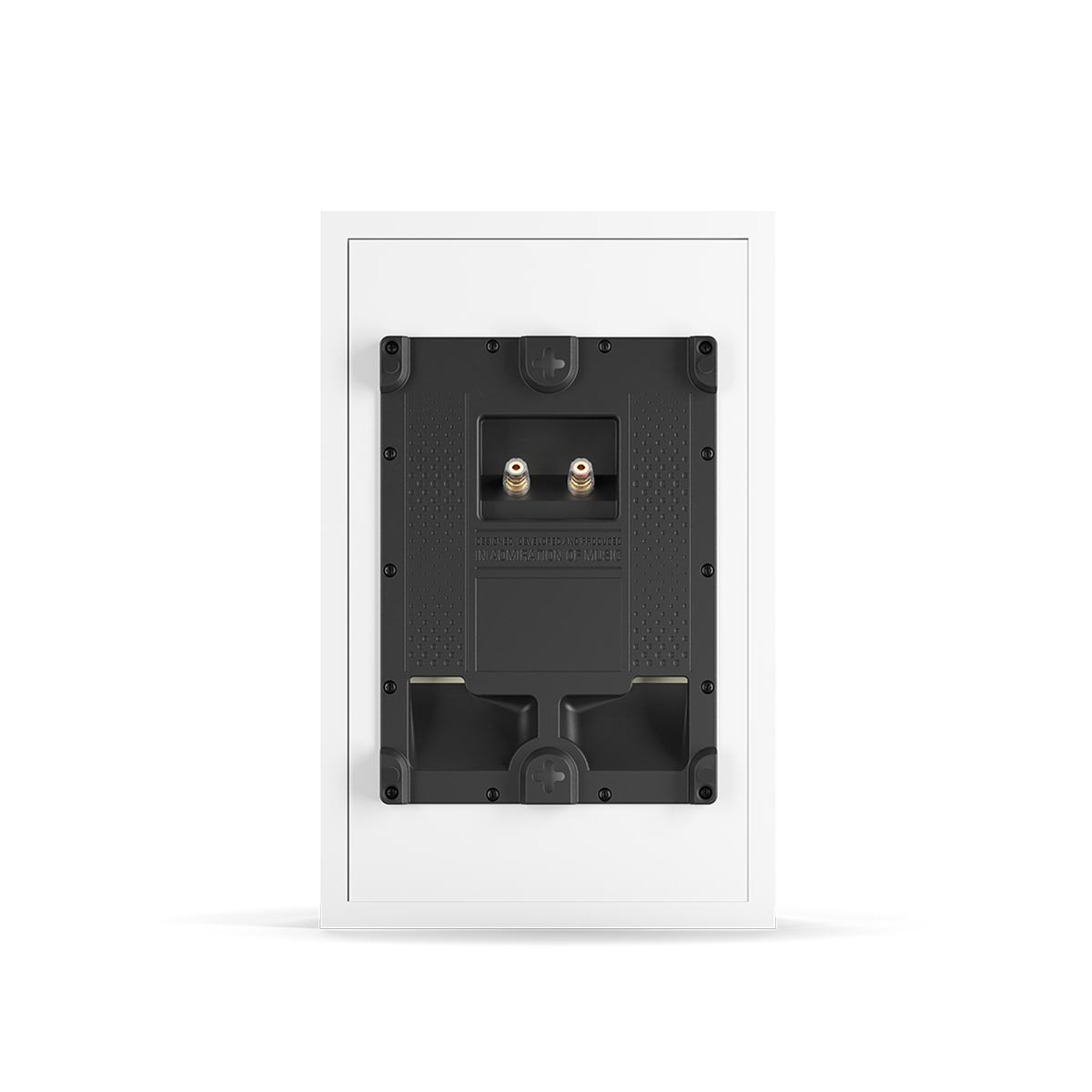

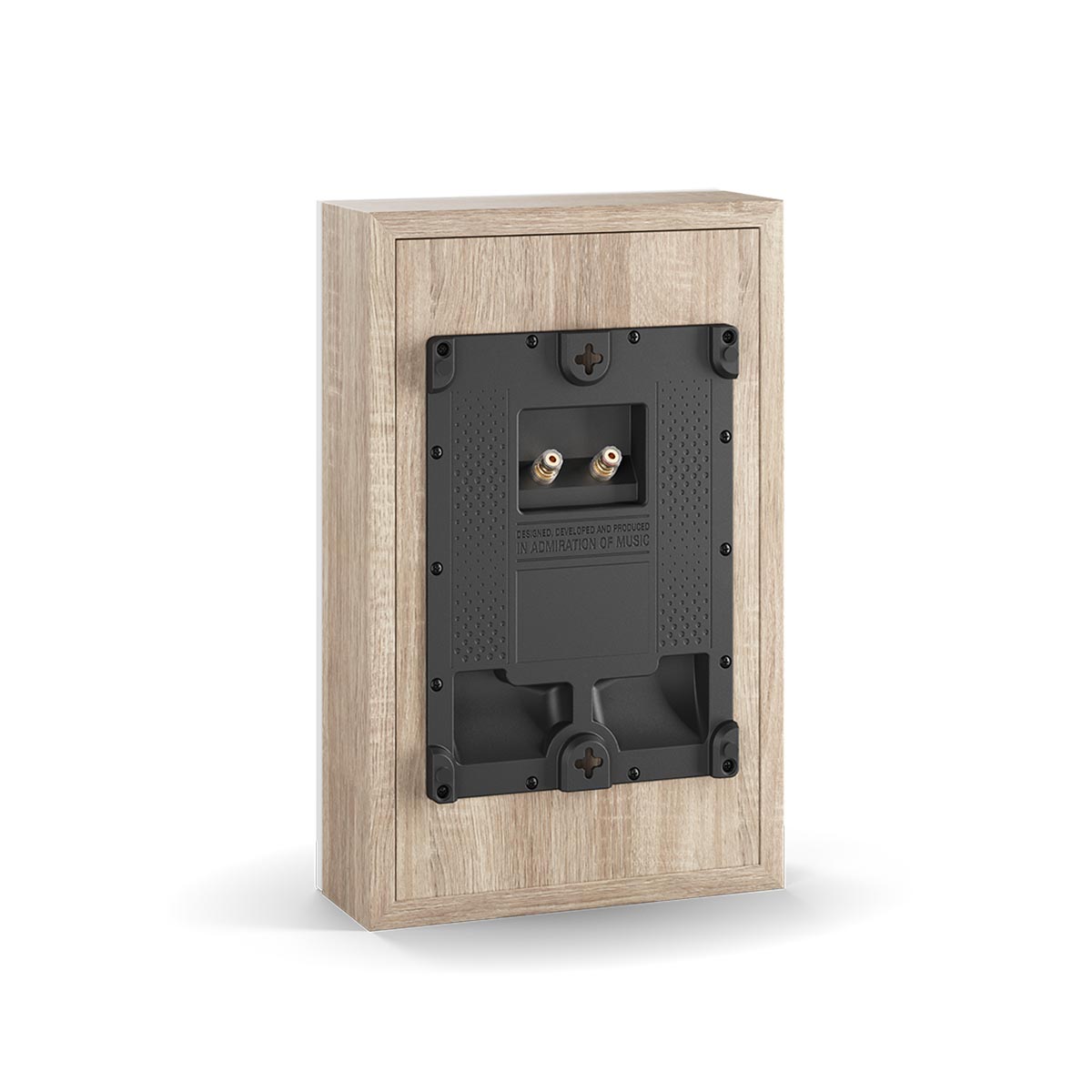

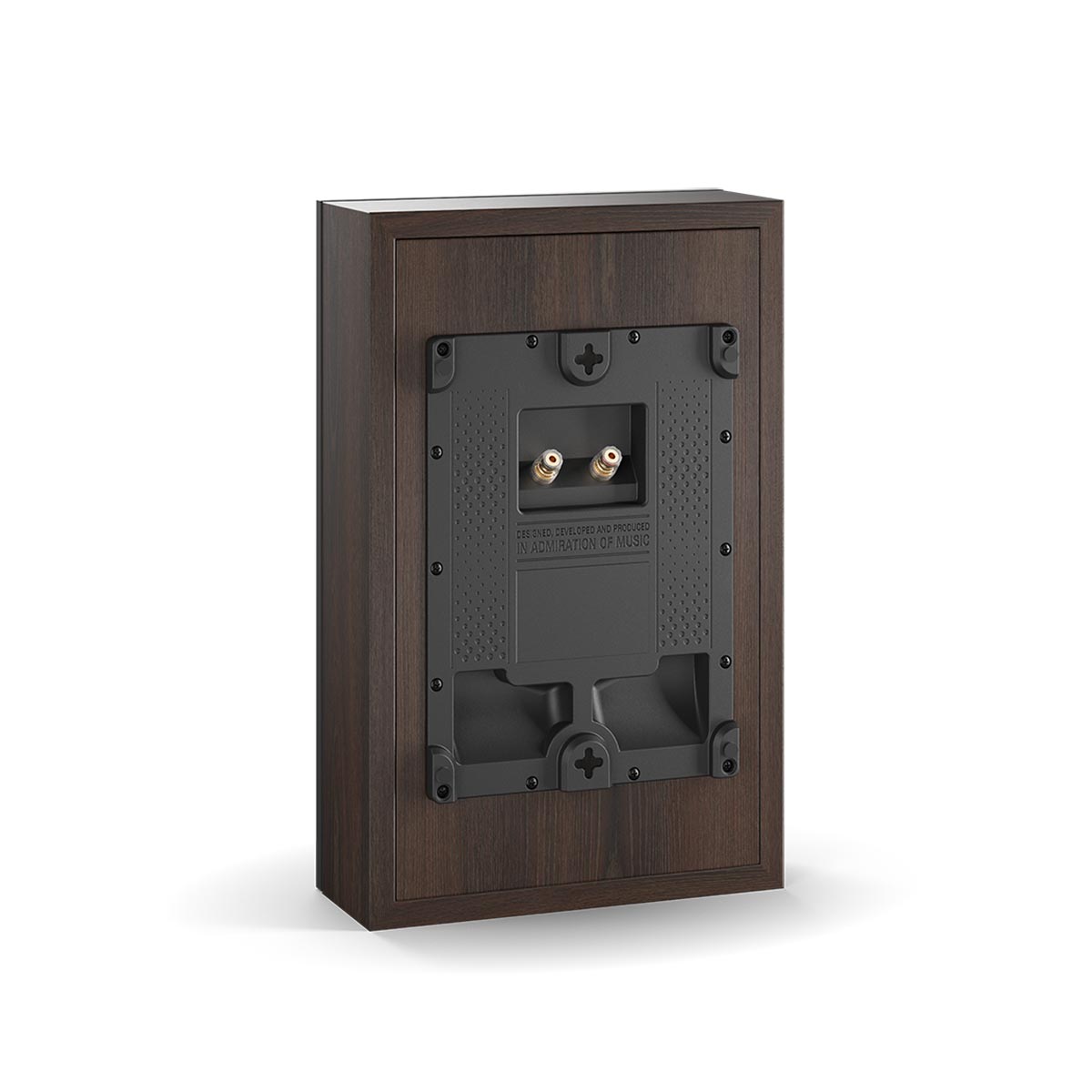

|Connection Input||Single Wire|
|Recommended Distance From Wall||0 - 10 cm|
|Dimensions with Base (H x W x D)||385 x 245 x 120 mm|
|Accessories Included||Manual, Rubber Feet, Front Grille|
