Pro2 2 Way HDMI Splitter over UTP (Cat5e/Cat6) with IR and Loop Out - Up to 50m (H2SPC5L)

Product Code: PRT-H2SPC5L
Warranty: 12 Months
Free Shipping On Orders Over $100
256-Bit SSL Secure Ordering System
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

Split a Single Source to 2 Different Displays via Cat5e/6

This 1 in 2 out HDMI splitter over Cat5e/6 cable enables you to split your source up to 50 metres with bi-directional IR passthrough. The H2SPC5L also provides a local HDMI loop out for viewing locally or creating a multi-layer cascade system (up to 4 layers).

Key Features

  • Distribute 1 HDMI signal to 2 identical UTP outputs simultaneously with 1 HDMI loop output
  • Transmit over 50m using single Cat5E/6 cable
  • Can be cascaded up to 4 layers
  • Wide-band bi-directional IR control (36-56 kHz)
  • Supports up to Full HD (1080p) resolution
  • Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS and LPCM
  • Compatible with 3D video formats
  • EDID control switch integrated onto front panel

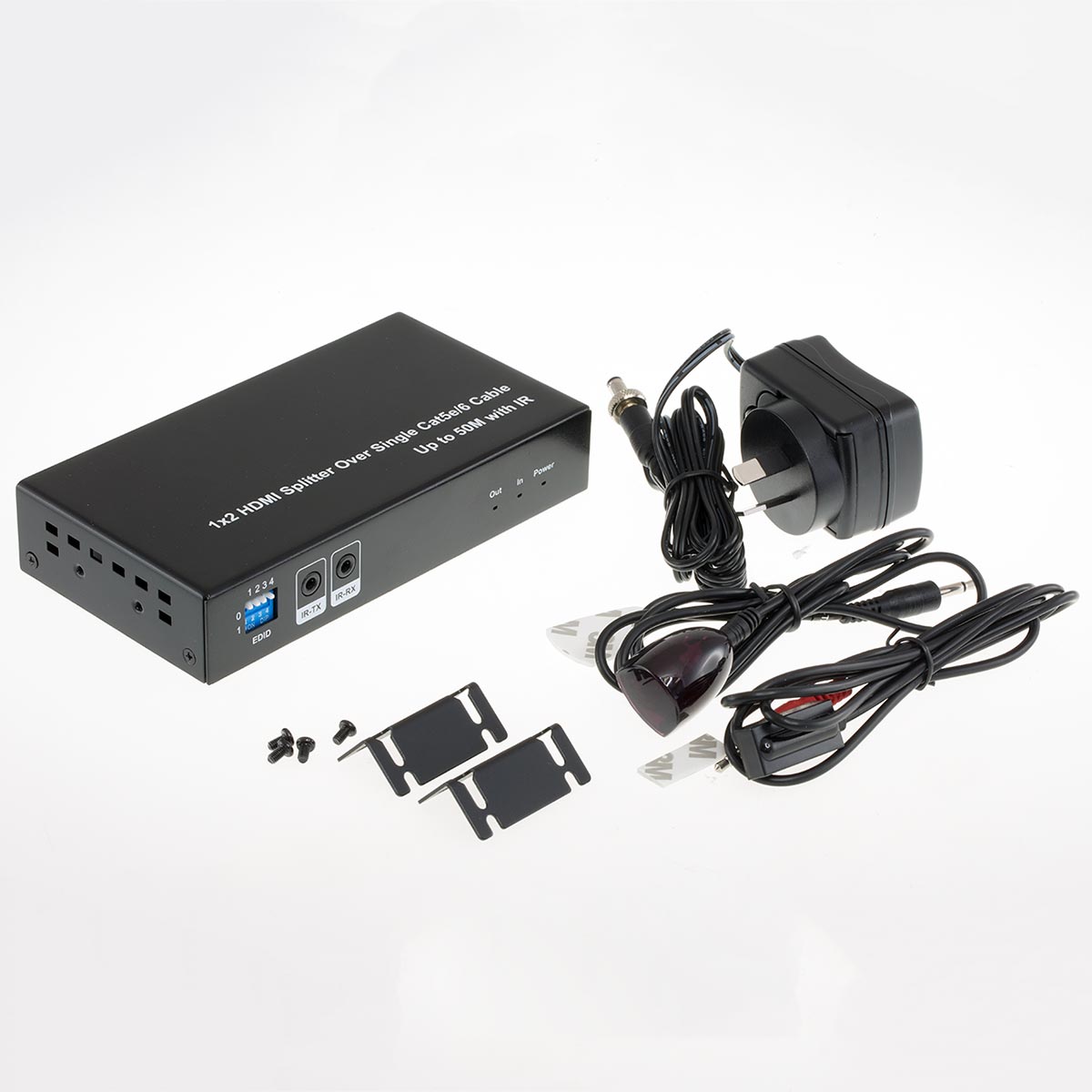

Package Contents

  • 1 x 2 Way HDMI Splitter over UTP main unit
  • 1 x IR receiver
  • 1 x IR emitter
  • 1 x Rack mounting kit
  • 1 x Australian 5V power supply
  • 1 x User manual

Note: This product listing is for the transmitter only (receiver units are not included). Please order the required amount of receiver units (SPC5RX) from the link below (this model supports up to two receiver units).

Connection Diagrams

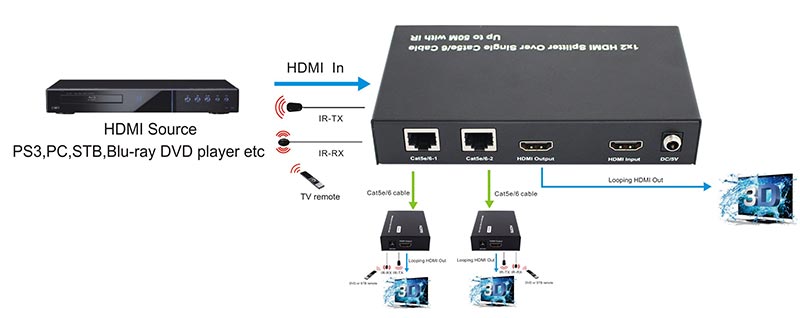

Application 1

Pro2 H2SPC5L

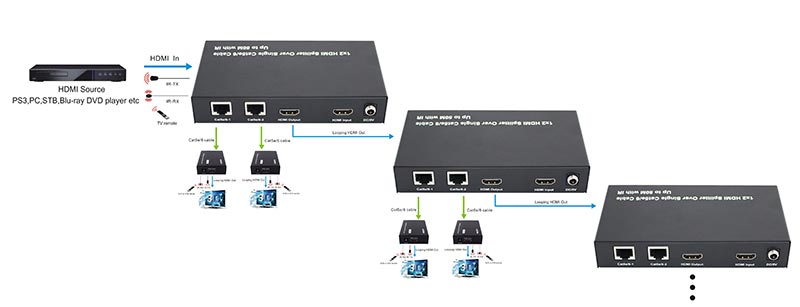

Application 2 - Cascade for 4 Layers

Pro2 H2SPC5L

Application 3 (With Foxtel or Other Source Device)

Pro2 H2SPC5L
