Motion FX

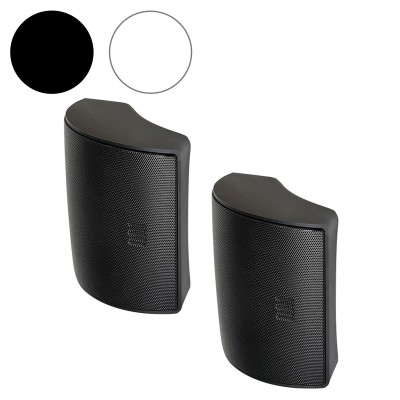

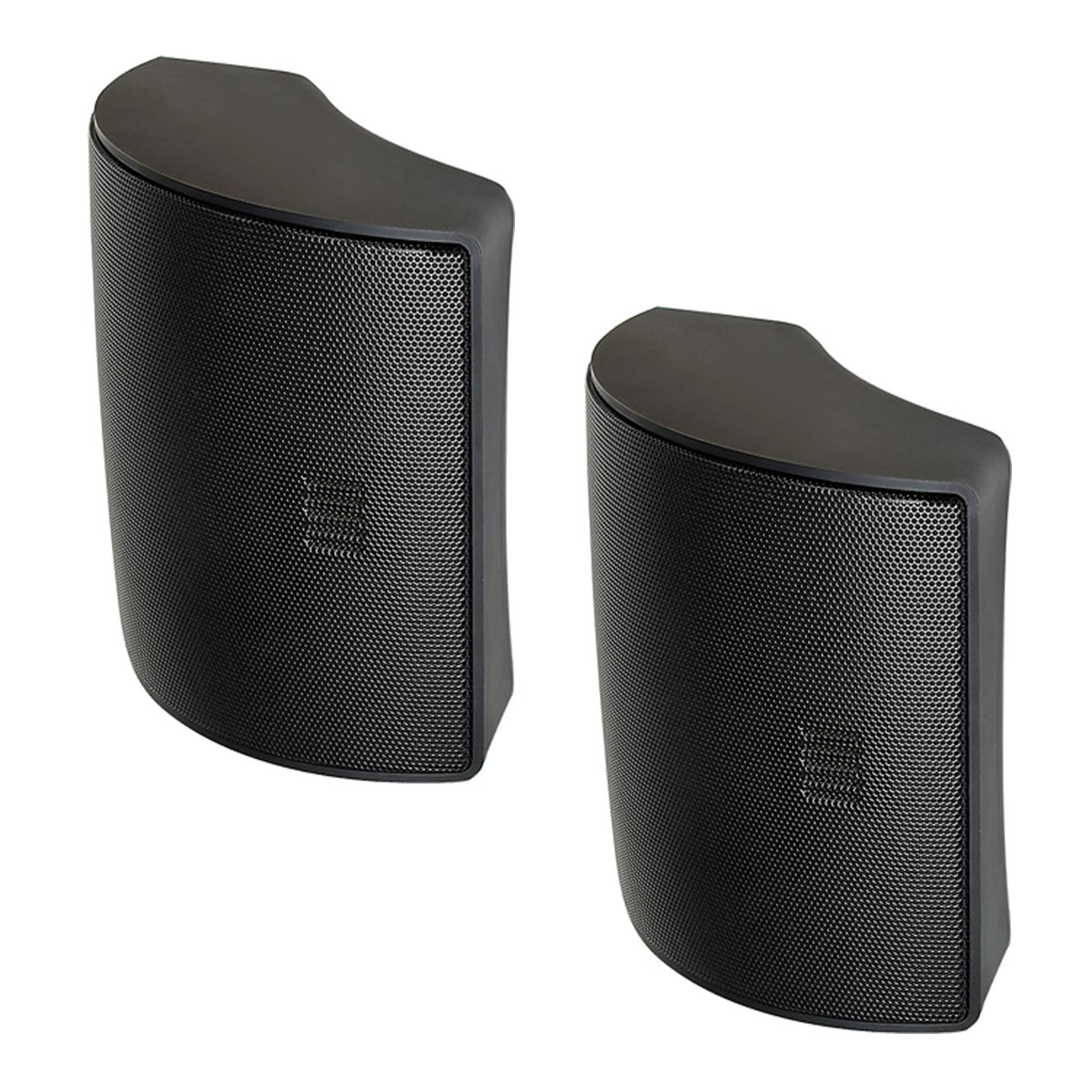

Motion FX Surround Speakers
Dedicated wide dispersion surround speaker with dual Folded Motion® tweeters and Folded Motion Cascading Bass-Reflex Port for deep, detailed bass response. Voice-matched with MartinLogan ESL speakers.
Engineering Genius
What makes the Motion Series sound so amazing? MartinLogan's dedicated in-house engineering team started by utilising and refining the most advanced, compact technologies and combining them with innovative engineering. The result is an emotionally engaging sound that rivals (and most times trounces) traditional loudspeakers of similar size and price.

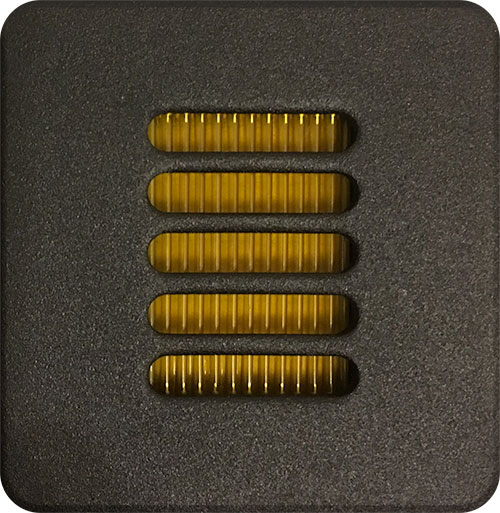

Folded Motion® Tweeters
The signature Folded Motion tweeters utilise extremely low mass diaphragms that "squeeze" air, and require significantly less excursion than the typical 1-inch dome tweeter, which drastically minimises distortion while providing a lightning fast response time. The increased surface area also provides a wide, yet controlled sound dispersion to create a realistic and carefully etched sound stage.
| Specifications | |
| Frequency Response | 70 Hz – 25 kHz ±3 dB |
| Recommended Amplifier Power | 20 — 160 watts per channel |
| Horizontal Dispersion | 160° |
| Vertical Dispersion | 80° |
| Sensitivity | 91 dB @ 2.83 volts/metre |
| Impedance | 4 ohms (Compatible with 4, 6, or 8 ohm rated amplifiers) |
| Crossover Frequency | 4,500 Hz |
| High Frequency Transducer | Two 1" x 1.4" (2.6 cm x 3.6 cm) Folded Motion Transducer with 5.25" x 1.75" (13.3 cm x 4.4 cm) diaphragm |
| Low Frequency Transducer | 5.25" (13.3 cm) paper cone with cast aluminium basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes. Folded bass reflex port. |
| Components | Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection. |

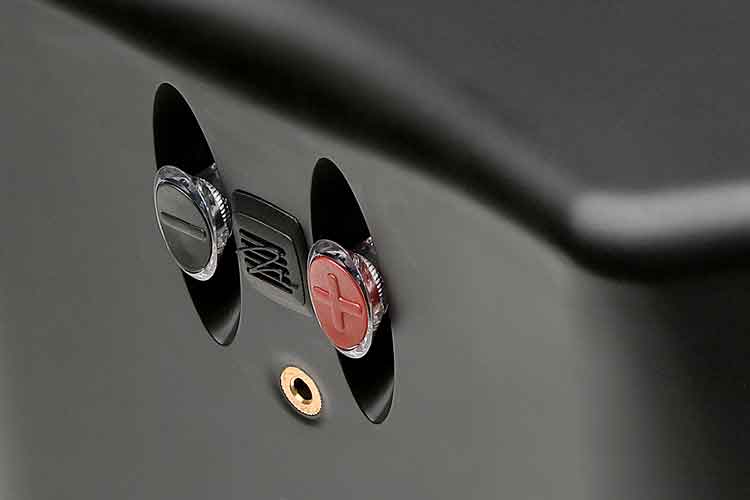

| Inputs | Push style with banana jacks |
| Weight | 9.5 lb (4.4 kg) |
| Dimensions | 11.1" x 12" x 6" (28.2 cm x 30.5 cm x 15.2 cm) |
