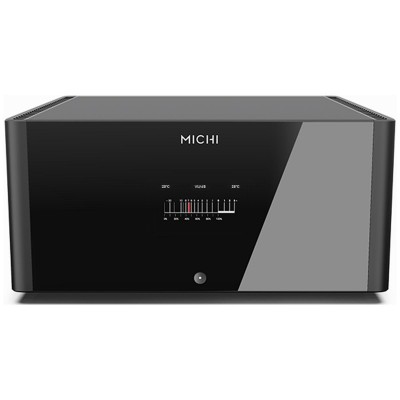

M8 Monoblock Power Amplifier

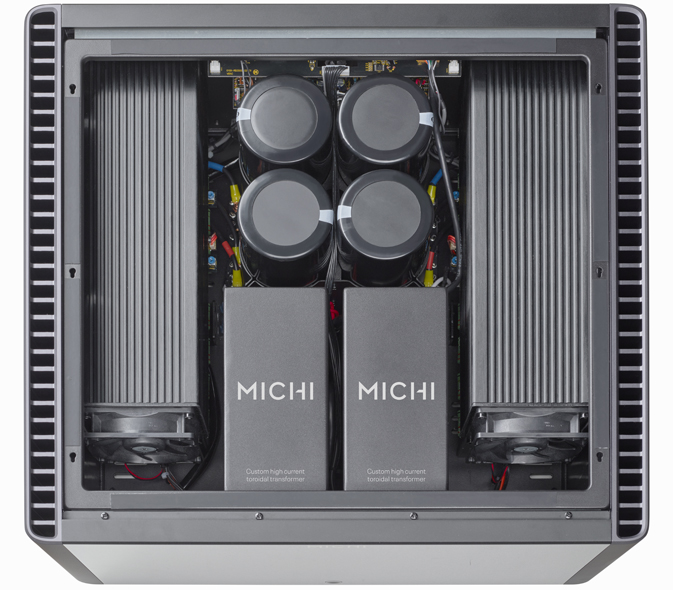

The stunning control and authoritative power of the Michi M8 Monoblock Amplifier is the result of a perfect balance of science meets art delivering 1,080 watts of Class AB power into 8 ohms and an astounding 1,800 watts to the most demanding 4 ohm loudspeakers. The M8 is powered by a pair of custom engineered, low noise, in-house manufactured toroidal transformers supported by 4 British patented slit foil, high efficiency, low ESR bulk storage capacitors for impactful bass with exceptional control under extreme loading conditions.
To achieve accuracy and its unsurpassed performance, the M8 is equipped with an array of 32 high current output transistors thus reducing the load on individual components and maintaining the crucial energy, rhythm and timing throughout the amplification stages. Musical expression and detailed refinement were further accomplished through acoustic tuning of all critical components and a balanced circuit design.
A high resolution display adorns the front panel supporting a peak power meter or spectrum analyser. With XLR and RCA inputs, 2 sets of custom Michi speaker binding posts, remote control and fully featured RS232 and Ethernet connections the M8 provides ultimate installation flexibility. Power amplification at its best in the most elegant of industrial designs.
Key Features
- 1080 Watts of robust power
- Class AB amplifier Design
- Patented British bulk storage capacitors
- Massive power supply using dual toroidal transformers
- Balanced XLR inputs
Engineered with Care
| Amplification | |
| Amplifier Class | AB |
| Continuous Power Output | 1080 W/Ch (8 Ω), 1800 W/Ch (4 Ω) |
| Total Harmonic Distortion (THD) | <0.018% |
| Frequency Response | 20 Hz - 20 kHz (+0 dB, -0.15 dB), 10 Hz - 100 kHz (+0 dB, -0.5 dB) |
| S/N Ratio (IHF "A" Weighted) | 120 dB |
| Gain | Unbalanced (RCA): 34 dB, Balanced (XLR): 30 dB |
| Intermodulation Distortion (60 Hz:7 kHz, 4:1) | <0.03% |
| Damping Factor | 200 |
| Speaker Impedance | 4Ω Minimum |
| Input Sensitivity | Unbalanced (RCA): 1.85 V, Balanced (XLR): 3 V |
| Input Impedance | Unbalanced (RCA): 12.5 kΩ, Balanced (XLR): 100 kΩ |
| Dimensions & Weight | |
| Dimensions (W x H x D) | 485 x 238 x 465 mm (19" x 9.375" x 18.25") |
| Front Panel Height | 220 mm (8.625") |
| Power Requirements | 230 V, 50 Hz |
| Power Consumption | 1200 W |
| Standby Power Consumption | Normal: <0.5 W, Network Wakeup: <2 W |
| Net Weight | 59.1 kg (130.3 lb) |
| BTU Rating (4 Ω, 1/8th Power) | 3200 BTU/h |
