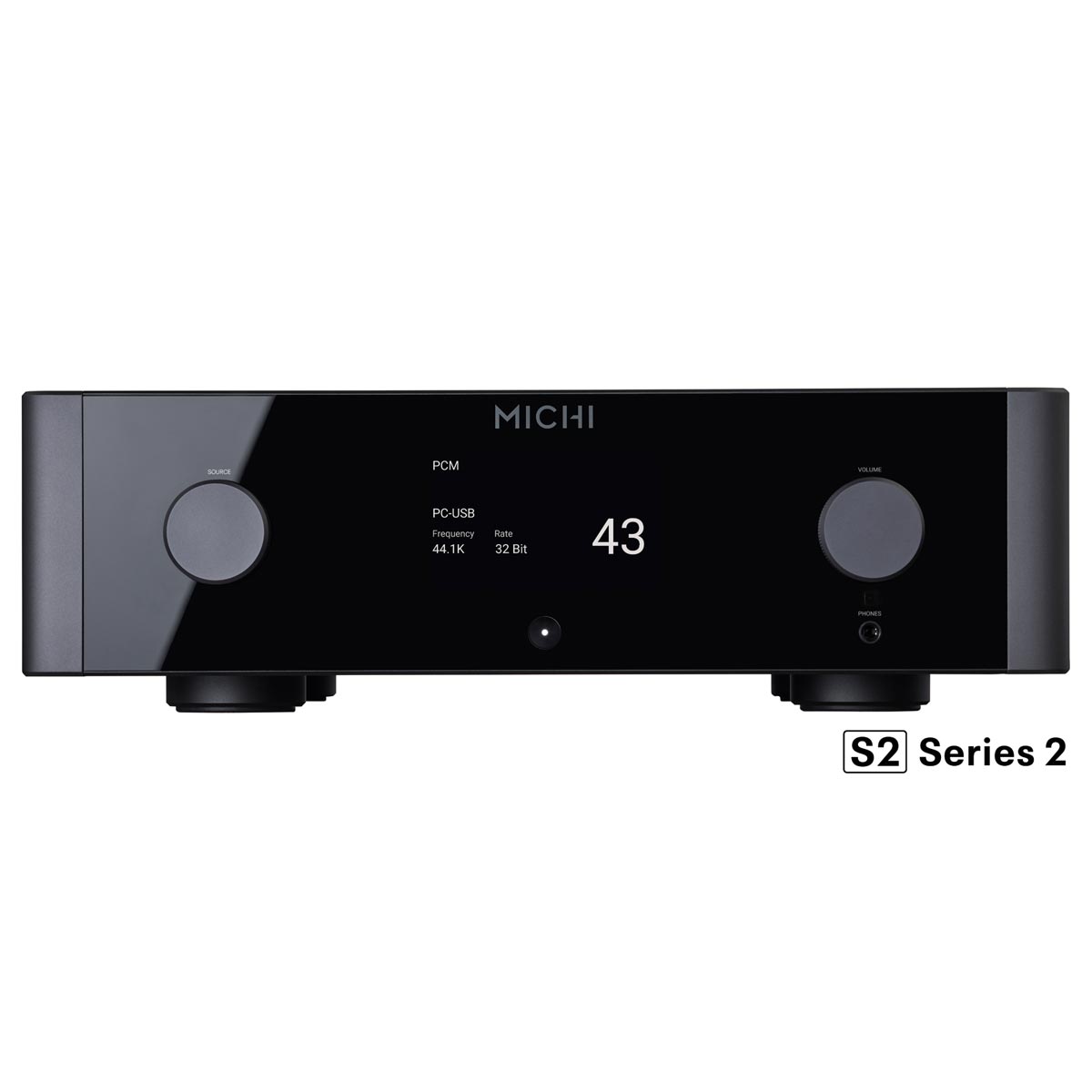

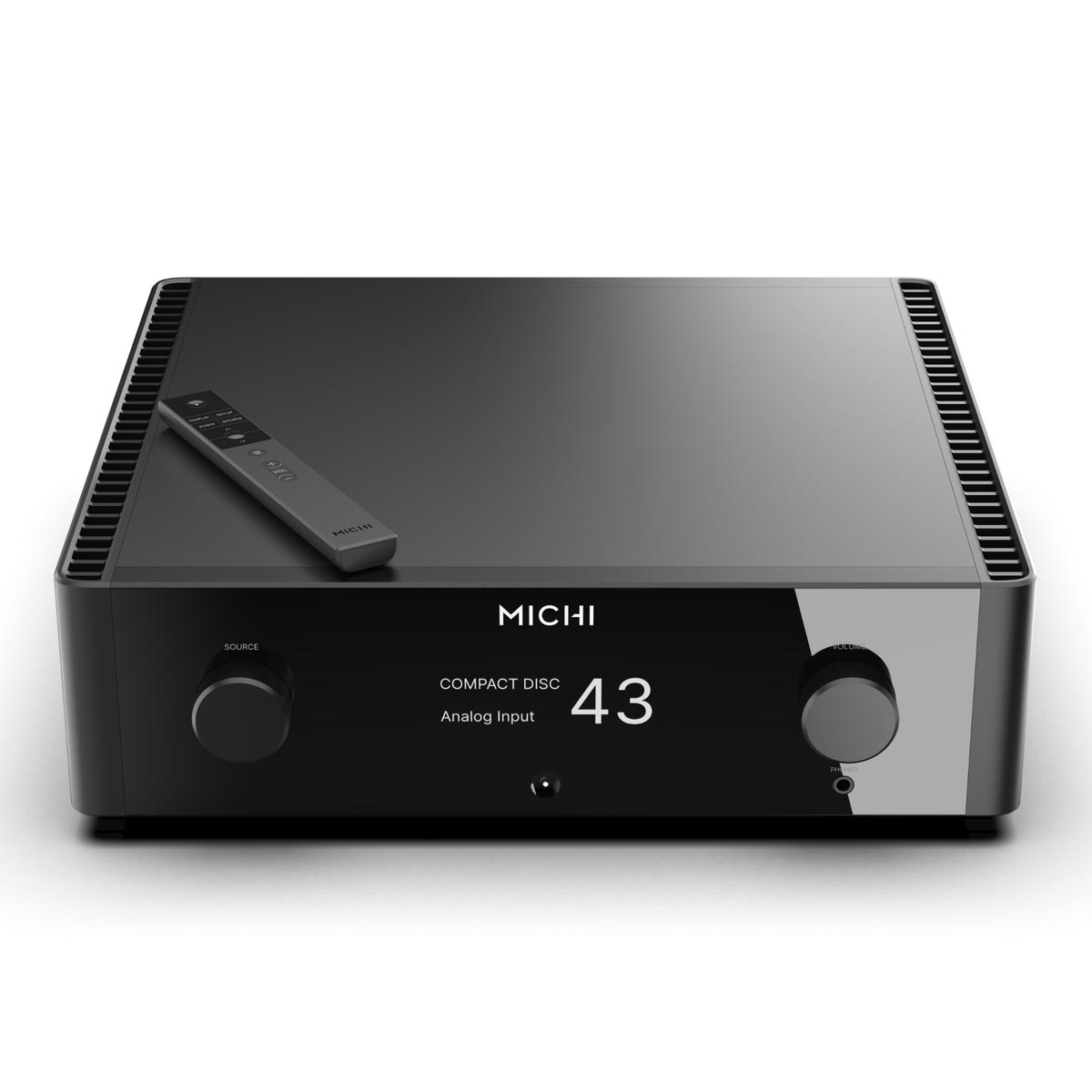

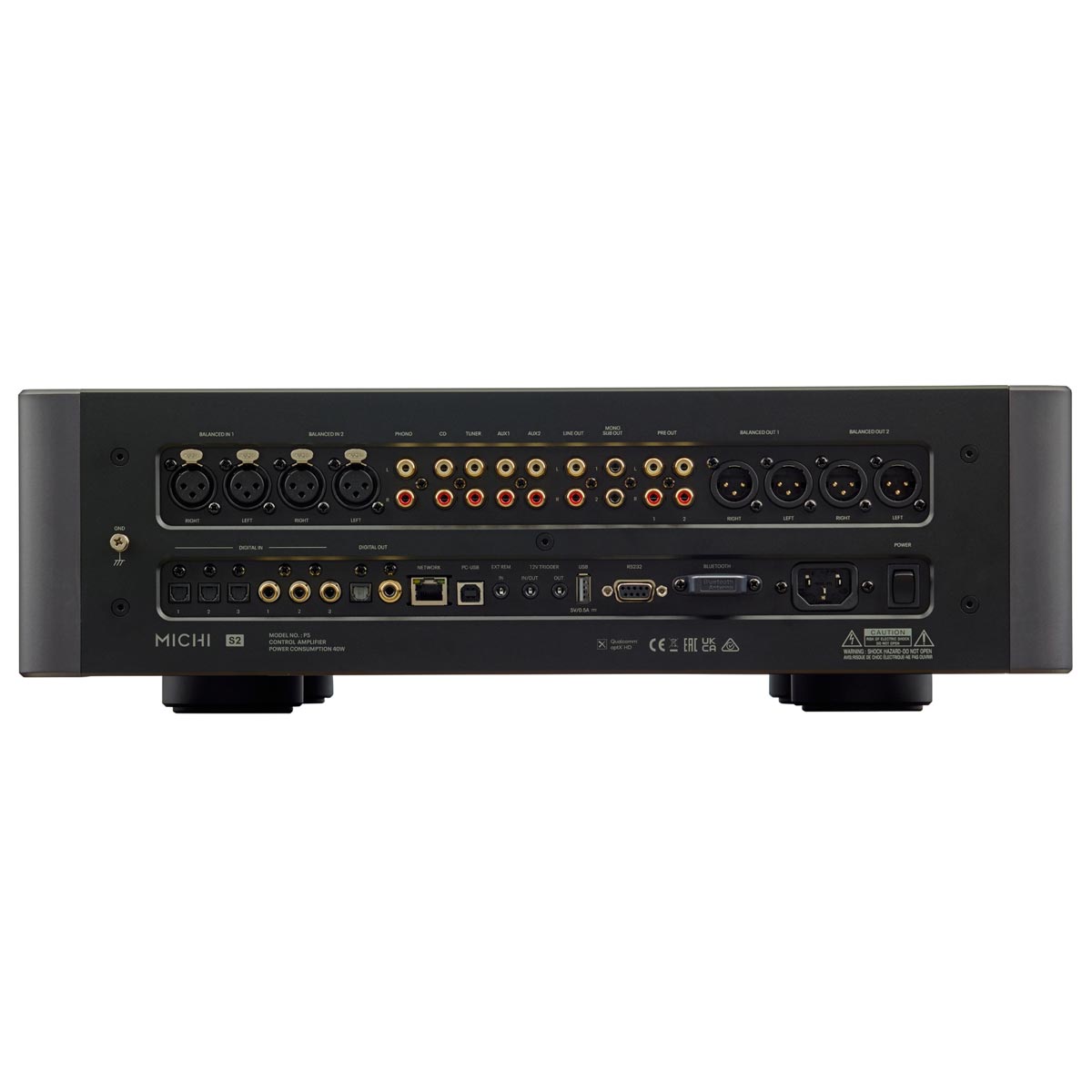

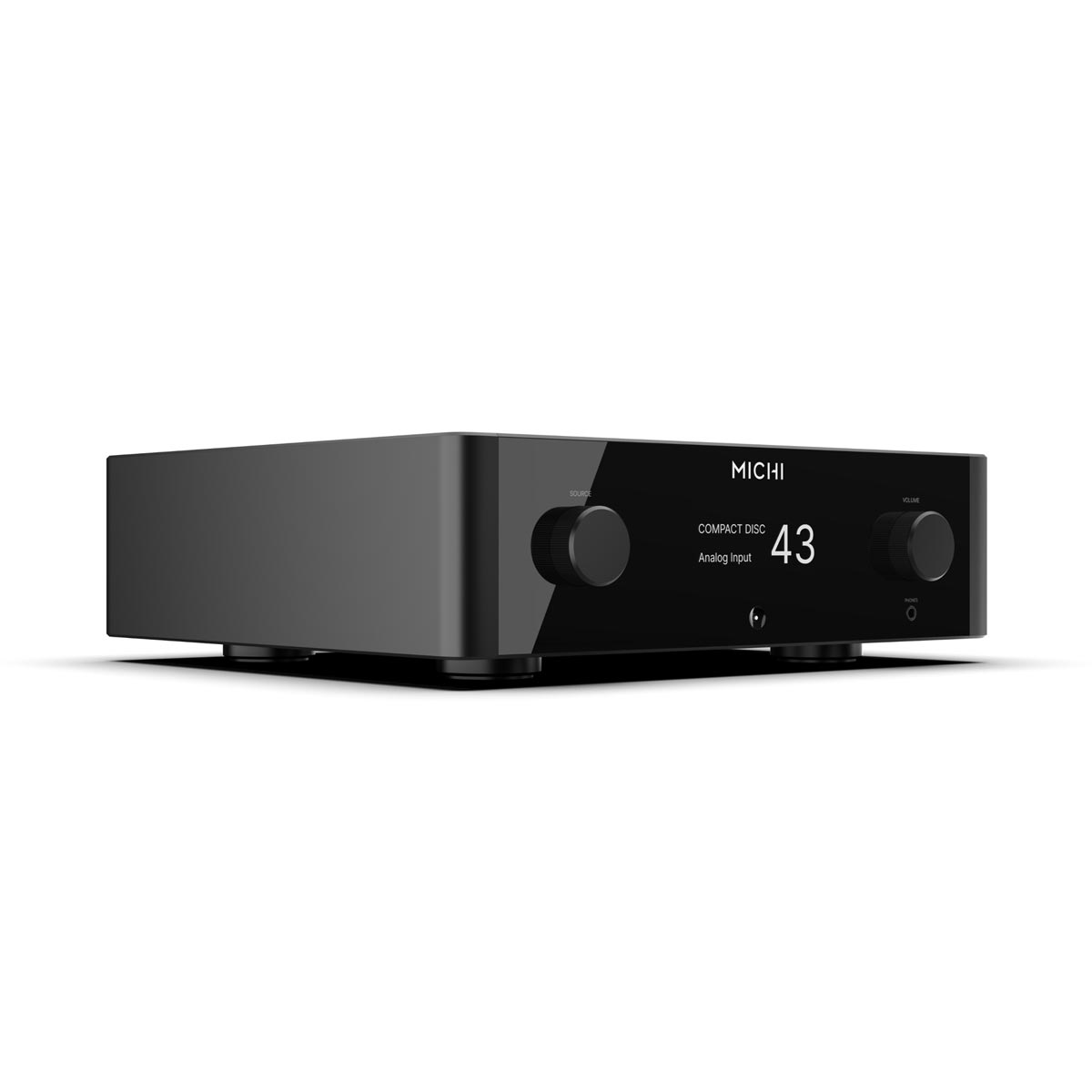

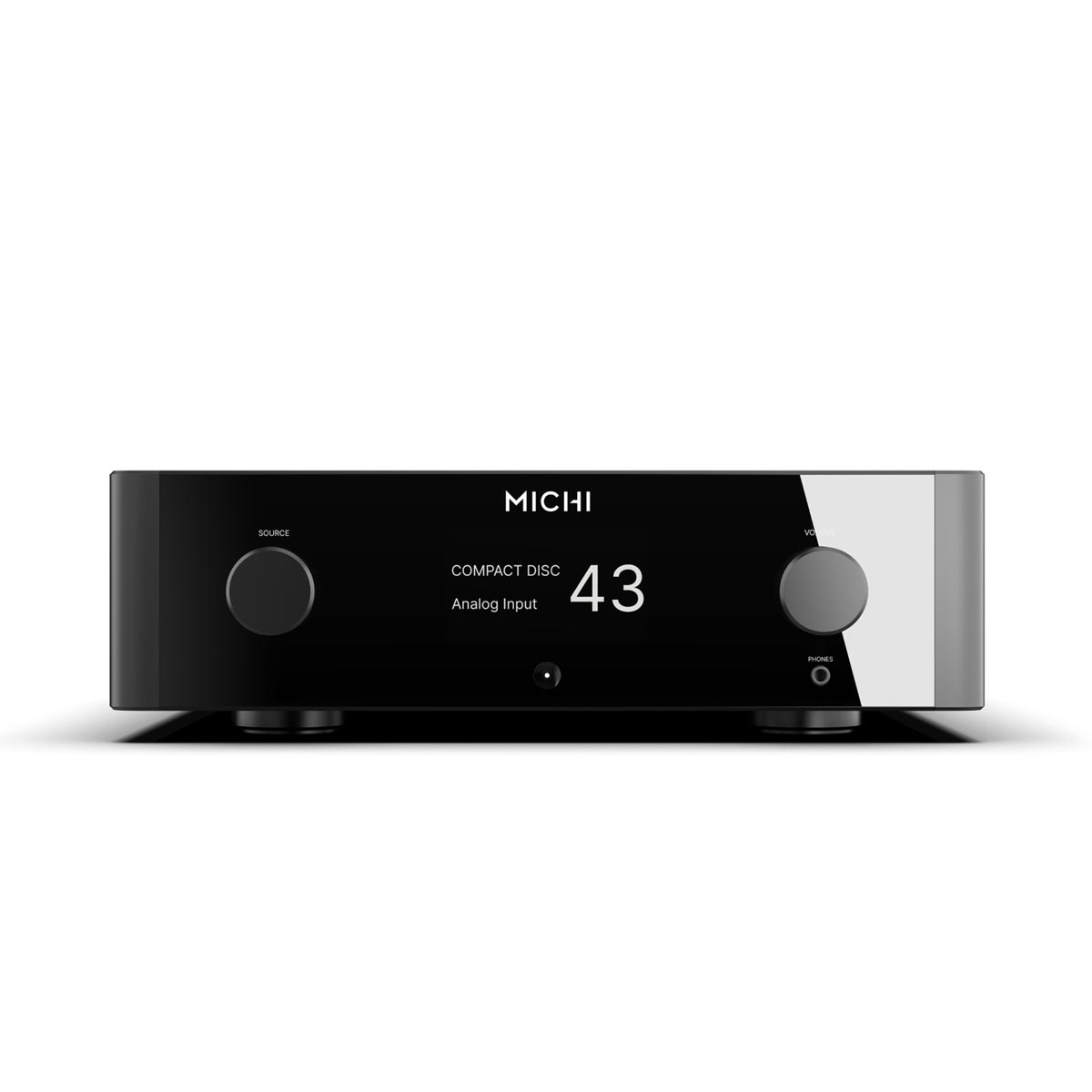

Rotel Michi P5 S2 Stereo Preamplifier

Brand: Rotel
Product Code: ROT-MIC-P5-S2-PRE-BLK
Warranty: 5 Years
$6,999.00
Qty:
Rotel
Truck
Free Shipping On Orders Over $99
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

P5 Series 2

Immerse yourself in performance with the Michi P5 Series 2 Preamplifier rendering digital audio with dual 8-channel high precision ESS SABRE ES9028PRO Digital to Analogue converters specially configured in MONO mode. Redundant processing by 8 DAC circuits per channel extracts rich details from the music with an ultra-quiet noise floor on an exceptionally wide sound stage.

The P5 Series 2 supports your favourite music sources including Analogue, Digital, PC-USB with MQA and DSD, aptX™ HD Bluetooth, and a Moving Magnet and Moving Coil Phono Stage making it the perfect choice to take your music listening experience to the next level.

Michi, expectations amplified.


Key Features

  • Certified Roon Tested
  • Supports MQA and MQA Studio
  • Moving Coil and Moving Magnet phono stage input
  • Bluetooth with aptX™HD and AAC
  • ESS premium 32-bit 8-Channel Digital to Analogue Converter

Engineered with Care

Michi P5 Series 2 Stereo Preamplifier
General
Total Harmonic Distortion (THD) 20 Hz – 20 kHz: <0.002%
Frequency Response Line Level Inputs: 10 Hz - 100 kHz (±0.3 dB), Digital Inputs: 20 Hz - 20 kHz (±0.3 dB), Phono Input: 20 Hz - 20 kHz (±0.3 dB)
S/N Ratio (IHF "A" Weighted) Line Level Inputs: 116 dB, Digital Inputs: 100 dB, Phono Input: 80 dB
Intermodulation Distortion (60 Hz:7 kHz, 4:1) <0.002%
Input Sensitivity Line Level Inputs (RCA): 160 mV, Line Level Inputs (XLR): 250 mV. Phono Input (MM): 2.5 mV, Phono Input (MC): 250 uV, Digital Inputs: 0 dBFs
Input Impedance Line Level Inputs (RCA): 47 kΩ, Line Level Inputs (XLR): 100 kΩ, Phono Input (MM): 47 kΩ, Phono Input (MC): 100 Ω, Digital Inputs: 75 Ω
Input Overload Line Level Inputs (RCA): 12 V, Line Level Inputs (XLR): 12 V, Phono Input (MM): 199 mV, Phono Input (MC): 22 mV
Output Level Unbalanced (RCA): 1 V, Balanced (XLR): 2 V
Output Impedance Unbalanced (RCA): 470 Ω, Balanced (XLR): 100 Ω
Channel Separation Line Level Inputs: >85 dB, Phono Input: >55 dB
Tone Controls ±10dB at 100 Hz / 10 kHz
Coax/Optical Digital Input Signals LPCM (Up to 24-bit/192 kHz)
PC-USB USB Audio Class 1: Up to 24-bit/96 kHz, USB Audio Class 2: Up to 32-bit/384 kHz (Driver Installation Required), DSD and DoP Support, MQA and MQA Studio Support, Roon Tested
Dimensions & Weight
Dimensions (W x H x D) 485 x 150 x 452 mm (19" x 6" x 17.75")
Front Panel Height 132 mm (5.25")
Power Requirements 230 V, 50 Hz
Power Consumption 40 W
Standby Power Consumption Normal: <0.5 W, Network Wakeup: < 2 W
Net Weight 22.9 kg (50.5 lb)
BTU Rating 87 BTU/h
