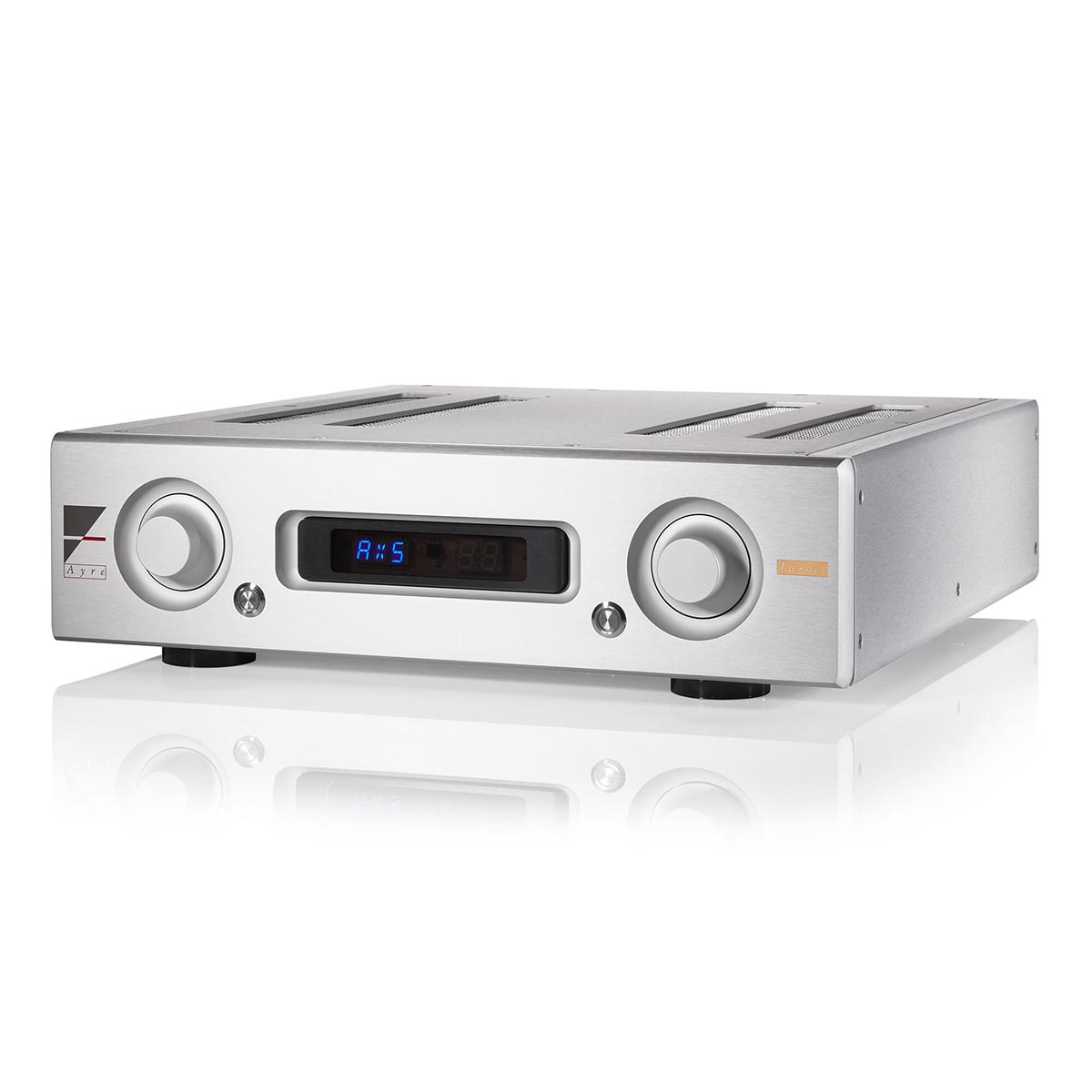

AX-5 Twenty

Featuring Ayre’s Double Diamond output stage, our exclusive EquiLock circuitry, and a Shallco solid-silver contact switch for gain control, this fully-discrete, fully-balanced, zero-feedback integrated amplifier provides a complete solution for your modern music system.

The key to perfecting the AX-5 was to incorporate the Variable Gain Technology (VGT) of the award-winning Ayre KX-R preamplifier into the power amplifier section. The addition of ultra-transparent FET input selector switches completed the transformation of a basic power amplifier into a compact one-box solution which will become the heart of your high-performance audio system.

Key Features

  • Variable Gain Transimpedance (VGT) volume circuit
  • 46 step volume control, each of 1.5 dB
  • Ayre’s new Diamond output stage
  • Ayre’s exclusive Equilock circuit
  • Linear analogue power supply
  • Zero-feedback and fully-balanced discrete circuitry
  • High-speed circuit board material
  • Custom developed audio-grade resistors
  • Ayre Conditioner power line RFI filter
  • AyreLink communication system
Power Output 125 Watts per Channel Continuous into 8 Ohms, 250 Watts per Channel Continuous into 4 Ohms
Gain 26 dB
Input Impedance Unbalanced Inputs: 1 MΩ, Balanced Inputs: 2 MΩ (1 MΩ per Phase)
Frequency Response DC – 250 kHz
Power Consumption 48 Watts in Low-Current Consumption Mode, 230 Watts in Operating Mode (No Signal)
Dimensions (W x D x H) 44 x 48 x 12 cm (17.25" x 18.75" x 4.875")
Weight 22 kg (48 lb)
