CR-1: Active Subwoofer Crossover

The lucky few who have heard a well-integrated subwoofer in a great audio system know that the subwoofer's effect is profound. While everyone expects the bass extension to improve, most are shocked at the transformation that occurs in the main speakers. They simply open up, delivering improved dynamics, superior imaging and more low-level detail. Many describe it as the greatest speaker upgrade they have ever made.

Over the years, we have calibrated many subwoofer systems in highly critical listening environments, and we have been frustrated by the limitations of active crossovers we have worked with. Tired of struggling with "blunt instruments", we felt that a higher precision tool was needed, so we decided to build it and call it "CR-1". When properly set up, CR-1 creates a listening experience in which the subwoofers and main speakers become one, delivering a cohesive and compelling sonic presentation.

The CR-1 Active Subwoofer Crossover has been designed by audiophiles, for audiophiles. We believe it has no equal, offering a powerful combination of subwoofer/satellite tuning features, and a complete commitment to analogue signal purity.

CR-1 is built around two banks of precision Linkwitz-Riley low-pass and high-pass filters. Multiplying DACs with monolithic ratio matching are employed to adjust the analogue circuit's filter frequencies. This offers superior tracking behaviour and far more precise left/right channel balance, compared to conventional approaches.

Another of CR-1's unique and powerful features is a pair of rotary controls that control the damping of each filter bank. These damping controls dramatically improve the acoustic summing through the crossover region, by compensating for each speaker system's frequency response. At the centre of the front panel, a single intuitive, rotary control permits quick adjustment of the relative level between the subwoofer(s) and main speakers.

To minimize distortion and noise, CR-1 employs top-grade component parts in its all-analogue audio circuitry: 1% precision resistors, JFET-input audio-grade op-amps, polypropylene film-and-foil capacitors and metallized-polypropylene film capacitors, to name just a few.

CR-1's input-output design makes it equally adaptable to studio, mastering suite or audiophile two-channel playback environments. To accommodate dual-mode systems, we also include a bypass feature that engages a pass-through from a dedicated "Managed Bass Input" on the rear panel, to the CR-1's subwoofer outputs. This makes it convenient to switch from two-channel to multi-channel mode.

CR-1 is the ultimate tool for subwoofer integration.

General Specifications
Max. Input Voltage 8 Vrms (+18 dBv)
Input Impedance Unbalanced: 50 kΩ, Balanced: 20 kΩ (10 kΩ Per Leg)
Max. Output Voltage 8 Vrms (+18 dBv)
Output Impedance Unbalanced: 150 Ω, Balanced: 300 Ω (150 Ω Per Leg)
THD+N < 0.002% at 8 Vrms/10 kΩ, 20 Hz - 20 kHz, 90 kHz Bandwidth
Channel Separation >80 dB at 1 kHz
Low Pass Frequency Response +0, -1 dB From 5 Hz to 1/4 of Filter Frequency
High Pass Frequency Response +0, -1 dB From 4x Filter Frequency to 80 kHz
Power Consumption 30 Watts (Typical, With or Without Signal)
Mains Voltage (Frequency) 120 V (60 Hz) or 230/240 V (50 Hz or 60 Hz), Factory-Set for Destination Country
Crossover Function Bypass or On, Selectable via Front Panel Switch
Subwoofer Output Modes Mono L+R or Stereo, Selectable via Front Panel Switch
Crossover Frequency Range 30 Hz – 150 Hz, Variable with Independent High-Pass and Low-Pass Filter Frequency Controls on Front Panel
Subwoofer/Satellite Balance Control +/– 12 dB, Fully Variable via Front Panel Knob
Filter Damping Controls Q: 0.3 - 1.4 @ 12 dB/Octave via Front Panel Knob), Q: 0.16 - 4.0 @ 24 dB/Octave via Front Panel Knob, For Either Slope: Q = 0.5 at Top Dead Centre “0” Mark
Filter Slope(s) 12 dB/Octave or 24 dB/Octave, Linkwitz-Riley Selectable via Front Panel Switch
Output Muting independent for Each Output via Front Panel Push-Button Switches
Ground Lift Isolated/Grounded via Rear Panel Switch
Main Stereo Inputs Unbalanced L/R: (2 RCA Jacks), Balanced L/R (2 XLR/TRS Combo Jacks)
Managed Bass Inputs Unbalanced L/R: (2 RCA Jacks), Balanced L/R (2 XLR/TRS Combo Jacks)
Satellite Line Outputs Unbalanced (2 RCA Jacks), Balanced (2 TRS Jacks, 2 XLR Jacks)
Satellite Line Outputs Unbalanced (2 RCA Jacks), Balanced (2 TRS Jacks, 2 XLR Jacks)
Subwoofer Line Outputs Unbalanced L/R: (2 RCA Jacks), Balanced L/R: (2 TRS Jacks, 2 XLR Jacks)

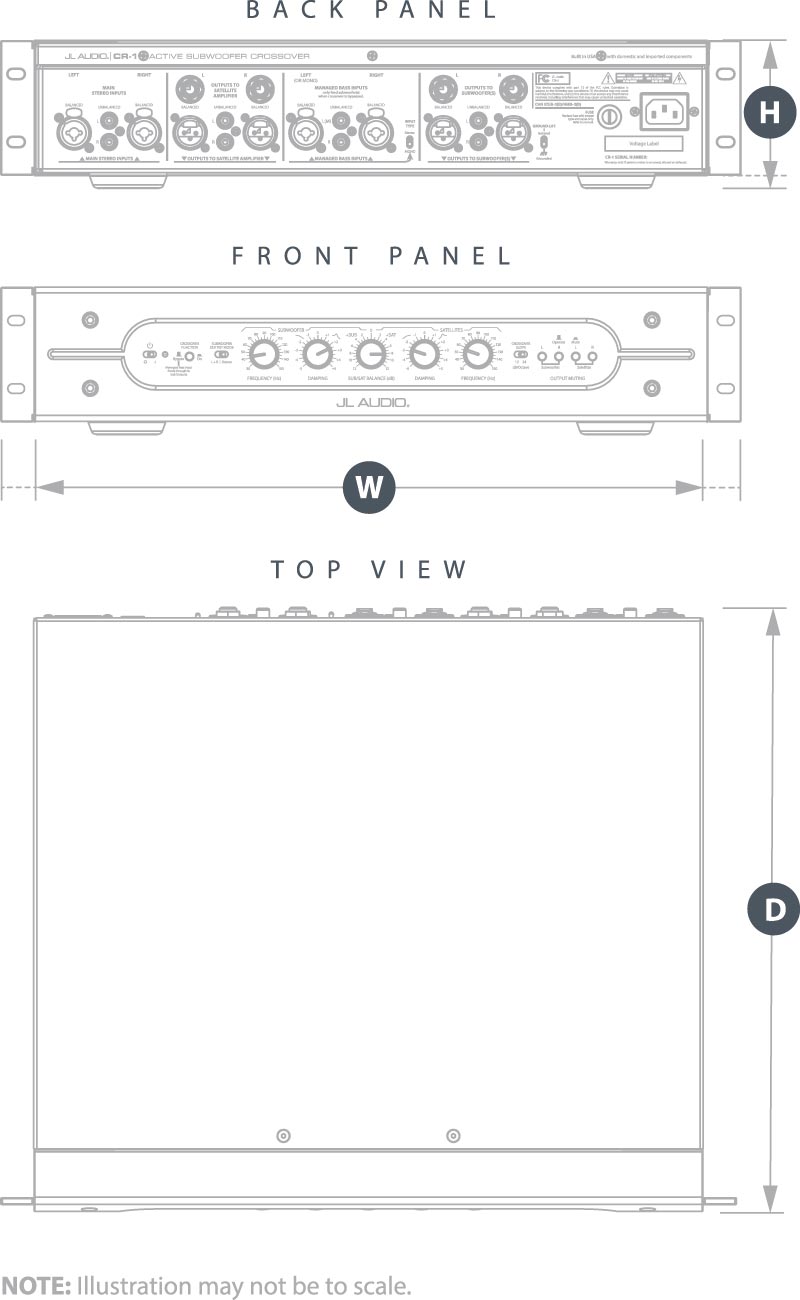

Physical Specifications
Width (W) 441 mm / 17.40 in.
Height (H) 97 mm / 3.80 in
Depth (D) 398 mm / 15.67 in
Net Weight 10 kg / 22 lb
