The PDT 3100 HV Reference CD/SACD Transport

The PDT 3100 HV is a purist CD / SACD mechanism which does not feature supplementary integral digital sources or converters. It has been developed uniquely and exclusively for the uncompromising task of reading SACD and CD, and is fitted with a new decoder / drive mechanism which we have developed from the ground up. This mechanism reads and decodes CD and SACD without error and to the very highest standards of quality. The mechanism is integrated into a heavy drive unit manufactured to rigidly high standards, designed to shield and isolate it completely. The mechanical system is extremely refined.

T+A PDT 3100 HV Multi-Source Player

Optimised Speed Mechanism

The core of the PDT 3100 HV is the new, modern decoder / disc mechanism, which we have developed specifically for audio applications. It features the latest processors, lasers, high-performance motors and other components, all designed to provide the optimum conditions for perfect, error-free disc reading characteristics. This unit is fully shielded, and housed in a very substantial aluminium case machined from solid aluminium, designed to prevent any form of interaction between the moving parts of the mechanism and the remainder of the player. This entire disc mechanism block is mounted on just two close-tolerance linear bearings, which in turn are suspended from a thick carrier plate; the latter is fixed to the central case plate at only three points. This design ensures that the whole mechanism is completely isolated from the heavy external housing.

T+A PDT 3100 HV Multi-Source Player
Mechanism
Principle High Precision Linear Tracking Drive Double Laser System: SACD: 650 nm, CD: 785 nm, Double GaAlAs Laser System
Formats CD, CD-R, CD/RW, SACD Stereo, SACD/CD Text
Frequency Range and Dynamics CD: 2 Hz – 20 kHz / 100 dB, SACD: 2 Hz – 44 kHz / 110 dB

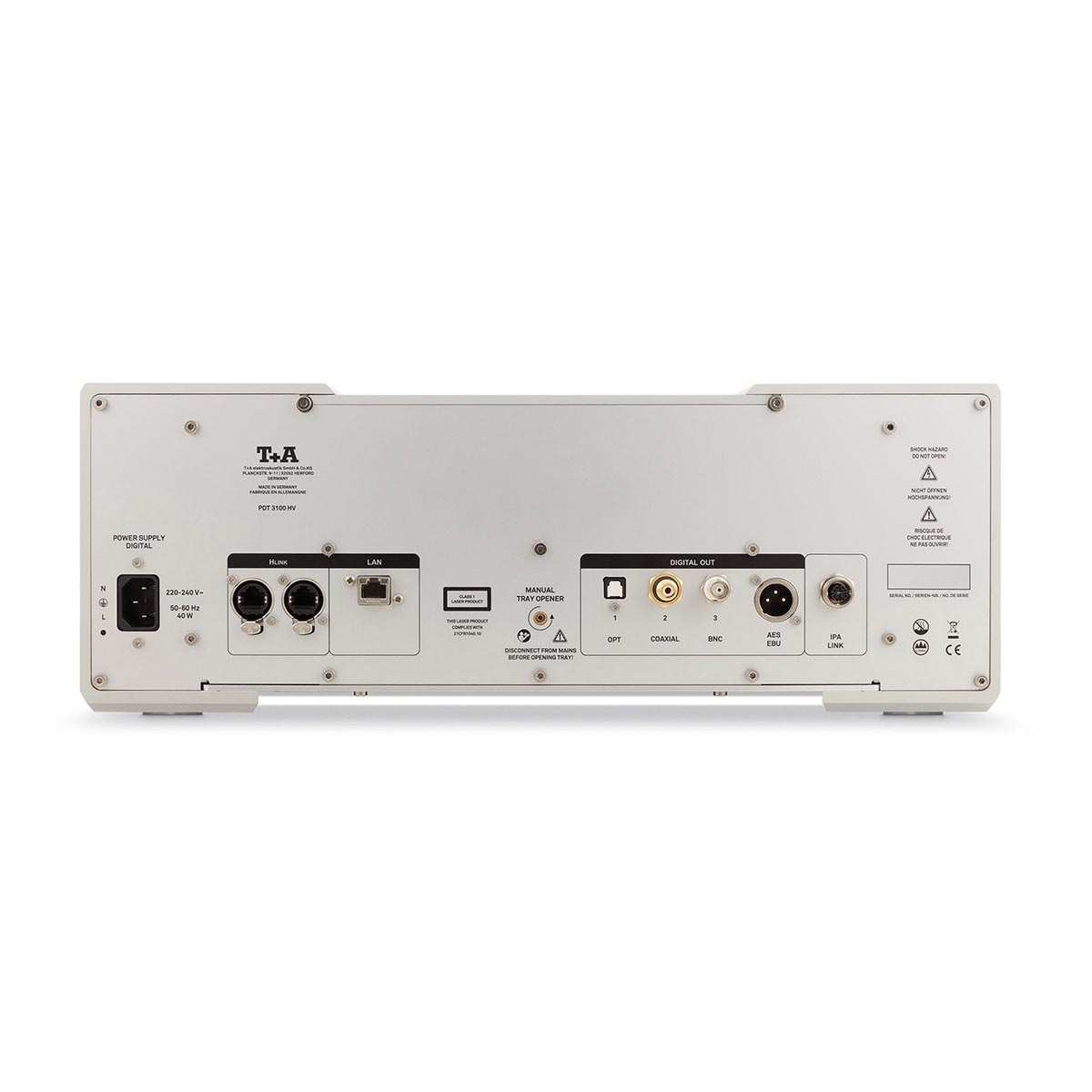

Connections
Digital Outputs AES 1 x AES-EBU 32 - 192 kHz / 16 - 24 Bit
Mains / Accessories / Dimensions
Mains 220 – 240 V, 50 Hz
Power Consumption in Operation 40 W
Standby <0.5 W
Accessories Power Cord, Remote Control F 3100, CD Stabiliser, IPA-Bus Cable
Optional Accessories Power Three HD (Carbon), Power Bar, Audio Triax (Carbon), HV-Individual Finish (Individual Colours on Request)
Dimensions (H x W x D) 17 x 46 x 46 cm
Weight 29 kg
Finishes Silver Laquer (47) or Titanium Laquer (64)
