Paradigm CI Pro P80-IW V2 In Wall Speaker (Single)

Brand: Paradigm
Product Code: PAR-CI-P80WV2
Warranty: 5 Years
$779.00
Qty:
Paradigm
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

CI Pro P80-IW v2

The Custom Installer’s Smarter Choice.

The CI PRO Series is manufactured in Canada and takes performance to the next level with patented technology, step-up components, and hallmark Paradigm sound quality.

Paradigm CI Pro P80-IW v2 In Wall Speaker

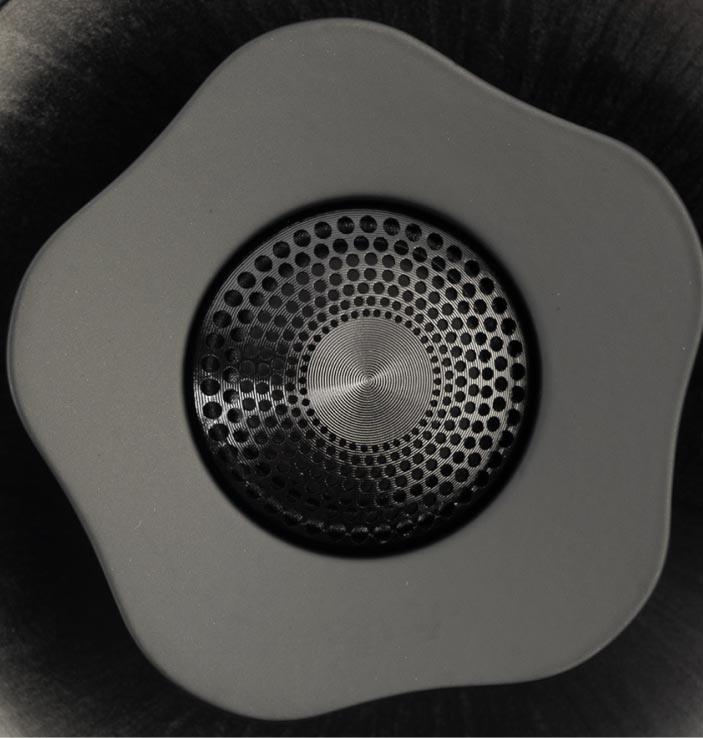

Aluminium Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

AL-MAC™ is our unique blend of Aluminium, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.

Paradigm CI Pro P80-IW v2 In Wall Speaker

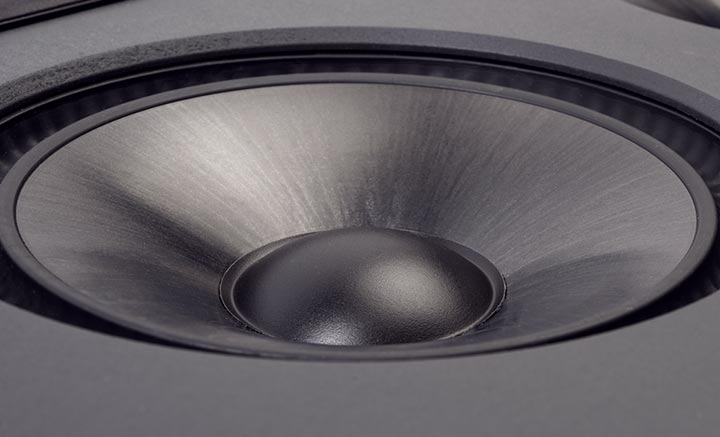

CARBON-X™ Cones

Paradigm’s exclusive CARBON-X™ Cone combines lightweight stiffness with high consistency for a greater degree of accuracy and smooth, uncoloured frequency response. Drivers feature long excursion voice coil motors for greater power handling and reduced power compression.

Paradigm CI Pro P80-IW v2 In Wall Speaker

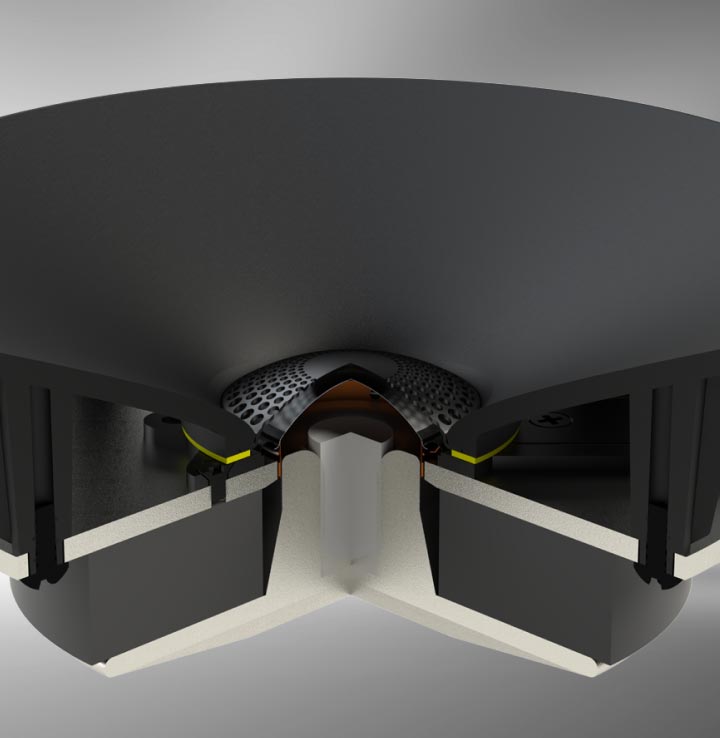

Advanced Shock-Mount™ System

Mechanically decouples the die-cast aluminium baskets from the specially formulate CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.

Paradigm CI Pro P80-IW v2 In Wall Speaker

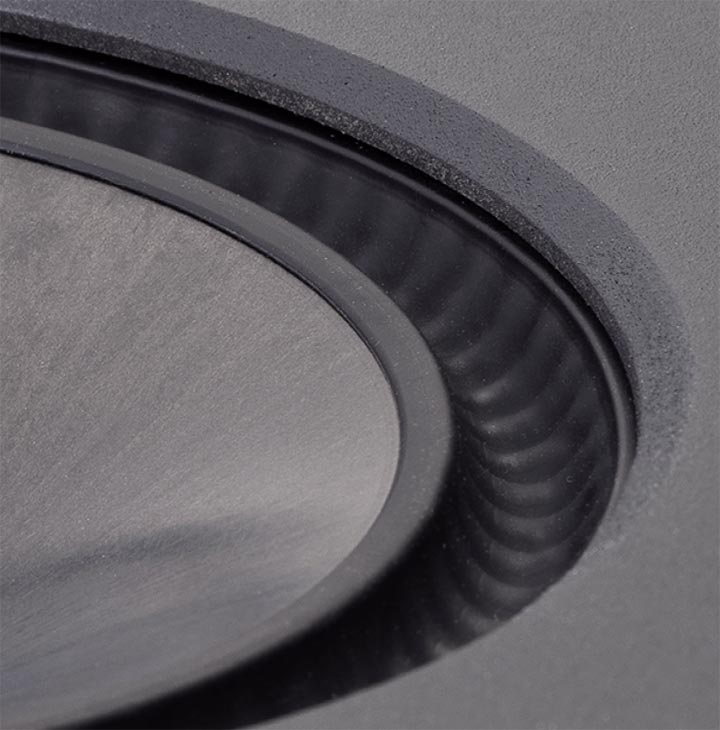

Patented Active Ridge Technology (ART™) Surrounds

Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds.

US patents: D654,479S and 8,340,340B2.

Paradigm CI Pro P80-IW v2 In Wall Speaker

Advanced Features for a Solid and Secure Installation

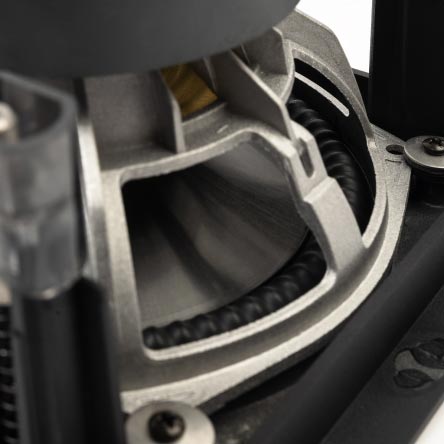

FEA-Optimised Ultra Rigid Cast-Aluminium Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

Paradigm CI Pro P80-IW v2 In Wall Speaker

Rear Component Shielding protects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.

Paradigm CI Pro P80-IW v2 In Wall Speaker

Reduced Edge Diffraction (RED™) Technology significantly reduces the adverse effects of diffraction while improving frequency response.

Paradigm CI Pro P80-IW v2 In Wall Speaker

Pocketed screw holes help to hold the drill steady, making installation a snap.

Paradigm CI Pro P80-IW v2 In Wall Speaker

Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.

Paradigm CI Pro P80-IW v2 In Wall Speaker

Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

Paradigm CI Pro P80-IW v2 In Wall Speaker

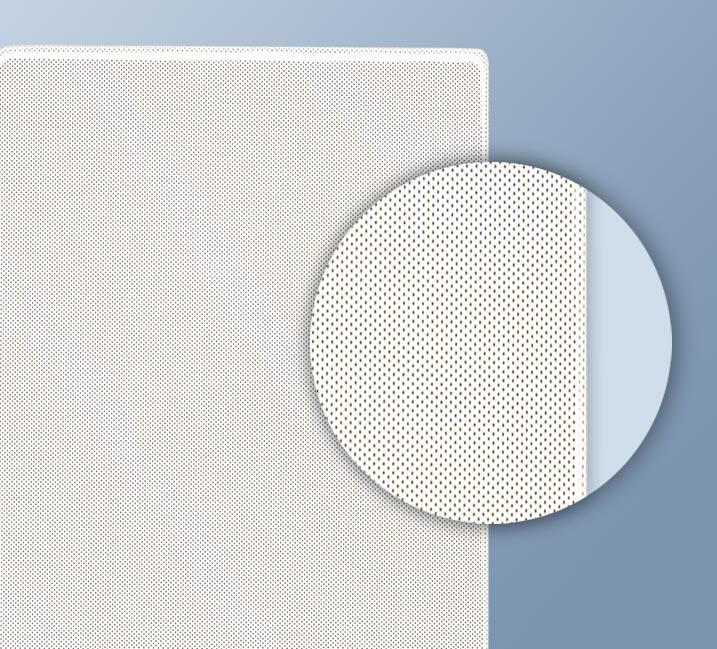

Bezel-Free Micro-Perf Grilles offer a clean aesthetic from room-to-room.

Paradigm CI Pro P80-IW v2 In Wall Speaker

Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

Paradigm CI Pro P80-IW v2 In Wall Speaker

Paradigm CI Pro P80-IW v2 In Wall Speaker

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

Paradigm CI Pro P80-IW v2 In Wall Speaker
Specifications
Design 2-Driver, 2-Way In-Wall, Advanced Shock-Mount™ System, Die-Cast Aluminium Baffle
High Frequency Driver 1” (2.5 cm) Aluminium Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
Mid/Bass Frequency Driver 8” (20.3 cm) CARBON-X™ Cone with Overmoulded Active Ridge Technology (ART™) Surround, Advanced Shock-Mount™ System, FEA-Optimised Ultra Rigid Cast-Aluminium Baskets
Crossover 2nd-Order Electro-Acoustic at 2.5 kHz
Frequency Response - On-Axis ±3 dB From 55 Hz - 22 kHz
Frequency Response - 30° Off-Axis ±3 dB From 55 Hz - 18 kHz
Sensitivity - Room / Anechoic 91.5 dB / 87.5 dB
Low Frequency Extension 30 Hz
Suitable Amplifier Power Range 15-150 W
Maximum Input Power 100 W
Impedance Compatible with 8 Ohms
Cut-Out Dimensions (H x W) 11-9/16” x 8-1/16” (29.3 cm x 20.5 cm)
Minimum Mounting Depth 3-3/8” (8.6 cm) (Depth Required is the Distance Between 1/2" Drywall, or Similar Material)
Dimensions (H x W x D) (Includes Grille) 12-5/8” x 9-1/4” x 4” (32.1 cm x 23.4 cm x 10.2 cm)
Weight 8.6 lb (3.9 kg)
Finishes White, Paintable Grille, Black Speaker
