Monitor Audio Controlled Performance CP-IW260X 6.5" In Wall Speaker (Single)

Brand: Monitor Audio
Product Code: MON-IW260X-IW-SPK-WHT
Warranty: Lifetime
$1,649.00 $1,484.00
Qty:
Monitor Audio
Truck
Free Shipping On Orders Over $99
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

CP-IW260X

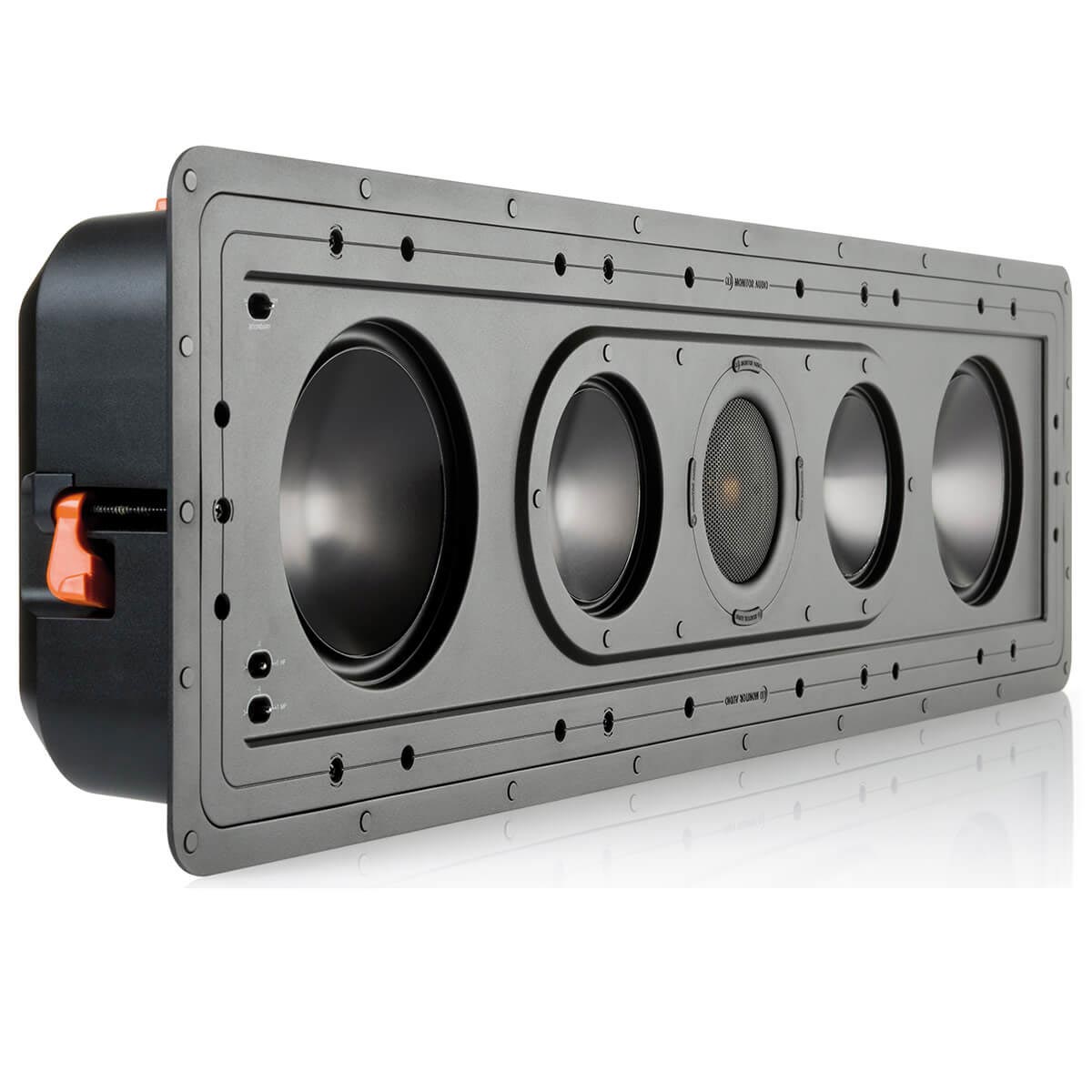

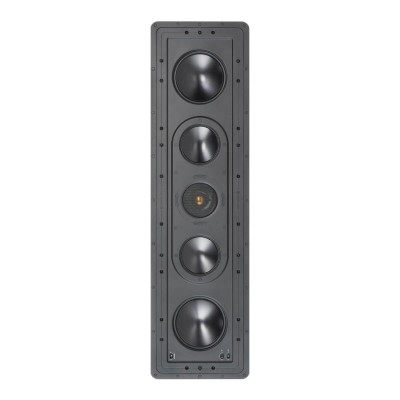

The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.

The CP-IW260X features Monitor Audio’s signature C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material deployed in dual 6.5" bass drivers and twin 4" mids astride a Gold Dome tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet.

Important: Do not paint the CP-IW260X and CP-IW460X grilles, as spare scrims are not supplied.

Monitor Audio CP-IW260X

Key Features

  • Dual 4" C-CAM mid-range drivers – featuring underhung voice coil

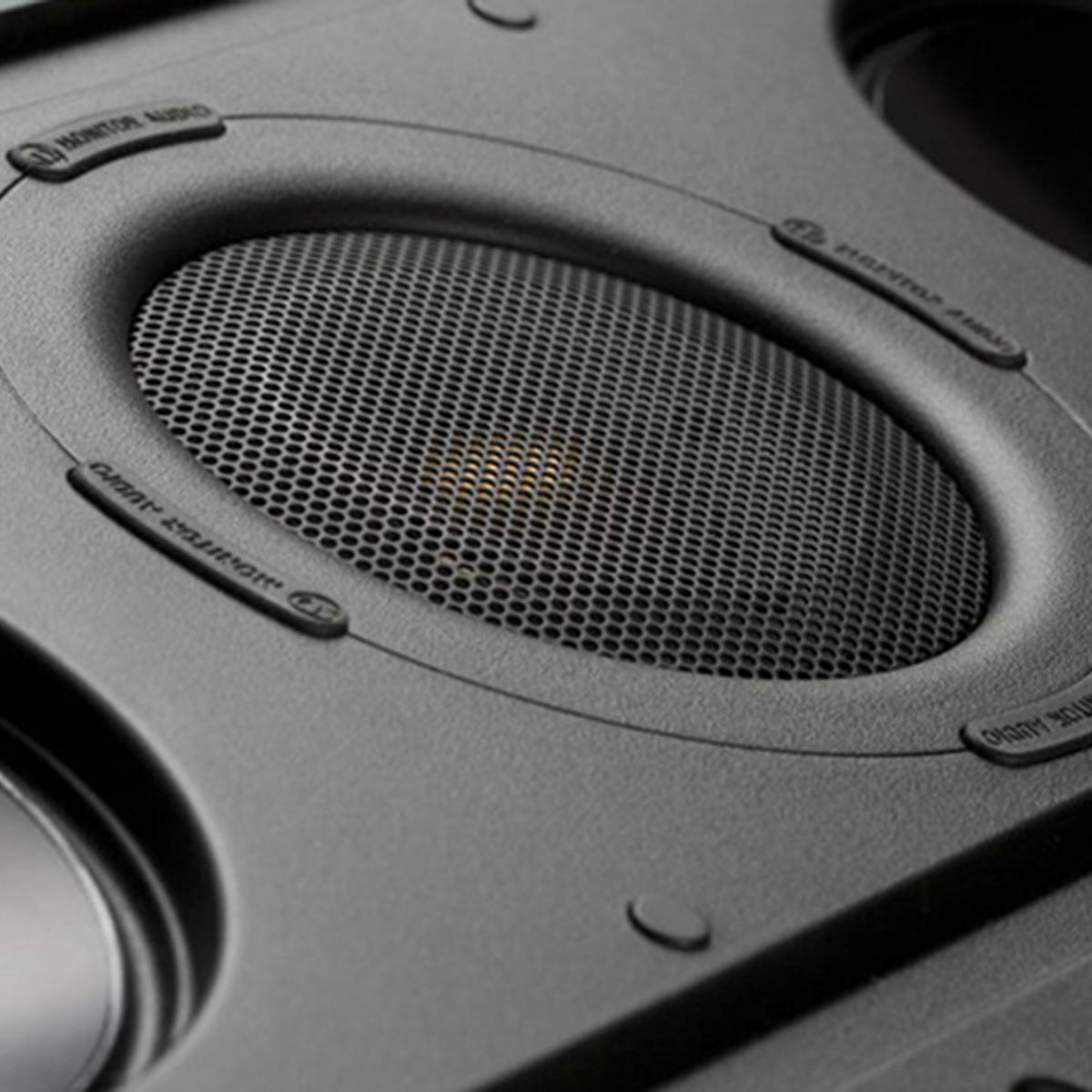

  • 25 mm (1") C-CAM Gold Dome tweeter
  • Portrait or landscape orientation

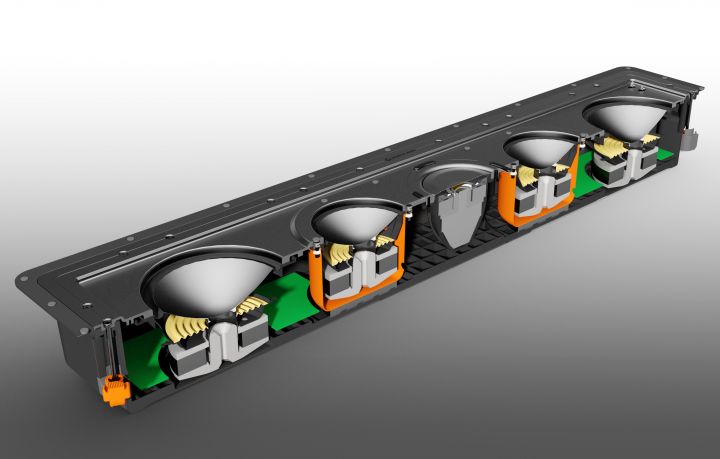

  • Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
  • Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
  • High overall efficiency and maximum SPL for powerful home theatre installations
  • High power handling
  • Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
  • High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors

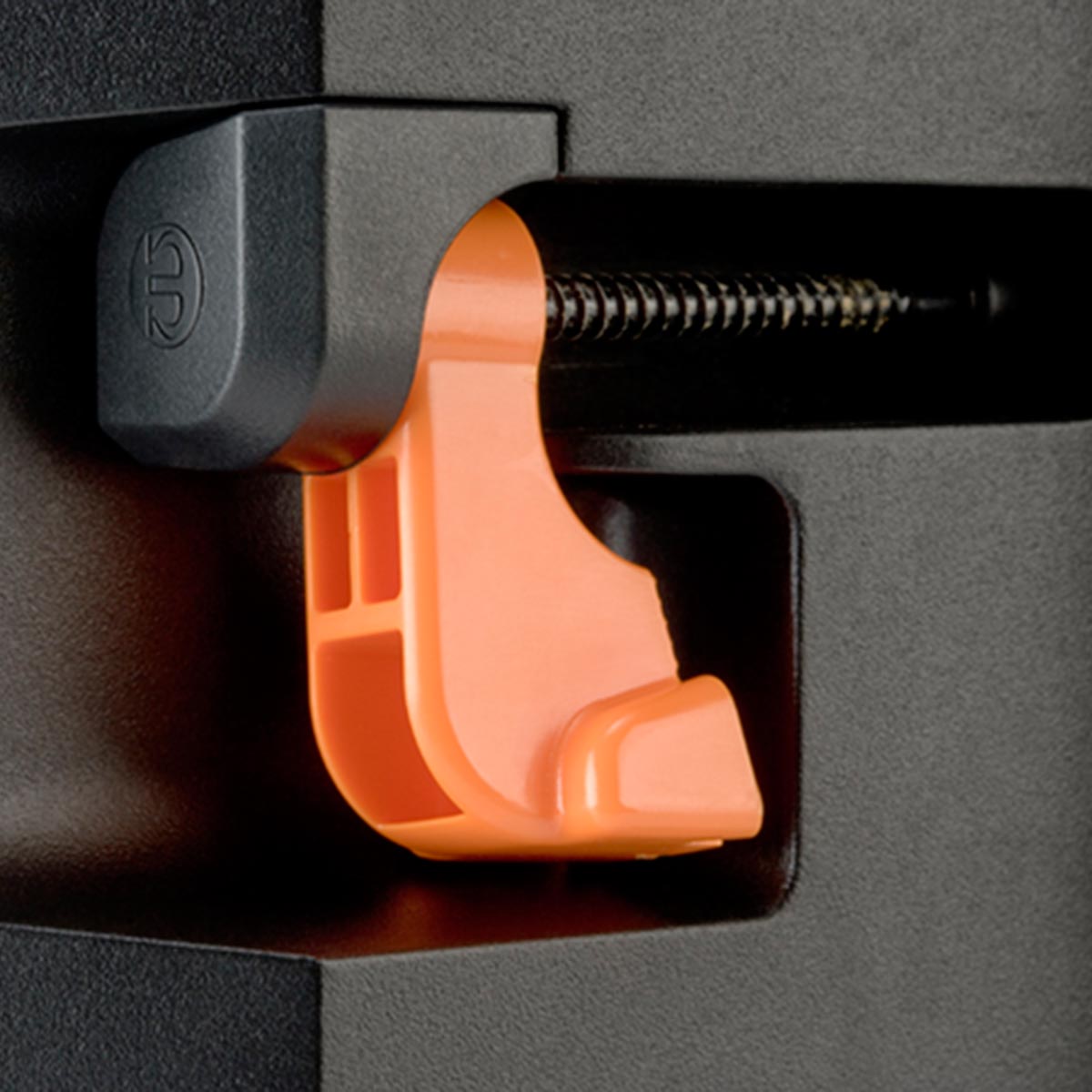

  • Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
  • Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing
Monitor Audio CP-IW260X
Specifications
Frequency Response 50 Hz – 30 kHz (-6 dB Typical In Room Response)
Nominal Impedance 6 Ohms
Sensitivity (1 W @ 1 m) 89 dB
Maximum SPL 113.8 dBA
Power Handling (RMS) 150 W
Recommended Amplifier Requirements 60 – 150 W
Crossover Frequency L.F: 500 Hz @ 12 dB/Octave, M.F: 500 Hz @ 12 dB/Octave & 3 kHz @ 18 dB/Octave, H.F: 3 kHz @ 18 dB/Octave
Drive Unit Complement 2 x 6.5" C-CAM Bass Drivers, 2 x 4" C-CAM Mid-Range Drivers, 1 x 25 mm (1") C-CAM Gold Dome Tweeter
Adjustment Controls Boundary Compensation (On/Off), MF Level: +1/0/-1 (dB), HF Level: +1/0/-1 (dB)
Overall Dimensions (H x W) 907 x 257 mm (35 3/4 x 10 1/8")
Overall Depth (Including Grille) 102 mm (4")
Mounting Depth 96 mm (3 3/4")
Cut-Out Dimensions 880 x 230 mm (34 21/32 x 9")
Fixing Type 10 x Tri-Grip Dog Leg Fixings
Construction Material Cast Polymer Enclosure (RoHS 2 Compliant)
Weight 11.98 kg (26 lb 6 oz)
Pre-Construction Bracket WB12 Pre-Construction Bracket (Green)
Sold As Single Unit
