ElectroMotion ESL C

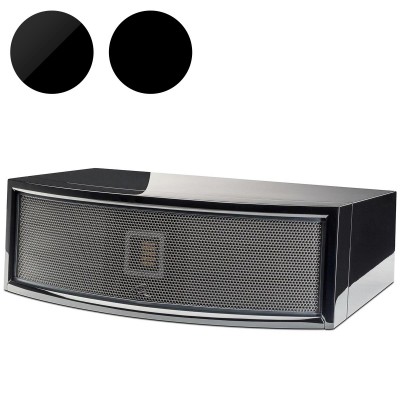

MartinLogan ElectroMotion ESL C Centre Speaker

ElectroMotion ESL C Centre Speaker

The powerful EM-ESL C is a high-performance electrostatic centre channel loudspeaker. With the exceptional mid-range dynamics of an electrostatic panel, the remarkable details delivered by a Folded Motion Tweeter, and the addition of a newly-designed CenterForce dual woofer system, the most surprising thing about the EM-ESL C isn’t its superior performance. It’s that the EM-ESL C is compact enough to fit easily into today’s most popular A/V furniture. With the EM-ESL C electrostatic centre channel loudspeaker, you can match the acoustic signature of your ElectroMotion Series speakers and build a truly astounding home theatre system.

MartinLogan ElectroMotion ESL C Centre Speaker

Expanding the Dynamics of Centre Channel Performance

By adding a compact electrostatic panel to a centre channel speaker, MartinLogan engineers have succeeded in expanding the performance dynamics of the most important speaker in your home theatre system. Your centre channel speaker needs to be able to reproduce the finest high frequency details. The midrange must be expansive; to reproduce every whisper of dialogue. Deep bass adds impact to the front-stage effects that anchor the action to your screen. The EM-ESL C accomplishes all this, and more.

The EM-ESL C has a shallow height CLS (Curvilinear Line Source) XStat electrostatic panel wrapped around the front of the speaker enclosure. The gentle horizontal curve of the panel enhances the output of its deceptively compact 114-square-inch radiating area, extending mid-range dispersion patterns and blending the performance seamlessly with your front-stage ElectroMotion loudspeakers.

Just behind the electrostatic panel, in a specially designed housing, sits MartinLogan’s exclusive Folded Motion Tweeter. The low-mass diaphragm of the Folded Motion Tweeter minimizes distortion, and its short excursion length reinforces its lightning fast high frequency response. The 1 x 1.4-inch Folded Motion Tweeter in the EM-ESL C has a total diaphragm area of 9.2-inches, with the ability to reproduce precise details; one of the most important jobs of a centre channel speaker.

MartinLogan ElectroMotion ESL C Centre Speaker

The New CenterForce™ System

Designing a high performance electrostatic centre channel speaker sized to fit into A/V furniture was no easy task. Adding a dual woofer system seemed impossible! But MartinLogan’s skilled audio engineers found a novel solution, and they call it CenterForce.

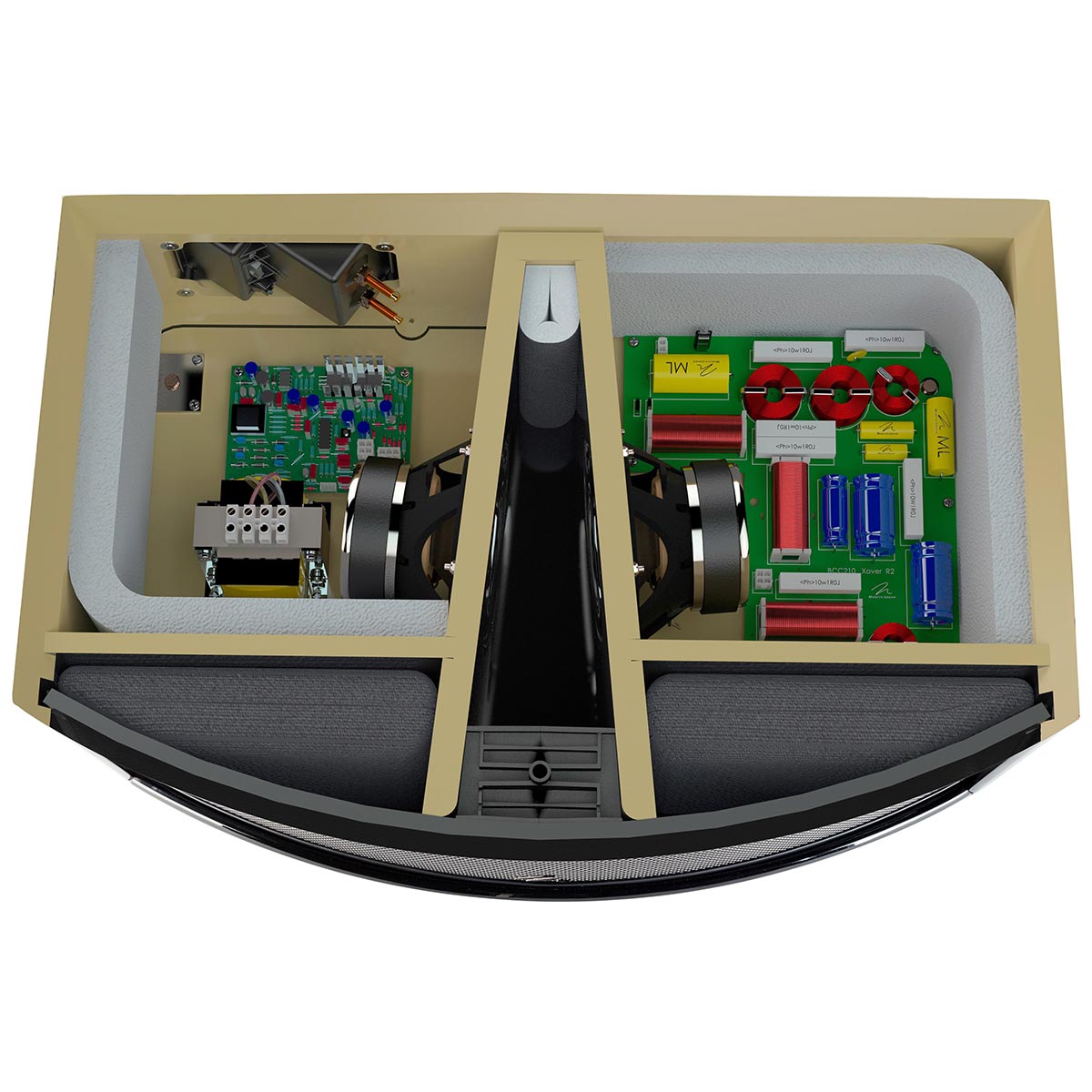

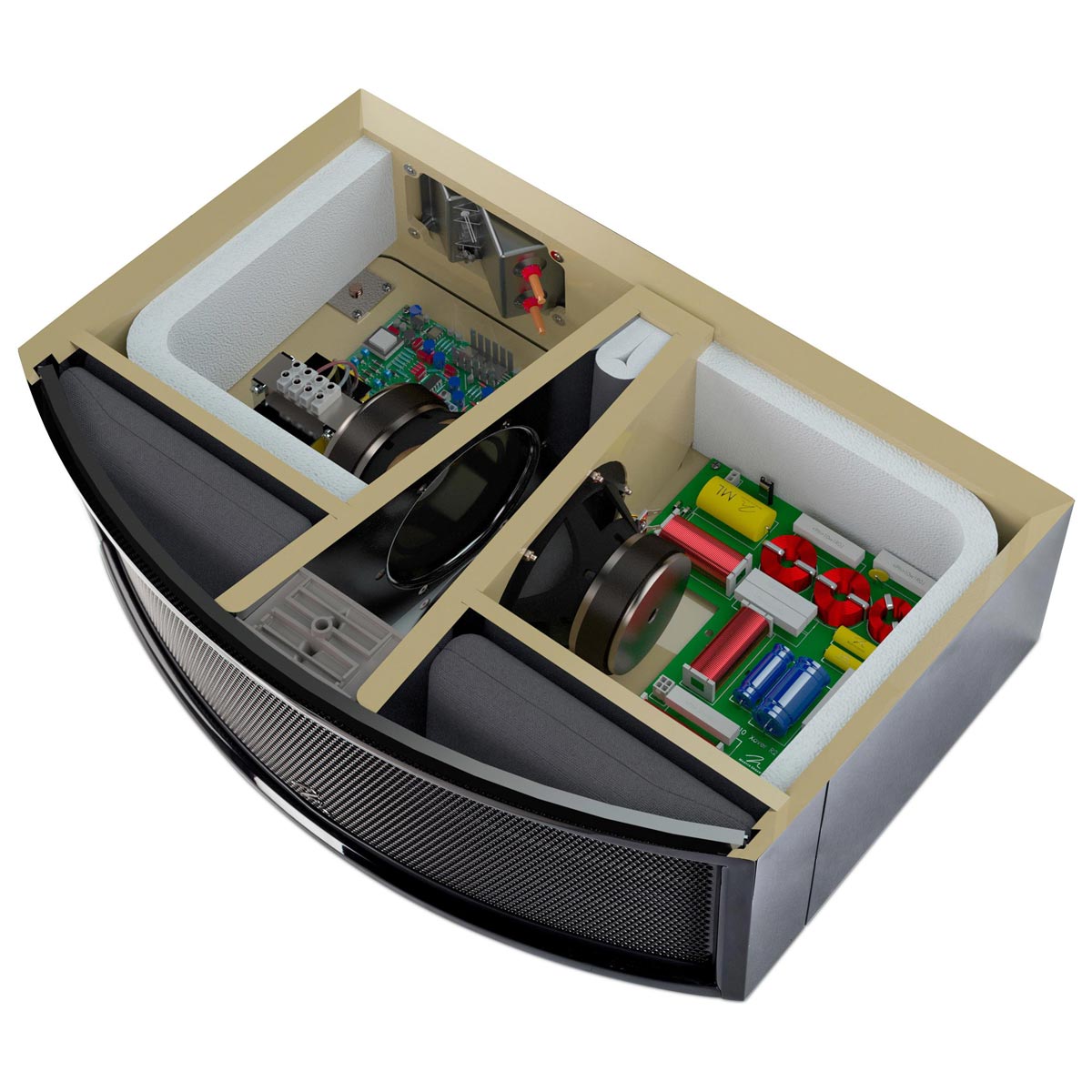

Instead of taking up space by positioning the woofers on each side of the electrostatic panel, they’ve designed a central slot inside the cabinet for the woofers. Now, the dual woofers reside in a well-braced enclosure located behind the tweeter and electrostatic panel.

This new CenterForce solution allows the speaker to be more compact, and encourages the woofers to produce a generous amount of well-blended deep bass. The CenterForce system in the EM-ESL C features two custom-designed 5.25-inch aluminium cone woofers. Rigid and yet lightweight, this material reduces flexure while minimizing response time. Their efficient construction optimises suspension and magnetic flux field, further reducing potential sources of distortion. The EM-ESL C grounds its performance in accurate, musical bass response.

This is a centre channel speaker that delivers a full-range performance, by combining an electrostatic panel with a Folded Motion Tweeter, bolstered by the CenterForce bass system. The compact EM-ESL C goes where you want it, and does what you need, for your high performance ElectroMotion home theatre system.

MartinLogan ElectroMotion ESL C Centre Speaker
Specifications
Frequency Response 66 Hz – 23 kHz ±3 dB
Recommended Amplifier Power 20 — 300 watts per channel
Horizontal Dispersion 30°
Vertical Dispersion 6.375" (16 cm) line source
Sensitivity 89 dB @ 2.83 volts/metre
Impedance 4 ohms (Compatible with 4, 6, or 8 ohm rated amplifiers)
Crossover Frequency 600, 3,400 Hz
High Frequency Transducer 1" x 1.4" (2.6 cm x 3.6 cm) Folded Motion Transducer with 5.25" x 1.75" (13.3 cm x 4.4 cm) diaphragm
Mid Frequency Transducer XStat™ CLS™ electrostaic transducer. Panel dimensions: Two 6.375" x 9" (16.2 x 22.8 cm). Radiating area: 114 in² (740 cm²).
Low Frequency Transducer Two 5.25" (13.3 cm) high excursion, high-rigidity aluminium cone with extended throw driver assembly, non-resonance asymmetrical chamber format.
Components Custom-wound audio transformer, air core coils, low dcr steel laminate coils, polyester capacitors.

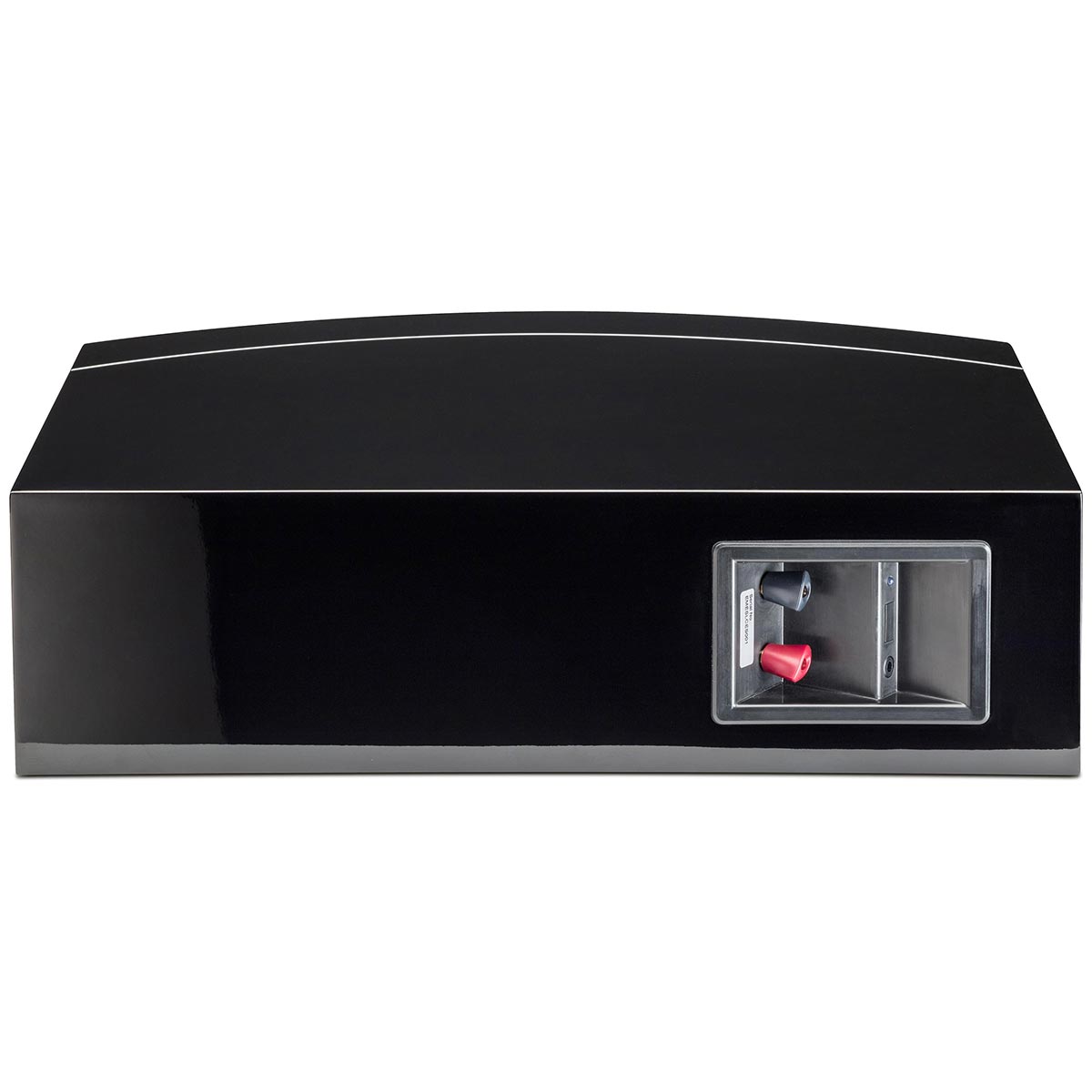

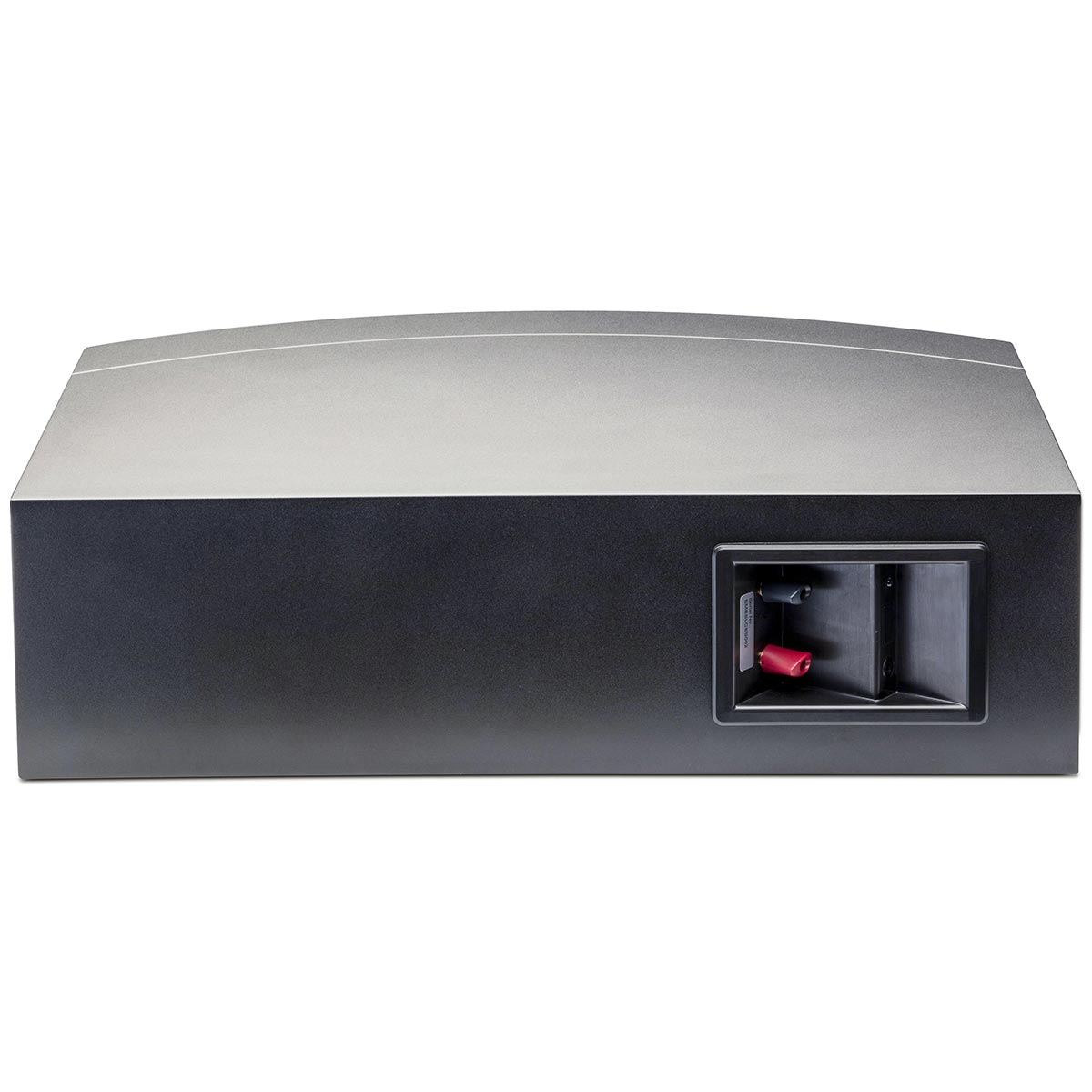

Inputs Custom 5-way tool-less binding posts
Weight 32 lb (14.5 kg)
Dimensions 7.6" x 22.8" x 16.1" (19.3 cm x 57.9 cm x 40.9 cm)
