Ruark R610 Music Console & Sabre-R Bookshelf Speakers Hi-Fi System

Sabre-R + R610

Perfect Partners

On their own, Sabre-Rs are a tempting proposition for customers seeking high performance speakers for their existing hi-fi separates, but for customers seeking a complete musical solution, Sabre-R and R610 together create a formidable package. Whatever your taste, Sabre-R and R610 creates a magical combination, that will have you discovering again the delight that music and sound can bring.

R610 Music Console

The Stereo Music Centres of the 1970s started the hi-fi revolution and our new R610 Music Console brings this highly popular concept back and completely up to date. With comprehensive connection and streaming capabilities, R610 has been designed and crafted for sound, to get people back to the joy of music.

• Apple AirPlay and Google Cast
• Spotify Connect, TIDAL Connect and Qobuz Connect built-in
• Apple Music, BBC Sounds, Deezer and more
• Hi-Res music file support up to 32-bit 384 kHz
• Internet/DAB/DAB+ and FM tuners
• HDMI ARC/eARC connection

Sabre-R Bookshelf Speakers

With many customers still enjoying our original Sabre loudspeakers, launched in 1985, the Sabre-Rs have likewise been designed to last and enthral a new generations of music lovers.

A celebration of Ruark’s heritage, Sabre-Rs have been exquisitely crafted and refined with the understanding of how materials and components combine to deliver musicality that you will enjoy endlessly.

• Crafted with over 40 years of audio heritage
• For stand-mount or bookshelf use
• 2-way tuned bass reflex design
• Ruark 26mm silk dome tweeter
• Ruark 15cm treated natural fibre cone woofer

R610 Specifications

Audio

• Amplifier: 2 × 75 W per channel Class-D
• Frequency response: 22 Hz - 22 kHz +0/-3 dB
• Enhancements: Stereo+, bass, treble, loudness
• DAC: Up to 32-bit/384 kHz resolution

Features

• Display: Hi-contrast 5" colour TFT
• Auto-Standby: Automatic power saving mode
• Adjustable input levels: Line-in, phono-in, optical and HDMI
• USB Charge Port: USB-C 5 V 1 A (5 W)
• Software Updates: Over-the-air and USB
• Controller: Ruark RotoDial control system
• Remote control: Ruark RotoDial Bluetooth rechargeable remote
• Presets: 20 global presets
• App control: Via Spotify, BBC Sounds and more
• User interface languages: Multilingual

Connectivity

• Radio: Internet Radio, DAB/DAB+ and FM with RDS (87.5-108 MHz)
• Multiroom capable: Via Apple AirPlay and Google Cast
• Wi-Fi: 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
• Streaming: Apple AirPlay and Google Cast
• Built-in music services: Spotify Connect, TIDAL Connect and Qobuz Connect
• Supported music services: Amazon Music, BBC Sounds, Deezer and more
• Bluetooth: 5.1, aptX HD, SBC, AAC, BLE, A2DP
• Ethernet: RJ45 connector 10/100 Mbps
• DLNA: UPnP™ DLNA media server compatible
• CD support: CD playback via optional R-CD100 CD player
• HDMI: ARC and eARC
• Line-input: Stereo RCA input (up to 2.3 Vrms)
• Turntable input: Stereo RCA input with RIAA MM phono gain stage (up to 8 mV)
• Line-output: Selectable Line-out/Pre-out, via stereo RCA connectors
• Subwoofer-output: Volume related full-frequency mono RCA connector
• Optical input: TOSLINK digital input up to 24-bit 96 KHz
• USB-C: playback port
• Aerial connector: 75Ω F-type

Supported Audio Formats

• FLAC, AIFF, ALAC and WAV: up to 32-bit 384 kHz
• MP3: up to 48 kHz 320 kbps
• AAC/AAC-LC/HE-AAC/HE-AAC v2: up to 96 kHz 320 kbps

General Specifications

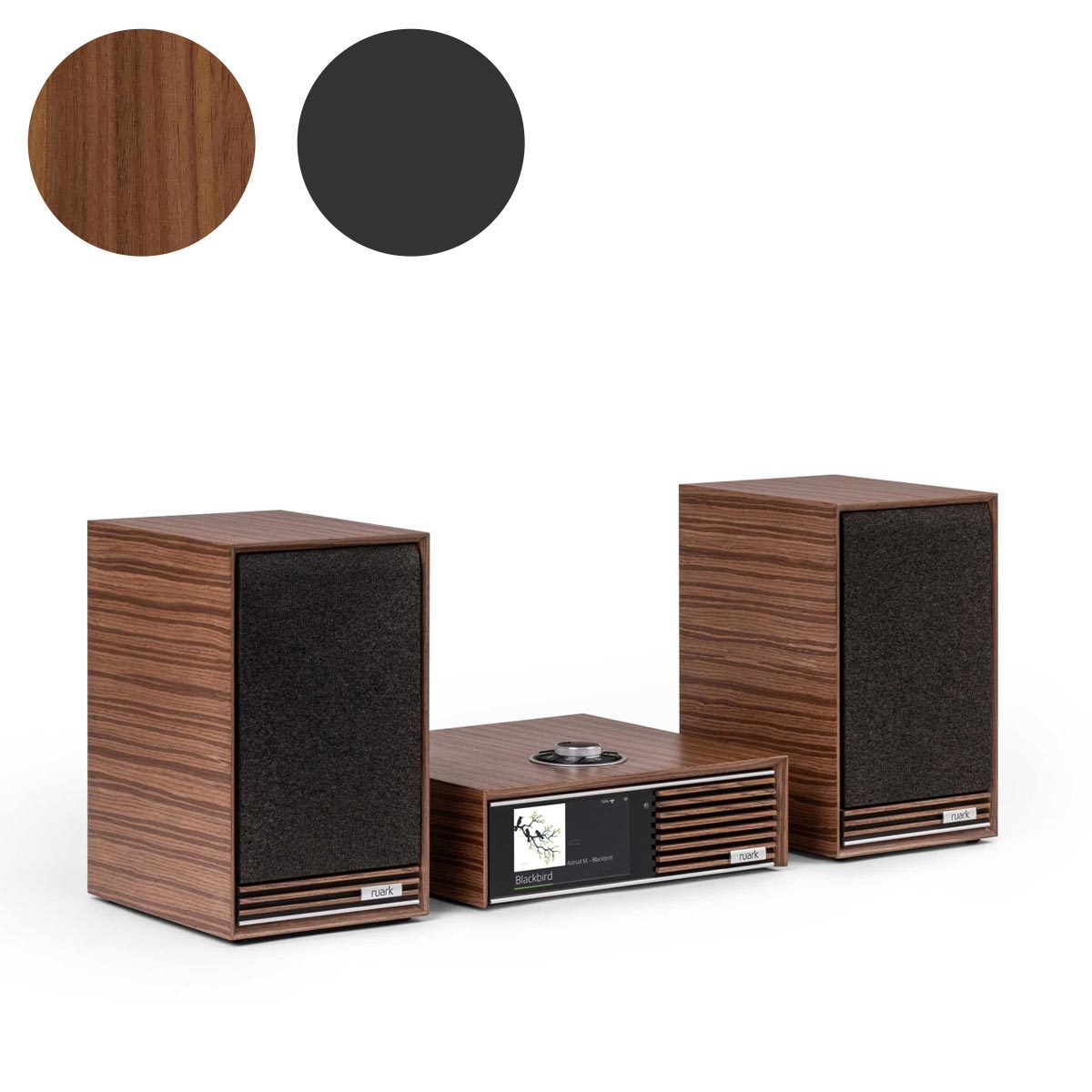

• Standard finishes: Fused Walnut veneer or Satin Charcoal lacquer
• Product dimensions: H 95 × W 300 × D 280 mm (cabinet), H 107 × W 300 × D 280 mm (with Rotodial controls)
• Product weight: 4.1 kg
• Product power input: 90-240 V AC, 50-60 Hz, 2.5 A
• Power consumption: 2.0 W network standby, 8.0 W idle
• Gift Box Content: R610 Music Console, 3m speaker cables, rechargeable Bluetooth RotoDial remote with charge cable, telescopic aerial, aerial spanner, mains power lead, user guide

Sabre-R Specifications

• Cabinet: damped and braced, wood composite construction
• Internal volume: 6.8 litres
• Design: 2-way bass reflex. Double flared port tuned to 53 Hz
• Woofer: Ruark 15 cm treated natural fibre cone, 30 mm 4-layer voice coil, long-throw motor with precision cast chassis
• Tweeter: Ruark 26 mm silk dome, neodymium motor system with aluminium heatsink
• Nominal impedance: 6 Ohm (min 4.2 Ohm)
• Frequency response: 50 Hz – 20 KHz +/- 3 dB (free space conditions)
• Sensitivity: 86 dB/W/m
• Crossover frequency: 2.2 kHz
• Recommended amplifier: 25-100 W
• Input connectors: two sets of 4mm gold plated binding posts for single or bi-wire connection
• Grille: removable magnetic frame with acoustically transparent cloth
• Placement: stand or bookshelf
• Cabinet dimensions: H 290 × W 175 × D 215 mm (D 245 mm inc. connectors)
• Finishes: Fused Walnut veneer or Satin Charcoal lacquer
• Weight: 5.0 kg each
• Box contents: 2 × Sabre-R, optional elastomer feet, quick start guide
