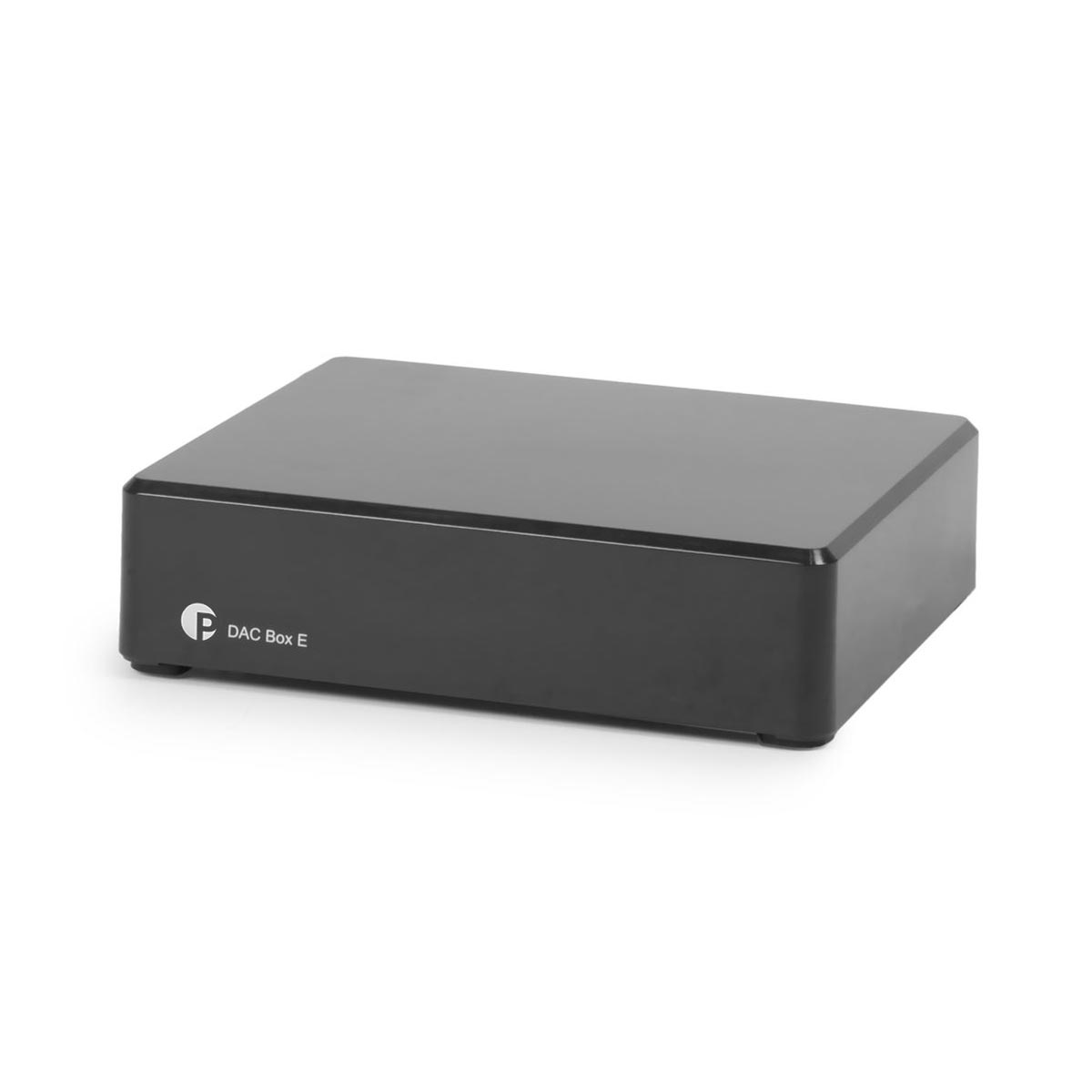

DAC Box E
The entry-level Pro-Ject DAC Box E allows you to connect your digital sources like a TV or CD Player to an analogue amplifier input, utilising an internal Texas Instruments digital to analogue converter (also known as a DAC).
The Pro-Ject DAC Box E uses high quality components. The entire audio circuits design is perfectly linear with an ultra-low output impedance. This means the unit is shielded and avoids any negative interference from external cables or pre amplifiers.
Key Features
- 24 bit / 192 kHz D/A conversion from renowned designer Texas Instruments (TLV320DAC23 Cirrus Logic CS4344)

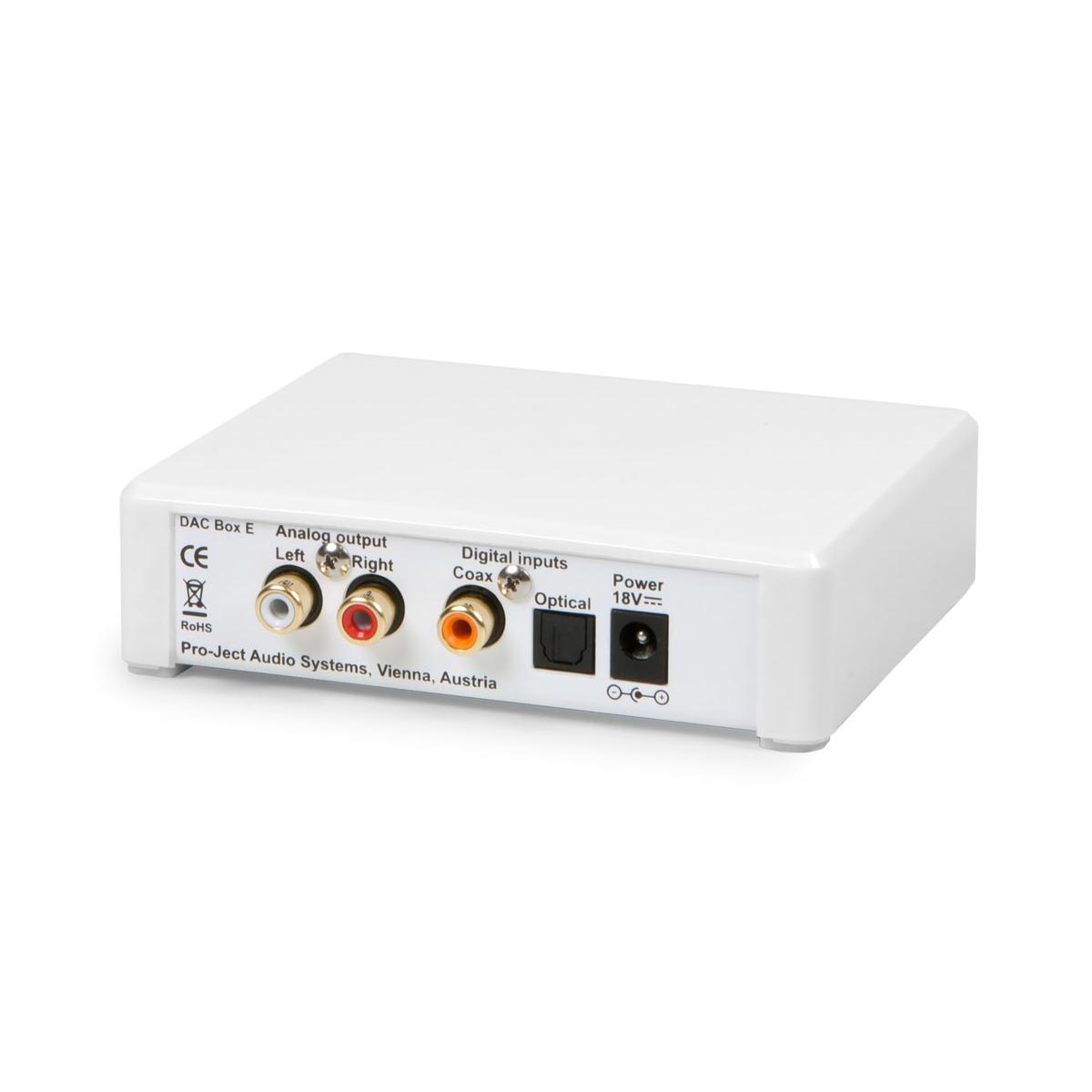

- Coaxial (RCA) & optical (Toslink) S/PDIF input
- SMD circuitry
- Special low noise components
- Internal metal shielding
- Small size allows installation close to source
- Gold plated RCA connection sockets
- Outboard power supply included
| Specifications | |
| Line-Level Output | 1 Pair RCA/Phono Sockets |
| Output Voltage | 0.7 Vrms |
| Digital Inputs | 1 x Coaxial (S/PDIF), 1 x Optical (TOSlink®) |
| D/A Converter | Texas Instruments TLV320DAC23 Cirrus Logic CS4344. 24 Bit / 192 kHz |
| Supported Audio Format | PCM (LPCM) (Stereo Only, No Support for Multi-Channel Formats) |
| Sampling Rates Optical and Coaxial Input | 44.1 kHz, 48 kHz, 96 kHz and 192 kHz (Coaxial Only) |
| Outboard Power Supply | 18 V / 500 mA DC; 220 - 240 V, 50 Hz |
| Power Consumption | 200 mA DC, <1 W in Standby |
| Dimension W x H x D (D with Sockets) | 120 x 32 x 100 (106) mm |
| Weight | 250 g Without Power Supply |
