IsoTek EVO3 Sequel Power Cable - 2m - AU / NZ Plug

Brand: IsoTek
Product Code: ISO-E3SEQL-20-ANZ
Warranty: 3 Years
Power Cable Length / Connectors: *

$599.00 $419.00
Qty:
IsoTek
Truck
Free Shipping On Orders Over $100
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

EVO3 Sequel

EVO3 Sequel power cable offers increased performance over IsoTek’s multi-award winning Premier, featuring optimised conductor strand geometry and active shielding.

Sequel comes in a standard length of 2 metres.


Features

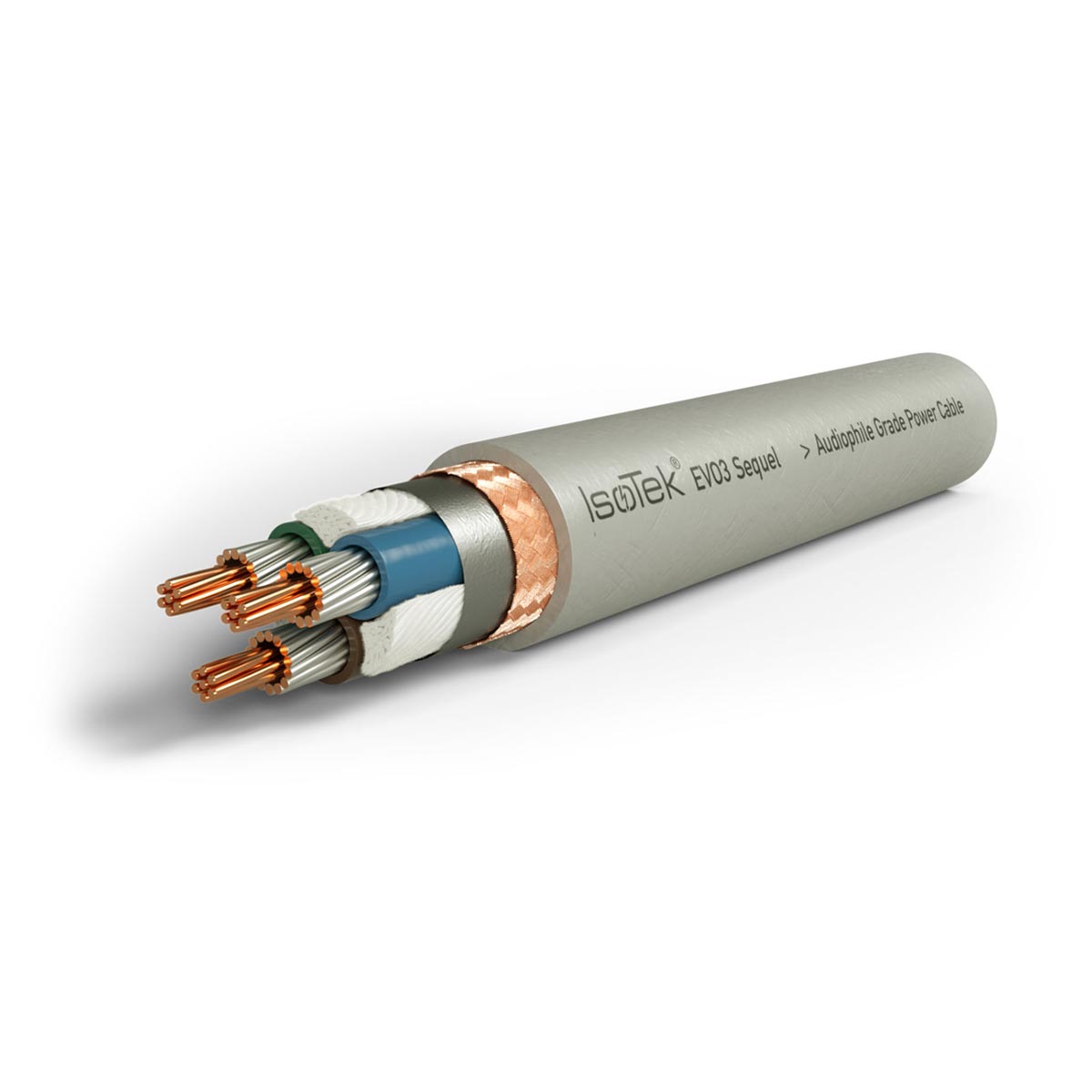

Construction

The conductors are in a parallel construction with slight rotational twist. This established technique remains the first line of defence against RFI and EMI rejection.

A) Conductors: Silver plated 99.9999% OFC conductors offer an exceptional level of purity with enhanced conductivity. They are less likely to fracture or degrade over time. Silver is an excellent conductor and when combined with a high purity copper provides impressive electrical properties.

B) Dielectric: Teflon FEP dielectric (insulation) is chemically inert and has a very low dielectric constant over a wide frequency range. FEP possesses a very high degree of stress crack resistance and a low coefficient of friction making it an exceptional dielectric. FEP is the first choice for safety in both temperature and electrical insulation.

C) Filler: Cotton filler has been used to give the cable internal strength and reduce microphony. Cotton also possesses excellent dielectric properties, the best of a solid material.

D) Wrap: A mylar wrap is used to secure the construction and offer a barrier shield prior to the application of a flexible PVC jacket. The addition of the mylar and cotton form a buffer with the PVC so as to maintain exceptional dielectric properties.

E) Shield: An earthed OFC shield insures maximum RFI rejection, thus preventing Common Mode noise effecting the live and neutral conductors.

E) Jacket: PVC is used as an outer jacket to give a high degree of flexibility and mechanical strength.

Termination

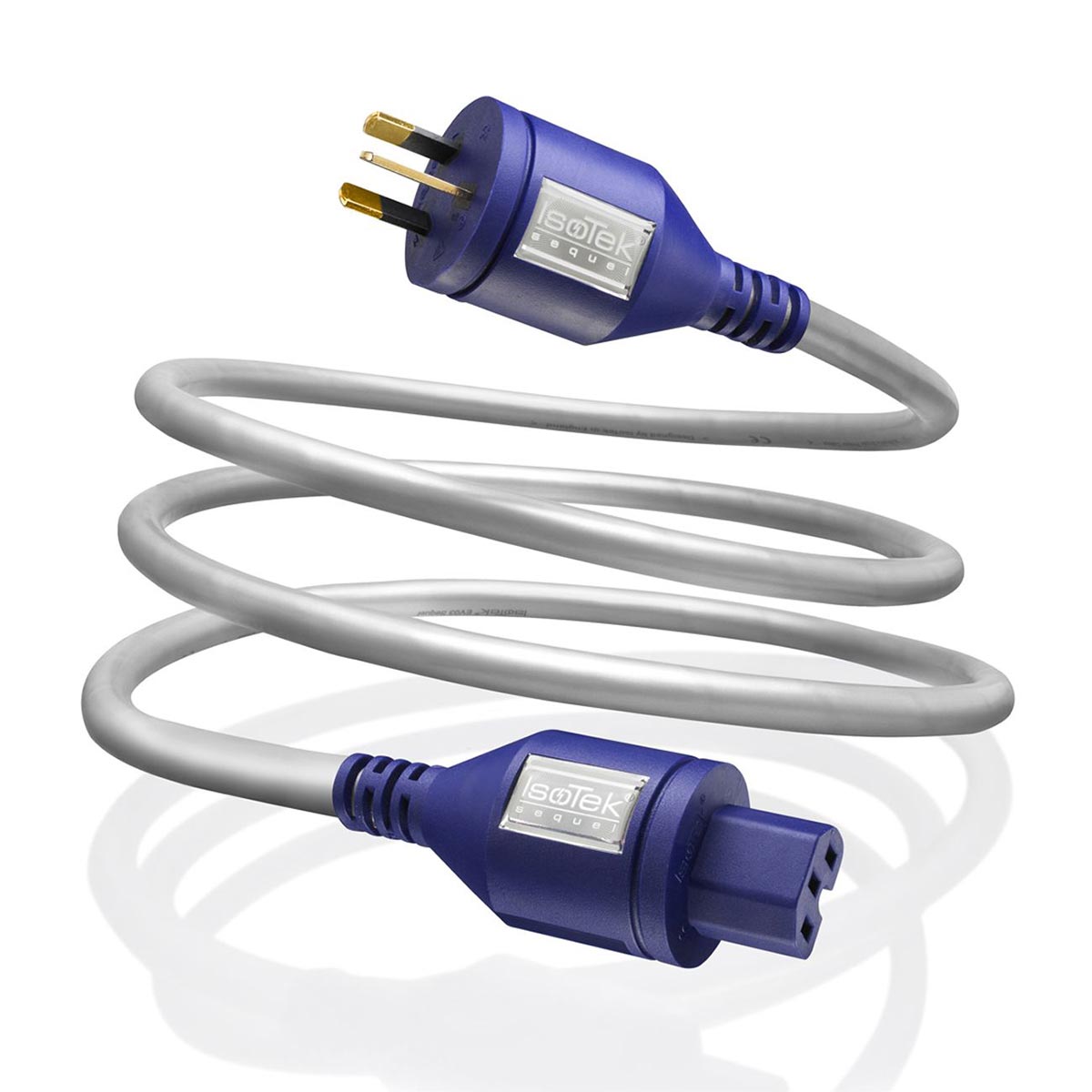

Sequel cable is terminated using IsoTek’s bespoke Audiophile grade moulded connectors of solid OFC with 24ct gold plated conductors. These offer the highest quality performance and are less prone to tarnish.

IsoTek EVO3 Sequel Power Cable
Specifications
Conductor Size 3 x 2.0 sqmm (Increased Diameter Conductor Strands)
Conductor Material Silver-Plated 99.9999% Oxygen Free Copper
Dielectric Fluorinated Ethylene Propylene (PE)
Dielectric Constance 2.1
Filler Cotton
PVC Barrier Mylar
Outer Jacket High Flexibility PVC
Cable Power Rating 16 Amp
Cable Length 2.0 m Standard (Custom Lengths Available)
Outer Diameter 10 mm
Termination 24ct Gold Plated Audiophile-Grade Connectors
