C180

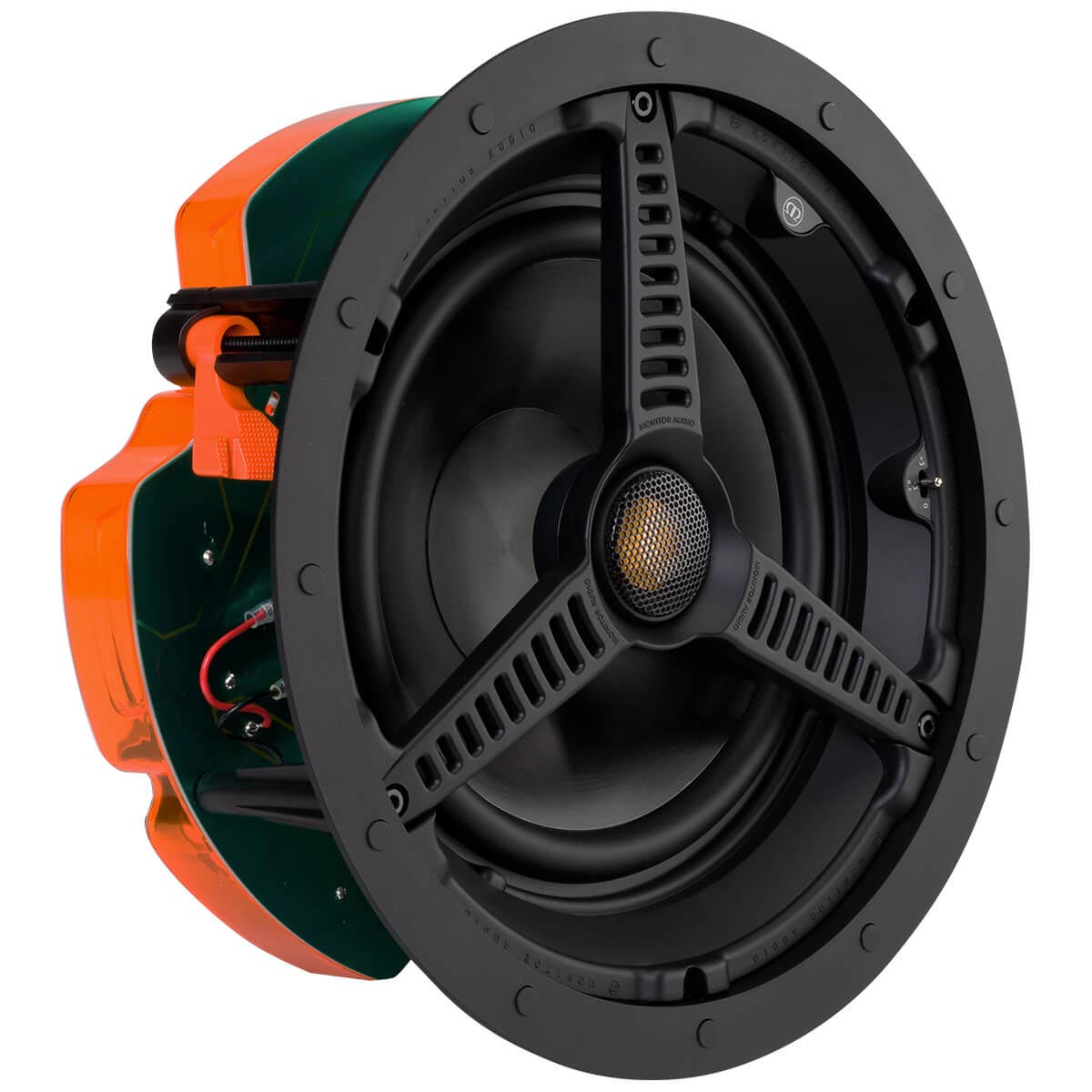

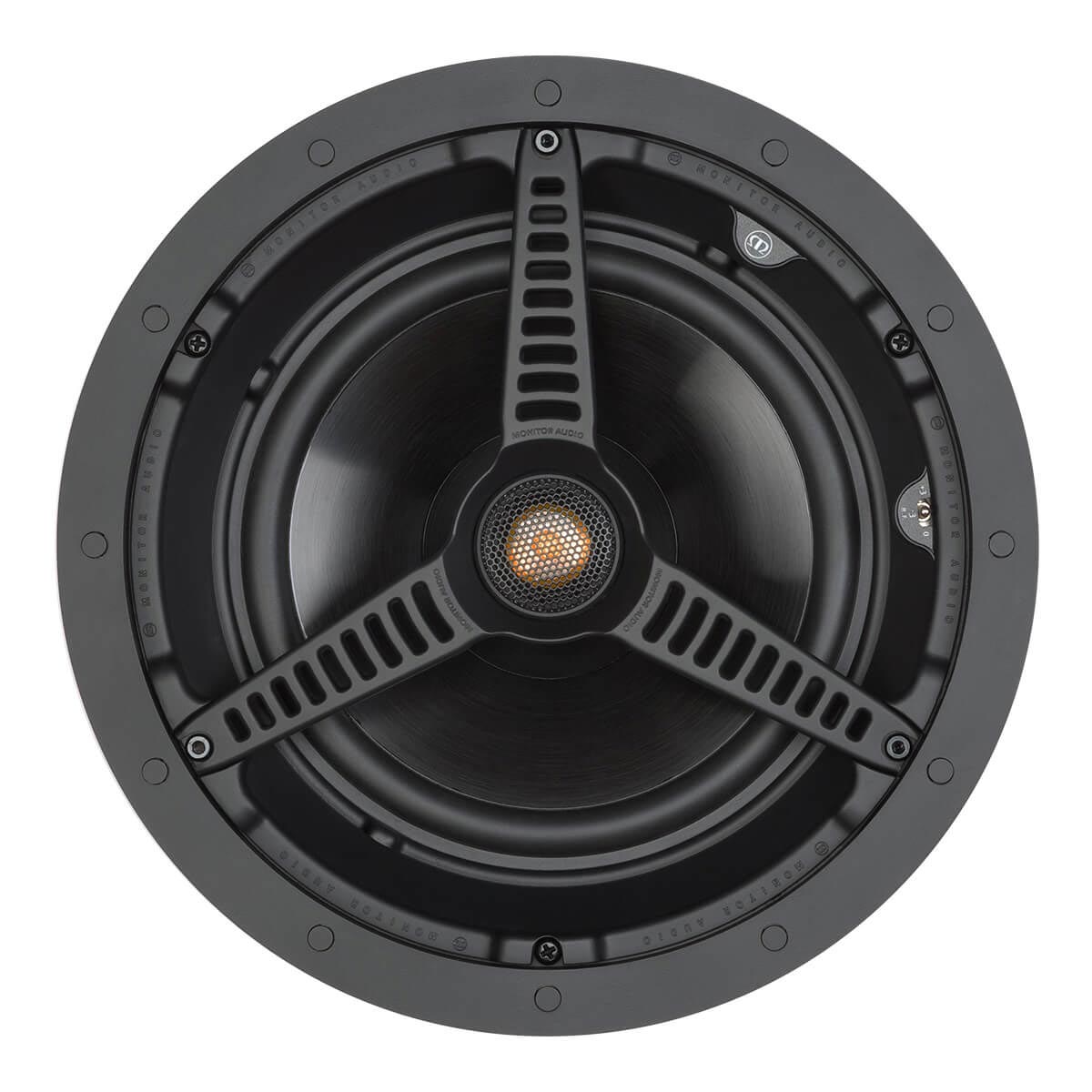

Incorporating an 8-inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.
Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

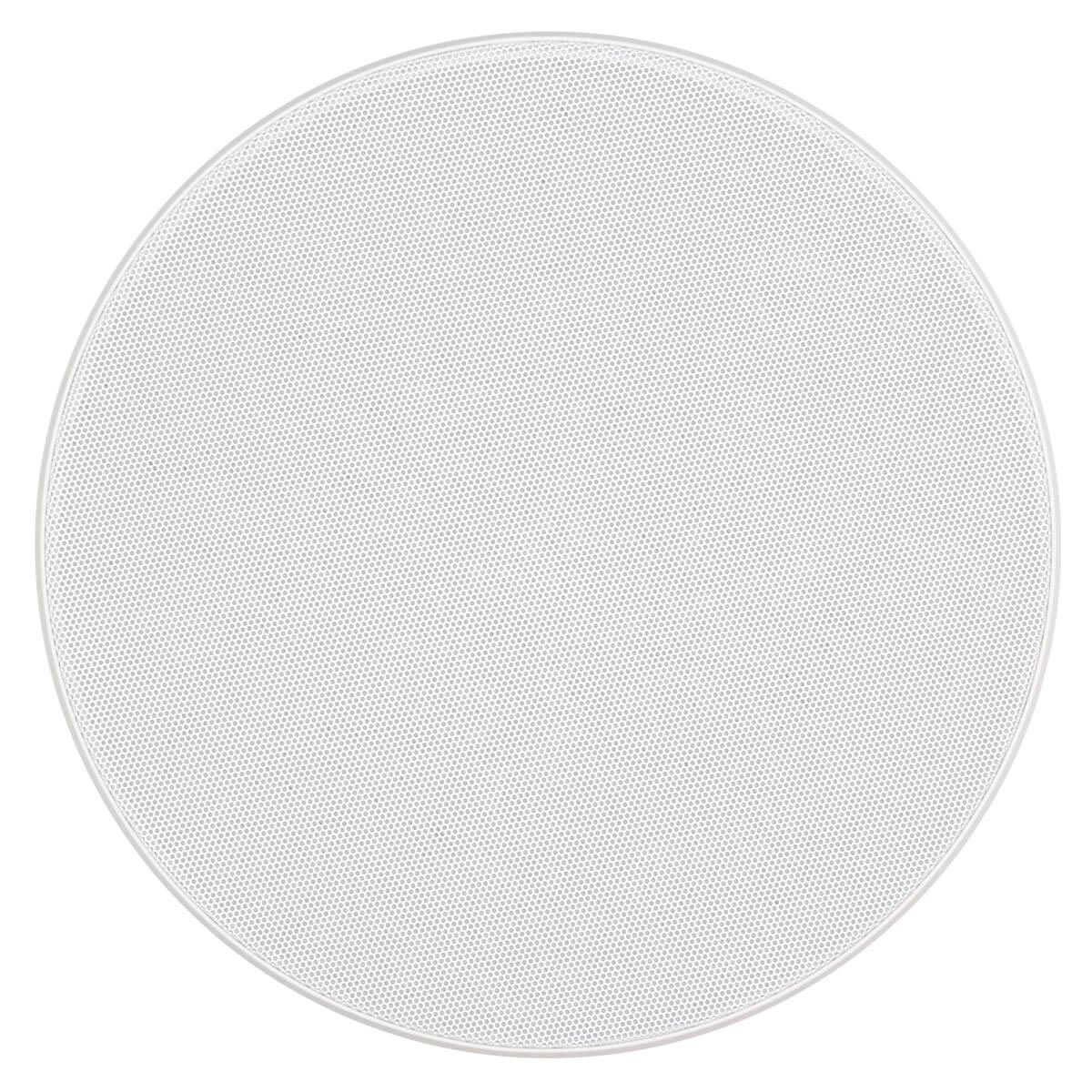

Optional square grille can be used with this model.
| Specifications | |
| Frequency Response | 50 Hz – 25 kHz |
| Nominal Impedance | 6 Ohms |
| Sensitivity (1 W @ 1 m) | 90 dB |
| Maximum SPL | 111.6 dBA |
| Power Handling (RMS) | 120 W |
| Recommended Amplifier Requirements | 30 – 120 W |
| Drive Unit Complement | 8" MMP II Cone Bass Driver, 1" C-CAM Pivoting Gold Dome Tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB) |
| Overall Diameter (Including Grille) | 285 mm (11 1/4") |
| Overall Depth (Including Grille) | 126 mm (4 15/16") |
| Mounting Depth | 122 mm (4 13/16") |
| Cut-Out Hole Diameter | 247 mm (9 3/4") |
| Optional Square Grille - Outer Dimensions | 285 x 285 mm (11 1/4") |
| Fixing Type | 3 Position Tri-Grip Dog Fixings |
| Construction Material | Mineral Filled ABS, RoHS Compliant |
| Weight | 2.72 kg (6 lb) |
| Pre-Construction Bracket | CB8 Pre-Construction Bracket (Green) |
| Back Box | CCBOX-R, CMBOX-R |
| Sold As | Single Unit |
