MartinLogan EFX On Wall Speakers - Satin Black (Pair)

Brand: MartinLogan
Product Code: MLO-EM-EFX-SBL
Warranty: 5 Years
$7,299.00
Qty:
MartinLogan
Truck
Free Shipping On Orders Over $100
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

EFX

Electrostatic On-Wall

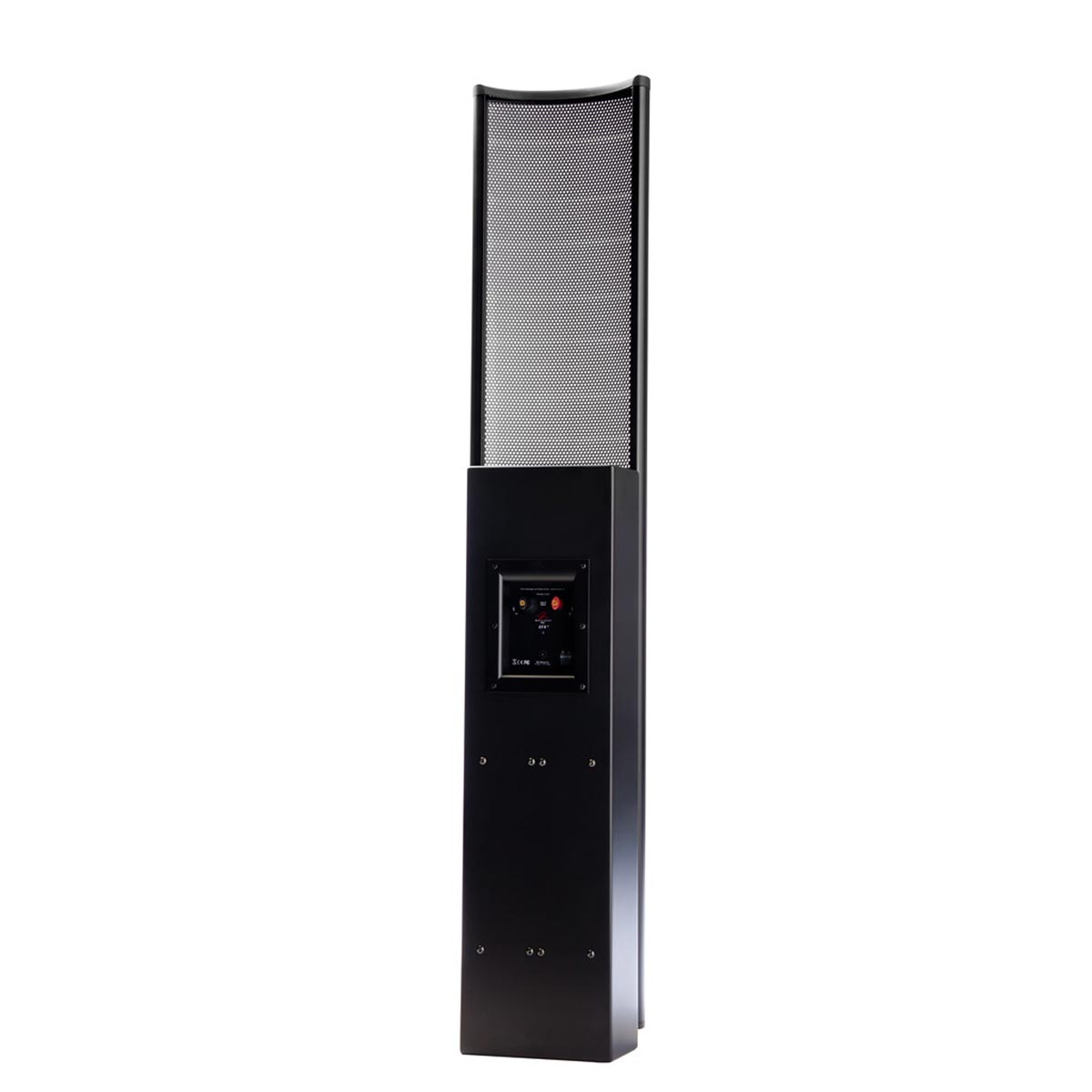

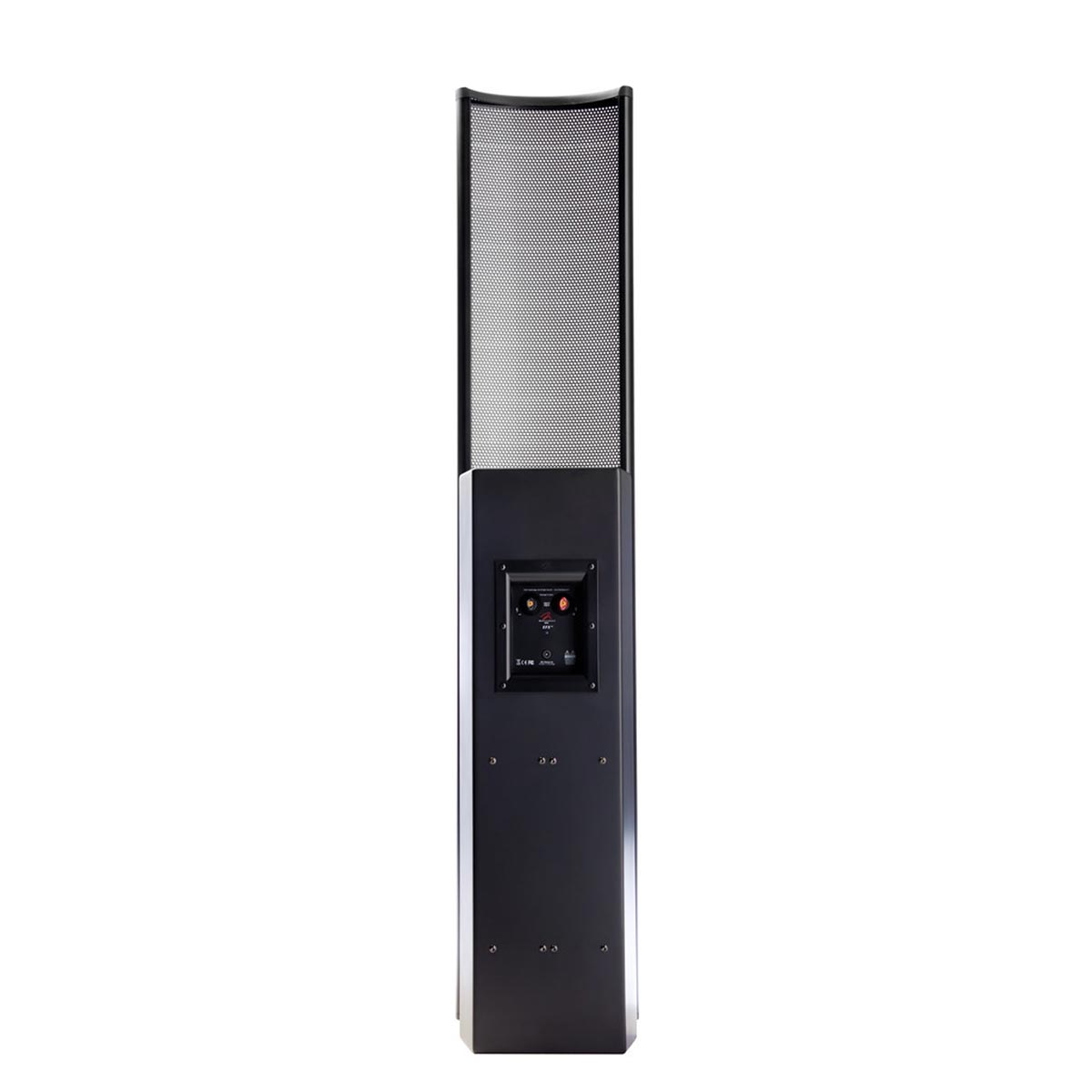

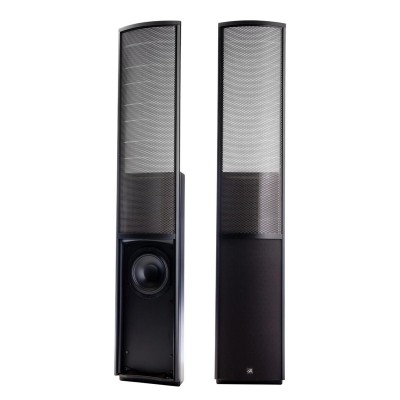

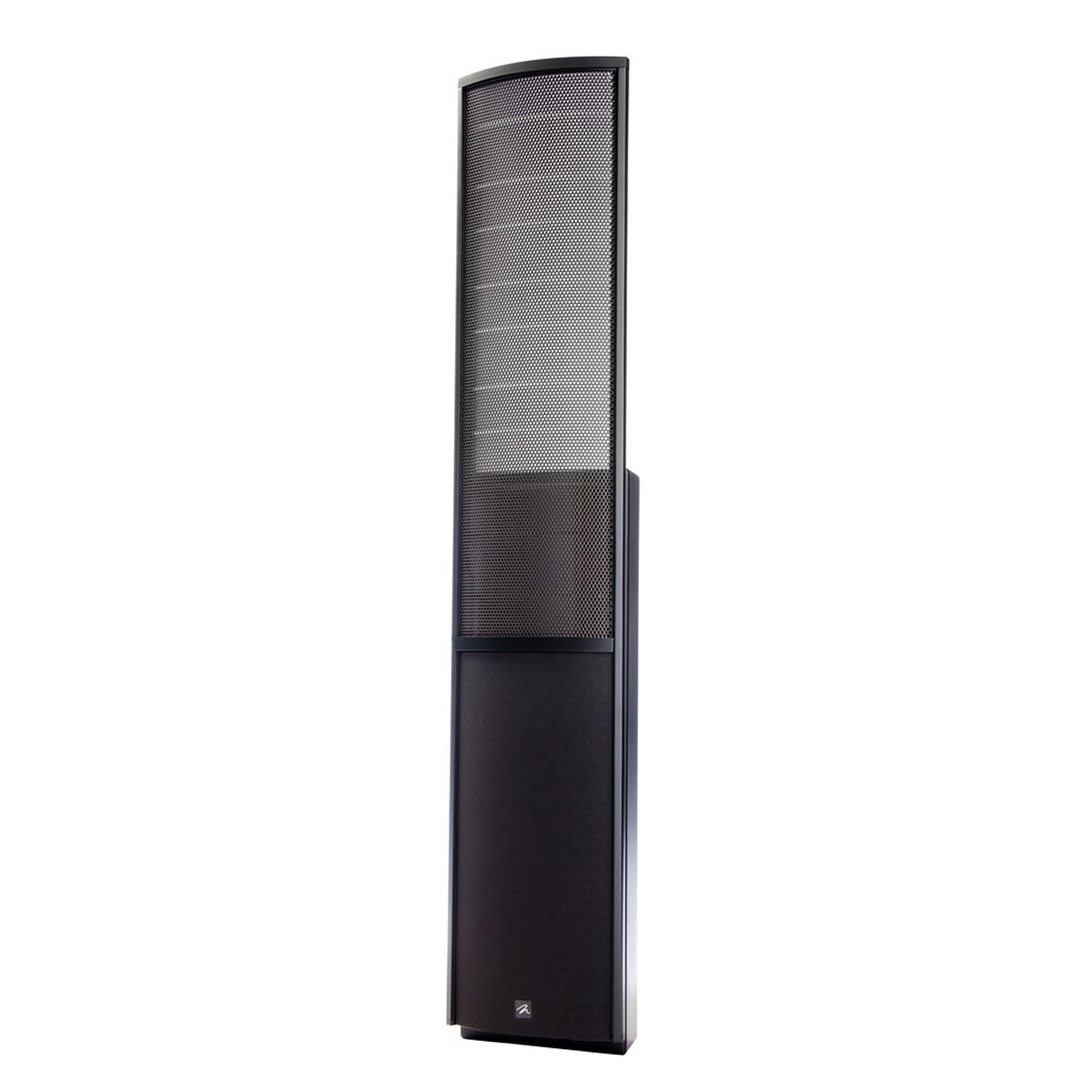

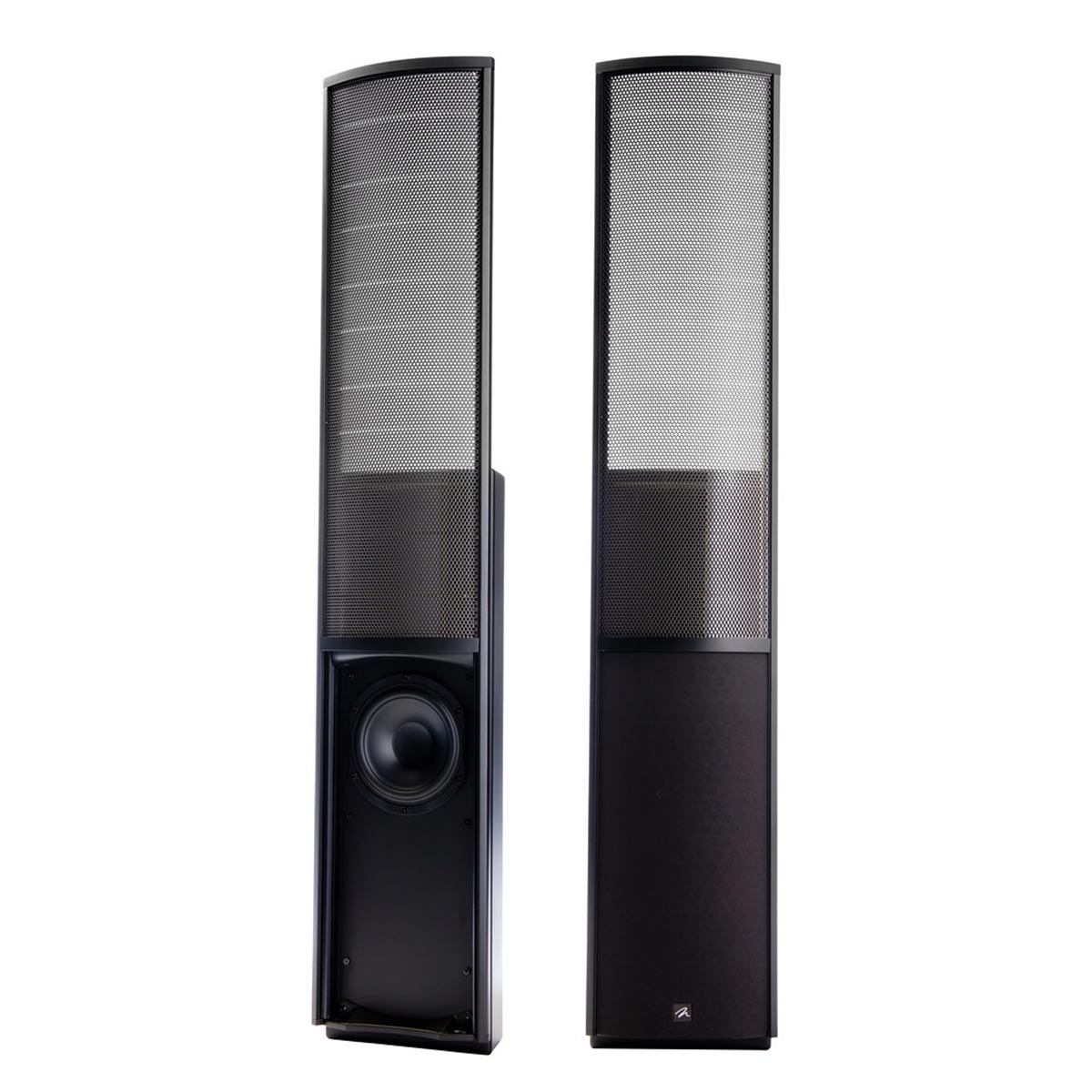

MartinLogan EFX On Wall Speakers

MartinLogan EFX On Wall Speakers
MartinLogan EFX On Wall Speakers

Surround Yourself with EFX

MartinLogan is proud to introduce the slim, on-wall EFX™ hybrid electrostatic loudspeaker, featuring XStat™ technology, dramatically reducing cabinet size, yet establishing new standards for efficiency, dynamics and precision.


CLS™ XStat Transducer

Housed within a radical, ultra-ridged extruded aluminium AirFrame™, the EFX's new CLS XStat transducer builds upon the legacy of MartinLogan's electrostatic heritage with the incorporation of advanced vacuum bonding and MicroPerf stat panels, providing even greater efficiency and precision.

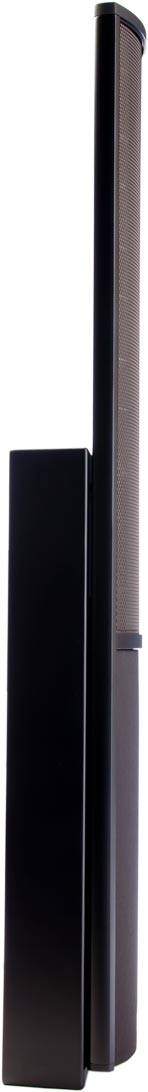

Slim On-Wall Profile

If you won't settle for anything but electrostats next to your new flatscreen TV, the EFX is the perfect solution at just 6.5-inches deep. Free up precious floorspace by mounting EFX to your wall with the included wall brackets. The EFX is also the ultimate high-performance home theatre surround speaker and complements MartinLogan's entire line of electrostatic loudspeakers. EFX rotates with the pivoting wall bracket to easily focus your surround sound experience.


Advanced Vojtko Filtering

Proprietary Vojtko filtering technology is utilized for EFX's electrostatic transducer. This audiophile quality network, derived from the CLX, is carefully hand-built using precision point-to-point wiring, polypropylene capacitors, massive air-core coils, and a custom wound E-I core transformer—flawlessly preserving micro-acoustic subtleties while effortlessly handling the broadest range of dynamics contained within even the most demanding sonic source.


Custom 5-Way Binding Posts and Low-Voltage Power Supply

MartinLogan's proprietary tool-less binding posts simplify cable connection and management. EFX features custom 5-way binding posts and provide the ultimate level of flexibility for connection and setup. To further simplify setup and cable management, the EFX features a low-voltage DC power supply eliminates the need for a traditional, heavy IEC power cord.

Specifications
Frequency Response 68 Hz – 22 kHz ±3 dB
Recommended Amplifier Power 20 — 300 watts per channel
Horizontal Dispersion 30°
Vertical Dispersion 28" (71 cm) line source
Sensitivity 90 dB @ 2.83 volts/metre
Impedance 6 ohms, 1.3 @ 20 kHz (Compatible with 4, 6, or 8 ohm rated amplifiers)
Crossover Frequency 530 Hz
High Frequency Transducer XStat™ CLS™ electrostaic transducer. Panel dimensions: 28" x 8.6" (71 x 22 cm). Radiating area: 241 in² (1,562 cm²)
Low Frequency Transducer 6.5" (16.5 cm) high excursion, fibre cone with extended throw drive assembly; bass reflex.
Components Custom-wound E-I core transformer, air core coils, metal film capacitors.
Inputs Custom 5-way binding posts
Power Draw Max: 2 W each, Standby: <1 W each
Weight 24.5 lb (11.1 kg)
Dimensions 48.8" x 9.4" x 6.5" (123.9 cm x 23.8 cm x 16.5 cm)
