Tierium 16 AWG 4 Core LSZH In Wall Speaker Cable

Brand: Tierium
Product Code: TRM-SC-164-LSZH-152M
Warranty: 5 Years
Cable Length / Colour: *

$7.95 - $629.00
Qty:
Tierium
Truck
Free Shipping On Orders Over $99
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

Premium Speaker Cable

Twist and Tangle Free Payout Performance

Developed in Australia by a team of audio professionals, Tierium speaker cable has been designed to optimise the installation process. Adopting the Reelex™ patented winding pattern, all Tierium products ensure the cable is dispensed from the reel-less box, snag and tangle free for optimum cable payout performance.

Tierium's reel-less design means no moving internal spool for cable to unwind within the box. Tierium speaker cable is made from 99.99% oxygen free annealed copper for superior performance and cable flexibility and its Low Smoke Zero Halogen (LSZH) cable jacket makes it free from unsafe halogens and reduces smoke for added safety in both commercial and residential installations.


Key Features

  • REELEX™ Patented Winding Pattern
  • No Internal Parts for Cable to Snag or Tangle
  • Big Mouth Payout
  • Heavy Duty 24 kg Rated Cardboard
  • Reinforced Handles
  • Water Resistant Paper Laminate Box
  • 99.99% Oxygen Free Copper
  • Premium Jacket
  • Low Smoke Zero Halogen
  • Metre Marked with Room ID Cable Identification

How to Purchase Custom Lengths

Please select the "1m (By The Metre)" option, then enter the required length in the "Qty" field and press the "Add to Cart" button. For example, if you require 5m, please enter "5" in the "Qty" field and press the "Add to Cart" button. This will be supplied as a single 5m length in this instance.

We kindly ask that you do not request multiple custom lengths to be cut for the same speaker cable specification on the same order, such as "1 x 2m and 3 x 3m etc.". Unfortunately, this cannot be provided. All custom lengths will be supplied as a single uncut length.


REELEX™ Patented Winding Pattern

Tangle and Twist-Free Packaging Technology.

REELEX tangle-free technology is a patented method of winding a filamentary product (such as cord, wire, cable or tubing) into a figure-eight coil on a specialized coiling machine.

This unique coil dispenses from the inside-out without twists, tangles, snags or overruns. Because the coil does not rotate during payout, there is no inertia, and thus no need for payoff stands or brakes. And since the coil does not require any moving parts as a means of dispensing the product, it may be packaged in a wide variety of package shapes and materials, or simply placed in a cardboard box.

Tierium Speaker Cable

REELEX™ Packaging

Because the REELEX™ coil does not rotate, products wound in REELEX™ do not depend on the package itself to dispense properly. Thus, the package is literally just a container, allowing the coil to be packaged in a unlimited number of designs and materials. This flexibility allows manufacturers to present their products in unique and innovative ways; providing opportunities for product differentiation and competitive advantage.


Low Smoke Zero Halogen

What is LSZH?

LSZH stands for Low Smoke Zero Halogen. It refers to a group of jacket and insulation compounds that do not contain halogens within their chemical makeup.

What are the benefits of having LSZH cable?

LSZH compounds contain no halogens and instead rely on releasing water or other non-toxic compounds in order to put out a flame. As a result, they are safer for both people and the environment.

Where are LSZH cables predominantly used?

LSZH cables can be used anywhere a normal cable can be used. Typically they are of greater benefit in indoor or restricted spaces where their low toxicity in a fire is a great benefit. This means that they often find use in tunnels, offices, exchanges and datacentres.

What about PVC?

When PVC burns, it releases Chlorine which is now free to combine with hydrogen to form an acid. This acid can burn lungs and eyes of people trying to flee the fire. It can also attack equipment that was not destroyed in the fire. Historical experience has shown that equipment located several rooms or floors away from a small fire can fail many months later due to attack by either halogen acids or salts.

Can I still achieve my Green Star credits with LSZH?

Yes, LSZH cables are suitable for Green Star applications.


Construction

Length

  • 152.5m / 500 ft

Conductors

  • 16 AWG 4 Core 99.99% Oxygen Free, Annealed Stranded Copper
  • (65 strands) 0.16 mm +/-0.008 mm

Jacket

  • Low Smoke Zero Halogen (LSZH)

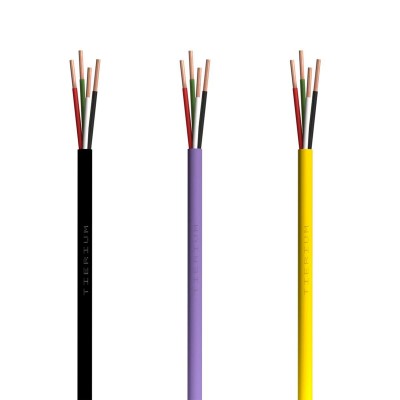

  • Colours: Black (RAL 9011), Purple (RAL 4005), Yellow (RAL 1018)
  • Outer Diameter: 7.00 mm +/-0.30 mm
  • Nominal Thickness: 0.60 mm
  • Min. Thickness at any Point: 0.48 mm

Filler

  • Nylon Ripcord

Insulation

  • Conductor Colours: Black, Red, Green and White
  • Outer Diameter: 2.3 mm +/-0.10 mm
  • Average Thickness: 0.40 mm
  • Min. Thickness at any Point: 0.32 mm

Jacket Marking

  • TIERIUM 16AWG 4C OXYGEN FREE COPPER LOW SMOKE ZERO HALOGEN SPEAKER CABLE - ROOM ID: A1 A2 A3 A4 A5 - B1 B2 B3 B4 B5 - C1 C2 C3 C4 C5 - XXXM

Performance

Power Loss by Cable Length

Distance 16 Ω Speaker 8 Ω Speaker 4 Ω Speaker
10m (33 ft) 2% 3% 6%
20m (66 ft) 3% 6% 12%
40m (132 ft) 6% 12% 22%
80m (263 ft) 12% 22% 35%

Maximum Cable Length by Allowed Power Loss (dB)

Power Loss 16 Ω Speaker 8 Ω Speaker 4 Ω Speaker
-0.5 db (11%) 71m (233 ft) 36m (118 ft) 18 m (59ft)
-1.0 db (21%) 151m (496 ft) 76m (249 ft) 38m (124 ft)
-2.0 db (37%) 342m (1122 ft) 171m (561 ft) 85m (280 ft)
-3.0 db (50%) 581m (1906 ft) 291m (955 ft) 145m (476 ft)

Maximum Cable Length by Allowed Power Loss (%)

Power Loss 16 Ω Speaker 8 Ω Speaker 4 Ω Speaker
2.5% (-0.1 db) 15m (49 ft) 7.5m (51 ft) 3.7m (12 ft)
5.0% (-0.2 db) 30.7m (101 ft) 15.4m (78 ft) 7.7m (25 ft)
7.5% (-0.3 db) 47.3m (155 ft) 23.7m (78 ft) 11.8m (36 ft)
10% (-0.5db) 64.9m (213 ft) 32.4m (106 ft) 16.2m (53 ft)

Electrical & Physical Properties

  • Rating & Temperature: 75°C, 300 V
  • Conductor Resistance (20°C Max.): 13.70 Ω/km
  • Insulation Resistance: 100 Mega Ω/km at 20°C Min.
  • Dielectric Strength (Under Water): AC 500 V/1 Minute (Passed)
  • Spark Test: 2.5 kV for 0.15 Seconds (Passed)
  • Bending Radius: 15 * Ф (Minimum)
Insulation‎ Unaged Tensile Strength 1.05 kg/mm2 (Minimum)
Elongation 100% (Minimum)
Aged Tensile Strength Unaged Min. 70% (100± 1°C x 240 Hours)
Elongation Unaged Min. 65% (100± 1°C x 240 Hours)
Jacket‎ Unaged Tensile Strength 1.05 kg/mm2 (Minimum)
Elongation 100% (Minimum)
Aged Tensile Strength Unaged Min. 70% (100± 1°C x 240 Hours)
Elongation Unaged Min. 65% (100± 1°C x 240 Hours)

Environmental Compliance

  • RoHS: Yes
  • REACH: Yes
  • Recyclable: Yes (Packaging, Cardboard & Plastic 100% Recyclable)
