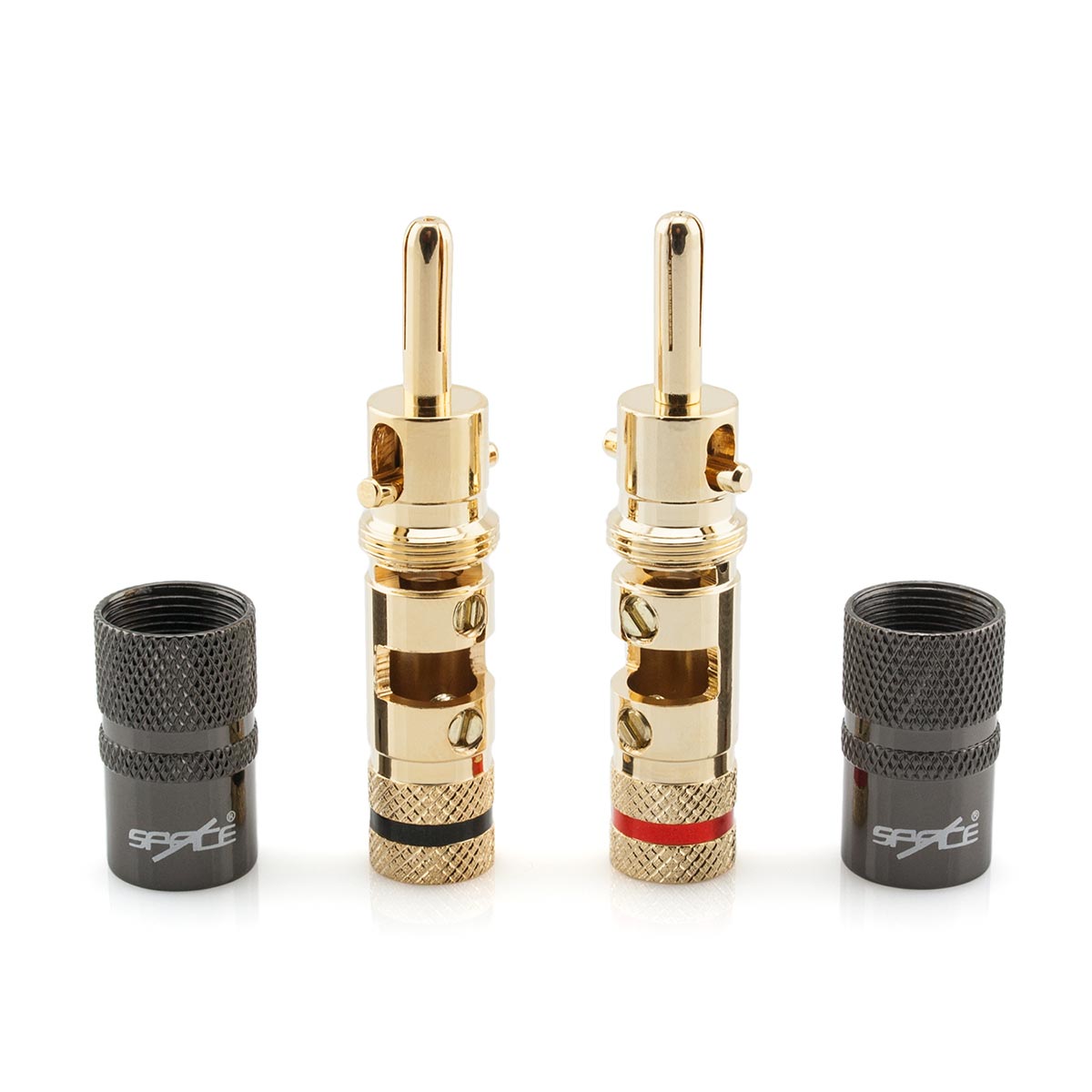

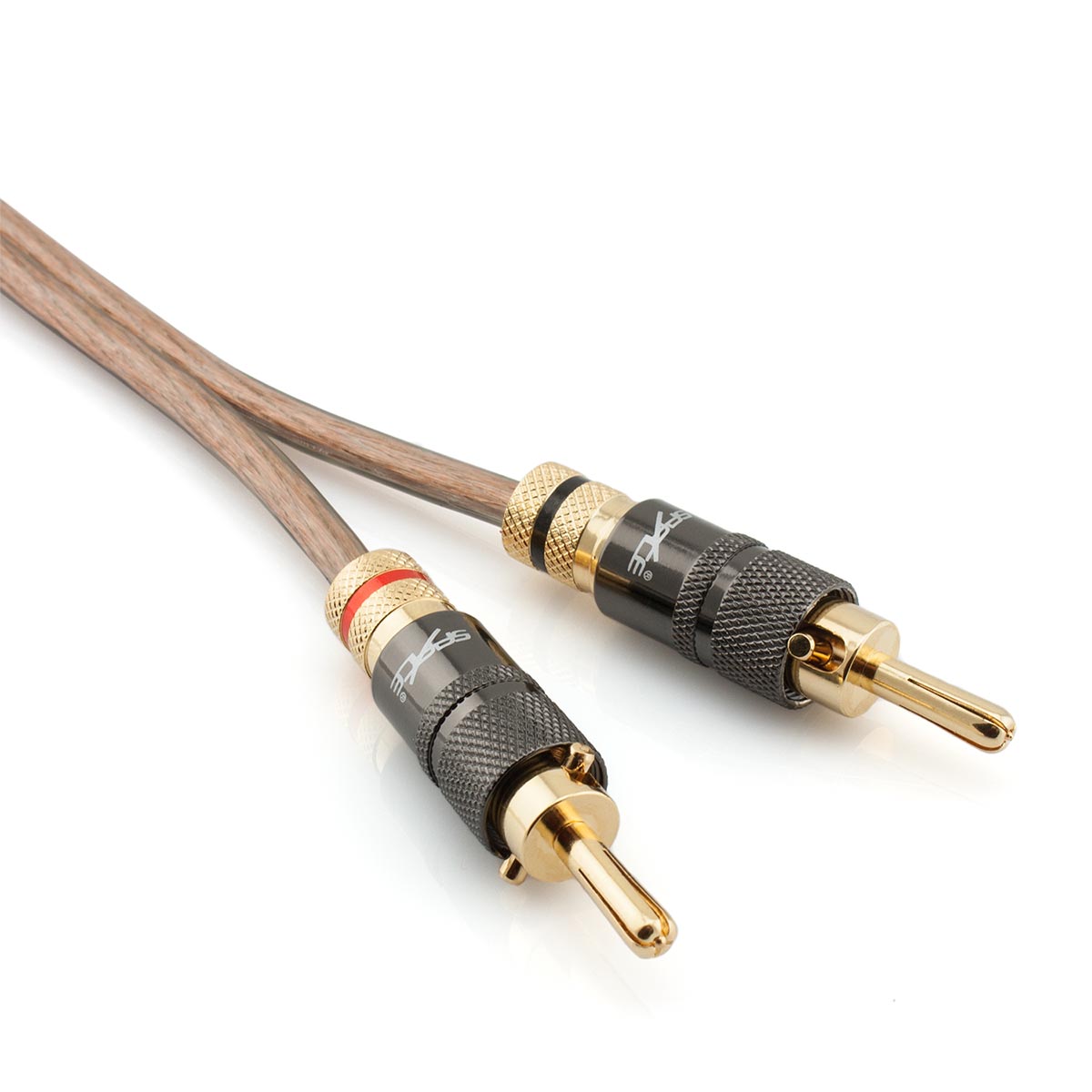

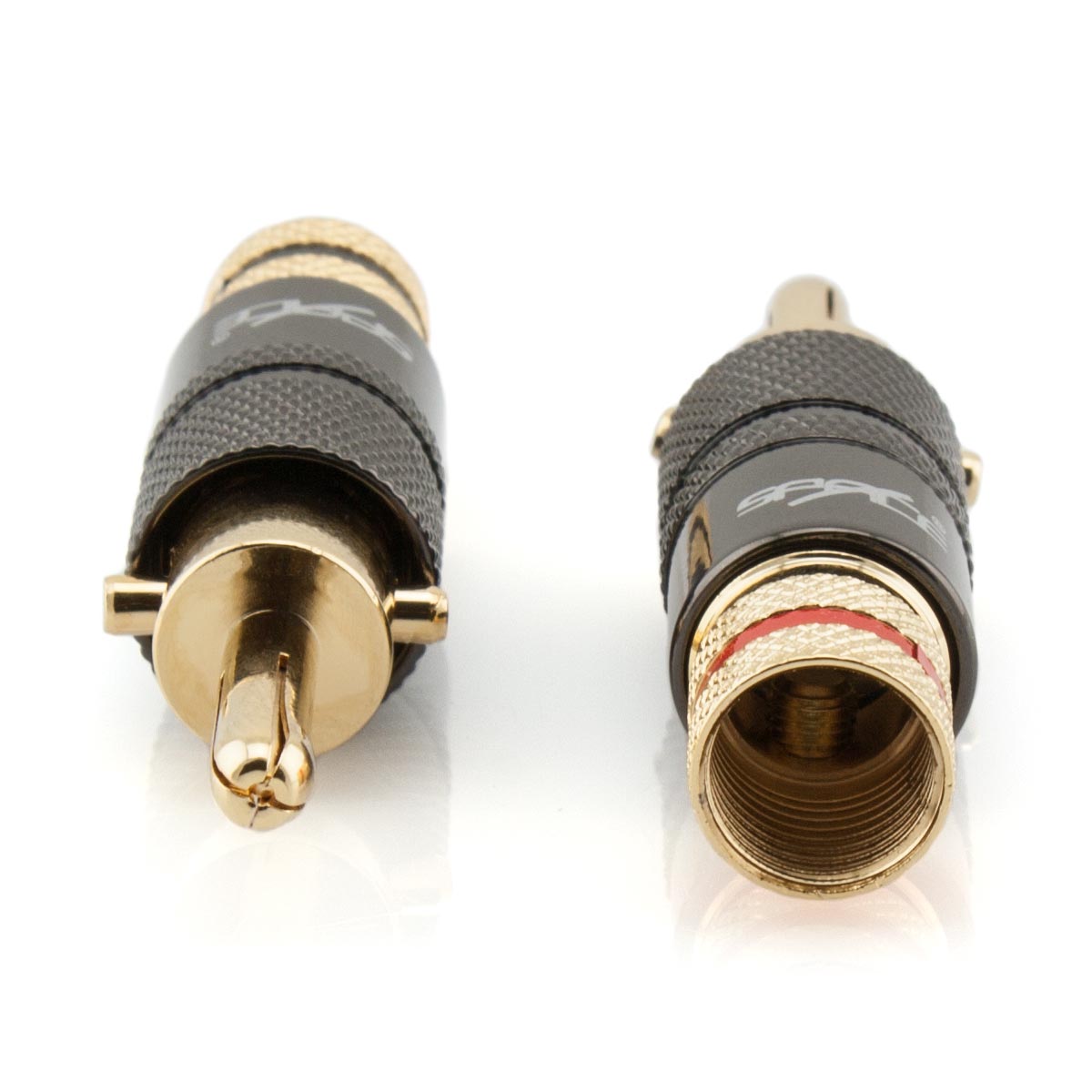

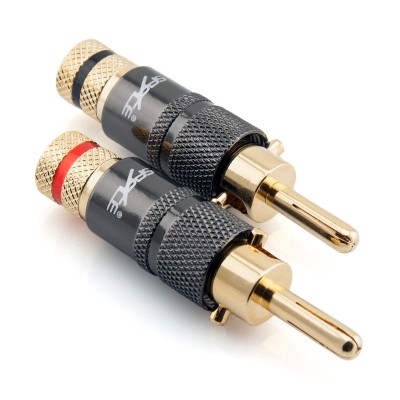

IntraLock Internal Locking Banana Plugs (Pair - 1 Red & 1 Black)

Product Code: SSPC-2187
Warranty: 5 Years
$12.90
Qty:
Truck
Free Shipping On Orders Over $99
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

Rock Solid Speaker Cable Termination!

These superb IntraLock™ Banana Plugs feature a unique design that will ensure that your speaker cable is terminated to perfection and will lock the connector internally within the binding post. These exceptional audio connectors are precision engineered with a solderless locking mechanism, which means that installation can be completed efficiently with only a single precision screwdriver required.

The generous 9.0mm wire entry point will accommodate even the largest varieties of speaker cable. This provides you with the flexibility of being able to use a heavier gauge cable if desired. The high quality 24k gold plated finish not only provides stunning aesthetic appeal but also serves to facilitate an extreme level of durability, which guarantees reliable high end performance.

Once the wire jacket is stripped, simply insert the cable into the inner chamber and secure the wire with the two screw locking fasteners. The outer plug housing then serves two purposes. The first is to conceal the inner chamber leaving a perfect finish and the second is to activate the binding post locking mechanism. When the outer plug housing is twisted over the inner chamber, this applies pressure to the mechanical switch which expands the connector section. This grips the binding post internally to provide a solid and secure connection.


Key Features

  • Supplied as a pair (1 red and 1 black in each pair)
  • Precision engineered from solid brass (copper and zinc alloy)
  • 24k gold plated connectors
  • Solderless design
  • Unique expanding connectors - Locks into the binding posts internally
  • Colour coded band on each plug for polarity identification
  • 2 piece design for a quick and easy installation
  • Recommended for large gauge speaker cable - From 10 AWG up to 6 AWG
  • Two stage internal chamber with dual screw locking fasteners - Secures both cable sleeve and wire
  • 9mm internal diameter on first stage of entry and 5mm internal diameter on second stage of entry
  • Plug dimensions (including connector and housing): 15 mm (W) x 56.5 mm (H)

Note: These banana plugs are very large and are only suitable for extremely thick speaker cable (from 10 AWG up to 6 AWG).

12/05/2020 - Reviewed by Ant
5 out of 5

Just bought these from Space Hi-Fi and connected two 10 gauge stands together for each cable. These connectors can take very, very large cable easily, are very solid construction and takes a cable to professional level.

The plugs do something different to all my other plugs: they plug into the amp sockets and then you tighten the barrel of the plug, which expands the tip and locks them into the plug socket - connection is rock solid.

I've actually noticed a difference using the Space Hi-Fi connectors, in that with larger connectors and cable you get more power to your speakers at lower volume levels and a wider and deeper sound stage.

When I need more plugs for bigger home made cables, I will be getting some more from Space H-Fi, as they are local Australian and their postage service is super quick.

My rating is better than good: excellent.
