Key Features
- 24 W class A single ended design
- 2 x 845, 2 x 300B, 2 x WE6SN7 tubes
- All handmade silver point to point wiring
- Pre-in terminals
- On-board bias meter for easy adjustments
- Negative Feedback adjustments
- Silver finish
- Remote control included
- Designed and tuned in Germany
- Dimensions (W x H x D): 420 x 240 x 389 mm
- Weight: 37 kg
| Specifications | |
| Power Output | 24 W x 2 |
| Tubes | 2 x WE6SN7, 2 x 300B, 2 x 845 |
| Frequency Response | 10 Hz ~ 26 kHz (-3 dB) |
| S/N Ratio | 90 dB |
| THD | 0.3% (1 kHz) |
| Output Impedance | 4 Ω, 8 Ω |
| Input Sensitivity | 300 mV (Integrated) / 1300 mV (Pre-In) |
| Input Impedance | 100 Kiloohm |

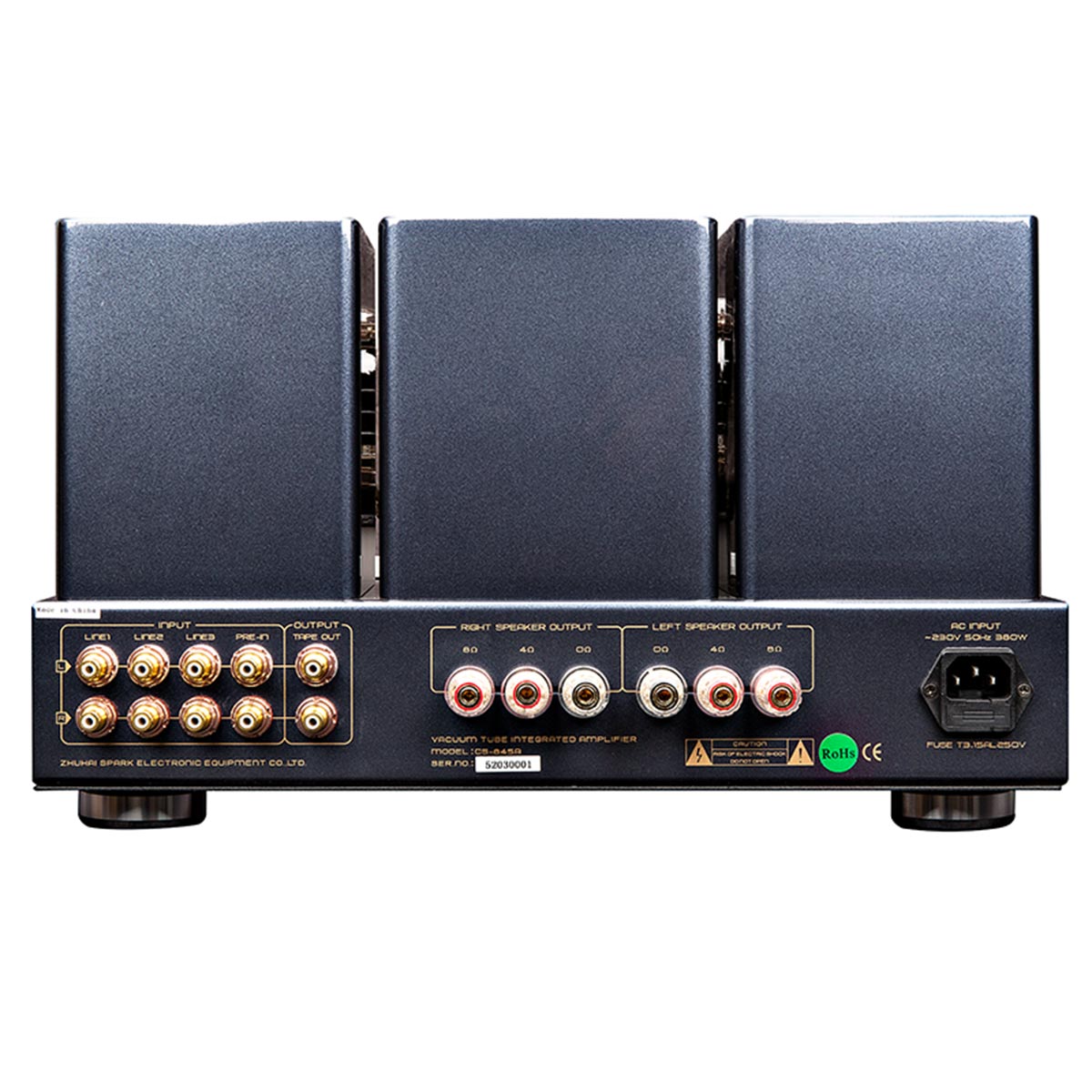

| Input Terminals | Line 1, Line 2, Line 3, Pre-In |
| Power Consumption | <380 W |
| Dimensions (W x H x D) | 420 x 240 x 389 mm |
| Weight | 37 kg |
