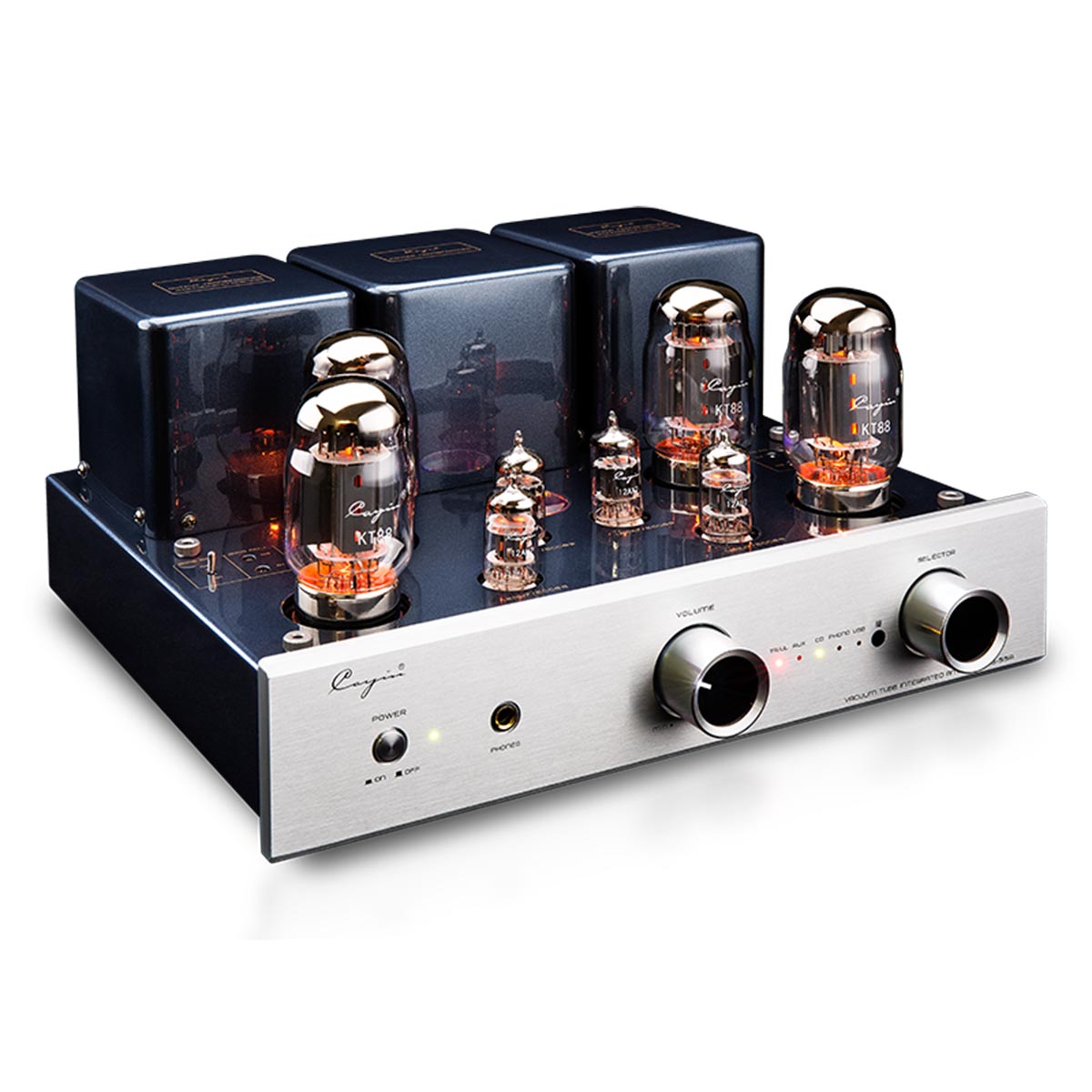

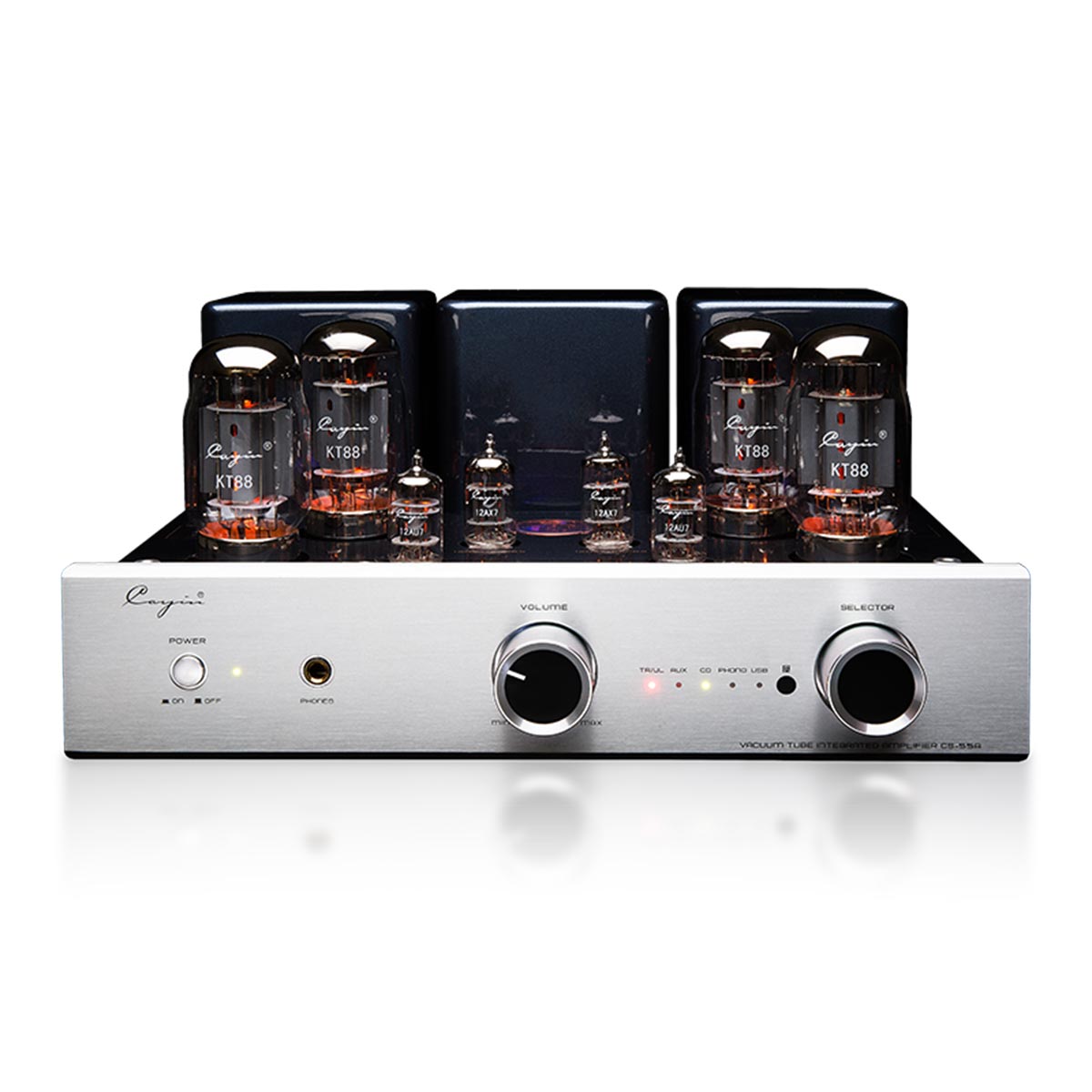

The CS-55A is the most recent advancement in tube amplifier technology created by Cayin. This state-of-the-art machine boasts forty watts per channel by using 4 KT88 tubes in Class AB ultra-linear push pull amplification. The CS-55A consists of four pairs of input: one Phono, a USB port, and two line inputs giving a wide range of options for any listener.

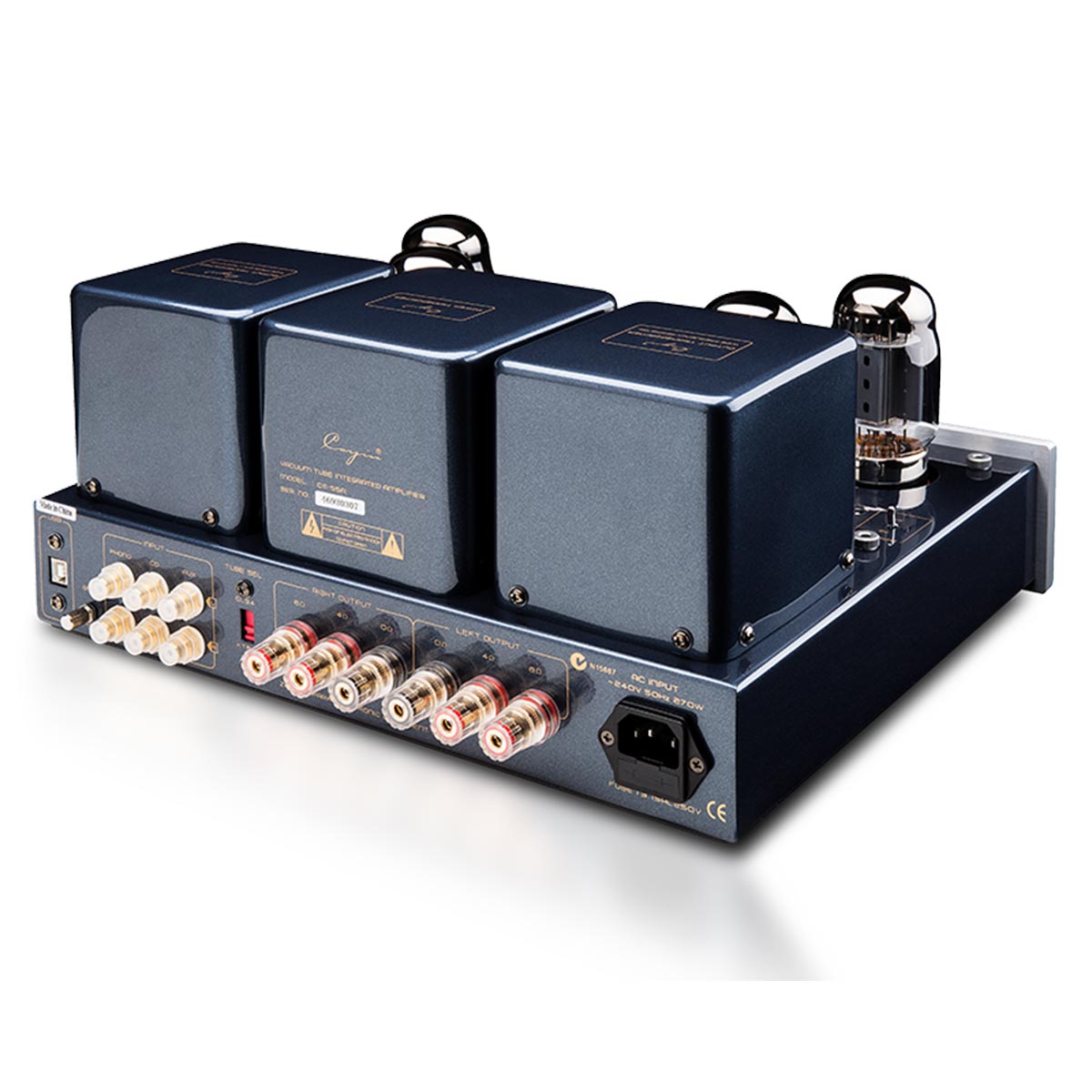

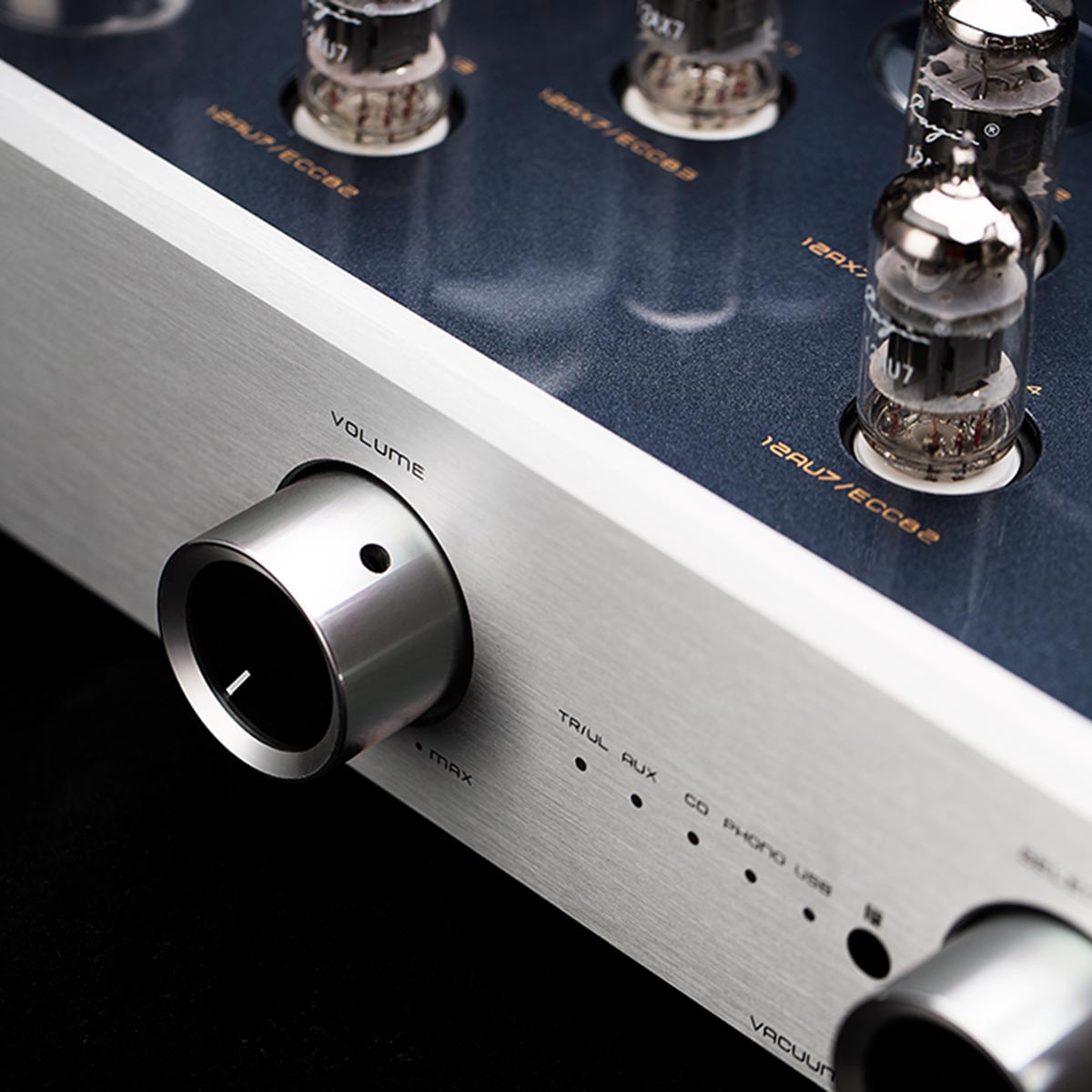

The CS-55A comprises of a fully anodized aluminium front, a vented chassis with a gorgeous finish, the finest hand-made point-to-point wiring, and a soft-start circuit to enhance the life of the toroidal power transformer and output transformers. Combined with audio grade capacitors, carbon film resistors, and ceramic tube sockets, this is one amplifier every audiophile should have in his/her collection. Speaker output impedance can be swapped between 4 ohms and 8 ohms. Similarly to the A-88T, the CS-55A comes with a handy remote control.
Transform your music system! Extraordinary value and performance best describes the Cayin Audio CS55A Integrated amplifier. As the centre piece of any system, the unit is at home with both analogue or digital formats. CS-55A includes a built in MM phono section to accommodate turntables and a built-in high resolution DAC for use with computers. Via the 2.0 USB input, the DAC is capable of covering digital audio signals up to 32bit | 384kHz. This combination of a high end DAC and tubes makes for a rich and detailed soundstage.

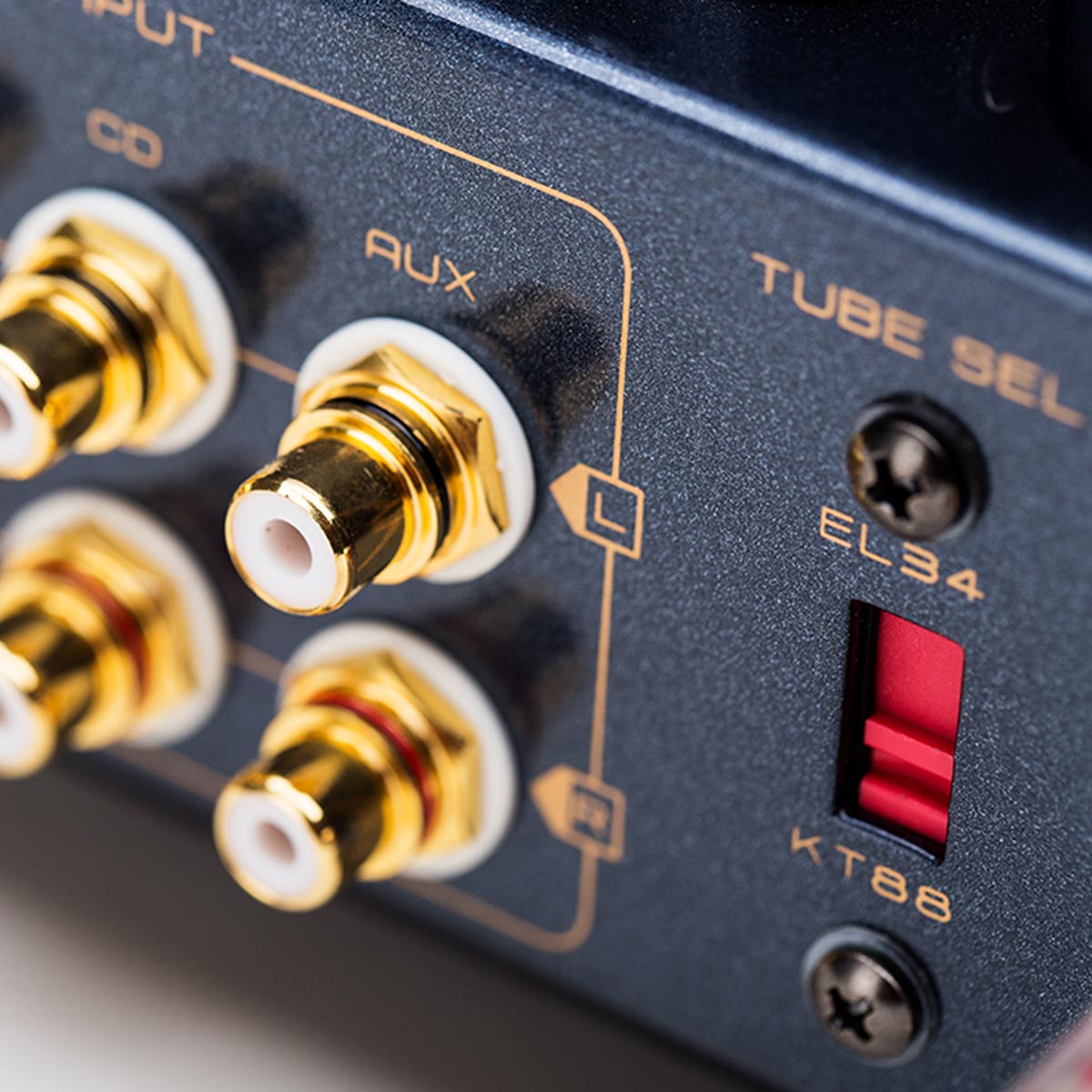

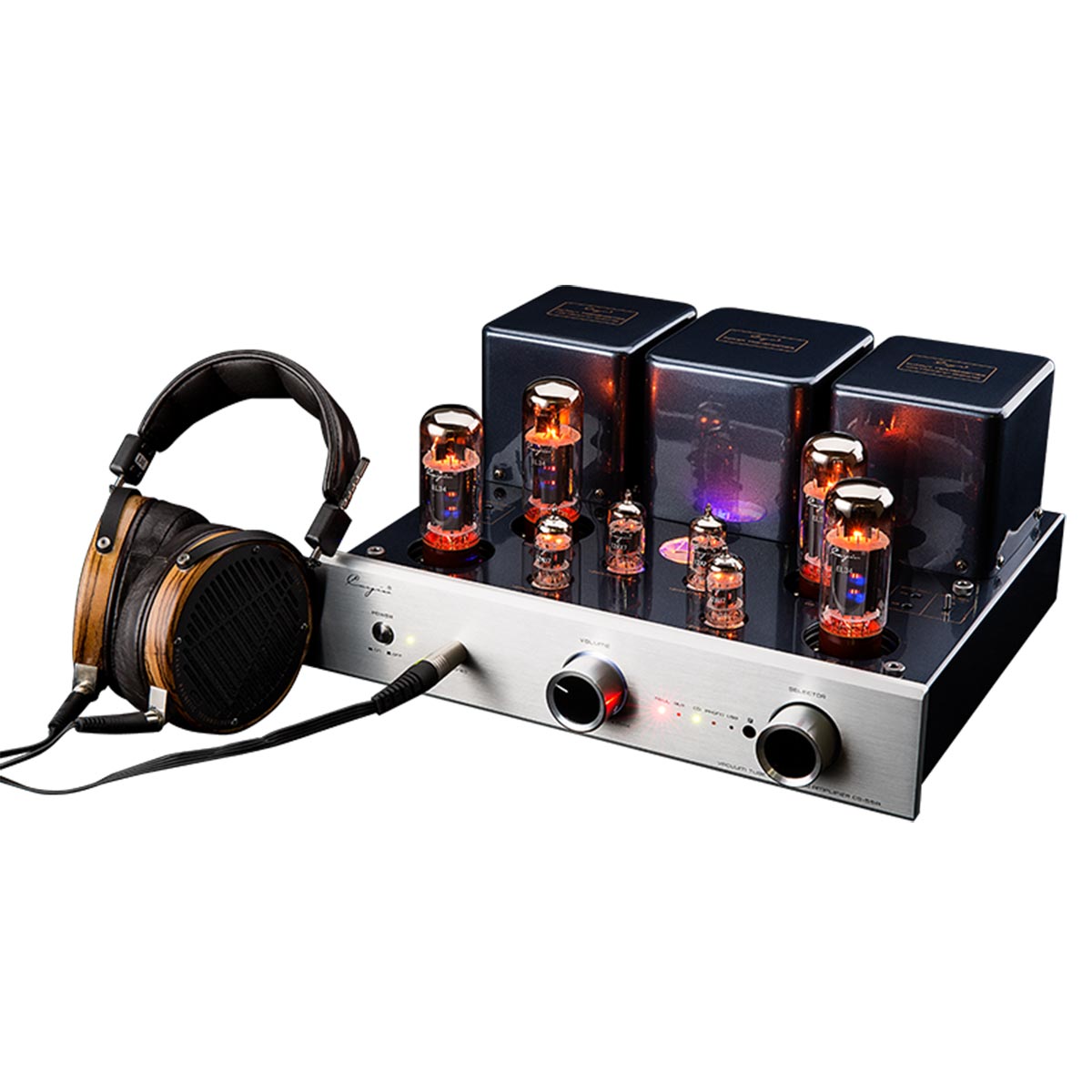

The output stage can be switched between Triode and Ultra Linear mode and either KT88 or EL34 tubes can be used for the maximum amount of flexibility. A headphone jack on the front completes the unit and makes this one of the most versatile and compelling products on the market.
- KT88 tube based unit - 40 W ultra, 22 W triode
- 4 x KT88, 2 x 12AU7, 2 x 12AX7 tubes
- All handmade silver point to point wiring
- Can run KT88 or EL34 tubes via switch
- Phono MM preamp built in
- USB DAC 32 Bit 384 kHz built in
- On-board bias meter for easy adjustments
- Silver finish
- Remote control included
- Designed and tuned in Germany
- Dimensions (W x H x D): 360 x 180 x 334 mm
- Weight: 17 kg
|Power Output||40 W x 2 Ultralinear, 22 W x 2 Triode|
|Tubes||4 x KT88, 2 x 12AU7, 2 x 12AX7|
|Frequency Response||5 Hz ~ 44 kHz (-3 dB)|
|S/N Ratio||92 dB|
|Output Impedance||4Ω, 8Ω|
|Input Sensitivity||270 mV|
|Input Impedance||100 Kiloohm|
|Input Terminals||USB, CD, Phono, Aux|
|Power Consumption||<270 W|
|Dimensions (W x H x D)||360 x 180 x 334 mm|
|Bit Depth||16 - 32 Bits|
|Sampling Rate||44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz|
|Operating System||Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS (10.6.3 and Above)|
|Compatibility||Audio Class 1.0 and Audio Class 2.0|
|Input Sensitivity||3 mV|
|RIAA Errors||Lower than ±0.25 dB|
|Total Gain||40 dB|
|S/N Ratio||68 dB|
