Cayin CS-100A

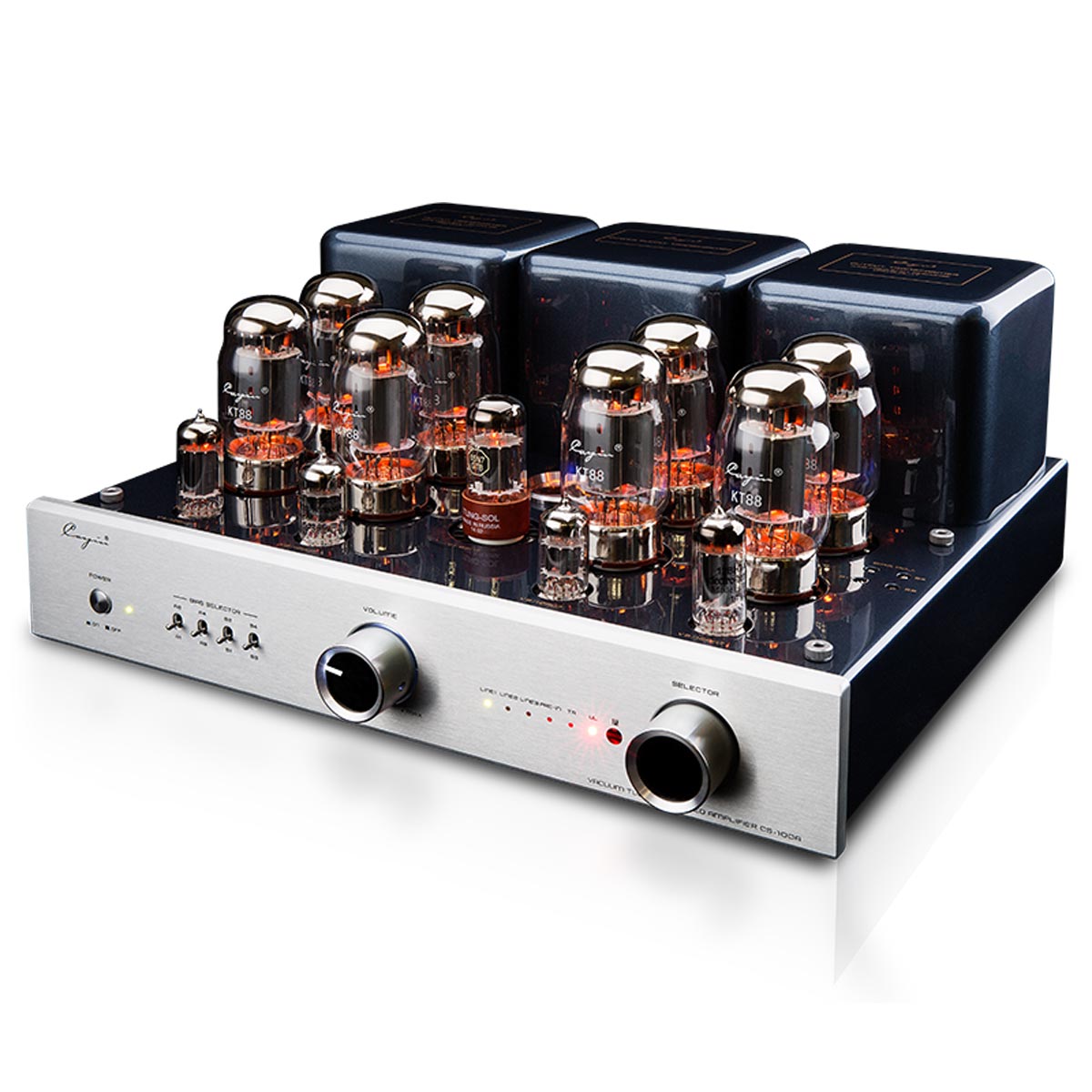

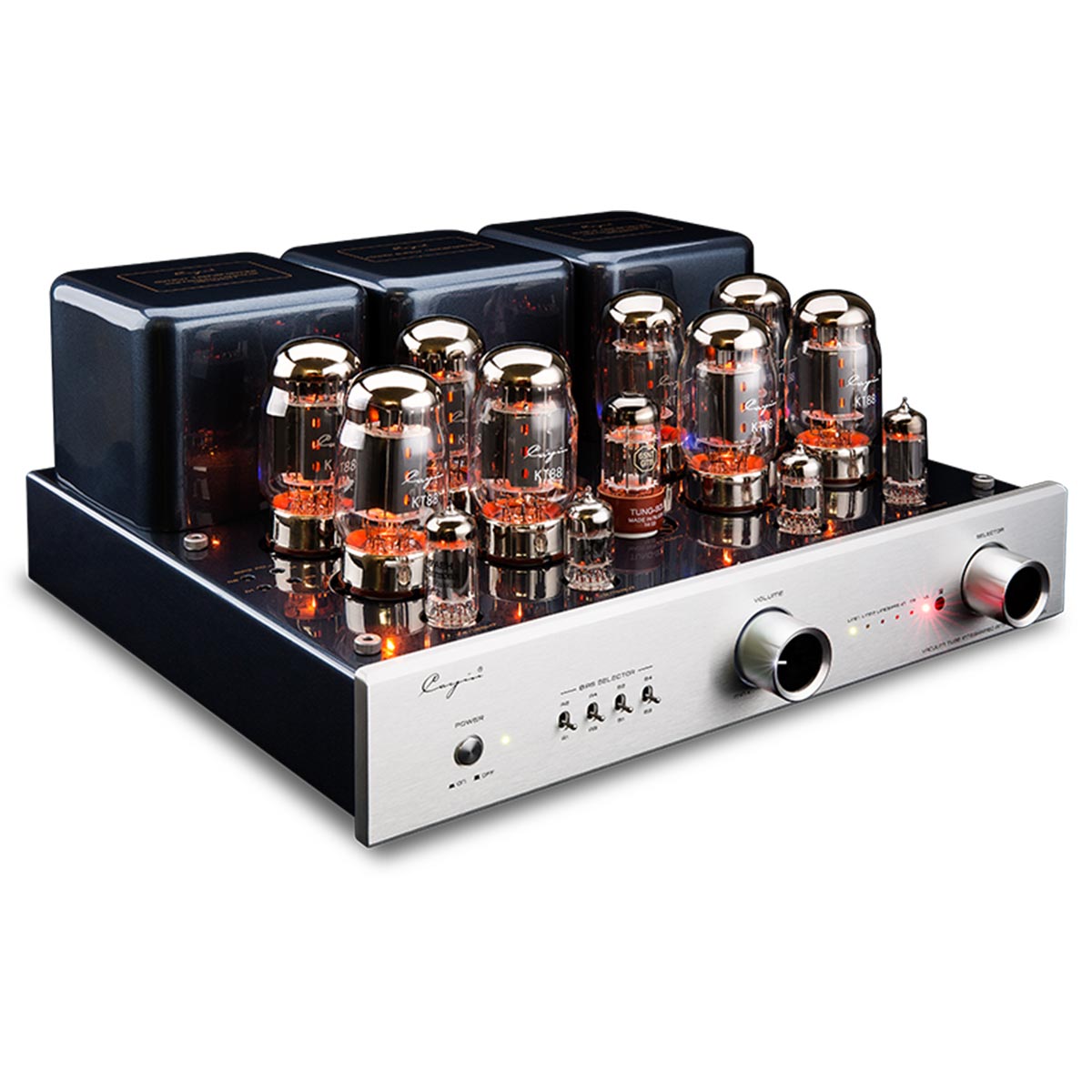

The new dual-mode Cayin Audio CS-100A tube amplifier is rated at 80 watts per channel in Class AB ultra-linear mode and 50-watts per channel in triode mode.
With an on-board bias meter, the integrated amplifier can run either KT88 or EL family tubes and uses silver internal wiring. The CS-100A incorporates a 6SN7 tube for voltage amplification, 12AU7EH for phase inversion/voltage amplification and 12BH7EH for voltage amplification and driver stages, with KT88 or EL34 output valves.
Soft-Start circuitry protects the amplifier and extends the life of internal components and tubes. A high grade Alps volume control, audio-grade capacitors, carbon film resistors, toroidal transformer for power supply and wide-bandwidth EI output transformers are all standard.
Key Features
- KT88 tube based unit - 80 W ultra, 50 W triode
- 8 x KT88, 2 x 12AU7EH, 2 x 12BH7EH7, 1 x 6SN7 tubes
- All handmade silver point to point wiring

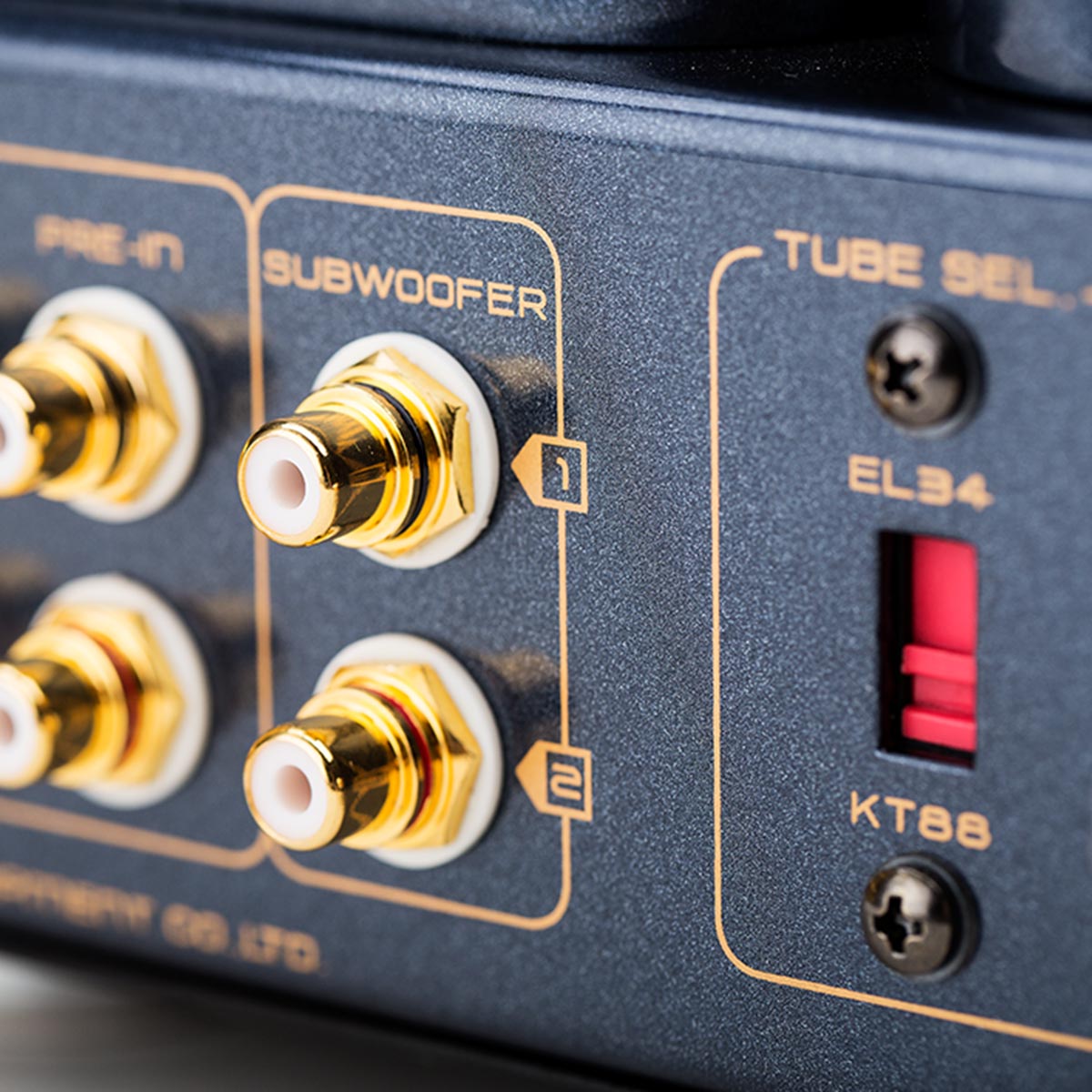

- Can run KT88 or EL34 tubes via switch

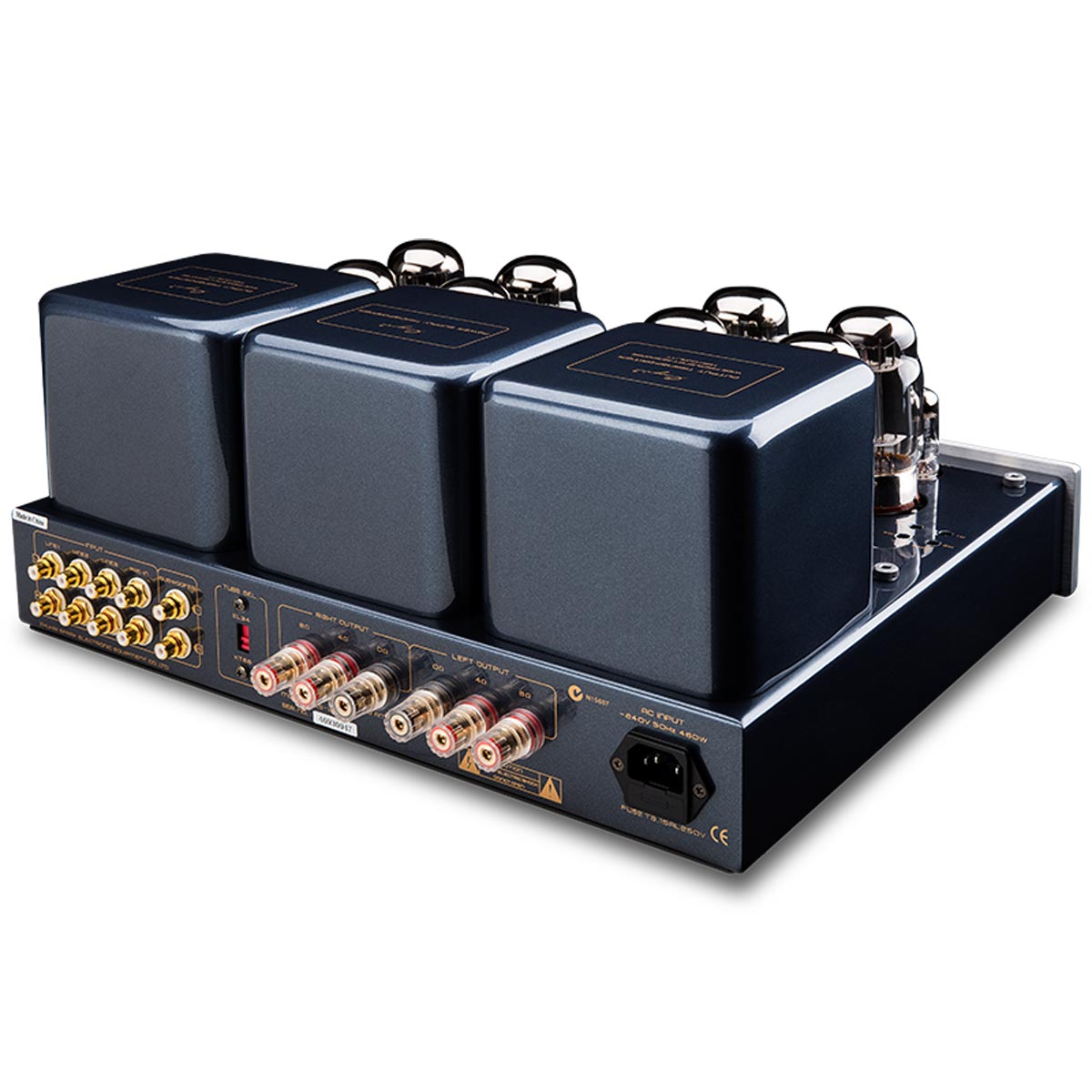

- Pre-in and subwoofer out terminals

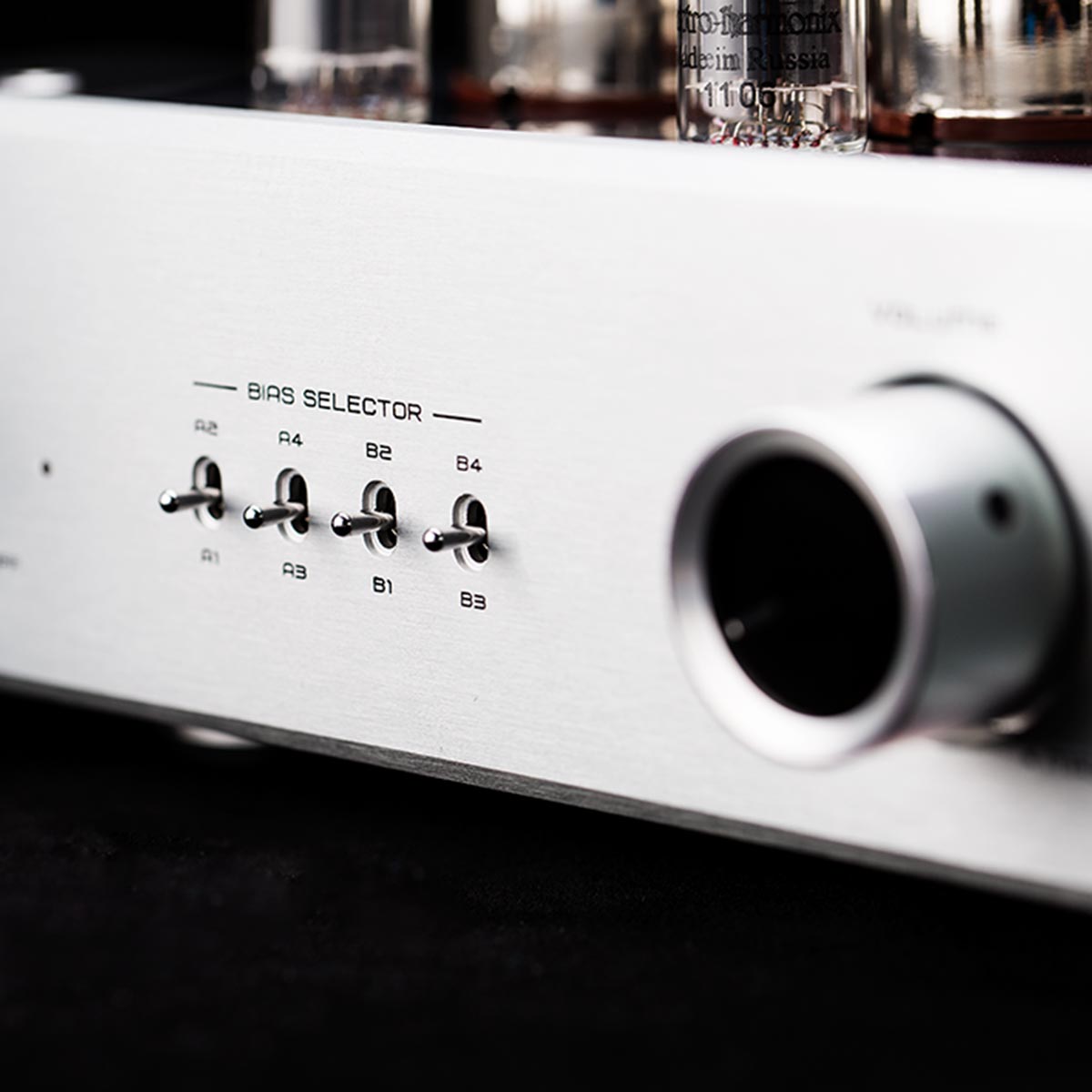

- On-board bias meter for easy adjustments
- Silver finish
- Remote control included
- Designed and tuned in Germany
- Dimensions (W x H x D): 420 x 200 x 394 mm
- Weight: 32 kg
| Specifications | |
| Power Output | 80 W x 2 Ultra-Linear, 50 W x 2 Triode |
| Tubes | 8 x KT88, 2 x 12AU7EH, 2 x 12BH7EH7, 1 x 6SN7 |
| Frequency Response | 8 Hz ~ 75 kHz (-3 dB) |
| S/N Ratio | 92 dB |
| THD | 1% (1 kHz) |
| Output Impedance | 4 Ω, 8 Ω |
| Input Sensitivity | 450 mV (Integrated) / 1300 mV (Pre-In) |
| Input Impedance | 100 kΩ |
| Input Terminals | Line 1, Line 2, Line 3, Pre-In |
| Power Consumption | <480 W |
| Dimensions (W x D x H) | 420 x 394 x 200 mm |
| Weight | 32 kg |
