Hegel H20 Stereo Power Amplifier

Brand: Hegel
Product Code: HEG-H20-BLK
Warranty: 2 Years
$9,995.00
Qty:
Hegel
Truck
Free Shipping On Orders Over $99
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

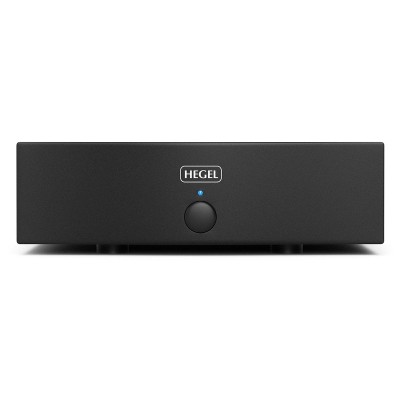

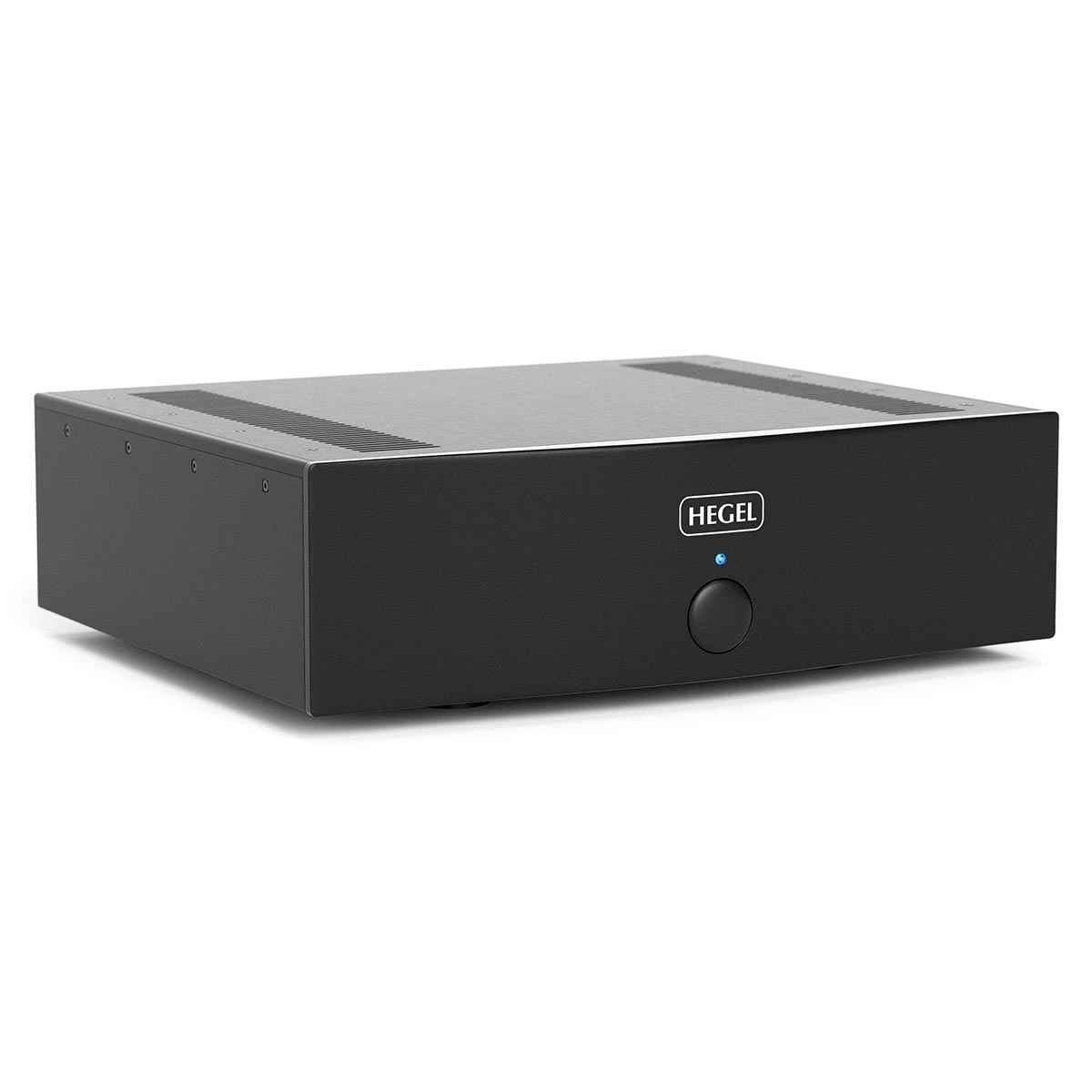

H20 Power Amplifier

The Hegel H20 incorporates the latest version of the Hegel FET-technology. A practical benefit of the H20 FET-technology is a more rhythmic sound. It is simply better at re-creating a bass line. Another vital element is the removal of harmonic echoes in the higher frequencies, which result in a lot more detail and still a smoother and more natural sound.

The core design of the H20 is based on the H30 reference amplifier, with the best possible implementation of our patented and laser trimmed SoundEngine modules. Also designed in the timeless Hegel look, it will fit in any modern or classic home. Just one single button on the front and a solid bead blasted and anodized front panel. A truly rigid design with well over 1,5 kg of aluminium in the front panel alone.

New too the H20 is bead blasted and anodized top and side covers. This adds to the exclusive look, and the overall design is more consistent. The Hegel H20 is a remarkable power amplifier with power capabilities of more than 130 Ampere. Extremely low distortion levels. Amongst the highest damping factor in the industry, and full control of the loudspeakers. All this to give you the most natural, rhythmic and dynamic sound on the market today.


Key Features

  • 2 x 200 W / 8 Ω
  • Dual Mono
  • SoundEngine
  • RCA & XLR Inputs
  • >1000 Damping Factor
  • 20 Bipolar Transistors
  • 25 kg / 55 lbs
Hegel H20 Power Aamplifier
Specifications
Output Power More Than 200 W + 200 W in 8 Ω, Dual Mono
Inputs RCA Unbalanced and XLR Balanced
Speaker Outputs Two Pairs of Heavy-Duty Gold Plated Terminals
Input Impedance Balanced 10 kΩ, Unbalanced 50 kΩ
Frequency Response Less Than +/- 0.2 dB Deviation 20 Hz - 20 kHz
Phase Response Less Than 2 Degrees Deviation 20 Hz - 20 kHz
Signal-to-Noise Ratio More Than 100 dB
Crosstalk Less Than -100 dB
Distortion Less Than 0.006% at 100 W / 8 Ω
Intermodulation Less Than 0.01% (19 kHz + 20 kHz)
Damping Factor More Than 1000
Power Supply 1000 VA Dual Mono, 90,000 μF Capacitors
Output Stage 20 Pcs 15 A 200 W High Speed, Ultra-low Distortion Bipolar Transistors
Power Consumption 60 W in Idle Mode
Dimensions (H x W x D) 14.5 cm x 43 cm x 37 cm
Unit Weight 25 kg
Finish Black
