Arcam PA240 2 Channel Class G Power Amplifier

Brand: Arcam
Product Code: ARC-PA240
Warranty: 5 Years
Free Shipping On Orders Over $100
256-Bit SSL Secure Ordering System
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories


Exceptional Power, Immersive Sound

The PA240 is a high-performance power amplifier that delivers 2 channels of efficient Class G amplification. With an impressive 380W per channel, the PA240 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA240 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

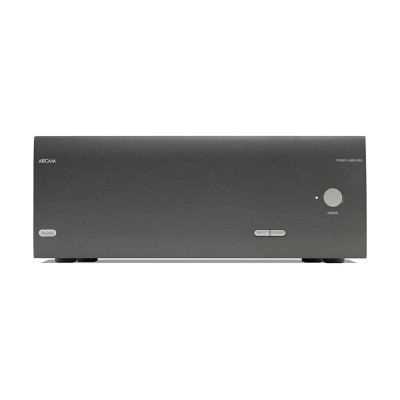

Arcam PA240 Power Amplifier

Key Features

  • 2 Channel Power Amplifier
  • 2 x 225W Class G amplification (8 ohm, 20Hz-20kHz, 0.2% THD)
  • 1 x 790W Class G bridged mode (8 ohm, 20Hz-20kHz, 0.2% THD)
  • Class G amplification with 50W of class A operation
  • Toroidal transformer
  • Stereo, Dual Mono or Bridged operation
  • Ethernet, RS232 control
  • Switchable RCA or balanced XLR inputs
Continuous Power Output at 0.2% THD per Channel
Two Channels Driven, 4/8 Ω, 1 kHz 380 W / 225 W
One Channel Driven, 8 Ω Bridged Mode, 1 kHz 790 W
Harmonic Distortion, 80% Power, 8 Ω at 1 kHz 0.001%
Input Sensitivity 200 W / 8 Ω RCA (31 dB): 1.15 V RMS, RCA (25 dB): 2.3 V RMS, XLR (31 dB): 2.3 V RMS, XLR (25 dB): 4.6 V RMS
Signal/Noise Ratio (A-Wtd) 100 W / 8 Ω RCA/XLR (31 dB): 110 dB, RCA/XLR (25 dB): 114 dB
Input Impedance 10 kΩ
Frequency Response 20 Hz - 20 kHz +/-0.05 dB
Mains Voltage 110 – 120 V or 220 – 240 V, 50 – 60 Hz
Maximum Power Consumption 1.5 kW
Low Power Standby Consumption 0.5 W
Network Standby Consumption 2 W
Dimensions W x H x D (Including Feet, Control Knob and Speaker Terminals) 433 x 425 x 177 mm
Weight (Net) 18 kg
Weight (Gross) 19.7 kg
