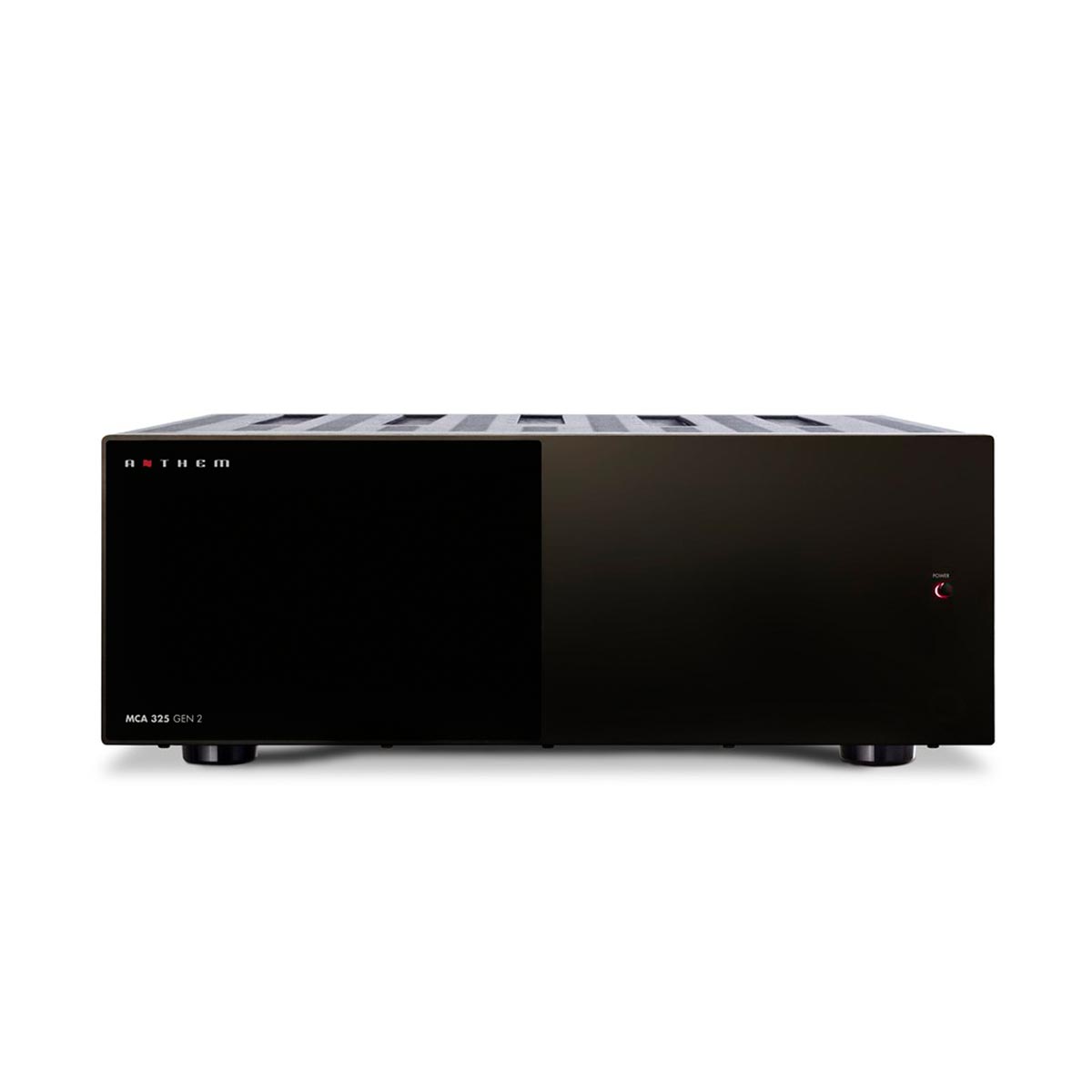

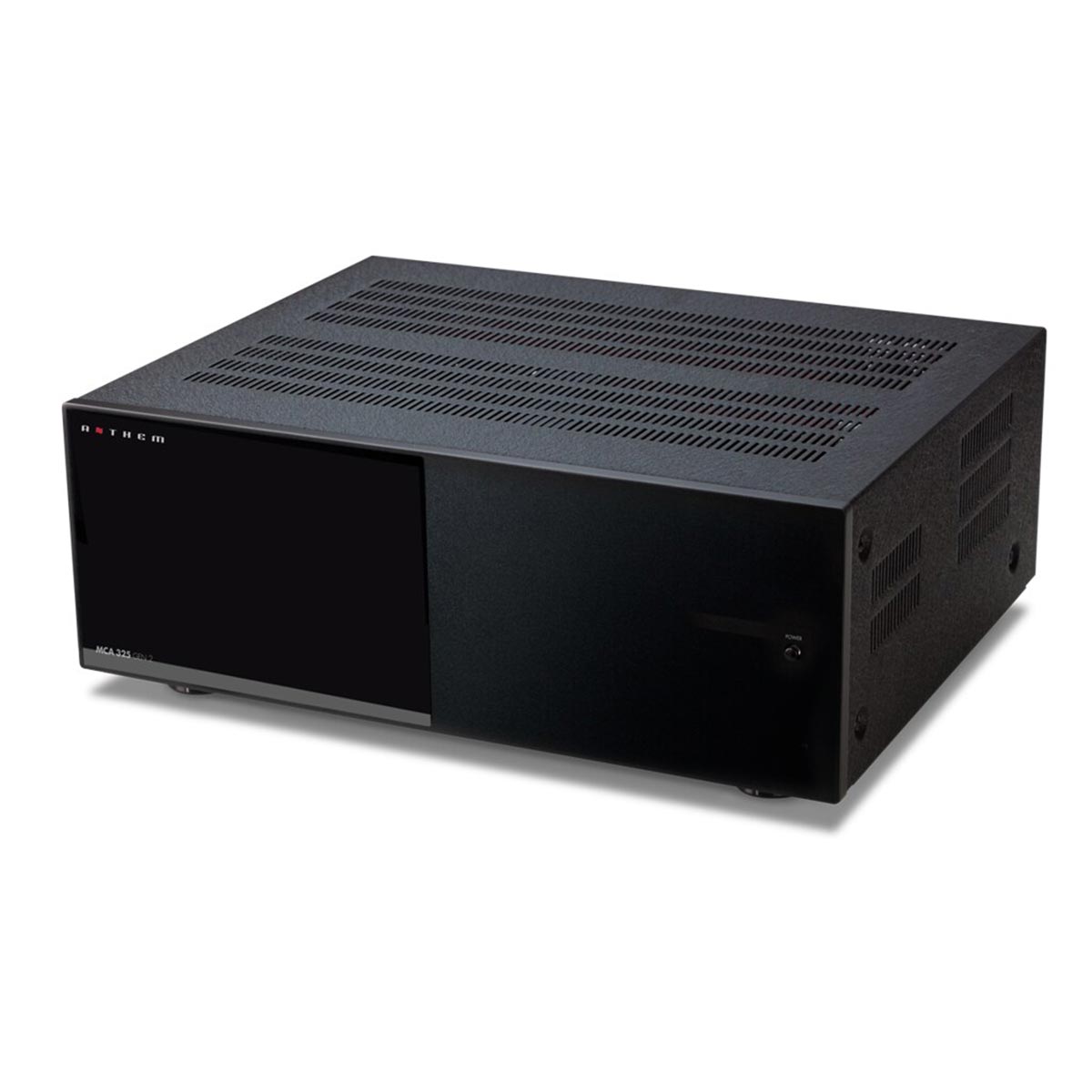

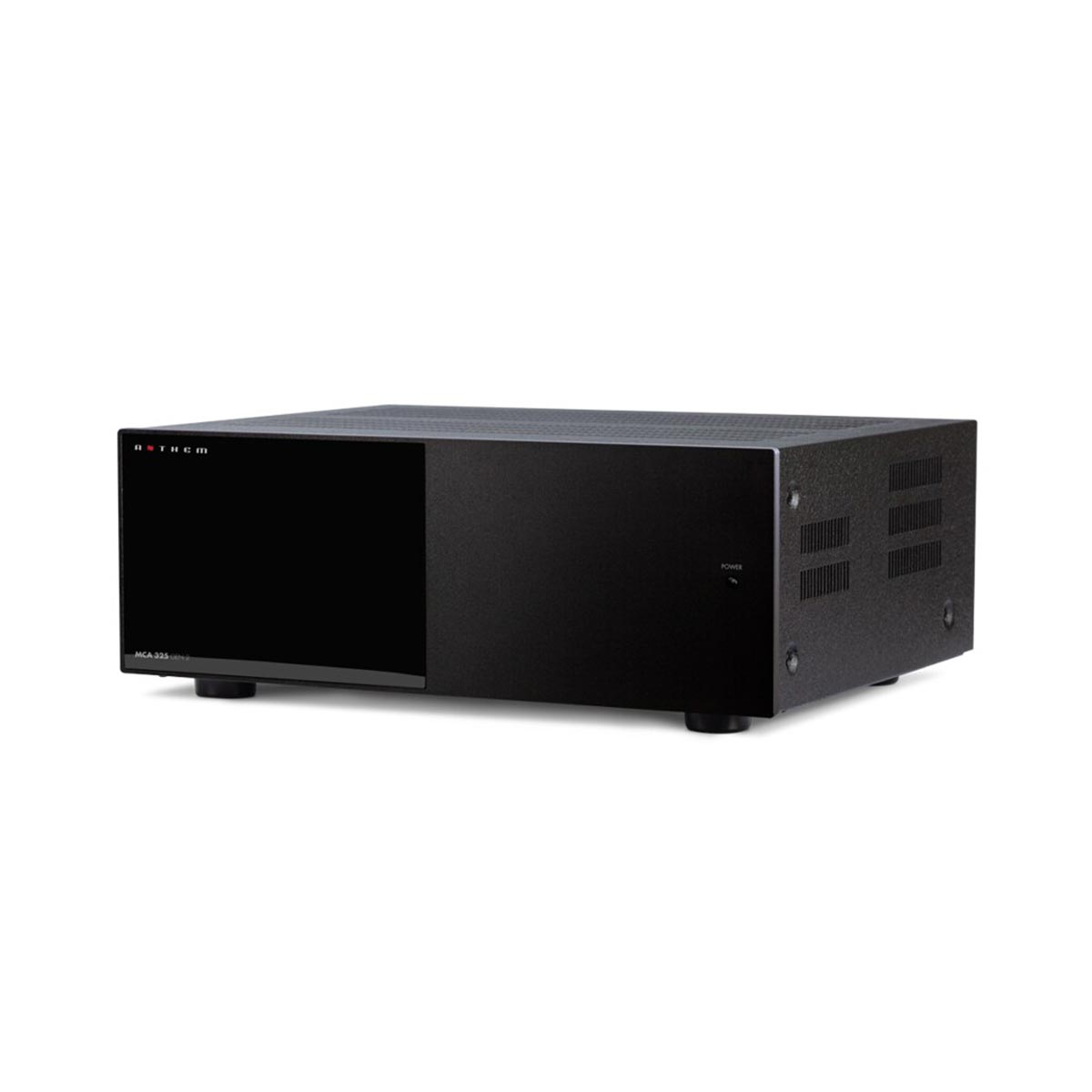

Anthem MCA 325 Gen 2 - 3 Channel Power Amplifier

Brand: Anthem
Product Code: ANT-MCA-325-G2
Warranty: 3 Years
$4,299.00
Qty:
Anthem
Truck
Free Shipping On Orders Over $100
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

Anthem - Pure Performance, Pure Value

To complement the NEW AVM 90 and 70 A/V Processors, Anthem introduces the new MCA 525, 325 and 225 GEN 2 power amplifiers. Available in 5, 3 and 2-channel configurations, these new MCA amplifiers feature more robust and efficient power and heavy-duty reliability. The new MCA Series delivers lower THD (total harmonic distortion) for more clean, pure sound and lower noise for a supremely quiet background.

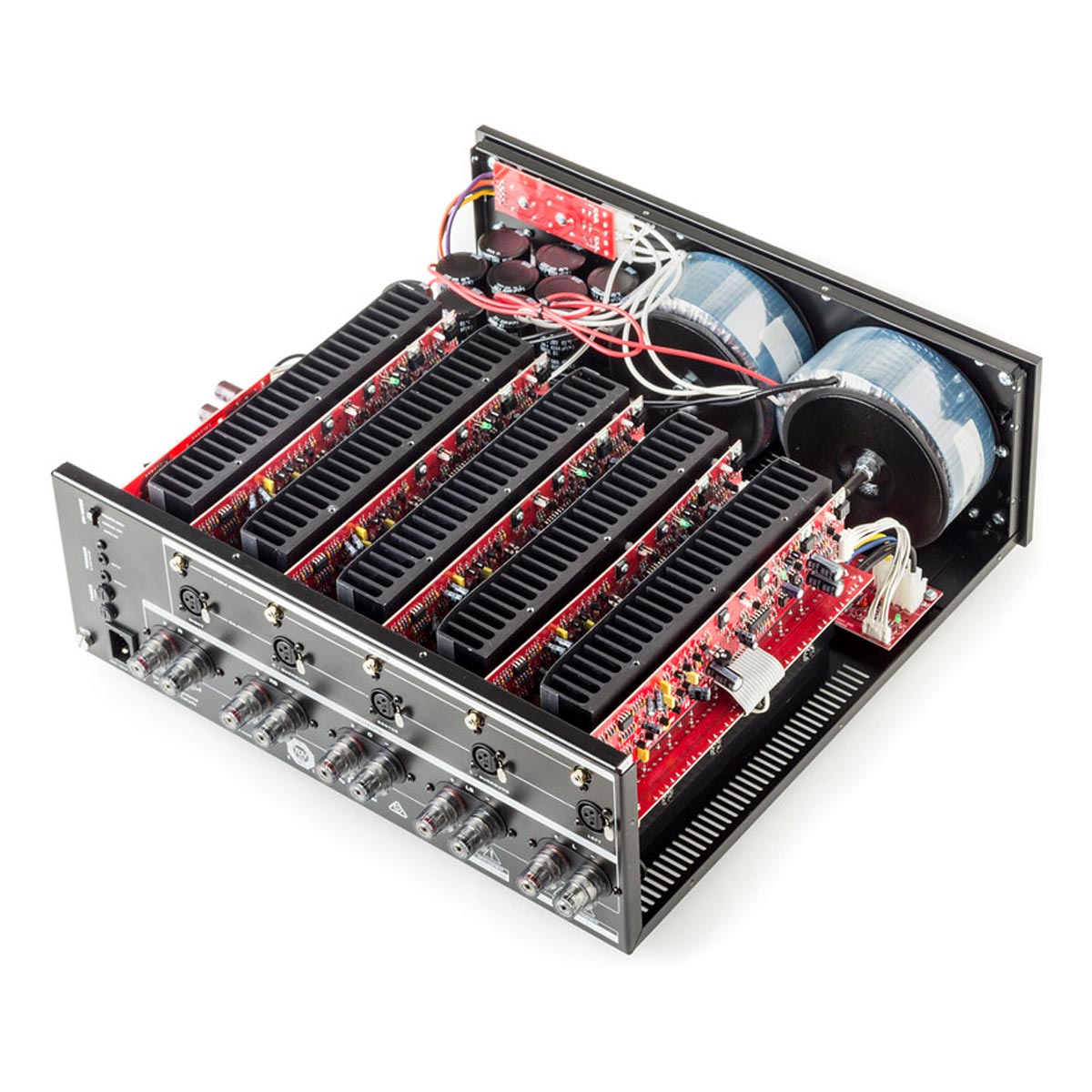

The MCA 525 GEN 2, MCA 325 GEN 2 and MCA 225 GEN 2, designed and Crafted in Canada, are like no other amplifiers in the world: custom low noise high-power toroidal transformers; high-current bipolar output transistors; high-quality filter capacitors; advanced power supply regulators; oversized aluminium heatsinks; custom-designed dual binding posts; and patented auto-on/off circuitry. Superior craftsmanship that is reflected in clean, clear, audiophile-quality sound from top to bottom of the frequency spectrum.


Key Features

  • Delivers lower THD (Total Harmonic Distortion) for cleaner, pure sound and lower noise
  • Completely redesigned for improved audio performance and reliability
  • Higher current output for lower distortion
  • Cosmetic match for AVM 70 and 90 A/V Preamplifier-Processor
  • Rackmount kit (sold separately)

Decoding

  • Improved Advanced Load Monitoring system
  • 8 bipolar output devices per channel for less stress on each device
  • Less than 2 watts standby power consumption
  • Crafted in Canada

An All New MCA GEN 2 Series

What does it take to improve on perfection? Over 15 years of concentration. The distillation of endless hours of fundamental research. The willingness to rebuild from the ground up. And the focus on a single goal: Leadership through innovation and technology. Introducing the new generation of Anthem MCA GEN 2 Amplifiers, designed, engineered and Crafted in Canada!

Completely Redesigned

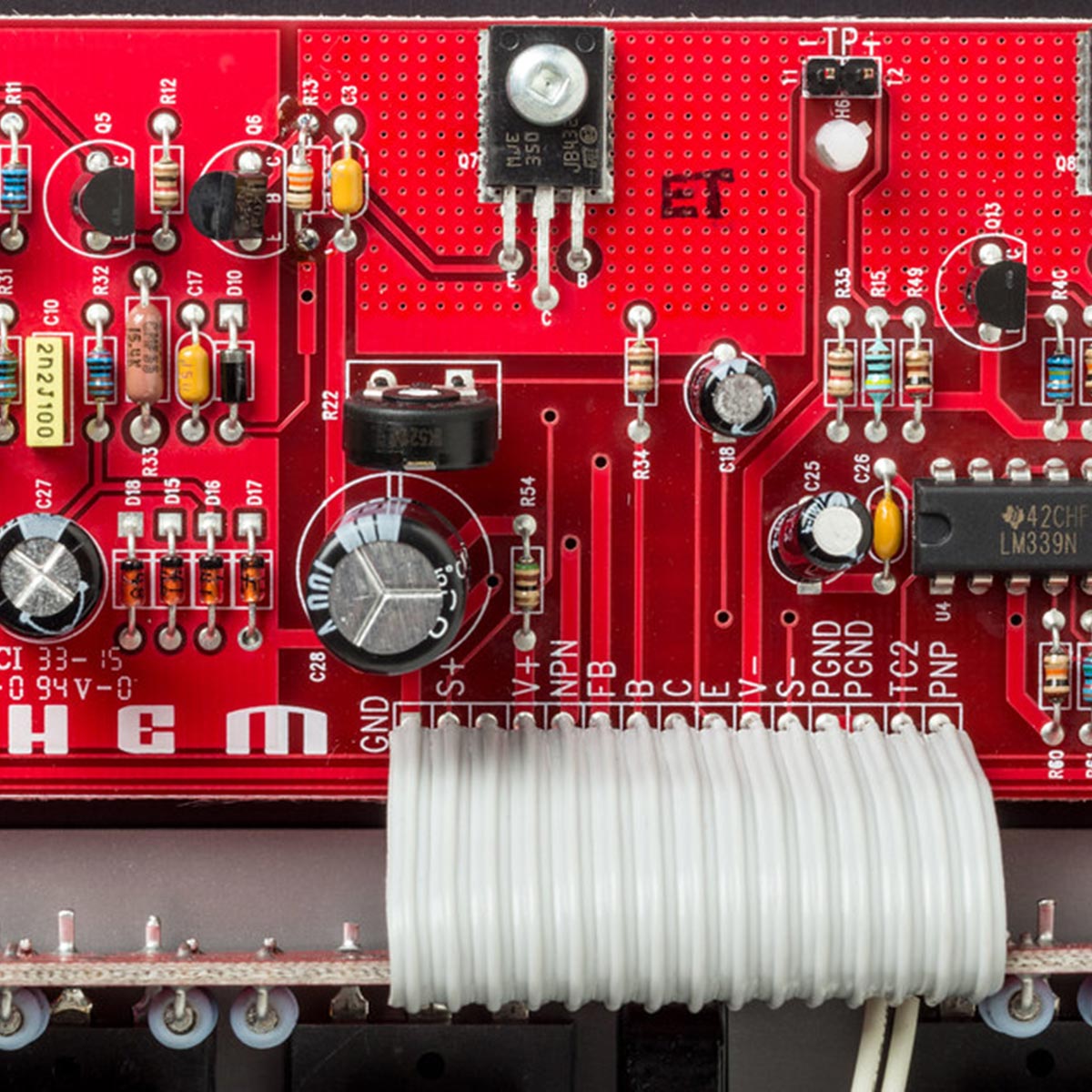

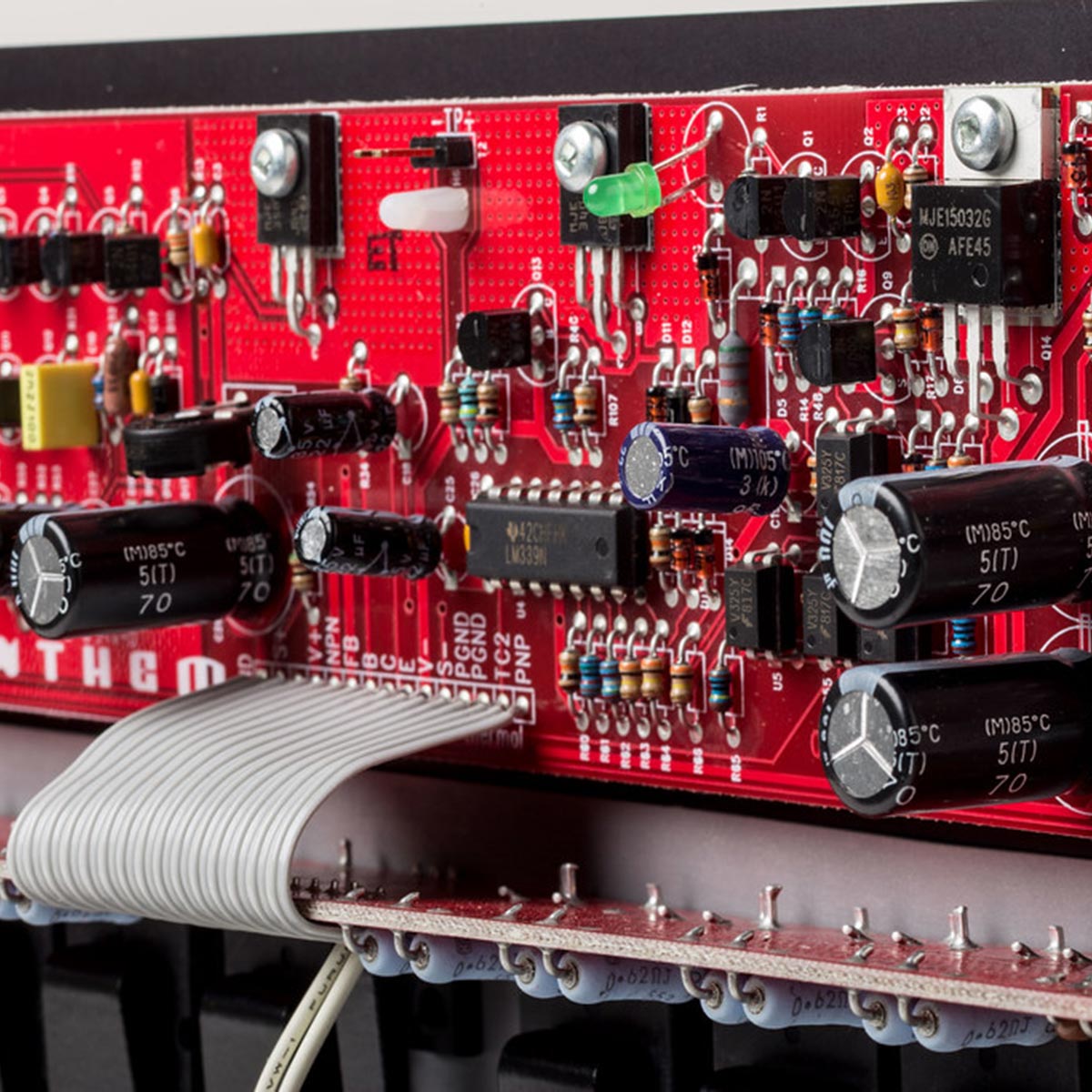

The new MCA GEN 2 series greatly reduces the use of internal cabling for a much smoother circuit path for pure, unobstructed audio performance. The use of low-flux toroidal transformers and improved input transistors provide a greater sense of transparency, even with dynamically complex material.

We’ve also improved other performance benchmarks including power bandwidth and slew rate. With a signal-to-noise ratio of 120 dB, background noise is practically non-existent, leaving you with just pure natural sound reproduction.

Higher Power into More Demanding Loads

While most 5-channel amplifiers use a single power supply for front left and right channels and another power supply of the centre and surround, the new MCA 525 GEN 2 shares its two power supplies between all channels. The result is full bursts of power – instantly – without affecting channel separation.

Engineered for Reliability

The new MCA GEN 2 Amplifiers use Anthem’s years of experience to “engineer out” common amplifier gremlins.

Green “Standby” Power Consumption

In addition to the reduced inrush current, these new MCA GEN 2 Amplifiers only use between 1-2W in “standby” mode. As with all Anthem amplifiers, they can be switched on manually, via trigger, or by sensing an input signal. New, larger, more conductive audiophile binding posts have been added to maximize contact and maintain a firm grip on the speaker cable. If you’re in the market for cutting-edge audio component separates, Anthem’s new MCA GEN 2 Amplifiers balance the complex dynamics of today’s most demanding multi-channel media with the rare finesse required to satisfy the audiophile in you. MCA GEN 2 Amps provide an abundance of conservatively rated power into demanding low impedance loads, incredible reliability, and a new design aesthetic that matches our sleek new AVM A/V Processors.

Next generation Advanced Load Monitoring™ Technology

Exclusive ALM™ technology monitors internal temperature, current and voltage to ensure safe and uninterrupted long-term operation, all the while eliminating the need for internal fuses. ALM™ is not in the signal path, so it never gets in the way. Instead, ALM engages instantly, but only in the most extreme circumstances, to protect your amplifier (and speakers) from damage.

This new generation ALM™ lowers the chance of a line fuse blowing during an over-current condition. Should a fault condition arise, unaffected channels continue to play and all-channel operation resumes automatically once conditions are back to normal. The LED on the front panel confirms status at all times.


Design

At Anthem, we have one simple goal – to design, engineer and manufacture audio/video products that deliver premium performance and convenience at a reasonable price. We do this by spending thousands of hours selecting and testing components, carefully designing our own circuit topologies, and backing them with robust power supplies that ensure maximum long-term quality and reliability. We achieve this with our team at the Paradigm/Anthem Research Centre and their decades of combined experience.

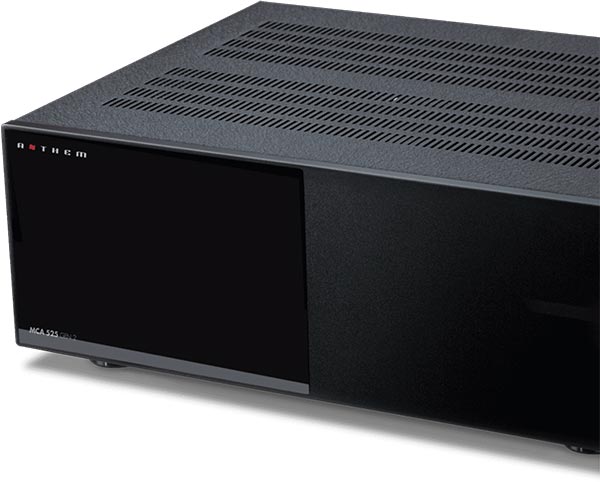

Anthem MCA 325 Gen 2 Power Amplifier

Limitless Possibilities

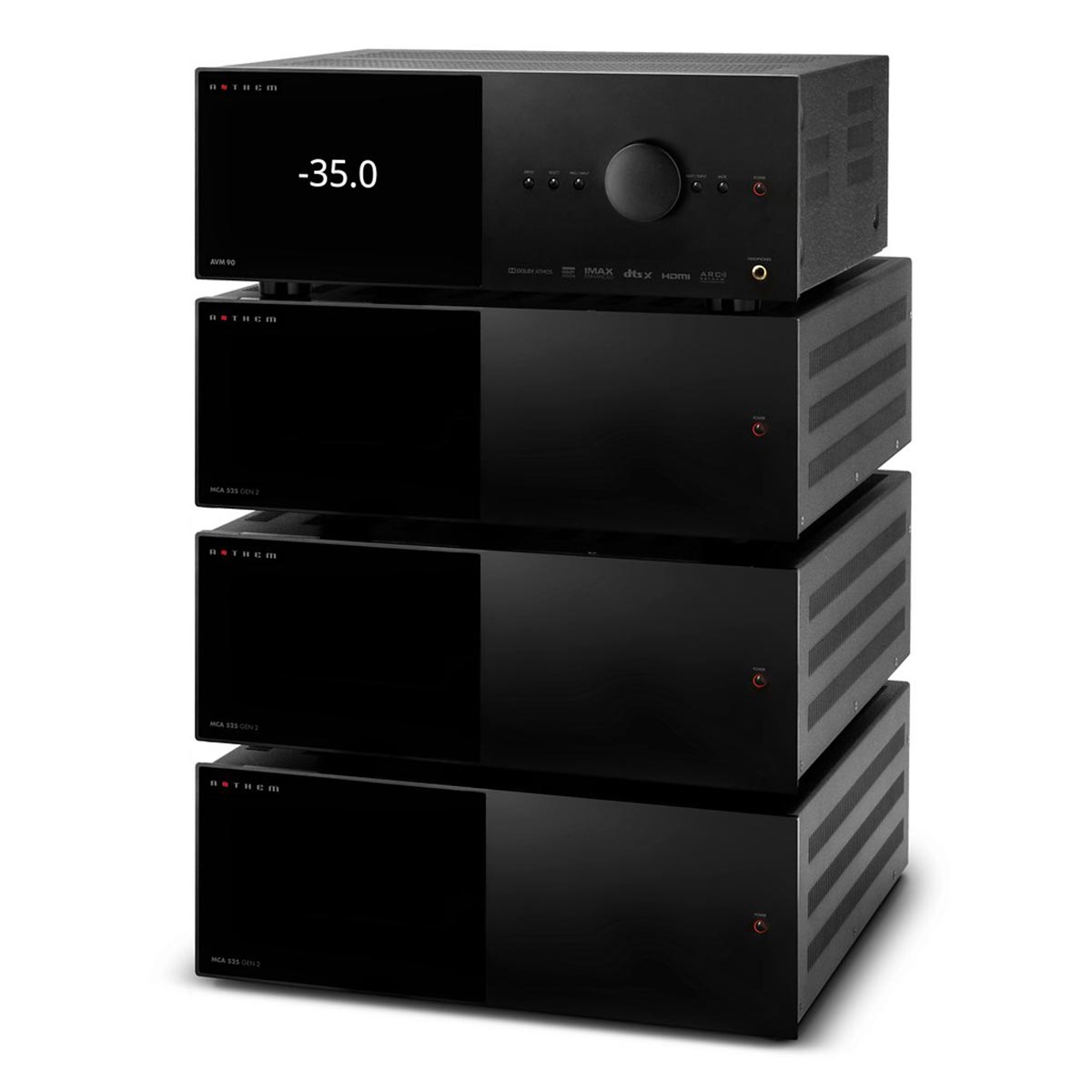

Today’s premium home theatres need support for as many as 15 speakers and 4 subwoofers to handle the latest Dolby Atmos and DTS:X object-oriented audio codecs. Pair an AVM 70 or AVM 90 A/V Processor with a stack of MCA amplifiers and you’ll hear sound that rivals the best commercial cinemas.

MCA’s scalability means you can purchase only the channels you need to power your vision of home entertainment. AVM Processors can now manage configurations up to 15.4 channels (up from 11.2) with ARC Genesis Room Correction ensuring the best possible sound at every seat. And you won’t need to hide your gear from view.

Anthem’s modernized design extends to every component in the MCA and AVM lines. All MCA power amps are Crafted in Canada.

Anthem MCA 325 Gen 2 Power Amplifier

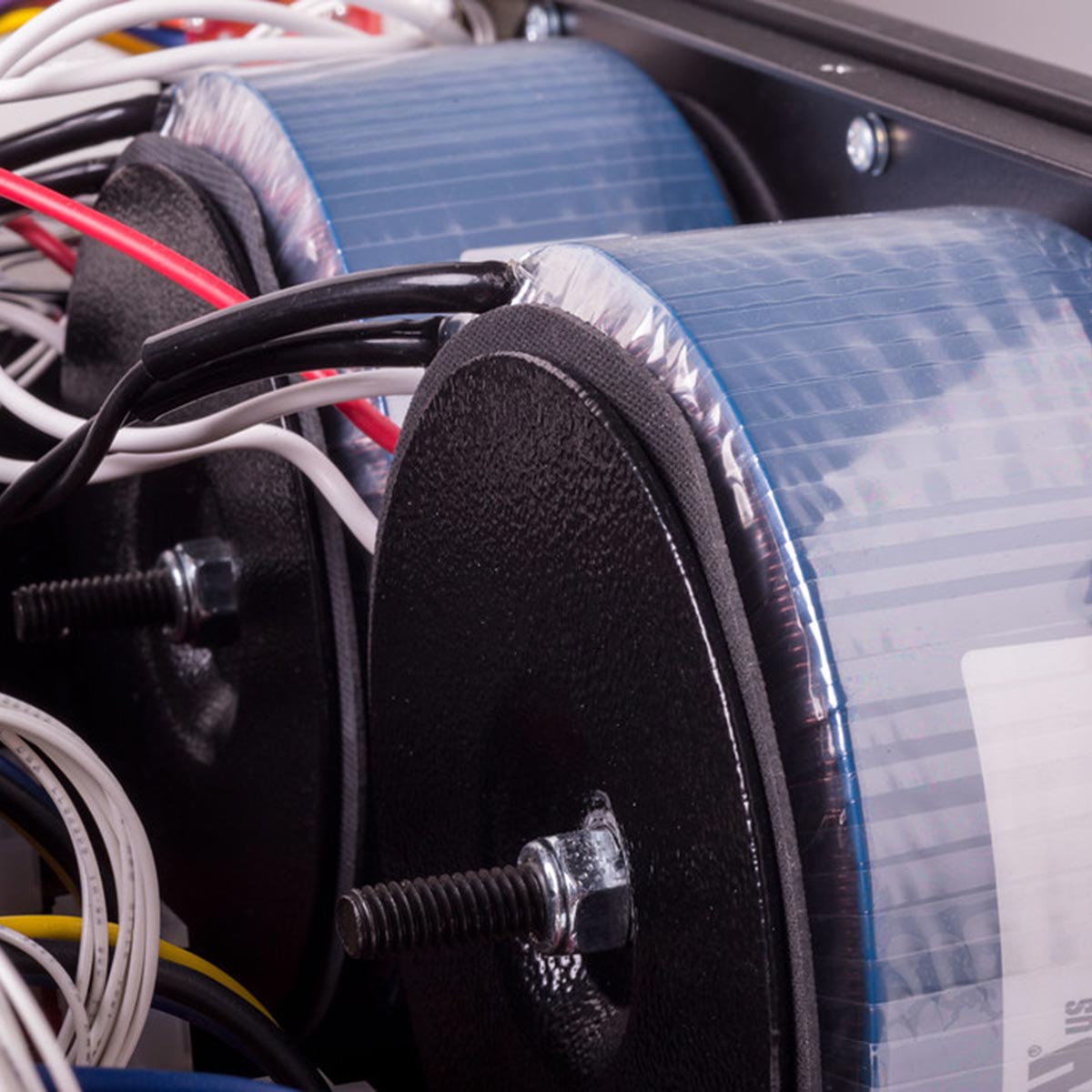

Massive Toroidal Power

MCA amplifiers deliver incredible dynamics thanks to massive “audiophile approved” conservatively rated power supplies designed with high rail voltages.

Low flux toroidal power transformers ensure ultra quiet performance by minimizing stray magnetic field radiation. This provides the pure, clean, low-noise power that is needed to reproduce the full dynamics of home theatre and the most complex and dynamic music recordings.

Anthem MCA 325 Gen 2 Power Amplifier

Audiophile Binding Posts

Our own custom-designed, oversized robust binding posts ensure full power delivery at all times.

They’re easy to use and facilitate large speaker cable connectors.

Anthem MCA 325 Gen 2 Power Amplifier

The Anthem Advantage

Backed by over 35 years of home-grown,hands-on design, and innovative audio engineering experience, Anthem products provide an unprecedented level of reliability and functionality; delivering one of the industry’s highest performance/price ratios. This is just one reason why Anthem electronics are the choice of knowledgeable audiophiles, professional musicians and engineers the world over.

Power Output Per Channel (Continuous RMS, 20 Hz - 20 kHz, <1% THD)
225 W
400 W
600 W
Inputs / Outputs
Inputs Single-Ended, Balanced, Relay Trigger (3.5-mm Mono Jack)
Outputs Speaker Binding Posts, Relay Trigger (3.5-mm Mono Jack)
Switches
Front Panel Power (On/Off)

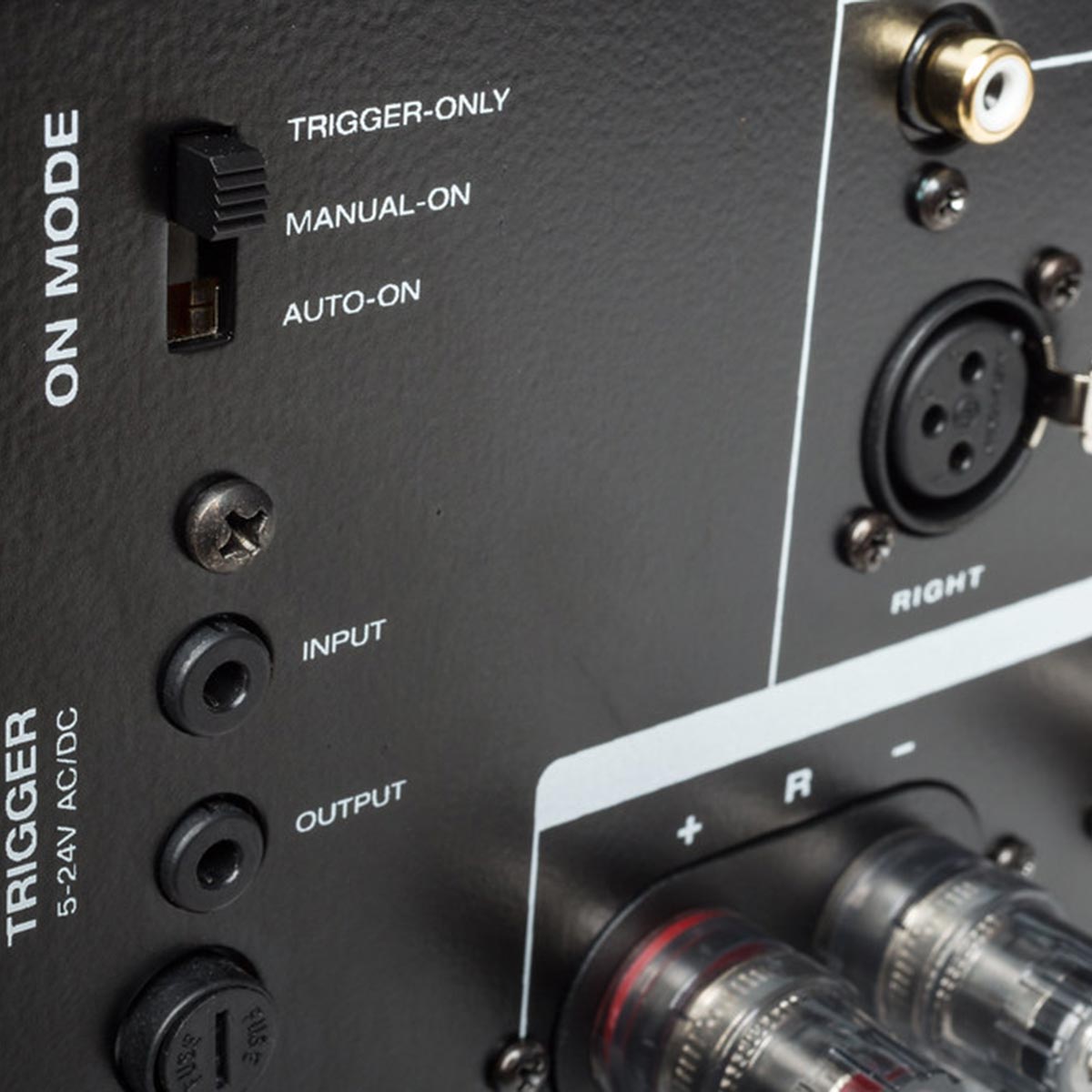

Rear Panel 3 On/Off Modes (Trigger, Manual, Auto)
THD at 100 W
At 1 kHz 0.0010%
At 20 kHz 0.015%
IMD at 100 W
ITU-R (19 kHz + 20 kHz) 0.0005%
SMPTE (60 Hz + 7 kHz) 0.002%
Frequency Response, 20 Hz to 20 kHz
Open Circuit ±0.1 dB
±0.1 dB
±0.1 dB
±0.2 dB
Other Specifications
SNR, IEC-A, ref. 225 W 120 dB
Power Bandwidth, -3 dB at 200 W into 8 Ohms 90 kHz
Slew Rate 30 V/μs
Damping Factor, 20 Hz to 1 kHz 300
Channel Separation, 100 Hz to 10 kHz >65 dB
Input Impedance (RCA / XLR) 10 kΩ / 15 kΩ
Input Sensitivity, 225 W into 8Ω 1.5 Vrms
Voltage Gain 29 dB
Power Consumption
Standby 1.4 W
Idle 47 W
Typical 350 W
High Output 750 W
Dimensions & Weight
Height 16.9 cm (6-5/8")
Height with Rackmount Kit 4U
Width 43.9 cm (17-1/4")
Depth 46 cm (18-1/8")
Weight 19.5 kg (43 lb)
Power Requirement
220, 230, or 240 V Line Voltage Operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.
