Pro-Ject Tube Box S2 Phono Preamplifier

Brand: Pro-Ject
Product Code: PRO-TUBEBX-S2-AMP
Warranty: 2 Years
Colour: *

$699.00 $629.00
Qty:
Pro-Ject
Truck
Free Shipping On Orders Over $75.00
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

Tube Box S2

Tube Box S2 is our very first product to feature a fully discreet circuit design without using any operational amplifiers (OpAmps). It also is the first product to come with replaceable tubes for tube rolling and sound-shaping. This gives the customer many options to pick from and alter the sound signature to his preference.

Tube Box S2 will give a full and relaxed laid back sound with lush mids, just like you would expect it from a much bigger high end tube phono pre-amplifier. It offers support for both MM and MC cartridges and comes with many gain settings to be switched on the front panel. Five variable input impedance settings are available to adjust to any MM cartridge, the 47k ohm input impedance setting is fixed and suited for high output MC cartridges.

The aluminium/metal casing is adapted to our DS2 line in looks and protects against vibrations and electromagnetic interferences for superior sound.


Key Features

  • Suitable for MM and MC cartridges
  • Precise RIAA equalisation in two parts, passive/active
  • Fully discreet circuit design without OpAmps
  • 2x ECC83 tubes (replaceable)

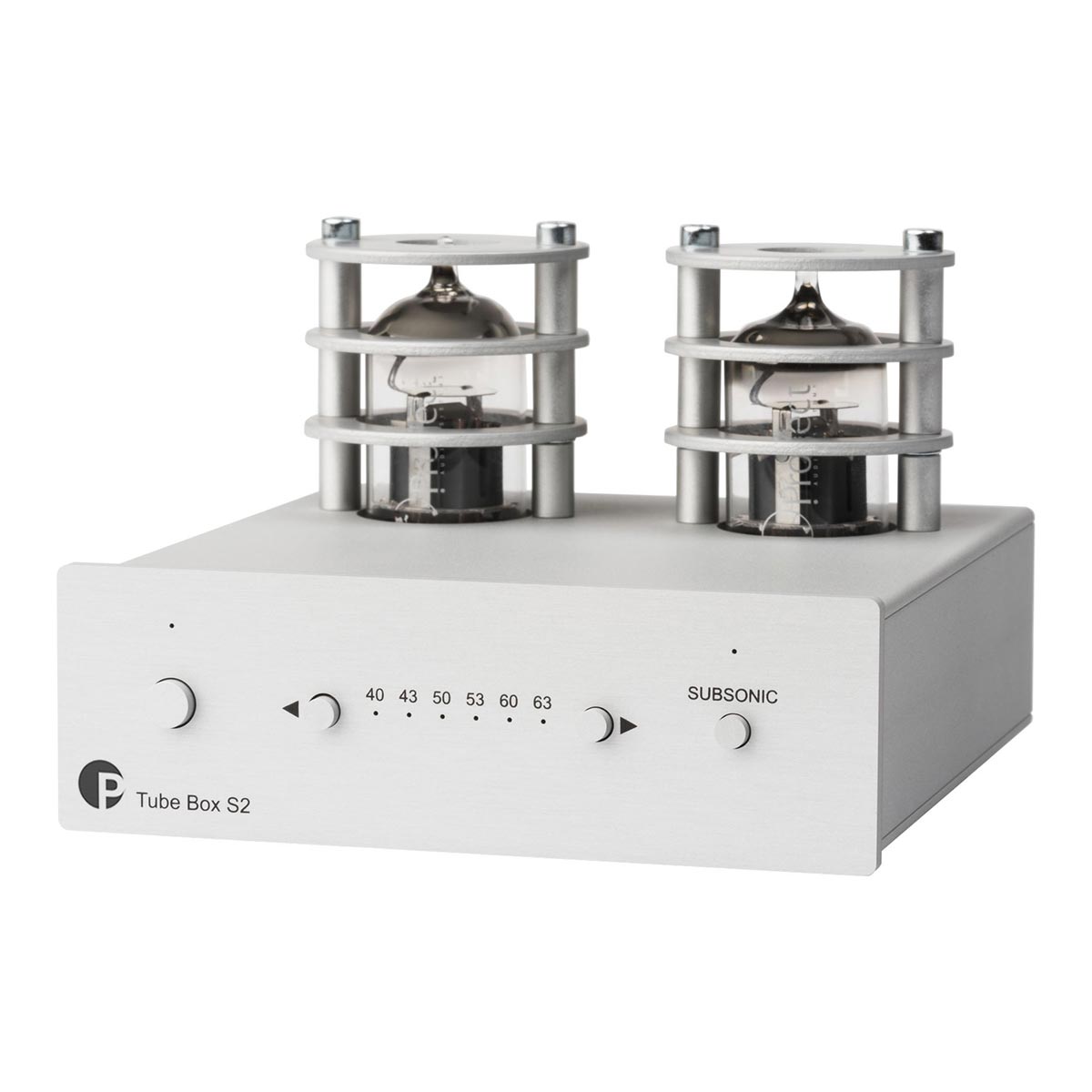

  • Front-sided Subsonic filter button
  • Front-sided Gain control
  • Ultra low noise circuitry with FET input stage
  • Dual mono circuitry for optimised channel separation
  • Polystyrene capacitors used where possible
  • Gold-plated RCA in and outputs
  • External power adaptor and multiple internal power supplies
  • Well-filtrated high-voltage anode power supply
  • Sandwich alu/metal casing protects from vibrations and electromagnetic interference

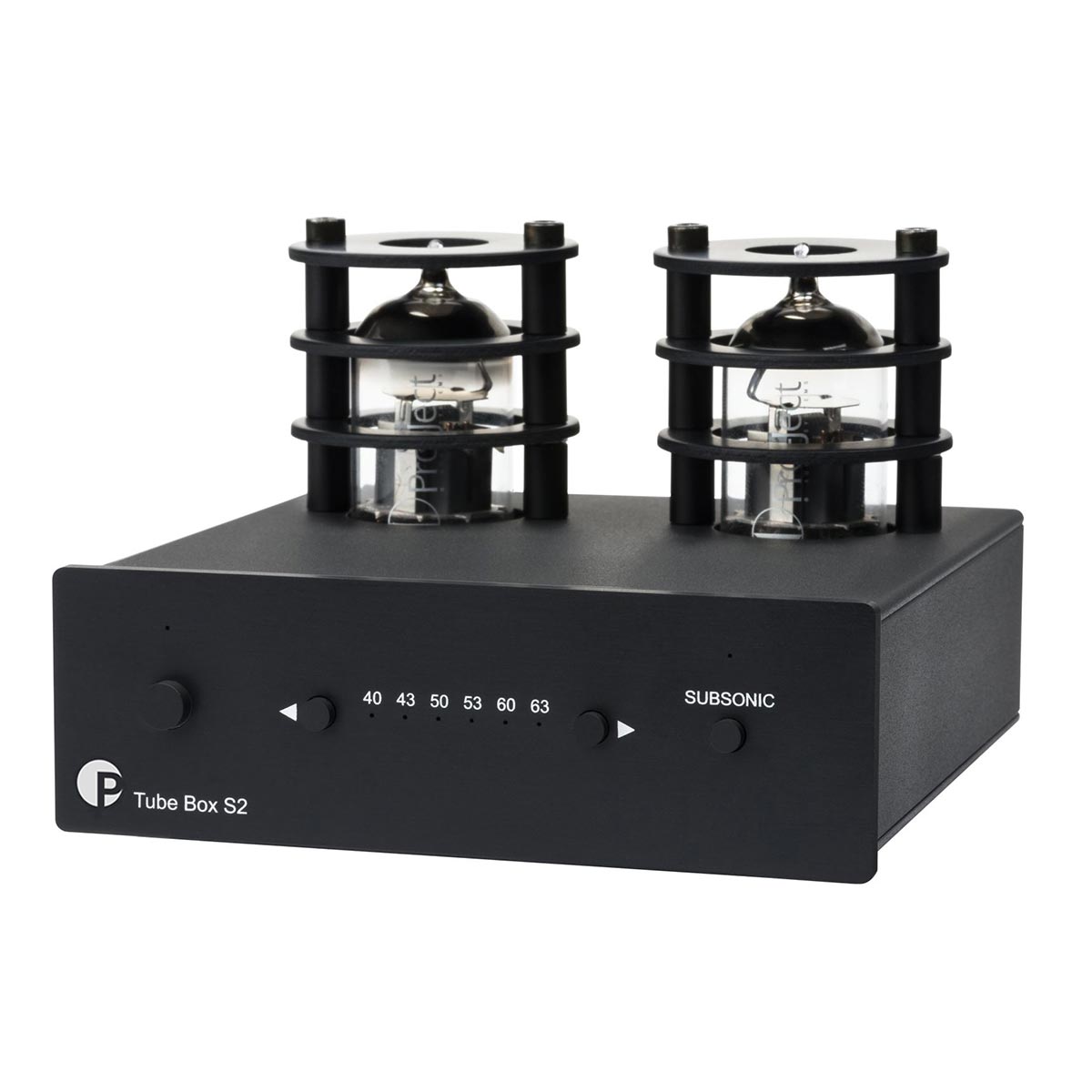

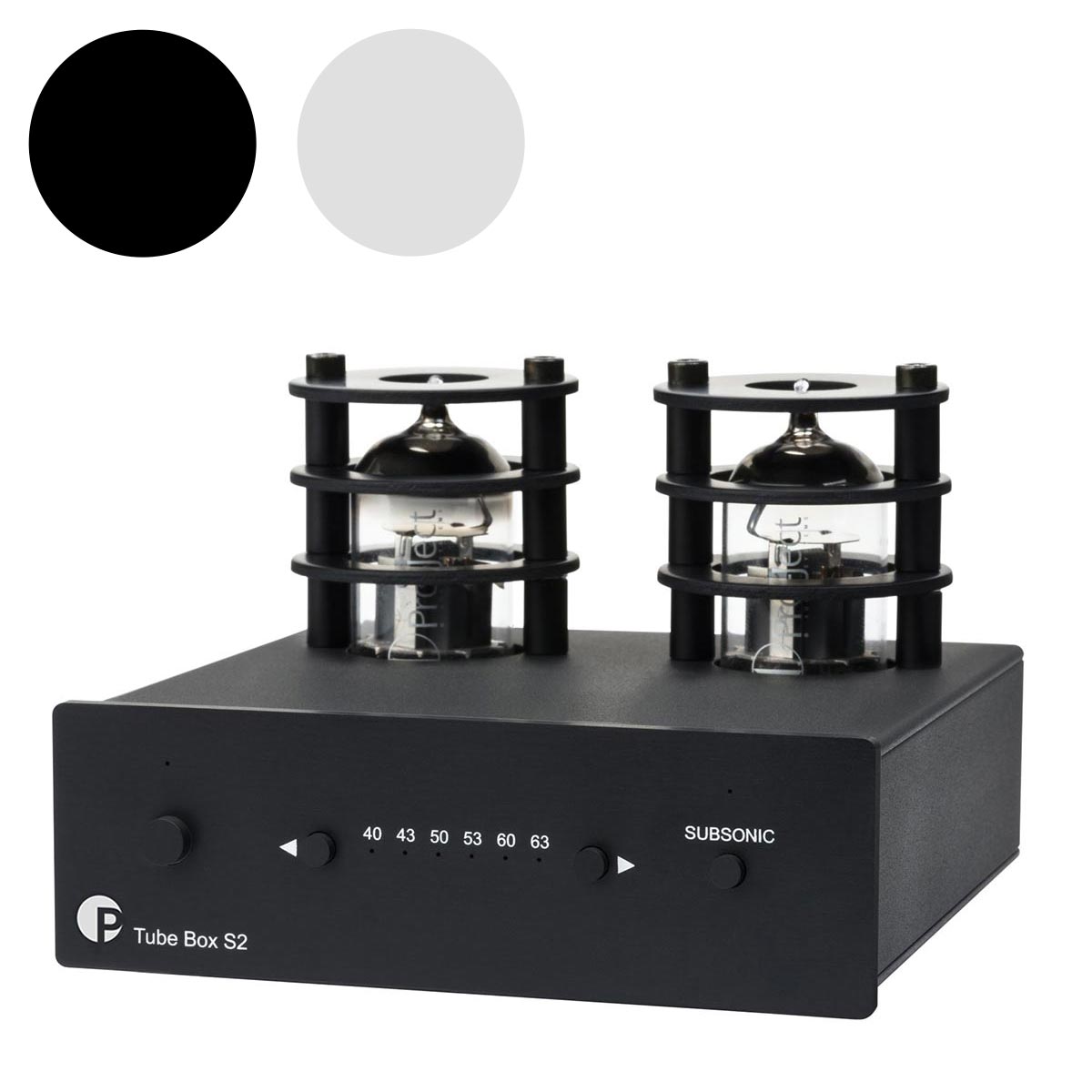

  • Available in silver or black
Specifications
Tubes 2 x ECC83 (12AX 7A)
Input Impedance 10 ohms, 100 ohms, 1 kohm, 2 kohms
Input Capacitance/Impedance 47 pF, 147 pF, 267 pF, 367 pF, 487 pF and 587 pF* / 47 kohms, Together with Other Input Impedance Settings Without any Influence
Input Gain 40 dB, 43 dB / 50 dB, 60 dB and 63 dB
Noise Floor 80 dB (A Weighted) at 40 dB Input Gain, 75dB (A Weighted) at 50 dB and 63 dB Input Gain
THD <0.02% at 40 dB Input Gain, <0.05% at 50 dB and 63 dB Input Gain
RIAA-Equalisation Curve Accuracy +/- 0.4 dB / 20 Hz - 20 kHz
Subsonic Filter At 20 Hz with 18 dB / Octave

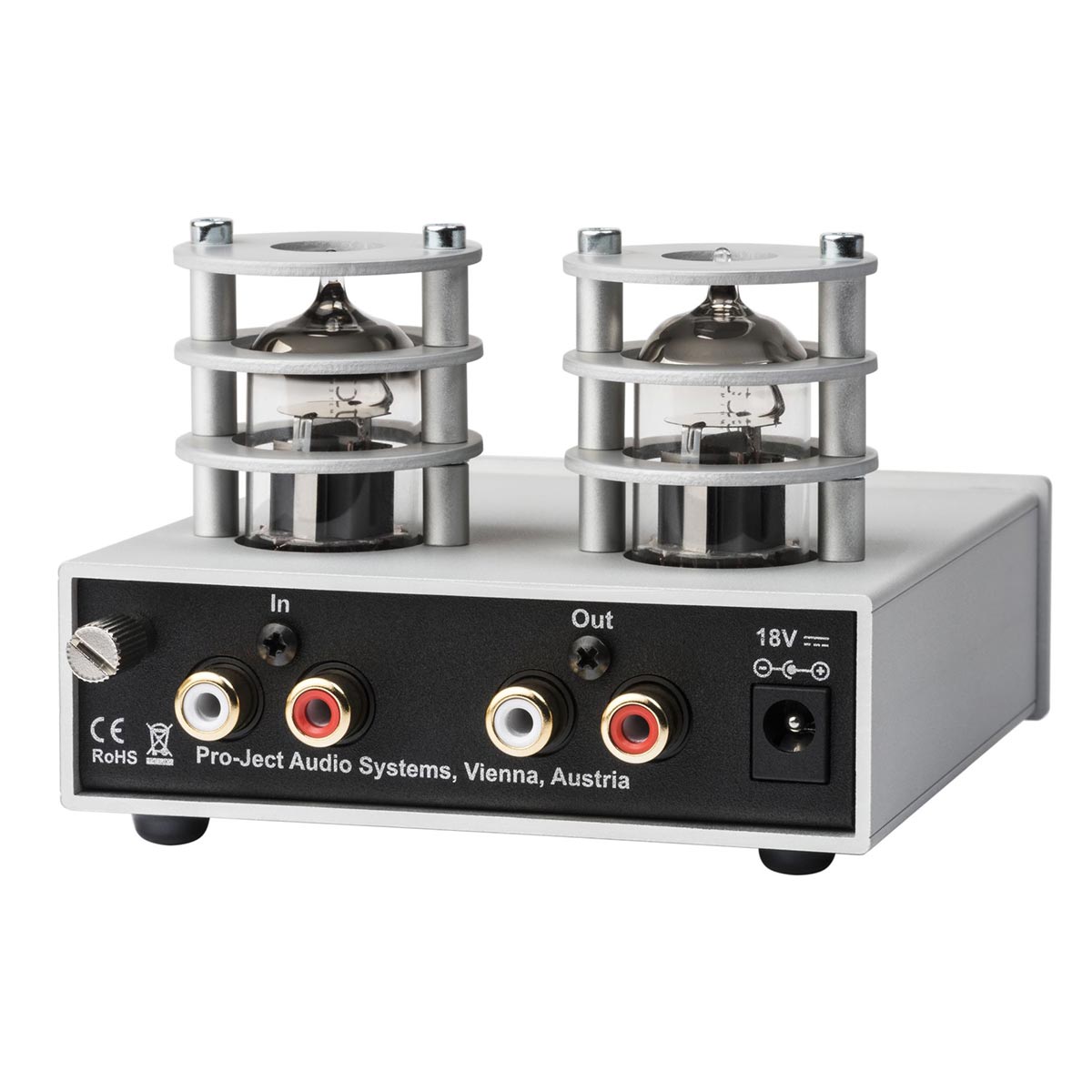

Input 1 Pair RCA/Phono Sockets
Line-Level Output 1 Pair RCA/Phono Sockets
Outboard Power Supply 18 V / 1,000 mA DC, Suitable for Your Country's Mains Supply
Standby Power Consumption < 1 Watt
Power Consumption 470 mA DC, <1 W in Standby
Dimension W x H x D with Sockets 103 x 73 x 131 mm
Weight 410 g Without Power Supply
