Tube Box DS2
Phono Valve Preamplifier
Unlike conventional phono stages, the Tube Box DS2 harks back to a classic era of analogue sound, using a pair of valves to amplify your turntable’s signal. This alternative approach gives your sound a remarkably different feel, with outstanding warmth and a lush, laid-back sound that other phono stages just can’t touch.
It Sounds Just The Way You Like

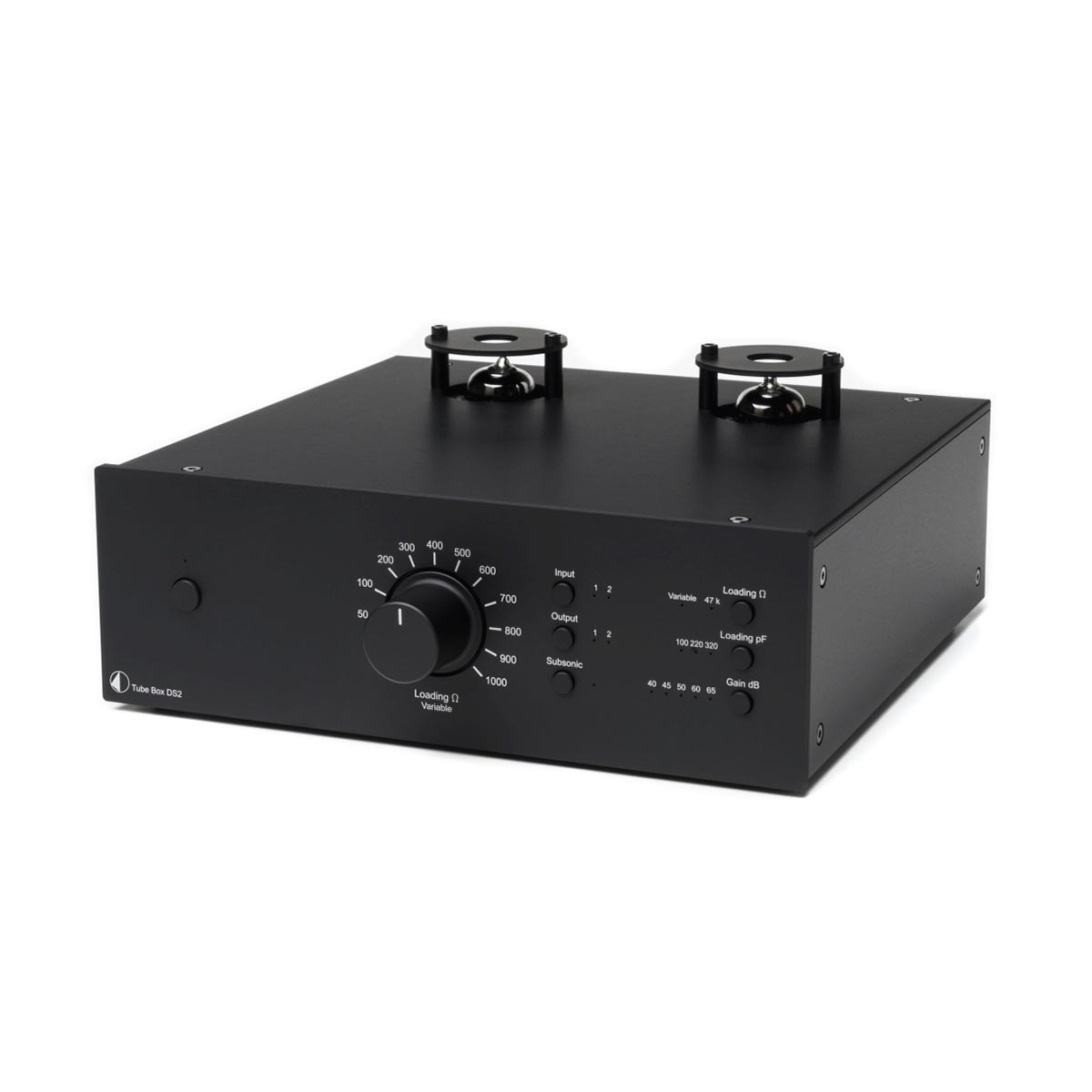

The Pro-Ject Tube Box DS2’s front-panel give you push-button control over your sound, allowing you to customise your settings on the fly to get the most out of your records.
Whether with a Moving Magnet or Moving Coil cartridge, the Pro-Ject Tube Box DS2 delivers rich, natural tones, proving it to be a sophisticated phono stage for the discerning record lover.
- Suitable for MM and MC cartridges
- Precise RIAA equalisation
- Ultra low noise circuitry
- Connect two tuntables at once
- Selectable input impedance
- Selectable input capacitance
- Gold-plated RCA inputs & outputs
- Sandwich alu/metal casing protects from vibrations and electromagnetic interference
|Tubes||2 x ECC83 (12AX7)|
|Input Impedance||Variable 10-1000 Ohm, Fix 47 kOhm|
|Capacitance||100 / 220 / 320 pF|
|Gain MM / MC||40 / 45 / 50 / 60 / 65 dB|
|Output Voltage Typically||500 mV/1 kHz at 5 mV/1 kHz (at 40 dB)|
|RIAA Curve Accuracy||+/- 0.2 dB / 20 Hz - 20kHz|
|Subsonic Filter||20 Hz @ 12 dB/Octave|
|Inputs||2 x Phono (RCA)|
|Outputs||2 x Line (RCA)|
|Power Supply||18 V/1000 mA DC|
|Power Consumption Max.||490 mA DC / <0.5 Watt Standby|
|Dimension W x H x D||206 x 91 x 227 mm (Black), 240 x 93 x 227 mm (Silver with Walnut Side Panels)|
|Weight||1500 g (Black), 1960 g (Silver with Walnut Side Panels)|
