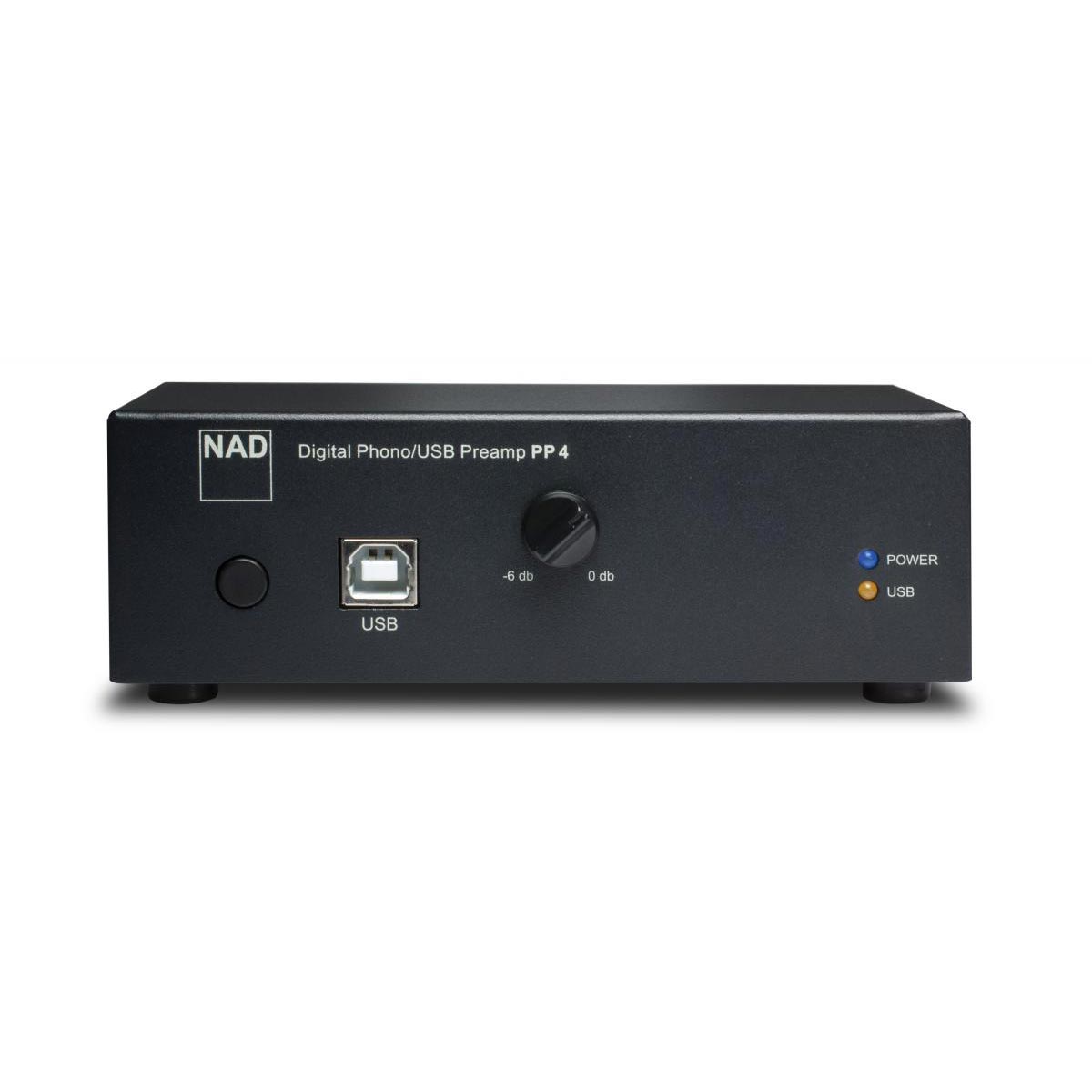

NAD PP 4 Digital Phono / USB Preamplifier (MM & MC Cartridges)

Product Code: NAD-PP-4
Warranty: 12 Months
$299.00 $249.00
Qty:
Truck
Free Shipping On Orders Over $75.00
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

PP 4 Digital Phono USB Preamplifier

With the addition of the PP 4 to your home system, the LPs you cherish the most come alive in the form of expansive and rich sound. Offering superb and measured sonic performance, NAD combines two simple solutions – the PP 4 Digital Phono and the USB Preamplifier – into one small device, making it easy to add phono to stereo amplifiers and AV receivers without a phono input. The PP 4 uses a shielded USB cable and recording level control, which reduces noise and improves the analogue-to-digital conversion process. As part of NAD's commitment to the environment, the PP 4 features a more efficient “green" power supply that reduces power consumption. It also has an Auto Power Down feature that saves energy by shutting off when not in use.


Digitise Your Vinyl Collection

Offering superb measured and sonic performance, NAD's two simple solutions, the PP 4 Digital Phono/USB Preamplifier makes it easy to add phono to many of today's stereo amplifiers and AV receivers that have either eliminated the phono input or included a low quality circuit for attaching your turntable. As part of NAD's commitment to the environment, the PP 4 features a more efficient “green" power supply that reduces power consumption. The PP 4 goes one step further with a USB interface, shielded USB cable and recording level control which reduces noise and improves the analogue-to-digital conversion process. The PP 4's Auto Power Down feature saves energy by automatically powering the PP 4 to OFF when not in use.

Our PP 4 Digital Phono/USB Preamplifier enables you to digitise your treasured vinyl collections to a PC or Mac. It features inputs for both MM (moving magnet) and MC (moving coil) types for a wide variety of phono cartridges, and there is a line input to allow for the transfer of cassette tapes. The PP 4 also includes VinylStudio Lite Software for ripping LPs and burning audio CDs. The PP 4 Phono-to-USB Preamp offers a complete hardware and software solution with exceptional flexibility to record from LP or tape.

PP 4 VinylStudio Lite

The PP 4 (or the older PP 3) comes with Mac and PC compatible version of AlpineSoft's VinylStudio Lite ripping software is included with your new PP-4. With VinylStudio Lite you can:

  • Rip LPs into WAV files
  • Split Tracks
  • Burn CDs
  • Record Disks
  • Look up Song Titles
  • Handle File Management

To download your FREE copy of VinylStudio Lite for your PP4 please click on the links below:

  • Vinyl Studio lite for Windows : Here
  • Vinyl Studio lite MAC (OS X 10.6 and later): Here

To upgrade to the fully featured version of VinylStudio, please visit AlpineSoft's own website and purchase the most intuitive software available for ripping LPs and burning CDs. VinylStudio's powerful audio cleanup tools (you can trial these in VinylStudio Lite) can be used to remove clicks and pops restoring your songs to like new condition.

Visit: www.alpinesoft.co.uk for complete information.

MC
Input Impedance (R and C) 100 Ohm + 180 pF
Gain at 1 kHz 58 dB
Input Sensitivity (Ref. 200mV output) 0.38 mV
Signal to Noise Ratio (A Weighted, with Cartridge Connected) 78 dB
Input Overload (20 Hz / 1 kHz / 20 kHz) 0.65 / 6.5 / 60 mV
Rated Distortion (THD 20 Hz – 20 kHz) <0.03%
RIAA Response Accuracy ±0.3 dB
Infrasonic Filter -14 dB (5 Hz)
-3 dB (10 Hz)
Digital Output (USB) 16 Bit Linear PCM
Sampling Frequency 48 kHz
Dynamic Range 86 dB
MM
Input Impedance (R and C) 47 kilohm + 200 pF
Gain at 1 kHz 35 dB
Input Sensitivity (Ref. 200 mV output) 5 mV
Signal to Noise Ratio (A Weighted, with Cartridge Connected) 76 dB
Input Overload (20 Hz / 1 kHz / 20 kHz) 10 / 100 / 900 mV
Rated Distortion (THD 20 Hz – 20 kHz) <0.03%
RIAA Response Accuracy ±0.3 dB
Infrasonic Filter -14 dB (5 Hz)
-3 dB (10 Hz)
Digital Output (USB) 16 Bit Linear PCM
Sampling Frequency 48 kHz
Dynamic Range 89 dB
Record Level 0 dB to -6 dB
Line In
Input Impedance 47 kilohm + 180 pF
Rated Distortion (THD 20 Hz – 20 kHz) <0.008%
Signal to Noise, A Weighted -115 dB
Maximum Input Level 5.3 V
Line Out
Output Impedance 100 Ohm
Maximum Output Level 5.3 V
General Specifications
Dimensions Excl. Power Supply (W x H x D) 135 x 49 x 72 mm
