Ortofon Stylus 40

Brand: Ortofon
Product Code: ORT-OM40-MM-STYLUS
Warranty: 2 Years
$589.00
Qty:
Ortofon
Truck
Free Shipping On Orders Over $75.00
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

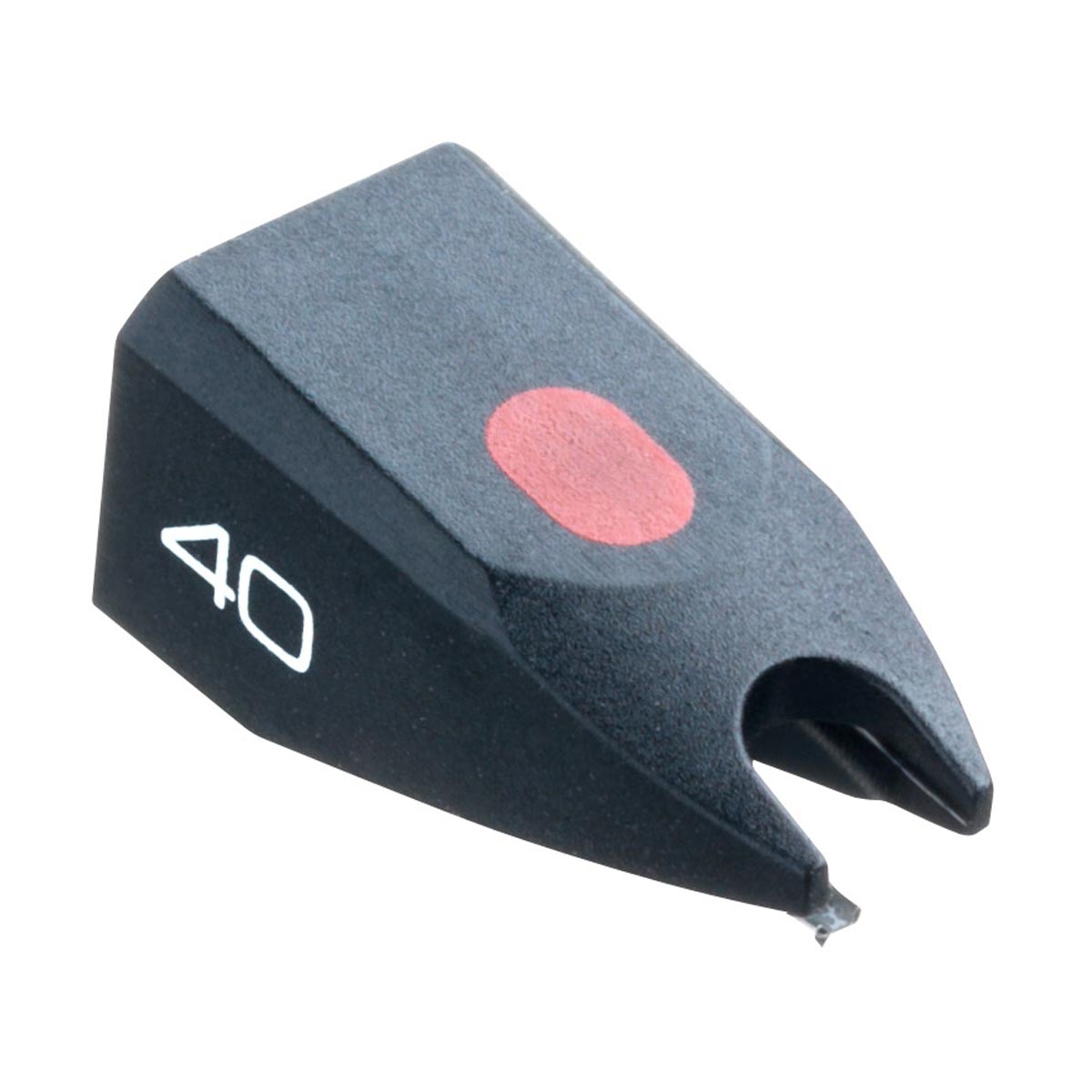

Ortofon Stylus 40

The Ortofon Stylus 40 is an optional upgrade for your existing Ortofon OM cartridge. It features a stunning Nude Fritz Geiger 70 stylus profile. Compatible with OM 40, OM 40 GOLD cartridges. With proper care, up to 1,000 hours is possible without degradation of performance.

Stylus 40 Technical Data
Frequency Response 20-20,000 Hz +2 / -3 dB
Tracking Ability at 315 Hz at Recommended Tracking Force 80 µm
Compliance, Dynamic, Lateral 22 µm/mN
Stylus Type Nude Fritz Geiger 70
Stylus Tip Radius r/R 5/70 µm
Tracking Force Range 1.25-1.75 g (12.5-17.5 mN)
Tracking Force, Recommended 1.5 g (15 mN)
Tracking Angle 20°
Stylus Colour Black
Recommended Cartridges OM 40, OM 40 GOLD
