Ortofon Stylus 2M Red

Brand: Ortofon
Product Code: ORT-2MRED-MM-STYLUS
Warranty: 2 Years
$149.00
Qty:
Ortofon
Truck
Free Shipping On Orders Over $75.00
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

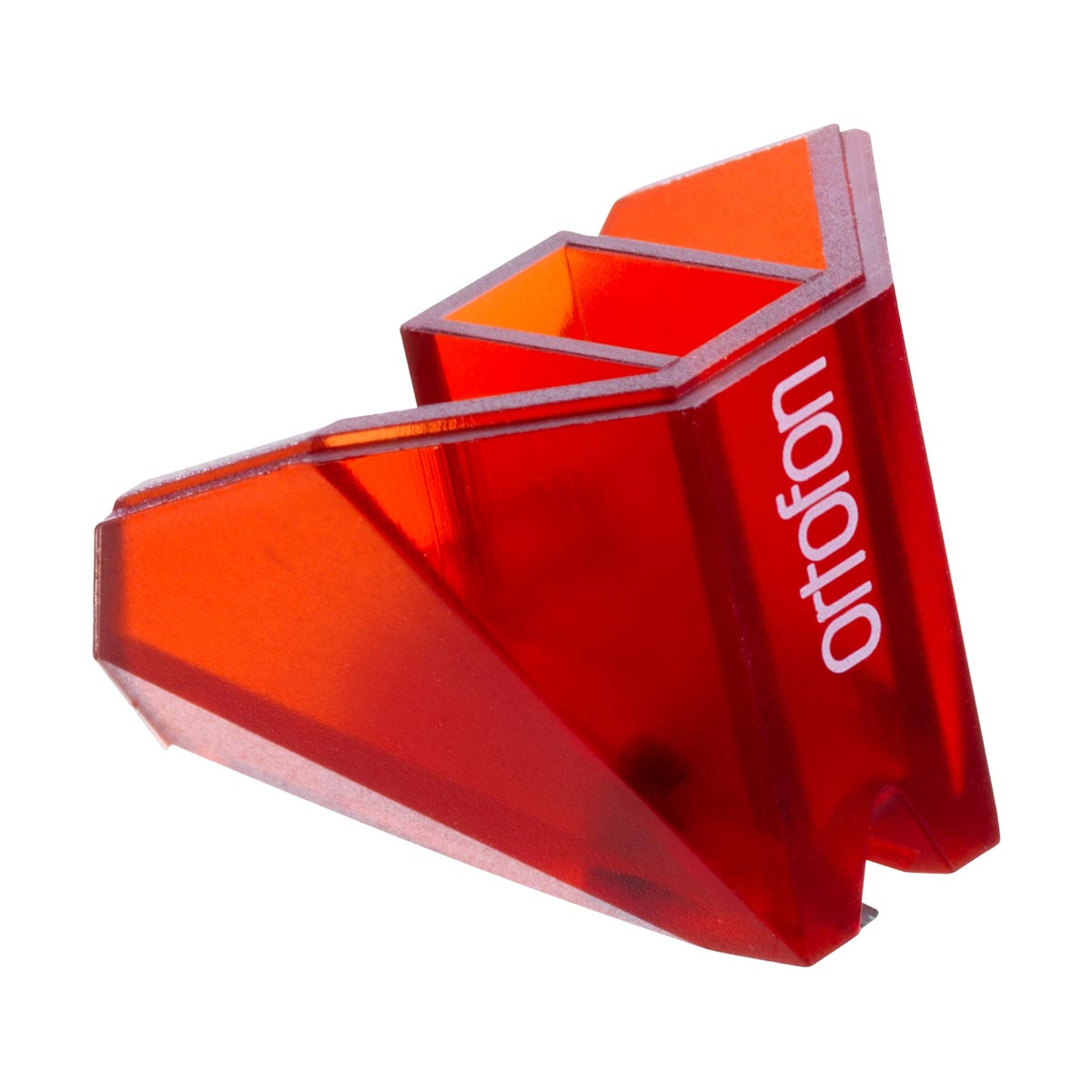

Ortofon Stylus 2M Red

The Ortofon Stylus 2M Red is an optional replacement for your existing Ortofon 2M Red or 2M Blue Moving Magnet cartridge. It features a Tipped Elliptical stylus profile. With proper care, up to 1,000 hours is possible without degradation of performance.

Stylus 2M Red Technical Data
Frequency Response 20-20,000 Hz +2 / -1 dB
Tracking Ability at 315 Hz at Recommended Tracking Force 70 µm
Compliance, Dynamic, Lateral 20 µm/mN
Stylus Type Elliptical
Stylus Tip Radius r/R 8/18 µm
Equivalent Stylus Tip Mass 0.5 mg
Tracking Force Range 1.6-2.0 g (16-20 mN)
Tracking Force, Recommended 1.8 g (18 mN)
Tracking Angle 20°
Stylus Colour Red
Recommended Cartridges 2M Red, Interchangeable with 2M Blue
