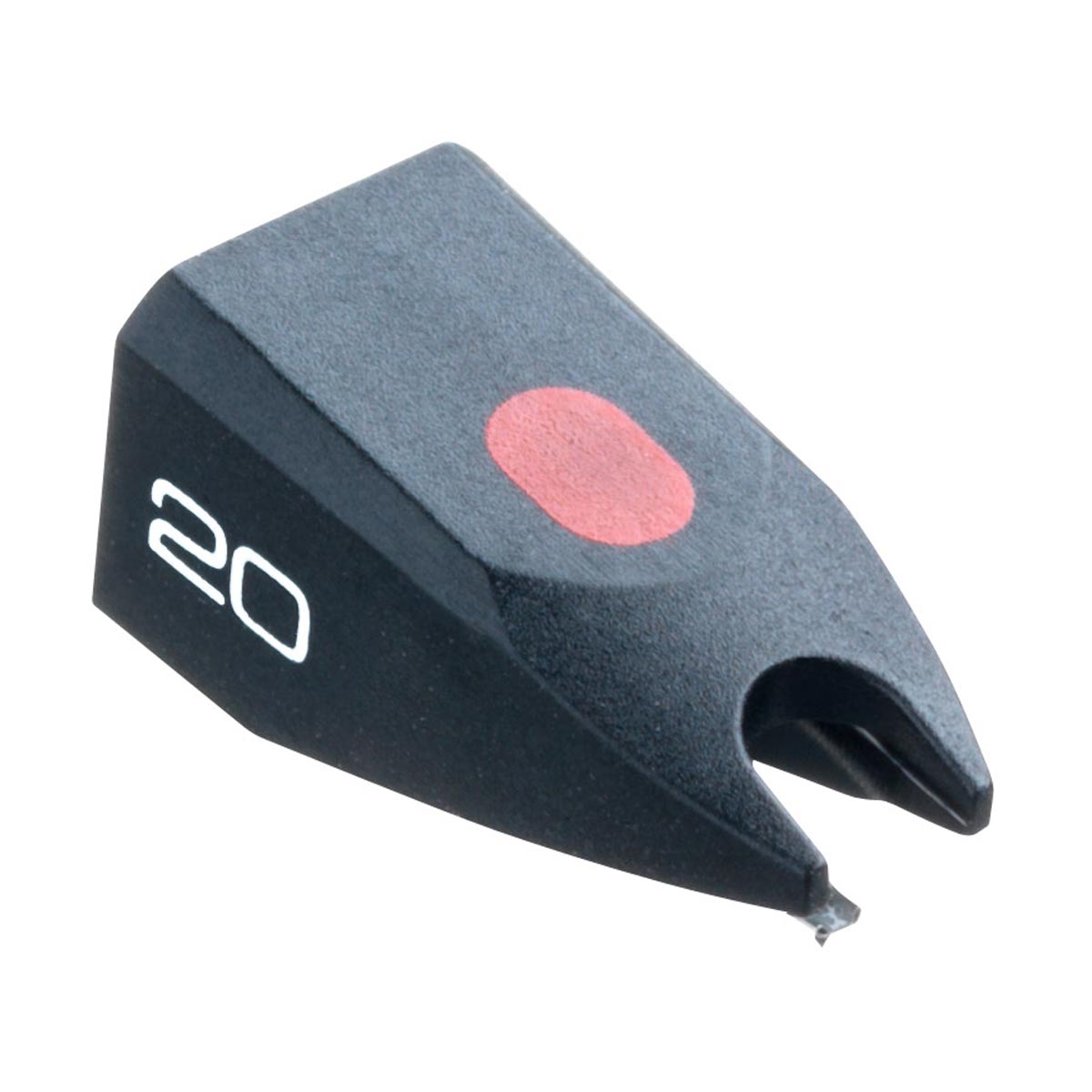

Ortofon Stylus 20

The Ortofon Stylus 20 is an optional upgrade for your existing Ortofon OM cartridge. It features a stunning Nude Elliptical stylus profile. Compatible with Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U and TM 20H cartridges.

Stylus 20 Technical Data
Frequency Response 20-20,000 Hz +2 / -3 dB
Tracking Ability at 315 Hz at Recommended Tracking Force 70 µm
Compliance, Dynamic, Lateral 25 µm/mN
Stylus Type Nude Elliptical
Stylus Tip Radius r/R 8/18 µm
Tracking Force Range 1.25-1.75 g (12.5-17.5 mN)
Tracking Force, Recommended 1.5 g (15 mN)
Tracking Angle 20°
Stylus Colour Black
Recommended Cartridges Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H
