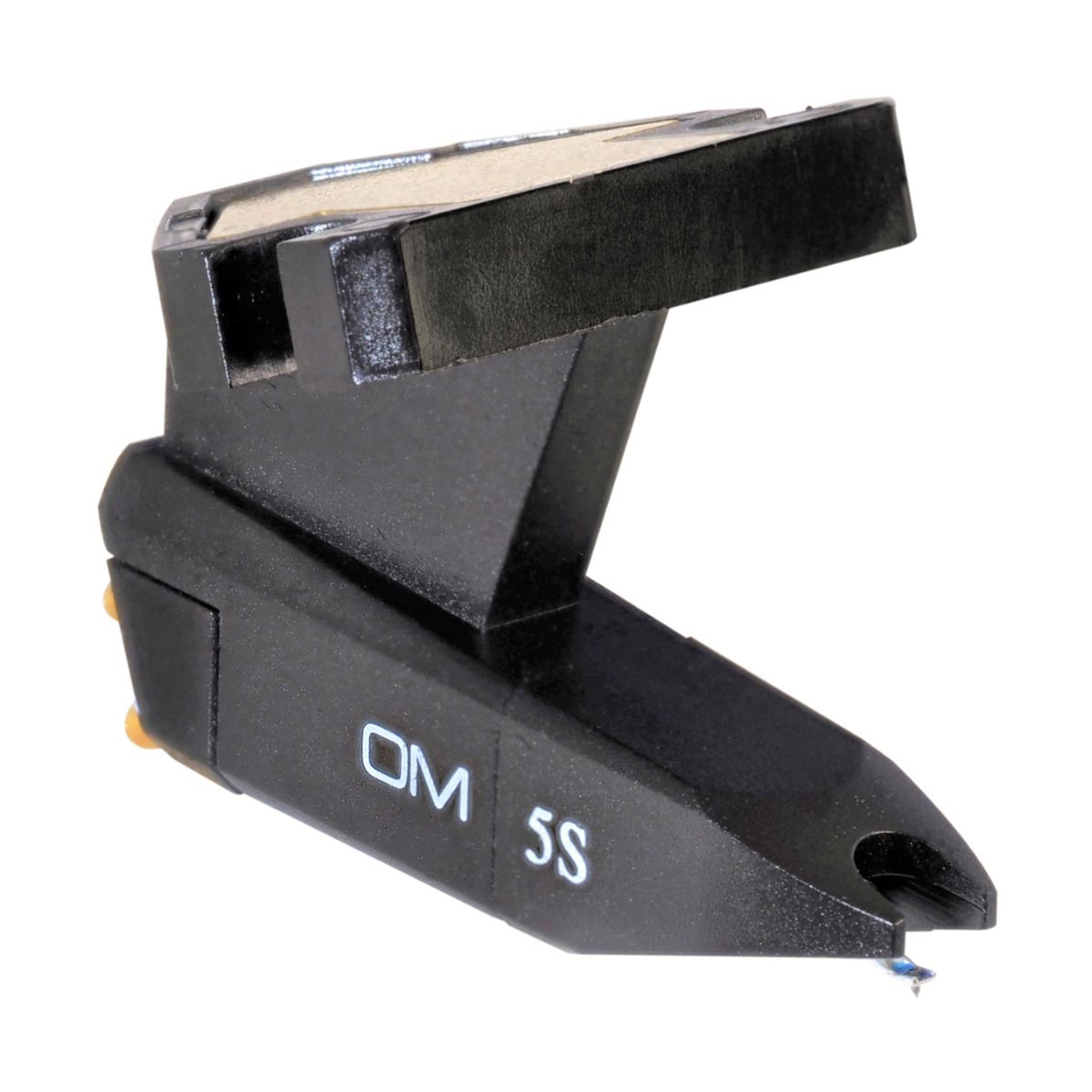

Ortofon OM 5S Moving Magnet Cartridge

Brand: Ortofon
Product Code: ORT-OM5S-MM-CTG
Warranty: 2 Years
$65.00
Qty:
Ortofon
Truck
Free Shipping On Orders Over $75.00
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

Ortofon OM 5S

For more than 50 years, Ortofon has been designing and manufacturing Moving Magnet cartridges. Along with their well-regarded Moving Coil cartridges, Moving Magnet models have established a good reputation among music lovers and Hi-Fi enthusiasts the world over.

The new Ortofon OM 5 series encompasses three basic cartridges: OM 5S, OM 5E and Super OM 5E.


Key Features

  • The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.
  • The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.
  • The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The OM 5S is a Moving Magnet Cartridge for General Purpose Application

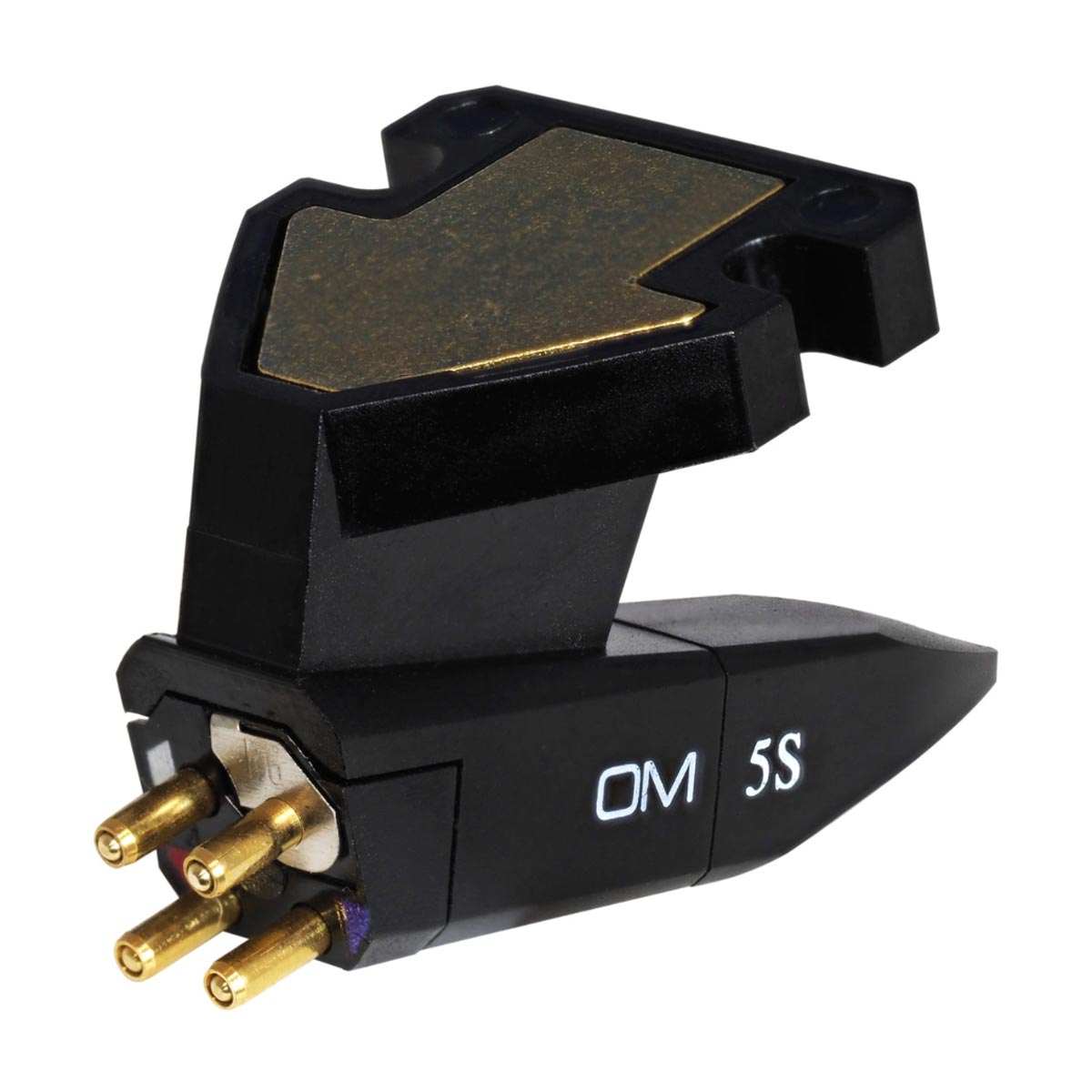

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g.

The OM 5S features a Spherical stylus, which is a robust and economic solution for play back of vinyl records.


Styli Types and Interchangeability

By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application and budget.

In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus. Depending on your preference, styli for the OM 5 Series are easily interchanged and include: styli 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.

OM 5S Technical Data
Output Voltage at 1 kHz, 5 cm/sec. 4.5 mV
Channel Balance at 1 kHz 2 dB
Channel Separation at 1 kHz 20 dB
Channel Separation at 15 kHz 12 dB
Frequency Response 20-20,000 Hz
Tracking Ability at 315 Hz at Recommended Tracking Force 60 µm
Compliance, Dynamic, Lateral 20 µm/mN
Stylus Type Spherical
Stylus Tip Radius R 18 µm
Tracking Force Range 1.5-2.0 g (15-20 mN)
Tracking Force, Recommended 1.75 g (17.5 mN)
Tracking Angle 20°
Internal Impedance, DC Resistance 750 Ohm
Internal Inductance 450 mH
Recommended Load Resistance 47 kOhm
Recommended Load Capacitance 200-500 pF
Cartridge Colour, Body/Stylus Black/Black
Cartridge Weight Including Extra Weight 5 g
Cartridge Weight Excluding Extra Weight 2.5 g
Replacement Stylus Unit 5S
