Concorde Music Black LVB 250

Experience unrivaled accuracy and fidelity with the Concorde Music Black LVB 250. The Concorde Music Black LVB 250 features a Nude Shibata stylus on a Boron cantilever making it the most premium Ortofon Moving Magnet cartridge on the market.

The Concorde Music Series

Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music represents a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Installing a Concorde Music cartridge on a turntable is easy and straightforward, requiring no tools, making it hassle-free and convenient.

Ortofon Concorde Music Black LVB 250 Cartridge

Award Winning Cartridge Design

Iconic Design

Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as one of the most famous cartridges in the world of audio.

Originally developed as a solution to the challenge of easy mounting on a tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in the audio industry.

Ortofon Concorde Music Black LVB 250 Cartridge

Shibata Diamond on Boron Cantilever

Stylus

The Concorde Music Black LVB 250, featuring a Nude Shibata stylus on an Boron cantilever, offers an upgrade from the Concorde Music Bronze.

The shape of the Shibata distinguish itself by having a narrow and long contact surface. The Shibata is very close to the original cutting stylus which ensures the most accurate reproduction, low distortion and exteded frequency range. The use of an extremely stiff and lightweight Boron cantilever adds remarkable transparency, speed, and responsiveness.

Ortofon Concorde Music Black LVB 250 Cartridge

Unique In-House Rubber Production

Rubber Suspension

A crucially important and vital part of a phono cartridge overall performance is the stylus rubber suspension.

Exclusive Ortofon rubber compounds are used for the stylus suspensions in the Concorde Music Blue, carefully produced at the inhouse rubber production, and developed by the research and engineering team at Ortofon for brilliant performance.

Ortofon Concorde Music Black LVB 250 Cartridge

Precise and Dynamic Sound Image

Coil System

The Concorde Music features Ortofon's quad-coil generating system with four split pole pins. Silver-plated oxygen-free copper is chosen for the quad-coil system, along with four Ortofon split pole pins.

This results in exceptional channel balance and separation, delivering precise and dynamic sound. With a 6 mV output, it offers lifelike sound with exceptional clarity and fidelity, capturing every detail.


Perfect Fit for S-Shaped Tonearms

Compatibility

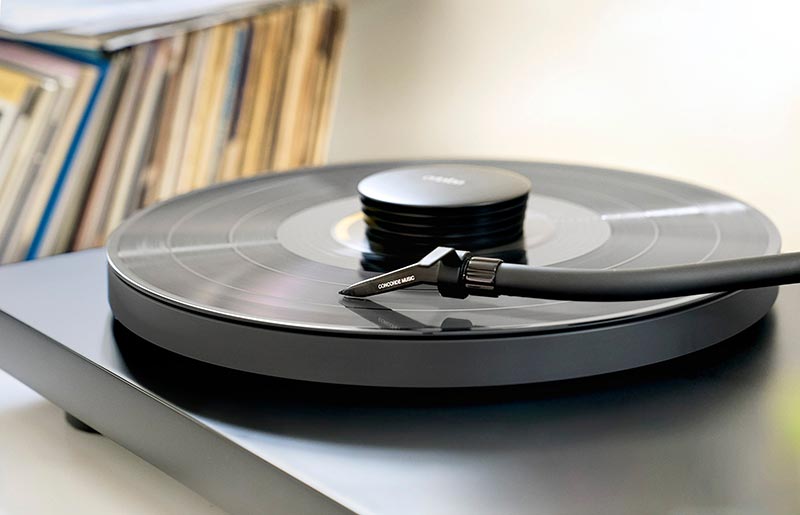

Installing the Concorde Music cartridge on your turntable is easy and straightforward; no tools are required, making it hassle-free and convenient for all users. This is thanks to the bayonet connector, which makes it compatible with all S-shaped tonearms.

Ortofon Concorde Music Black LVB 250 Cartridge
Specifications
Channel Balance at 1 kHz 1 dB
Output Voltage at 1 kHz, 5 cm/sec 6 mV
Channel Separation at 1 kHz 26 dB
Channel Separation at 15 kHz 20 dB
Frequency Response 20 Hz - 20 kHz +2 / 0 dB
Tracking Ability at 315 Hz at Recommended Tracking Force 80 µm
Compliance, Dynamic, Lateral 15 µm/mN
Stylus Type Shibata Diamond on Boron Cantilever
Stylus Tip Radius r/R 6/50 µm
Recommended Tracking Force 1.8 g
Tracking Angle 20°
Internal Impedance, DC Resistance 1.27 kΩ
Internal Inductance 815 mH
Recommended Load Resistance 47 kΩ
Recommended Load Capacitance 150-300 pF
Cartridge Colour Black/Black
Cartridge Weight 18 g
