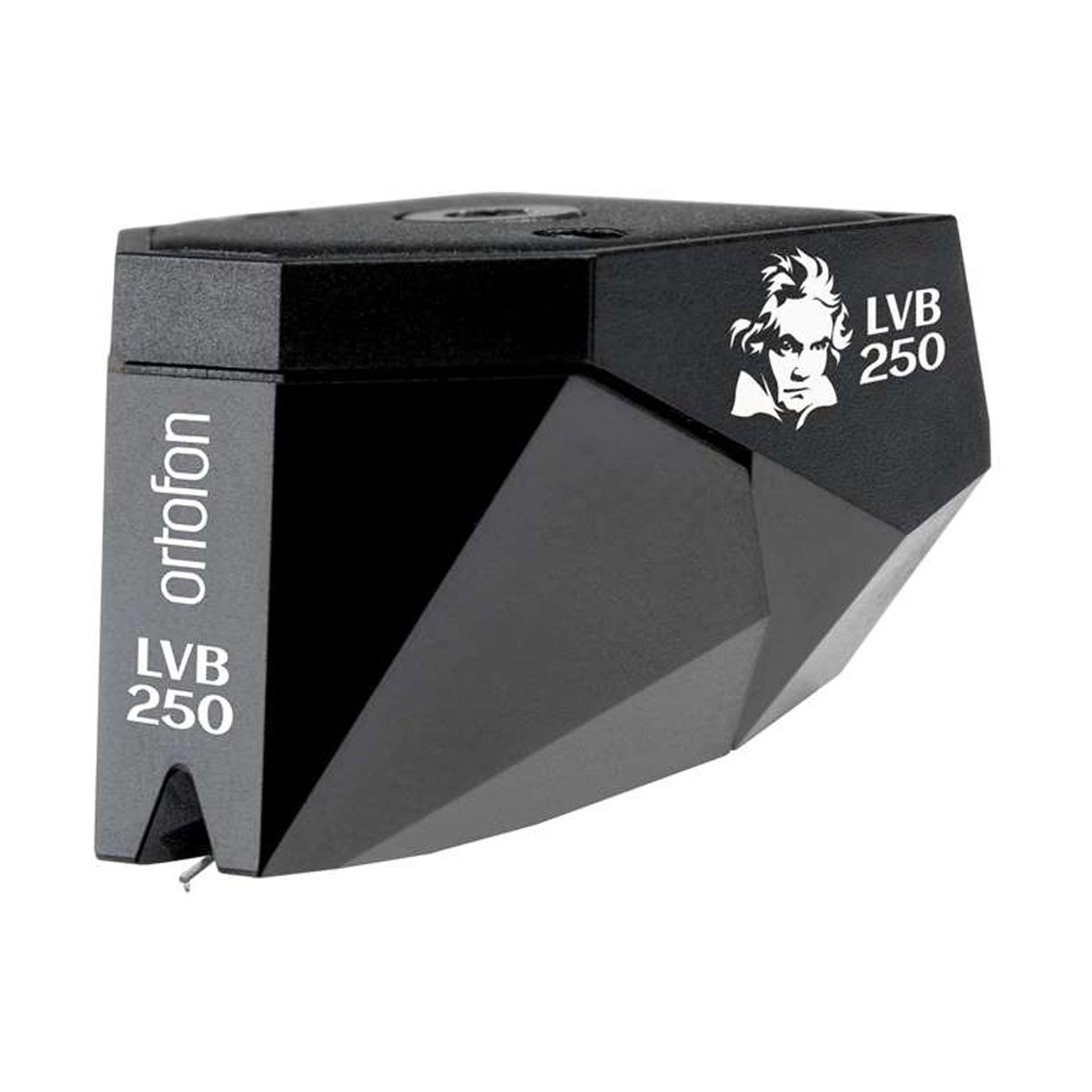

Ortofon 2M Black LVB 250 Moving Magnet Cartridge

Brand: Ortofon
Product Code: ORT-2MLVB-MM-CTG
Warranty: 2 Years
$1,799.00
Qty:
Ortofon
Truck
Free Shipping On Orders Over $75.00
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

The New Ortofon Exclusive 2M Black LVB 250 Model

To commemorate the 250th anniversary of the birth of Ludwig van Beethoven, Ortofon announce the release of the 2M Black LVB 250 Exclusive Model.

The 2M Black flagship from Ortofon is widely acknowledged as being one of the best MM cartridges on the market, but at Ortofon being the best doesn’t mean that they can’t get better.


Benefits of High-End Materials

The 2M Black LVB 250 has been recreated from the concepts of its predecessor, the 2M Black, but the 2M Black LVB 250 takes performance one step further to enhance the cartridge’s capabilities and technical excellence.

The 2M Black LVB 250 uses a Nude Shibata diamond on a Boron cantilever, the combination known from the acclaimed MC Cadenza Black cartridge.

The Nude Shibata stylus’s slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the highest frequencies.

The use of an extremely stiff and lightweight Boron cantilever adds remarkable transparency, speed and responsiveness.


The New Rubber Compound Formula

To attain an optimal interaction between compliance and damping, a new rubber compound for the suspension system has been developed.

The new rubber compound formula is based on the Multi Wall Carbon Nano Tubes (MWCNT) highly efficient nano filler. The new MWCNT-based compound offers desirable mechanical properties, which ensure better damping and improve the overall performance of the cartridge.

Also, the new MWCNT rubber compound allows for more environmental-friendly production, adding further benefit. The MWCNT powder is applied in a rubber polymer matrix and not in a powdered form, which makes the production process more clean, non-polluting and energy saving.


The 2M Series is Designed for Precise and Accurate Retrieval of the Information in the Record Groove

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

Each of the 2M Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations:

  • 2M Mono SE, 2M Mono and 2M 78 are a true mono cartridges for playing mono vinyl records
  • 2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
  • 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details
  • 2M Bronze adds even more details and resolution but in a very even handed way that pays respect to all elements
  • 2M Black is the best of everything, true to the groove with resolution and accurate insight into each recording

The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and OM Super series.

We have optimised the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

2M Black LVB 250 Technical Data
Output Voltage at 1 kHz, 5 cm/sec. 5 mV
Channel Balance at 1 kHz <1 dB
Channel Separation at 1 kHz >27 dB
Channel Separation at 15 kHz 15 dB
Frequency Response 20-20,000 Hz +2 / -1 dB
Tracking Ability at 315 Hz at Recommended Tracking Force 80 µm
Compliance, Dynamic, Lateral 22 µm/mN
Stylus Type Nude Shibata
Stylus Tip Radius r/R 6/50 µm
Cantilever Material Boron
Tracking Force Range 1.5-1.7 g (14-17 mN)
Tracking Force, Recommended 1.6 g (16 mN)
Tracking Angle 20°
Internal Impedance, DC Resistance 1.2 kOhm
Internal Inductance 630 mH
Recommended Load Resistance 47 kOhm
Recommended Load Capacitance 150-300 pF
Cartridge Colour, Body/Stylus Black/Black
Cartridge Weight Without Screws 7.2 g
Replacement Stylus Unit 2M Black LVB 250 (Interchangeable with 2M Bronze and 2M Black)
Stylus Lifetime Up to 1000 Hours without Degradation of Performance (with Proper Care)
