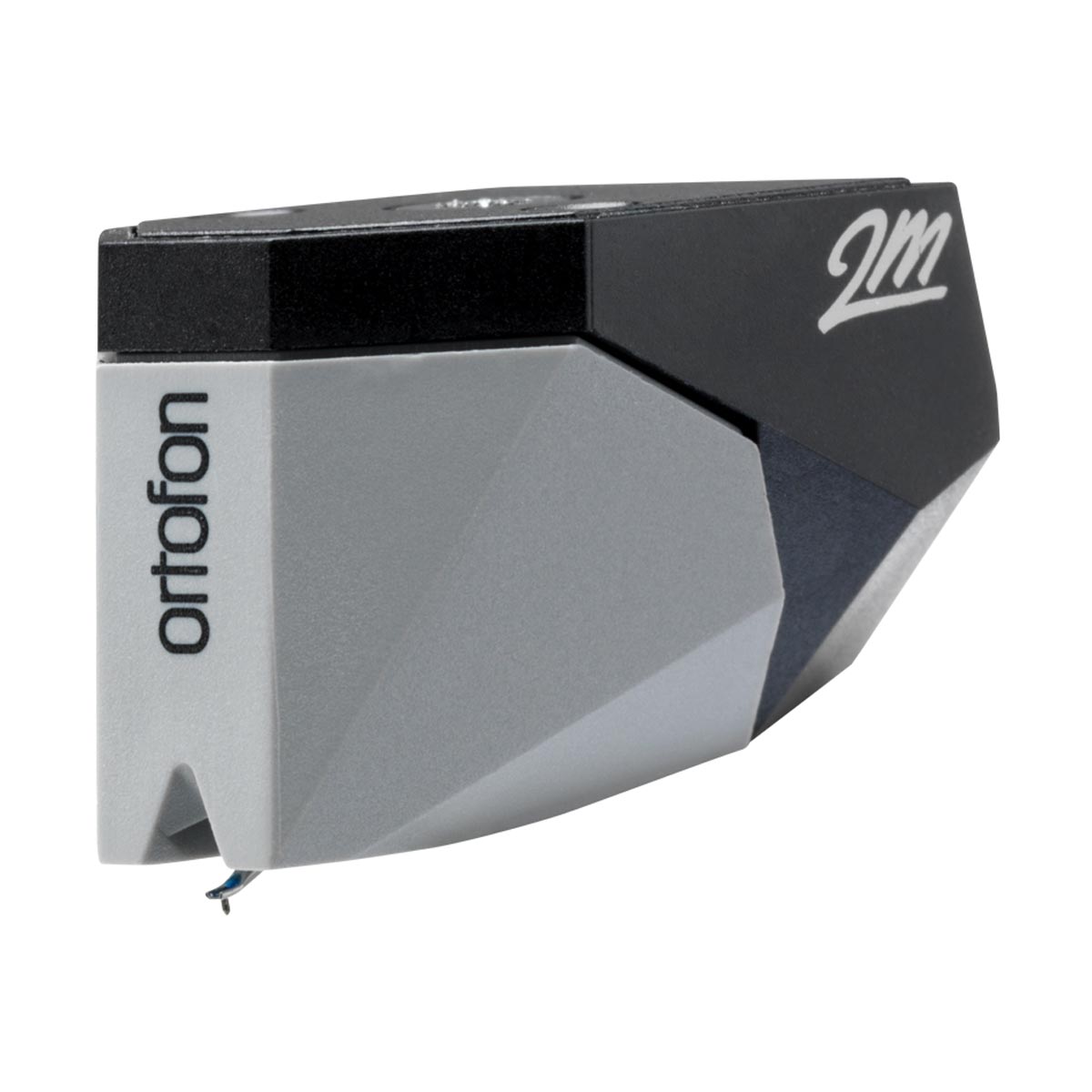

Ortofon 2M 78 (Shellac) Moving Magnet Cartridge

Brand: Ortofon
Product Code: ORT-2M78S-MM-CTG
Warranty: 2 Years
$209.00
Qty:
Ortofon
Truck
Free Shipping On Orders Over $75.00
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

Ortofon 2M 78

The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.


Key Features

  • An improved engine, which provides a high level of sonic accuracy.
  • Spherical diamond that is perfect for playback of 78 rpm shellac records, which require a larger stylus profile.
  • The cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances.
  • 2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

The 2M Series is Designed for Precise and Accurate Retrieval of the Information in the Record Groove

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

Each of the 2M Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations:

  • 2M Mono SE, 2M Mono and 2M 78 are a true mono cartridges for playing mono vinyl records
  • 2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
  • 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details
  • 2M Bronze adds even more details and resolution but in a very even handed way that pays respect to all elements
  • 2M Black is the best of everything, true to the groove with resolution and accurate insight into each recording

The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and OM Super series.

We have optimised the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

2M 78 Technical Data
Output Voltage at 1 kHz, 5 cm/sec. 4 mV
Frequency Response 20-20,000 Hz +3 / -1 dB
Tracking Ability at 315 Hz at Recommended Tracking Force 70 µm
Compliance, Dynamic, Lateral 18 µm/mN
Stylus Type Spherical
Stylus Tip Radius R 65 µm
Tracking Force Range 1.6-2.0 g (16-20 mN)
Tracking Force, Recommended 1.8 g (18 mN)
Tracking Angle 20°
Internal Impedance, DC Resistance 700 Ohm
Internal Inductance 350 mH
Recommended Load Resistance 47 kOhm
Recommended Load Capacitance 150-300 pF
Cartridge Colour, Body/Stylus Black/Grey
Cartridge Weight Without Screws 7.2 g
Replacement Stylus Unit 2M 78 (Interchangeable with 2M Mono)
Stylus Lifetime Up to 1000 Hours without Degradation of Performance (with Proper Care)
