AC Infinity AIRCOM S8 AV Component Cooling System - Rear Exhaust

Brand: AC Infinity
Product Code: ACI-ACS8KT
Warranty: 2 Years
$299.00
Qty:
AC Infinity
Truck
Free Shipping On Orders Over $100
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

AC Infinity AIRCOM S8

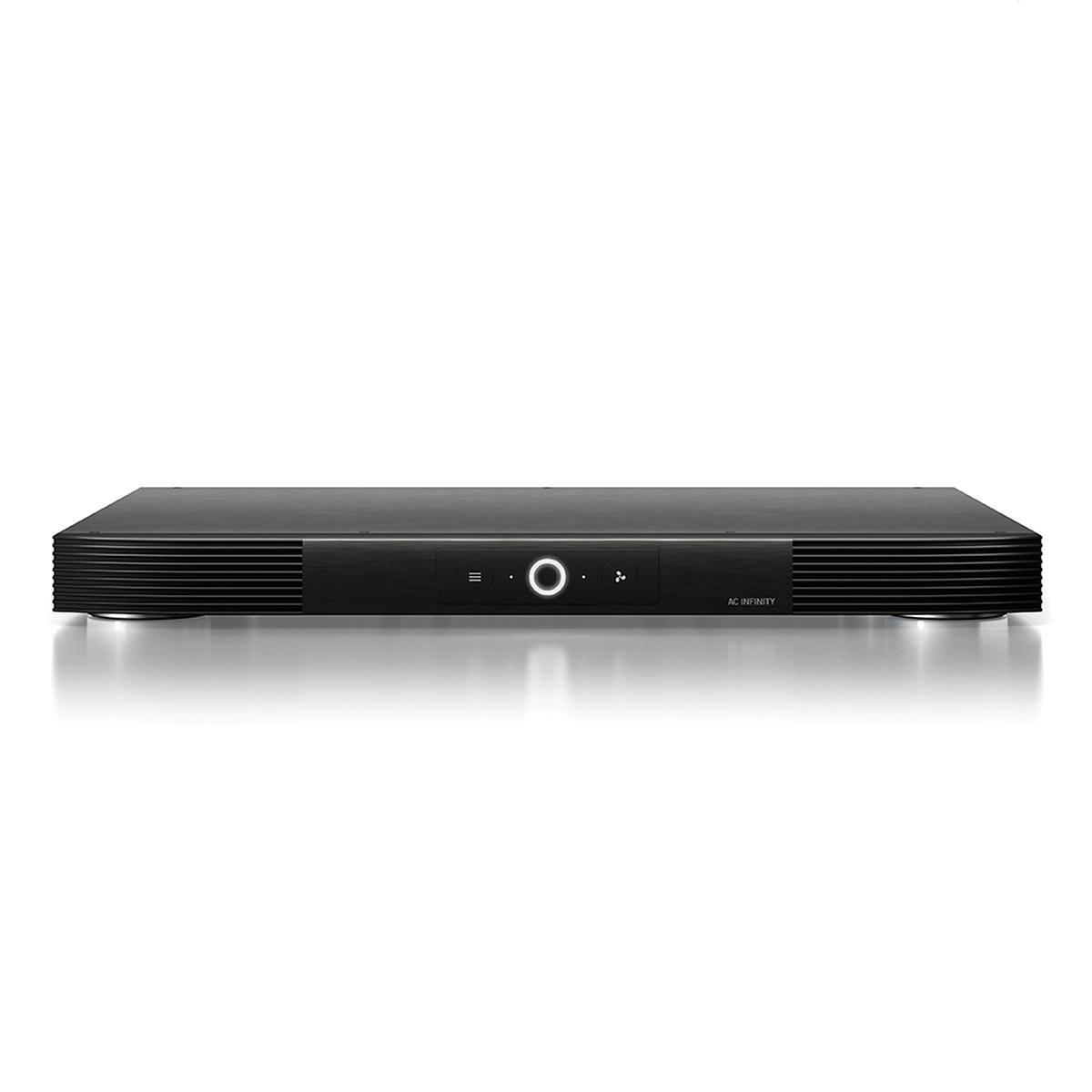

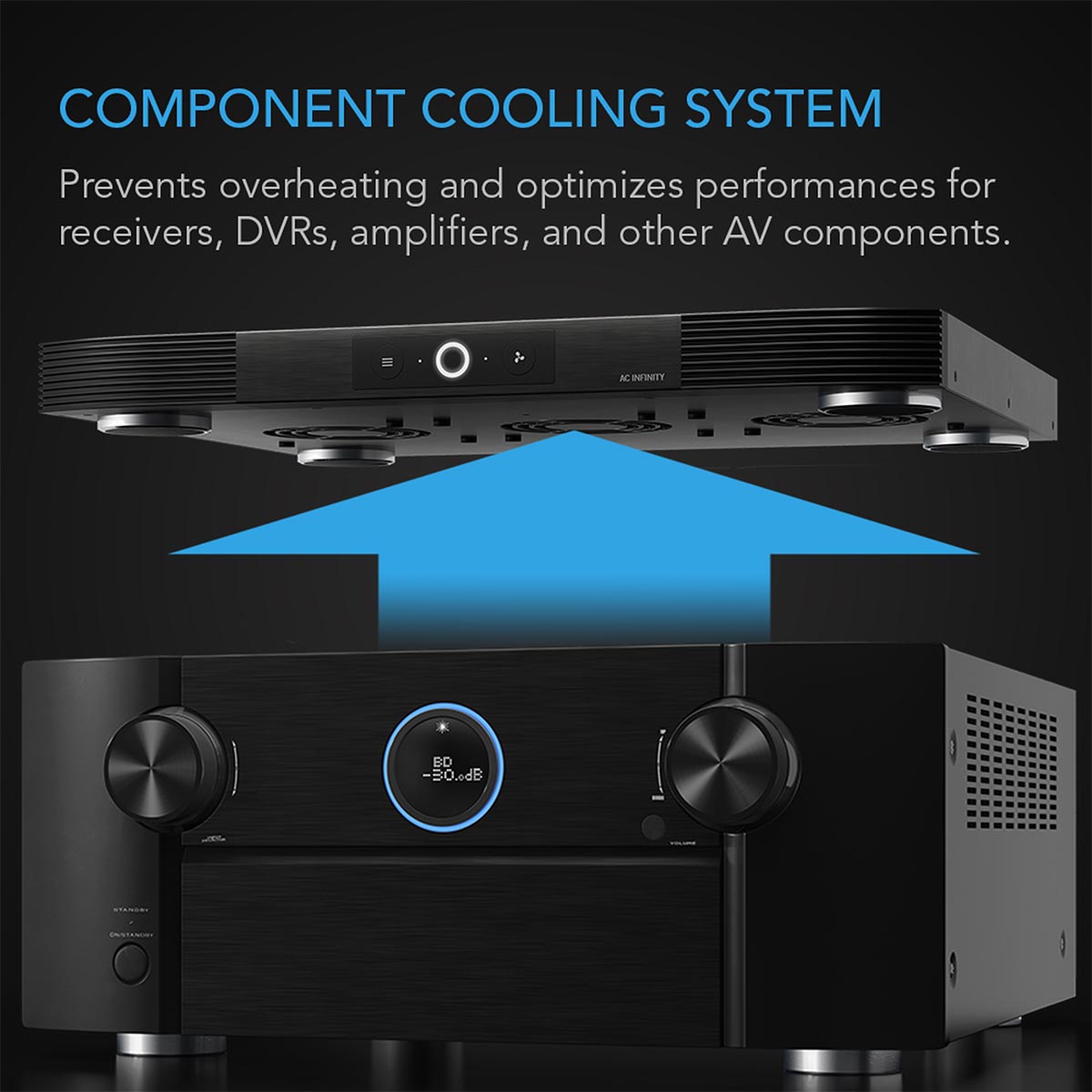

A quiet cooling fan system designed to be placed on top of AV components such as receivers, routers, game consoles, and AV cabinet components. Maintaining an optimal temperature for components prevents overheating, ensures constant performance, and extends their lifespan. The controller on the front of the cooling system features a smart thermostat trigger and fan speed control. The steel enclosure houses two dual-ball bearing blowers that pull heat out of the component and exhausts out the rear. The dual ball bearings also allow this fan system to be mounted horizontally or vertically. Its low-profile design enables the unit to fit in tight spaces. Includes corded power adapter to plug the fan system through an outlet.


Key Features

  • A quiet fan system designed for cooling receivers, amplifiers, DVRs, and other AV components
  • Protects components from overheating, performance issues, and shortened lifespans
  • Programming features two thermal trigger modes and four speed control options
  • Contains three dual-ball bearing blowers with PWM-controlled motors to minimise noise
  • Dimensions: 17 x 13.5 x 1.5 in.
  • Exhaust: Rear
  • Airflow: 160 CFM
  • Noise: 24 dBA
  • Bearings: Dual Ball

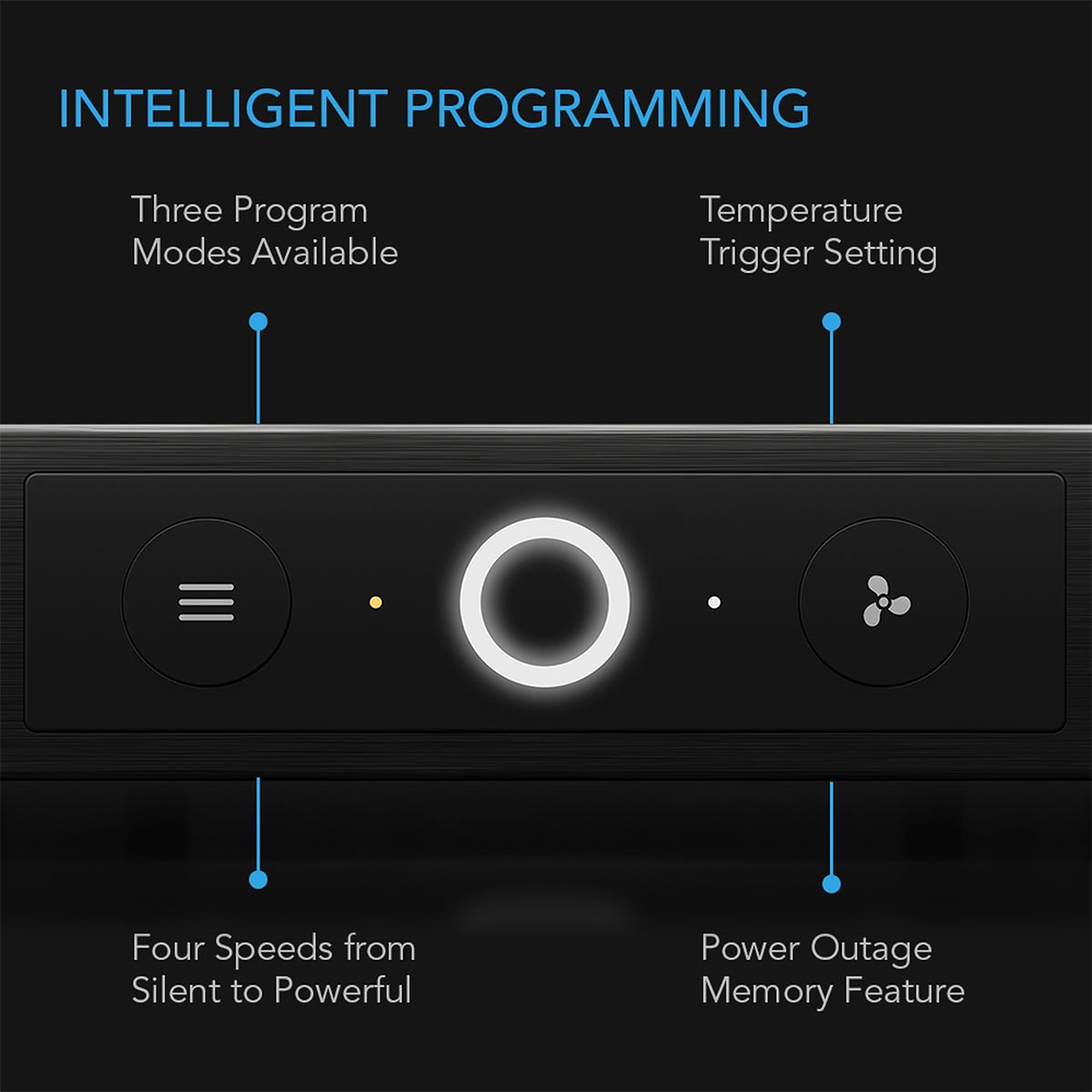

Intelligent Programming

There are three programming settings available which include two temperature trigger modes. The fans can also be set to run continuously or be turned off. Four fan speeds are available for each active mode and will determine the speed at which the fans run when they are triggered. This ensures optimal airflow and noise levels for your application.

Design and Construction

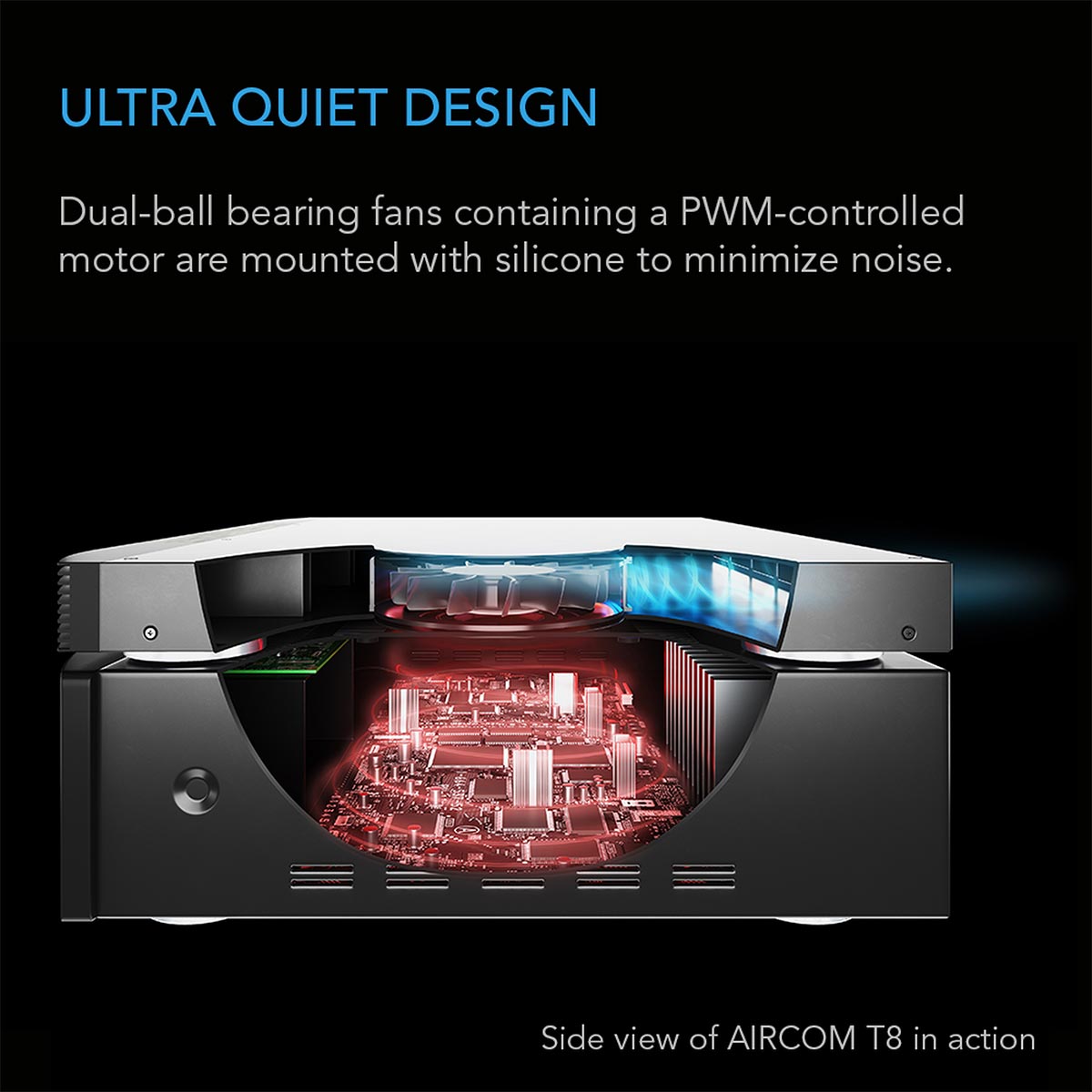

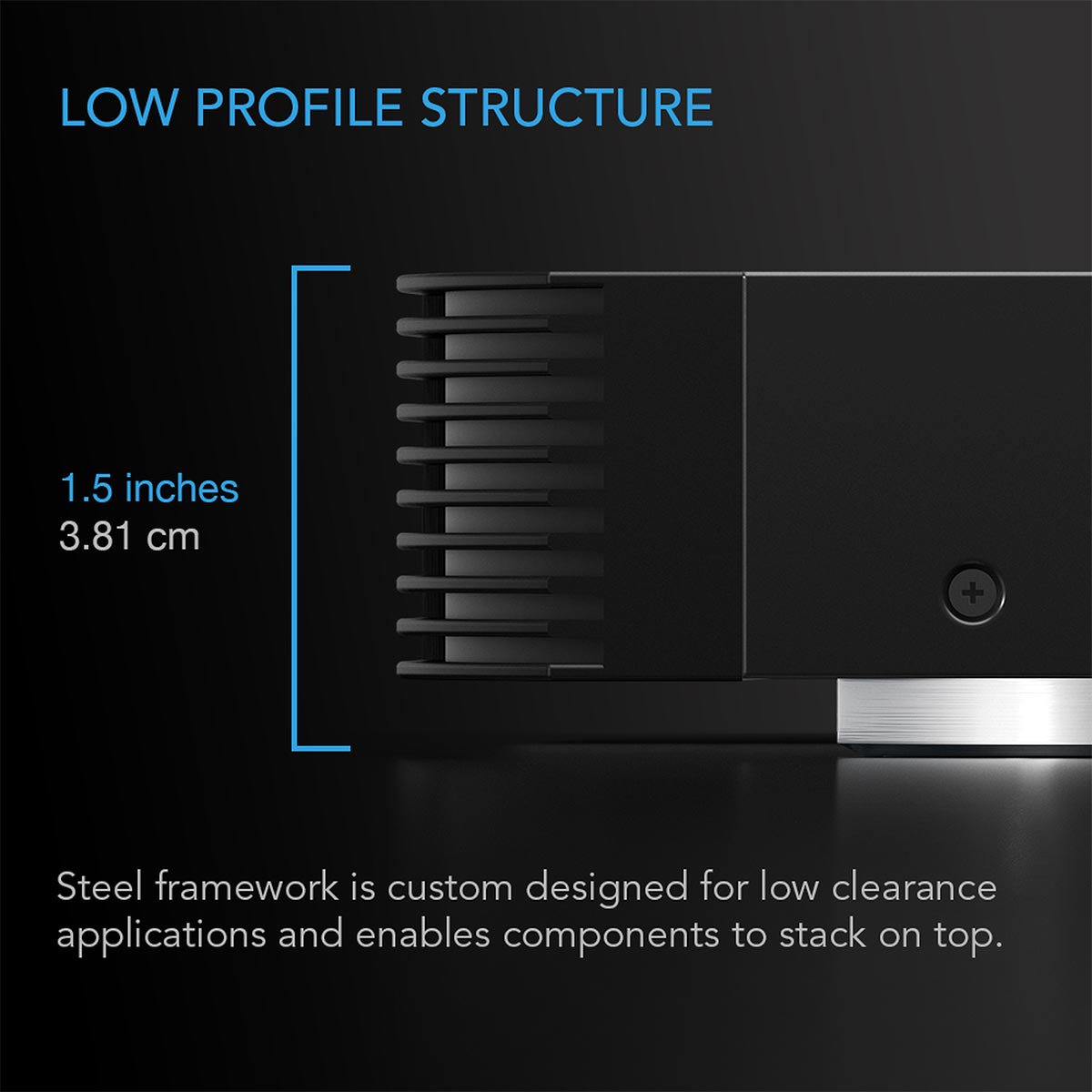

Each system features dual-ball bearing blowers rated at 67,000 hours and are certified by CE and RoHS. Blowers contain a PWM-controlled motor used to minimise noise during speed variations and are suspended in mid-air with silicone mounts to absorb vibrations. A low-profile design allows the unit to fit in applications with a limited height clearance. Aluminium and steel construction enables additional components up to 30 pounds to be stacked on top.

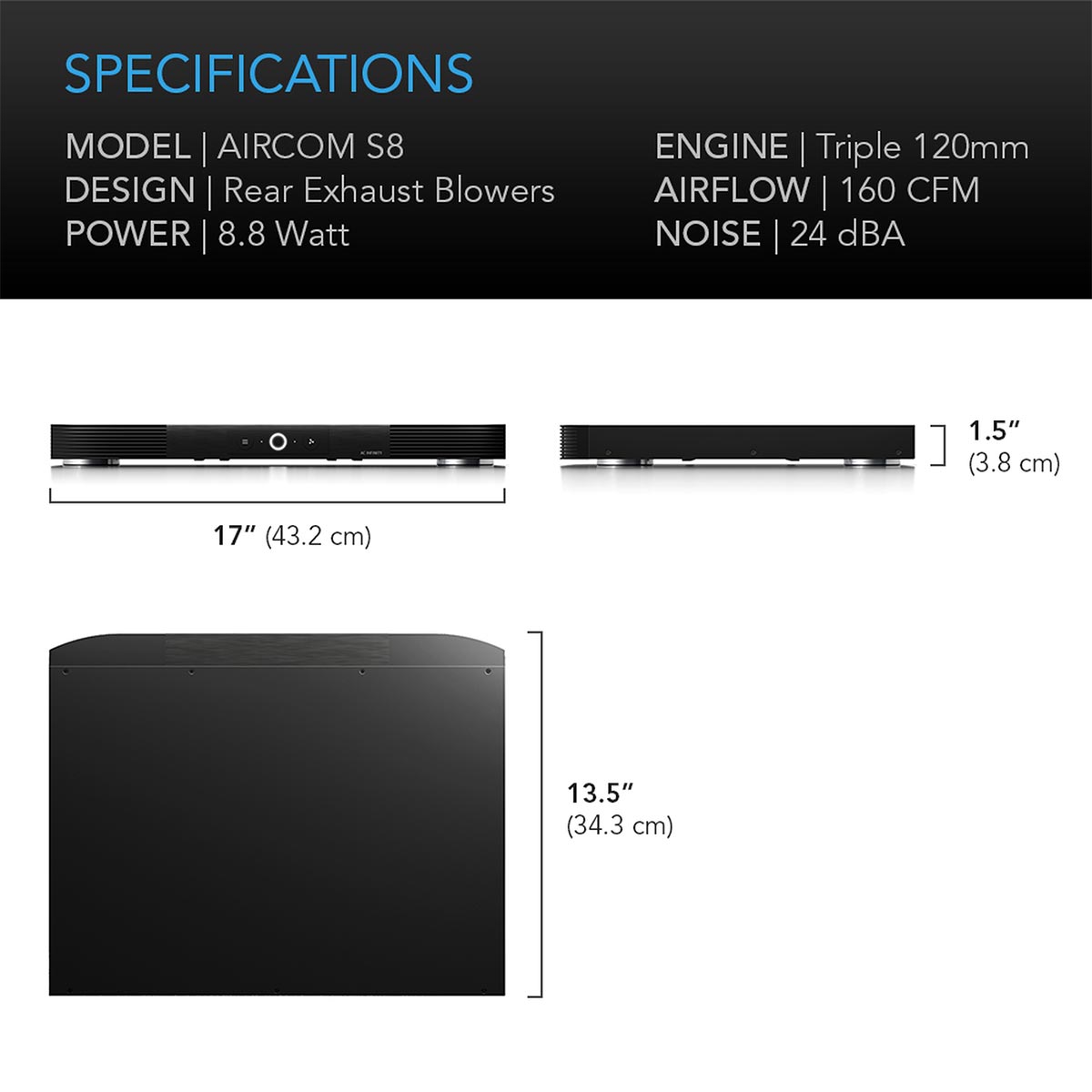

Product Dimensions
Total Dimensions 43.2 x 34.3 x 3.8 cm (17 x 13.5 x 1.5 in.)
Cord Length 183 cm (6 Feet)
Product Performance and Technical Specs
Number of Blowers 3
Exhaust Rear
Total Airflow 160 CFM
Total Noise 24 dBA
Static Pressure 1 mm-H2O
Operating Voltage 12 V DC
Power 8.8 W
Current 0.73 A
Wall Adapter Input 100 to 240 V AC
Operating Humidity 35 to 85% RH
Operating Temperature 0 to 158°F
Fan Bearings Dual Ball
Mounting Positions Horizontal or Vertical
L10 Life Expectancy 67,000 Hours
Top Weight Capacity 13.61 kg (30 lb)
