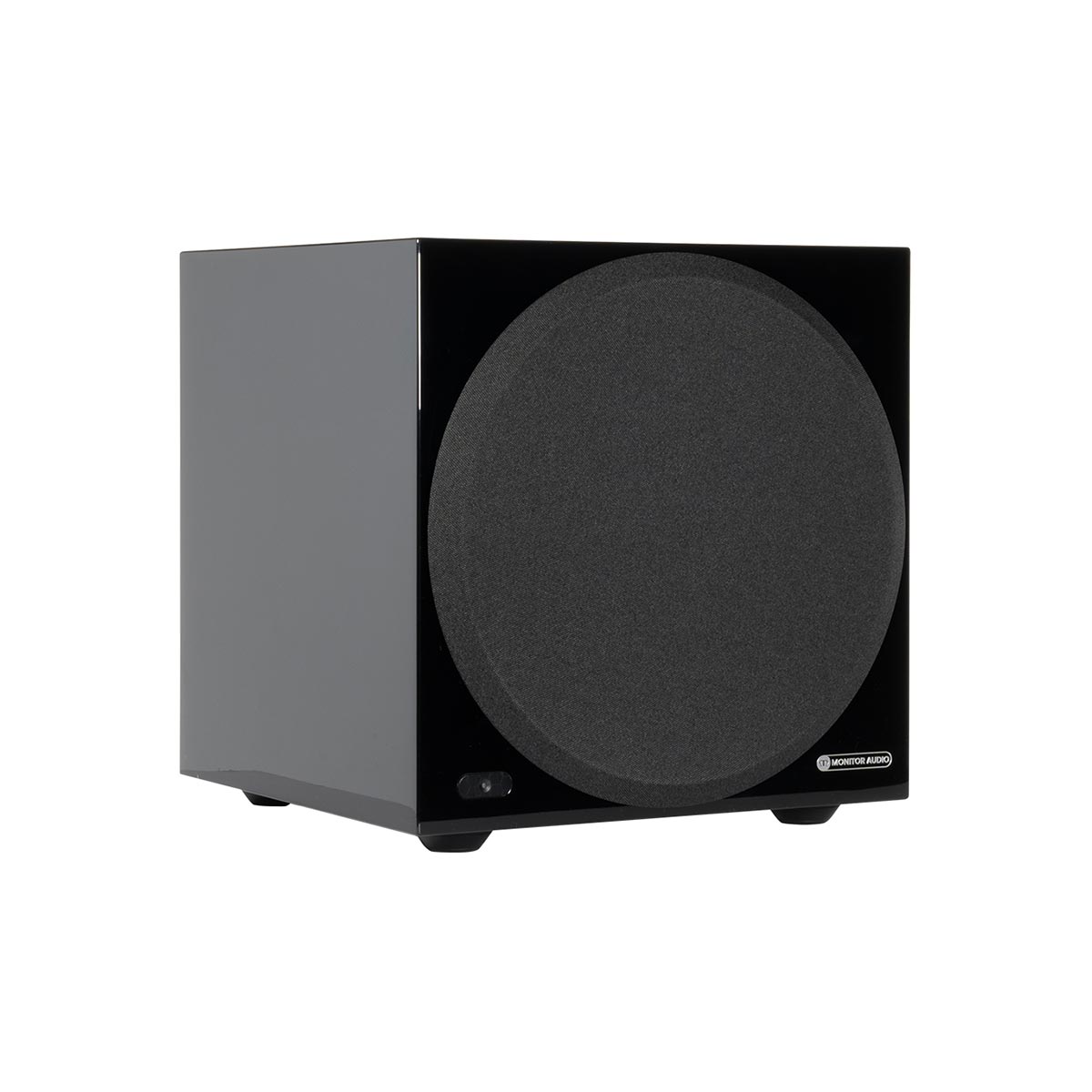

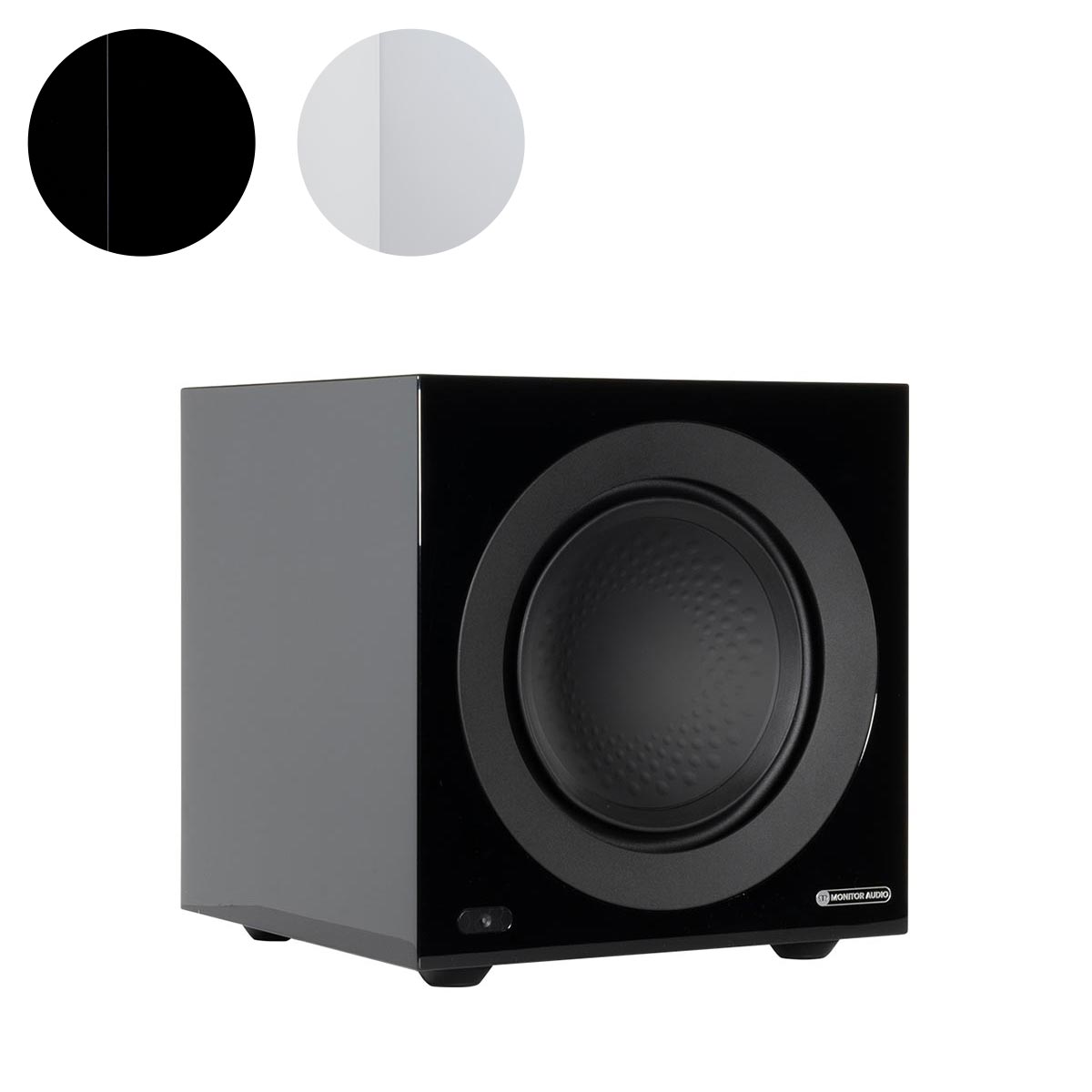

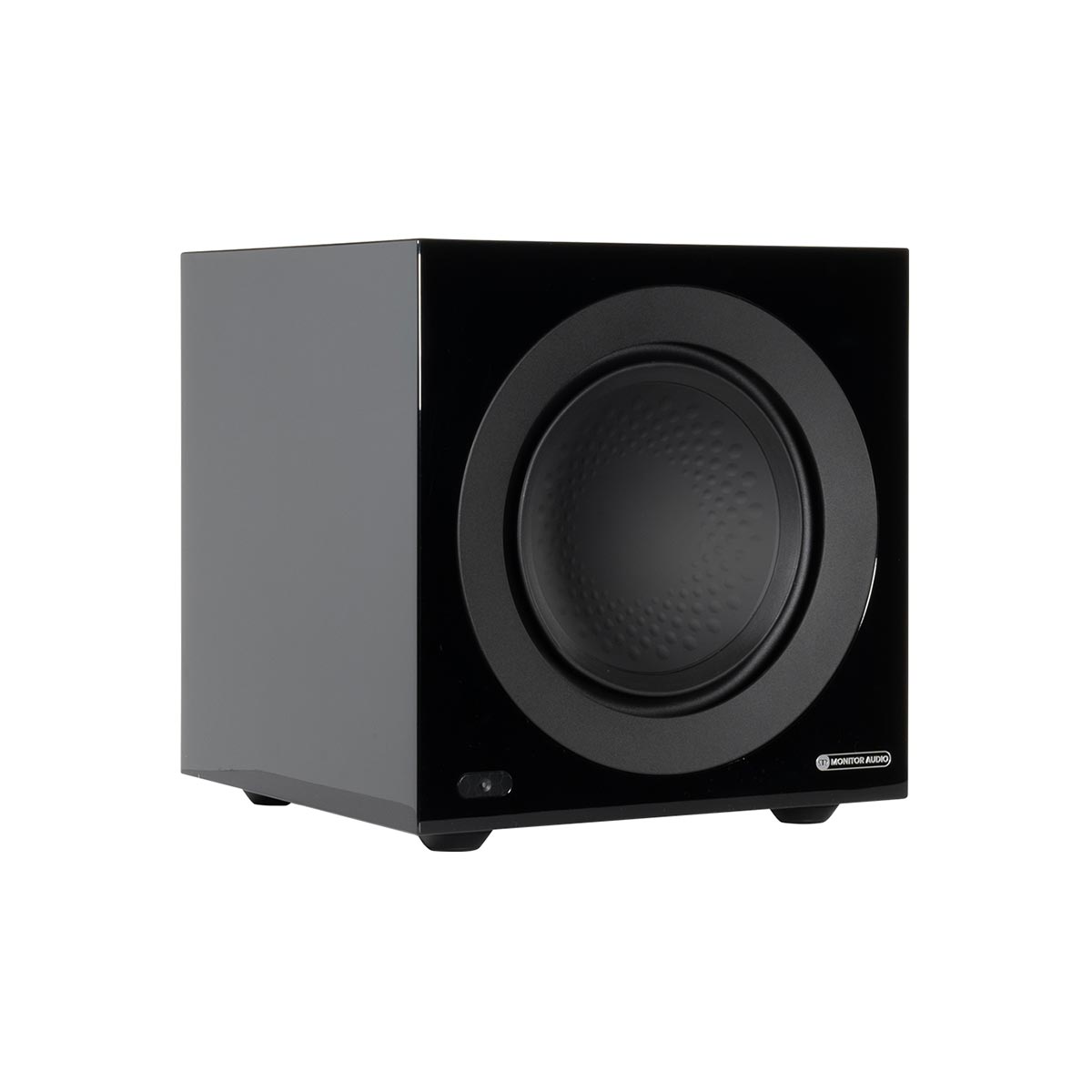

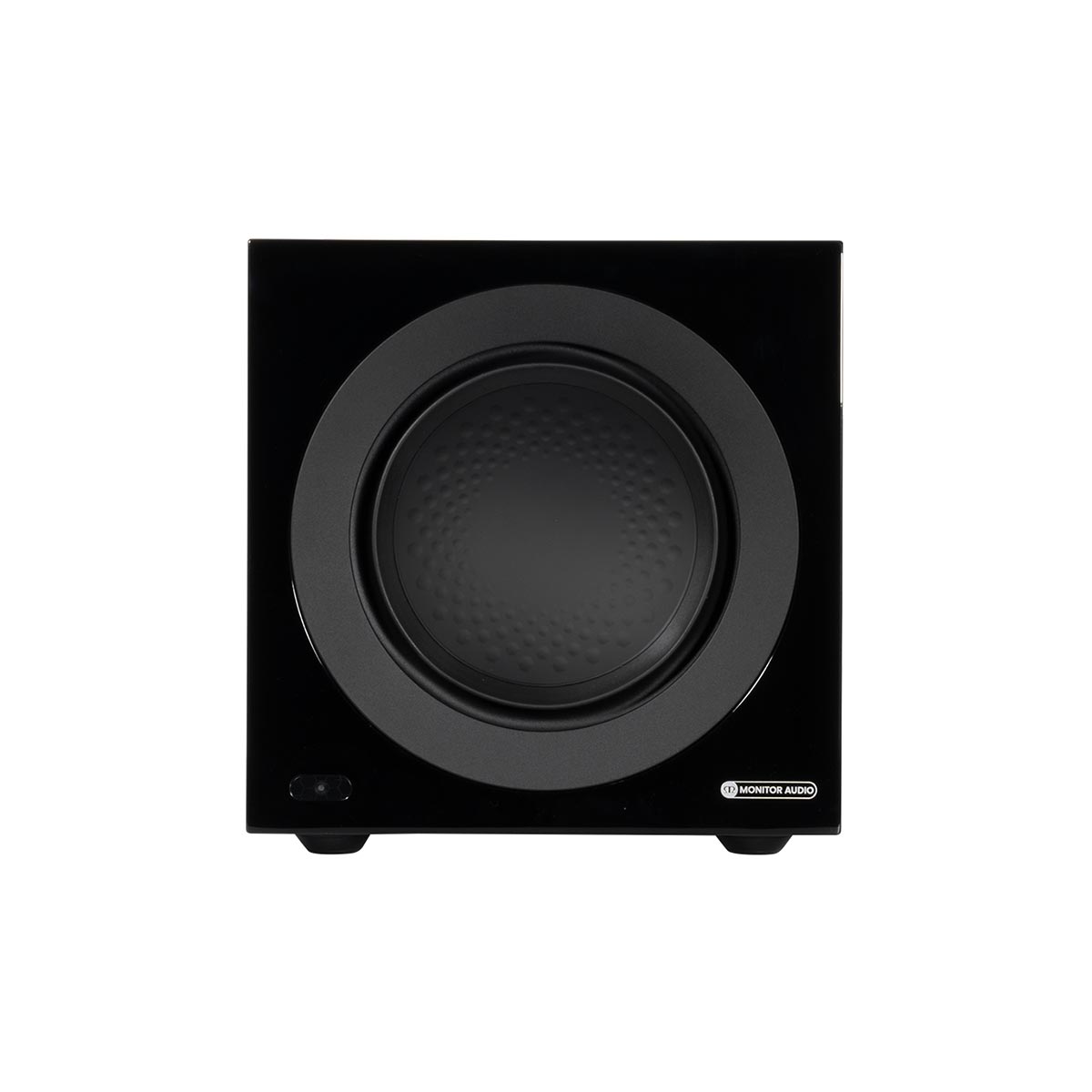

Monitor Audio Anthra W10 Subwoofer

Brand: Monitor Audio
Product Code: MON-ANTW10-SUB
Warranty: 5 Years
Colour: *

$3,299.00 $2,969.00
Qty:
Monitor Audio
Truck
Free Shipping On Orders Over $99
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

Anthra W10

The W10 is the most compact model within the Anthra subwoofer series. It features a 10” (25 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 500 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.

Engineered to deliver deep, agile bass in small to mid-sized spaces, the Anthra W10 subwoofer features a 500 Watt Class-D amplifier driving a 10” (25 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W10 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

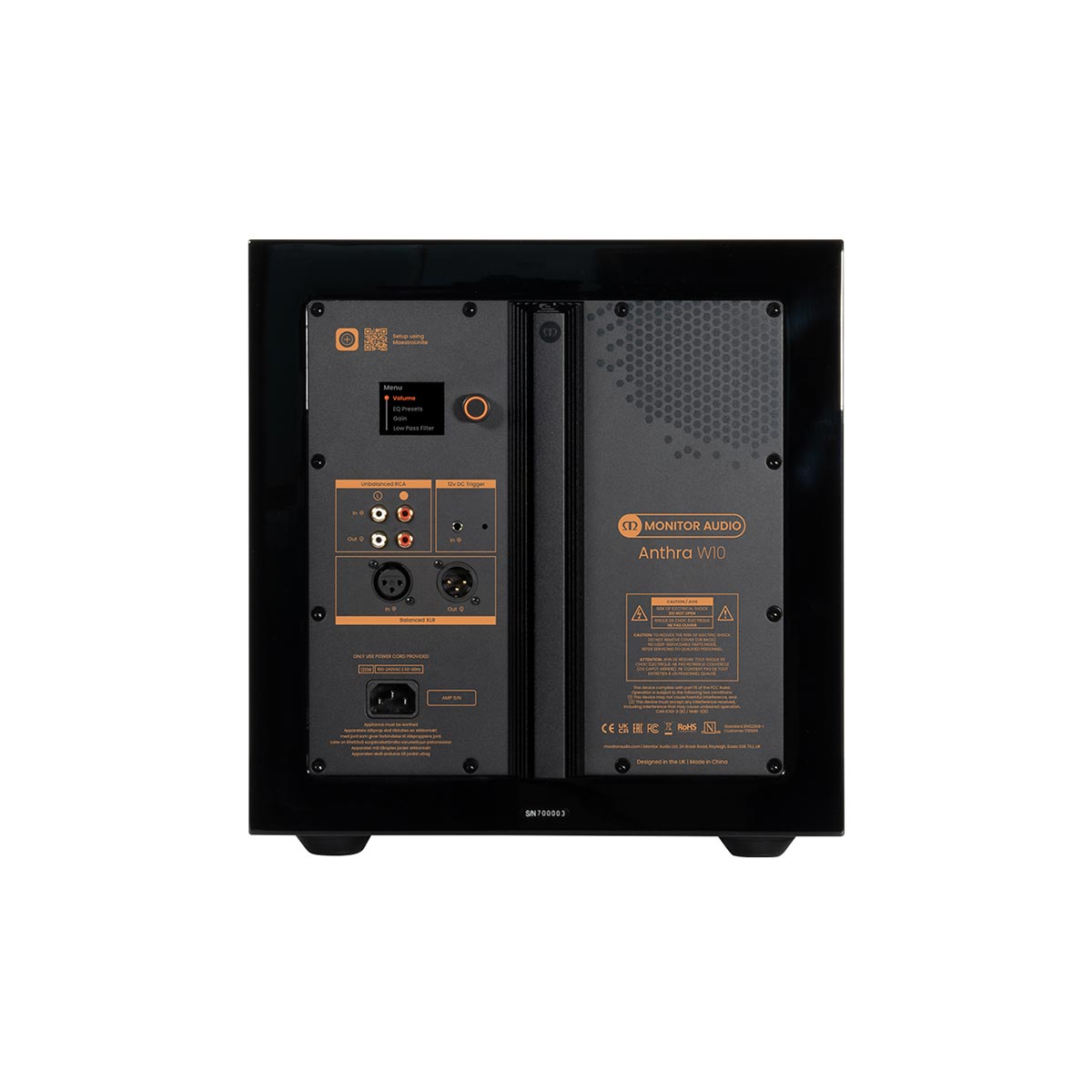

A full-colour LCD display and rotatory dial is located on the back panel, to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.


Key Features

  • 1 x 10” (25cm) Rigid Surface Technology II (RST II) and ceramic-coated aluminium magnesium (C-CAM) high-excursion driver for super-clean performance
  • 1 x 500 Watt Class-D amplifier ensures that the driver is working to its optimum performance level, no matter what the volume
  • Massive motor assembles and longer round-wound voice coils, which are dual layered and made of copper-coated aluminium wire (CCAW) for precise control at extreme low frequencies
  • 2 inch full-colour LCD display screen with rotary dial for menu selection and basic setup
  • RCA inputs (left/right. The left Input is LFE)
  • RCA outputs allows daisy chain of up to 4 Anthra subwoofers
  • XLR inputs for professional installation connectivity option
  • XLR outputs allows daisy chain of up to four Anthra subwoofers

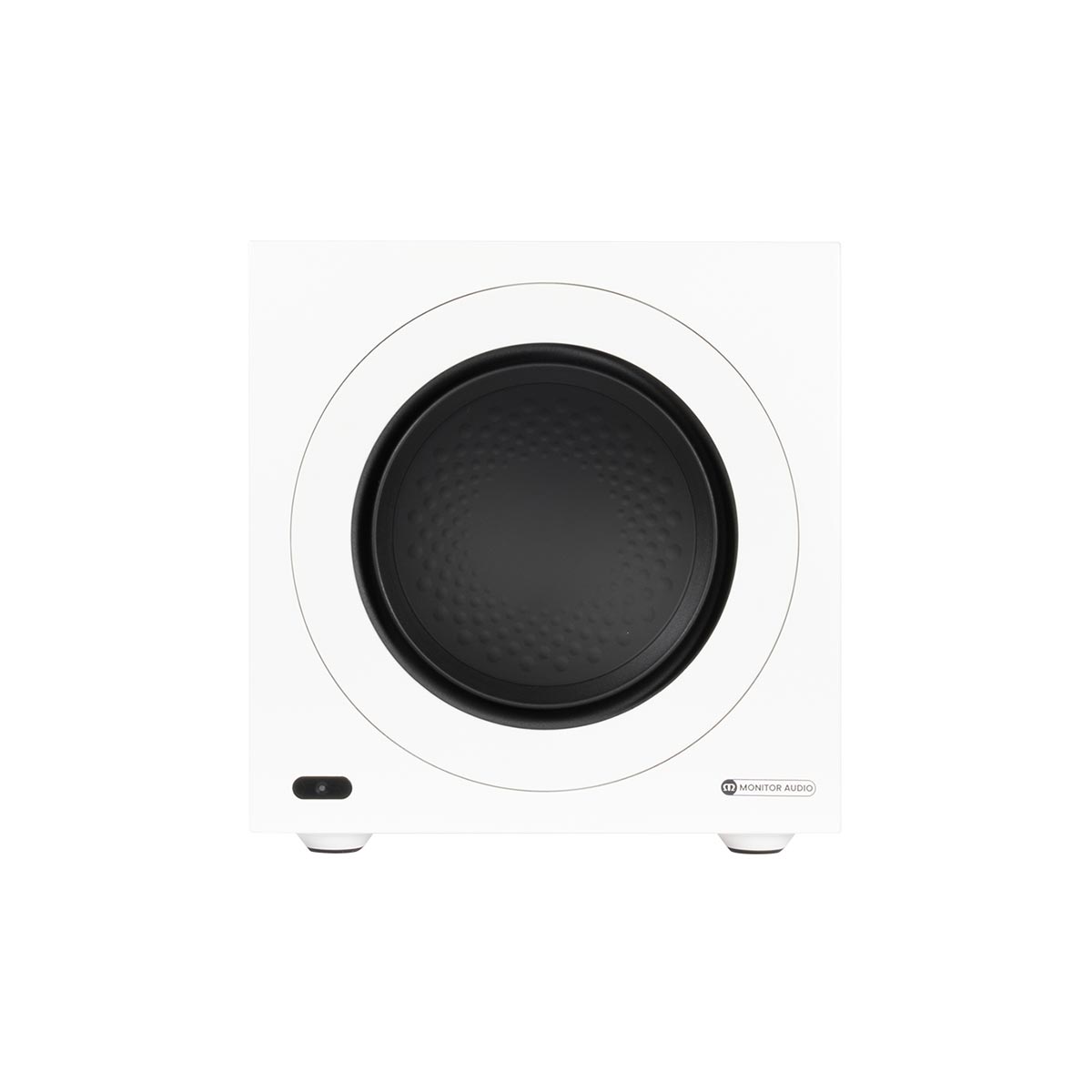

  • Available in Gloss Black and Satin White finishes
Monitor Audio Anthra W10
Specifications
System Format Active – Sealed Cabinet
Drive Unit Complement 1 x 10" (254 mm) High Linear-Excusion Triple Suspension Driver
Amplifier Classification High-Efficiency Class-D
Lower Frequency Limit -6 dB @ 17 Hz
Upper Frequency Limit (LPF Off) -6 dB @ 400 Hz
Driver Excursion (Peak-Peak) 50 mm
DSP 28 Bit 50 MIPS Configurable Through MaestroUnite
Analogue Digital Conversion Auto-Ranging Input Which Combines a 10 Vrms Maximum Input with Low Signal to Noise for Small Signals
Amplifier Output Power, 240 VAC Instantaneous: 500 W*, Continuous Short-Term: 425 W**
LED UI Control Brightness, On-Off
Phase Control 0-360 Degrees Measured at LPF Crossover
Low Pass Filter 20-200 Hz LPF with Roll Off Adjustable From -3 to -48 dB/Oct
Custom EQ Configurable Through MaestroUnite; 3 Pre-Defined EQ Curves Plus 3 Custom EQ Curves Each with 8 Band Custom EQ Supporting (Peaking, High Shelf, Low Shelf, High Pass)
Volume Level Wide Adjustable Input Gain to Allow Maximum Output from a Wide Range of Input Signals
Inputs Stereo Unbalanced RCA (Or Mono/LFE Using Only Connector Marked LFE), Mono/LFE Balanced XLR
Outputs Stereo Unbalanced Outputs with Unbuffered Throughput from RCA Inputs, Mono/LFE Balaned XLR Outputs with Unbuffered Throughput from XLR Input
Mains Input Voltage Universal Mains, 85-265 VAC
External Dimensions (Without Feet) (H x W x D) 321 x 321 x 321 mm
Power Consumption 120 W
Cabinet Construction Braced 18 mm Thick MDF with 36 mm Front Baffle
Grille Cloth Covered Magnetically Attached Grilles
Weight 22.2 kg

* Maximum RMS output for an instantaneous signal.

** Sine wave for 10 seconds.
