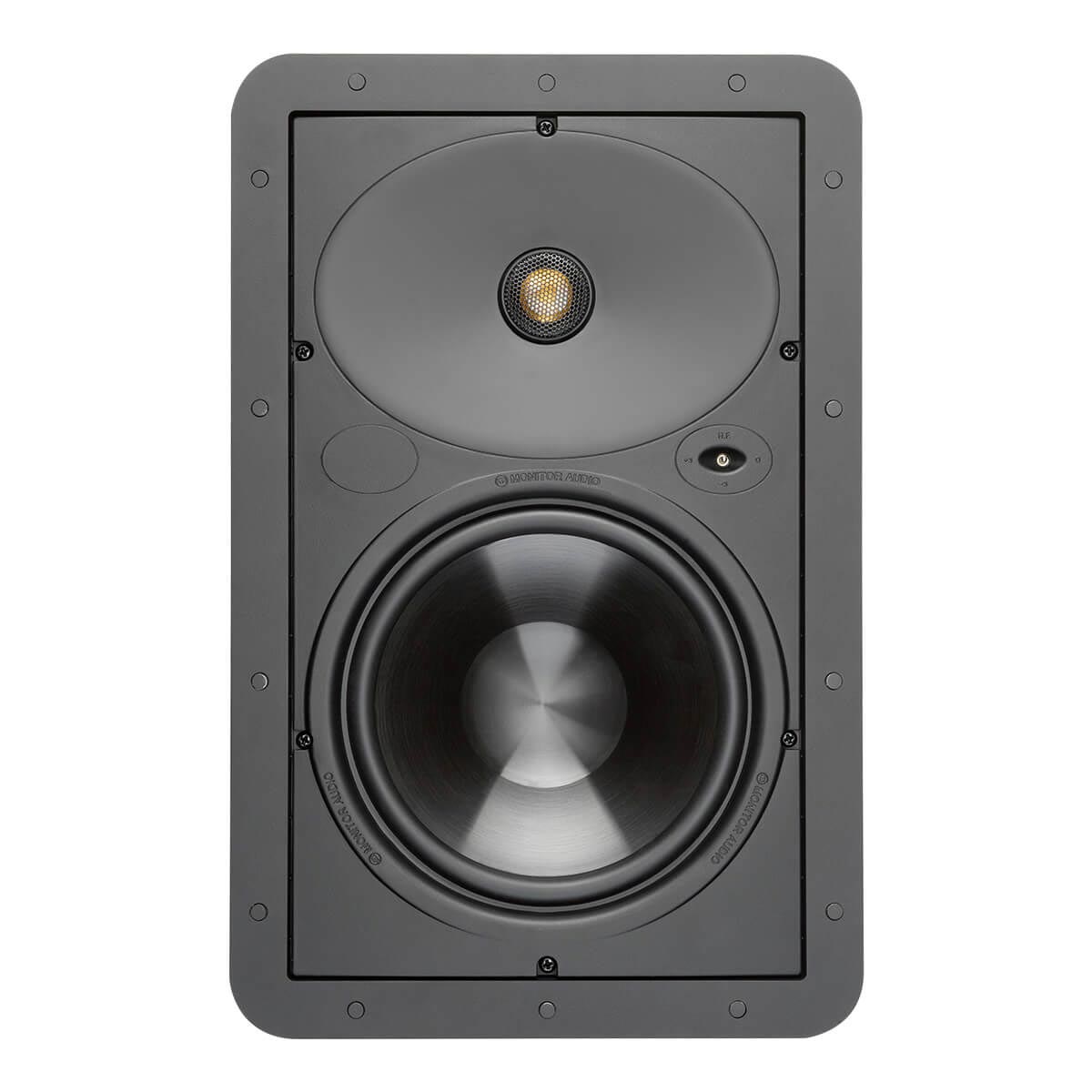

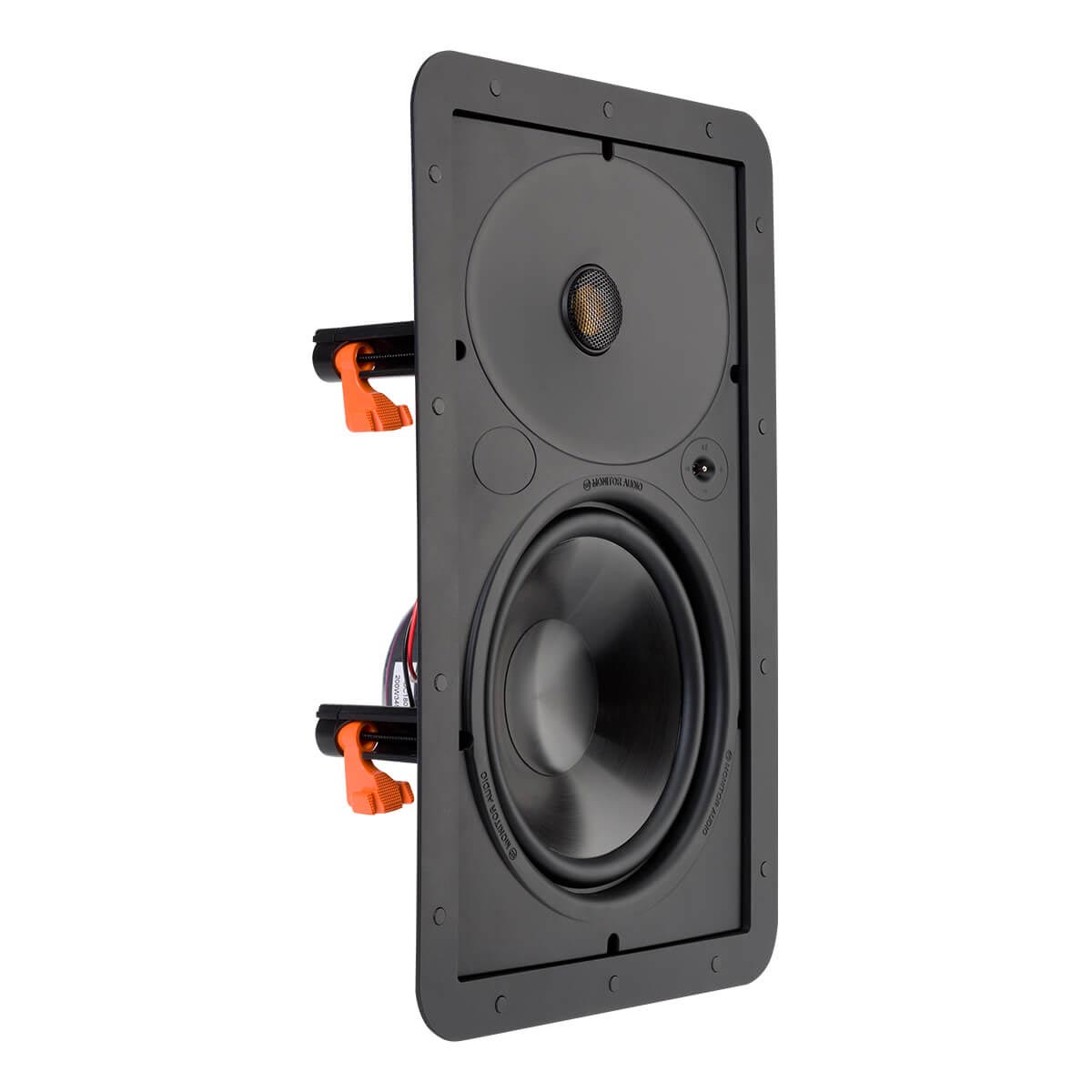

Incorporating an 8-inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.
Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.
|Frequency Response||50 Hz – 25 kHz|
|Nominal Impedance||6 Ohms|
|Sensitivity (1 W @ 1 m)||90 dB|
|Maximum SPL||111.6 dBA|
|Power Handling (RMS)||120 W|
|Recommended Amplifier Requirements||30 – 120 W|
|Drive Unit Complement||8" MMP II Cone Bass Driver, 1" C-CAM Gold Dome Tweeter|
|Adjustment Controls||HF Level Switch (+3 dB / 0 dB / -3 dB)|
|Overall Dimensions (Including Grille)||441 x 288 mm (17 3/8 x 11 5/16")|
|Overall Depth (Including Grille)||104 mm (4 1/8")|
|Mounting Depth||100 mm (3 15/16")|
|Cut-Out Dimensions||387 x 234 mm (15 1/4" x 9 3/16")|
|Fixing Type||6 Position Tri-Grip Dog Fixings|
|Construction Material||Mineral Filled ABS, RoHS Compliant|
|Weight||3.08 kg (6 lb 12 oz)|
|Pre-Construction Bracket||WB8 Pre-Construction Bracket (Green)|
|Sold As||Single Unit|
