Integrated Amplifier with 140W Power per Channel
With ultra-high current single push-pull circuit power and Advanced AL32 Processing, the Denon PMA-1700NE retains the detail of the original recording. Listen to your favourite music via the two digital inputs, a rear USB-B input, MM or MC phono equalizer—or go analogue with the included DAC mode.
- High-power 140W integrated amplifier
- Advanced AL32 Processing Plus
- USB-DAC supporting 11.2- MHz DSD and 384-kHz/32-bit PCM
- MM and MC phono equalizer
- High-precision electrical controls
- Optical and coaxial digital inputs
- External pre-amp input terminals
- Six-block chassis configuration and direct mechanical ground construction
- Build integrity with thoughtfully selected components
High-Power 140W Integrated Amplifier
Drive your loudspeakers with 140 Watts of power per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of speaker types and impedances for operational stability.
Advanced AL32 Processing Plus
Advanced AL32 Processing Plus supports digital audio sources up to high resolution of 384-kHz/32-bit. The algorithms restore information that was lost during the digital recording to ensure detailed playback.
PMA-1700NE provides USB-DAC function that supports high resolution audio signals up to 11.2-MHz DSD and 384-kHz/32-bit PCM. These digital signals with suppressed jitter will get passed on to the high quality DAC for an optimal D/A conversion with highest precision.

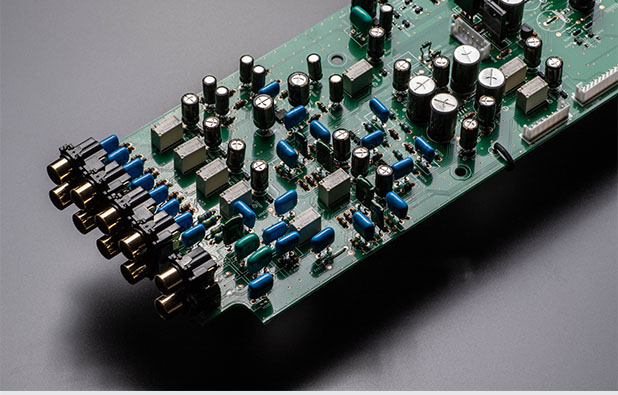

MM and MC Phono Equalizer
The PMA-1700NE includes a phono equalizer that supports input from both MM and MC cartridges. The simple, straightforward design significantly improves sound quality.

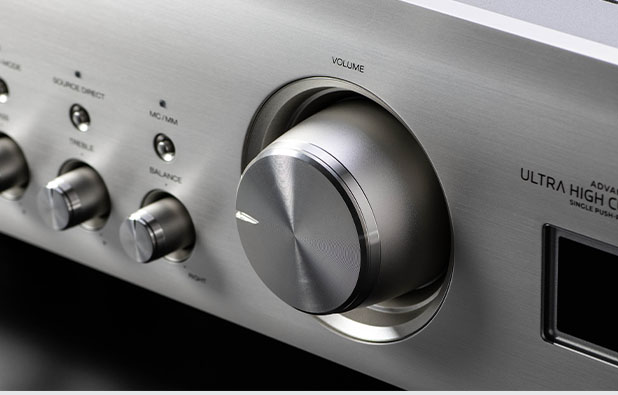

High-Precision Electrical Controls
The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analogue feeling of operation. The unique mechanism offers smooth, linear control. A Source Direct function passes by all tone control for purest audio.

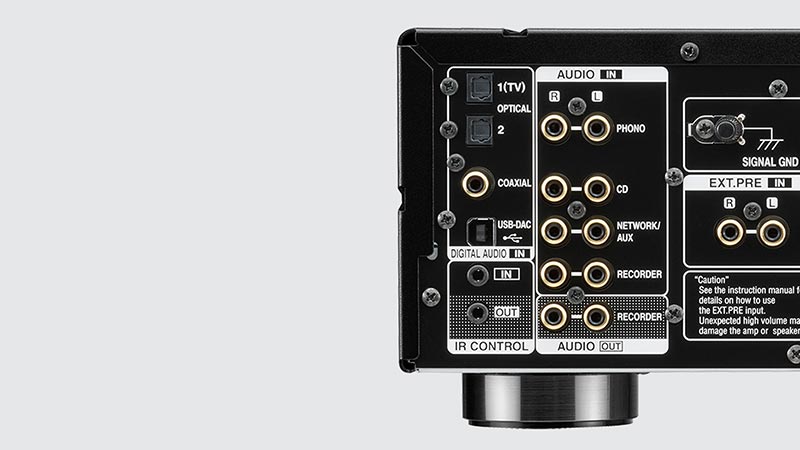

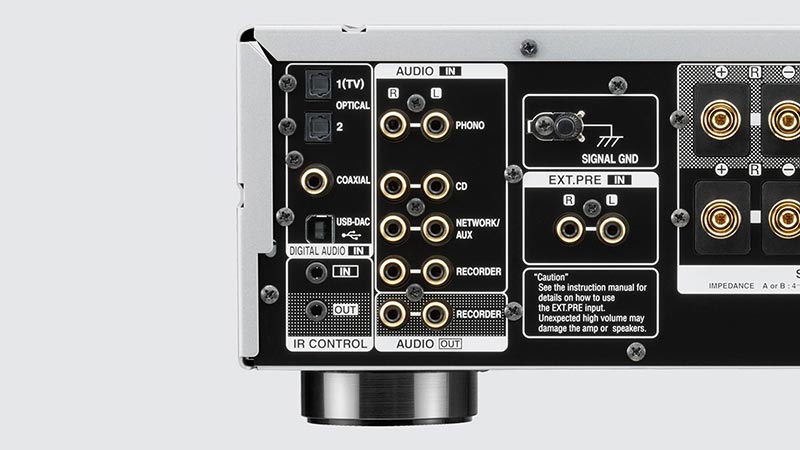

Optical and Coaxial Digital Inputs
The PMA-1700NE features two optical inputs and one coaxial input and supports PCM signals up to 192 kHz/24 bit.

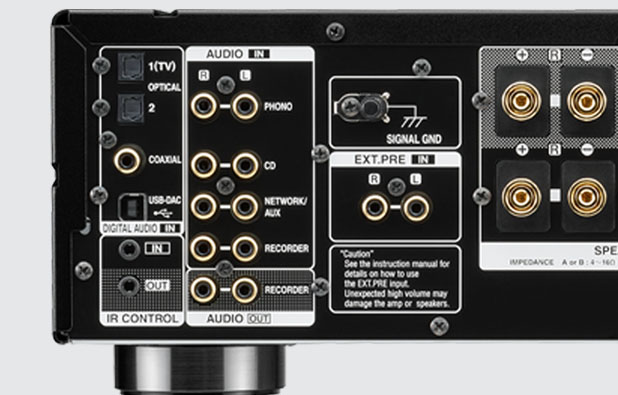

External Pre-Amp Input Terminals
“EXT/PRE” input terminals are fixed gain inputs that can be used for connecting an external pre-amp using the PMA-1700NE as a power amp.

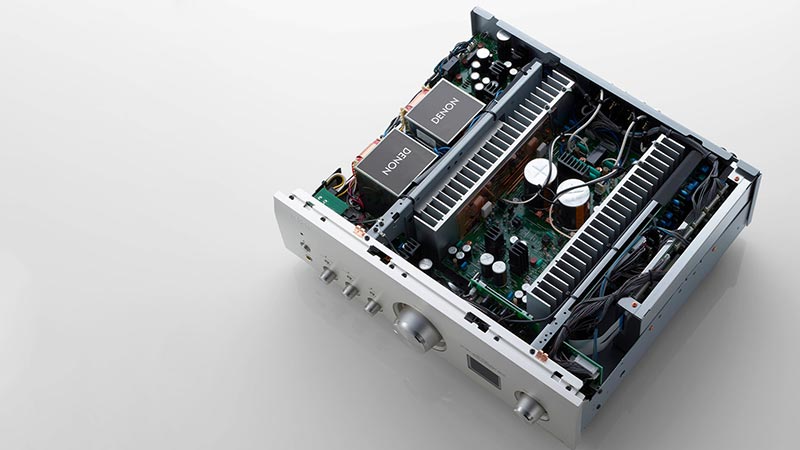

Six-Block Chassis Configuration and Direct Mechanical Ground Construction
Constructed with 1mm-thick steel plates and damping feet made of ABS resin with rigid rib construction, the chassis protects the signal circuits from external vibration and eliminates adverse effects of mutual interference among the circuits.

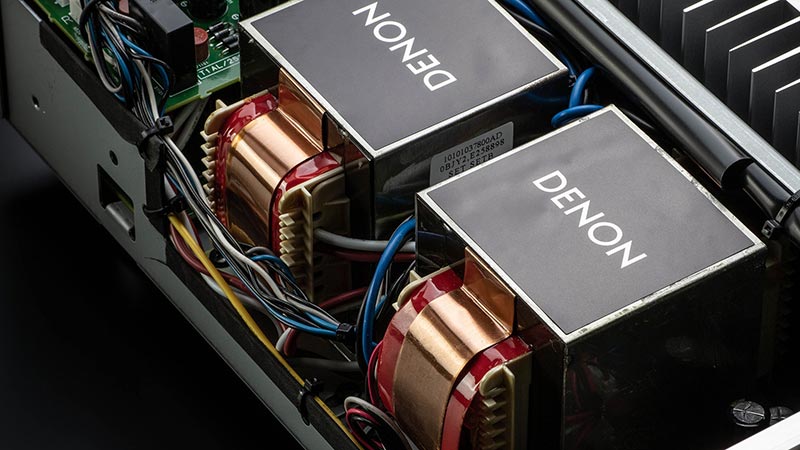

Build Integrity with Thoughtfully Selected Components
With a more than 110-year legacy of designing premium audio components, trust that your Denon product is built to last.
|Rated Output Power||70 W + 70 W (8 ohm, 20 Hz - 20 kHz, THD 0.07%), 140 W + 140 W (4 ohm, 1 kHz, THD 0.7%)|
|Total Harmonic Distortion||0.01% (Rated Output: –3 dB), 8 Ohm, 1 kHz|
|Input Sensitivity: Power Amp Input||0.85 V / 47 kohm (EXT. PRE)|
|Input Sensitivity: CD / Line / Recorder||125 mV / 19 kohm|
|Input Sensitivity: Phono Input||MM: 2.5 mV / 47 kohm, MC: 200 μV / 100 ohm|
|Signal to Noise Ratio||Phono (MM): 89 dB, Phono (MC): 74 dB, CD: 107 dB|
|Power Amplifier Circuit||New UHC-MOS, Single Push Pull (7)|
|Pre Amplifier Circuit||Variable Gain Preamplifier (Op-Amp)|
|Bass / Treble / Mid / Balance Control||✓ / ✓ / - / ✓|
|Analogue Amp Mode||✓ (Button on Front Panel)|
|Digital Processing||Advanced AL32 Processing Plus|
|DAC Master Clock Design||✓|
|Asyncronous Mode (For USB-B Input)||✓|
|Inputs / Outputs|
|Phono Input||✓ (MM / MC) (Default = MM)|
|Analogue Input (Including Phono) / Rec Out (RCA)||4 / 1 (Phono / CD / Network, Aux / Recorder)|
|Optical Input / Output (Maximum Support)||2 / 0 (192 kHz / 24 bit)|
|Headphone Output||1 (Turn off the Speaker when Inserting Headphone)|
|Coaxial Input / Output (Maximum Support)||1 / 0 (192 kHz / 24 bit)|
|Speaker Terminal||Gold Plated|
|Remote Control (RC-1249 Remote Control Bus Terminal)||✓|
|USB B (USB DAC)||1 (Rear)|
|PCM Sample Rate||384 kHz / 32 bit|
|DSD Audio Streaming (DoP)||11.2 MHz|
|Available Colours: Black / Premium Silver||✓ / ✓|
|Metal Front Panel||✓ (Aluminium)|
|Power Consumption||295 W|
|Standby Consumption||0.2 W TV Autoplay Off, 0.4 W TV Autoplay On|
|Auto Power Off||✓|
|Detachable Power Cable||✓|
|System Remote Function||✓|
|Unit Dimensions (W x D x H)||434 x 410 x 135 mm|
|Carton Dimensions (W x D x H)||548 x 520 x 249 mm|
|Carton Weight||20.4 kg|
