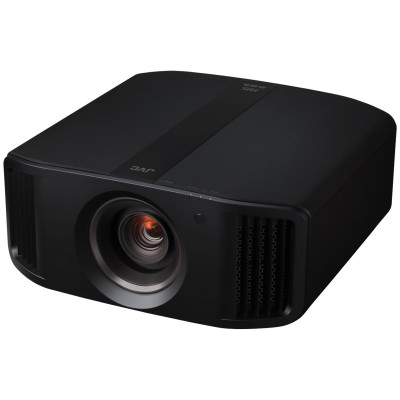

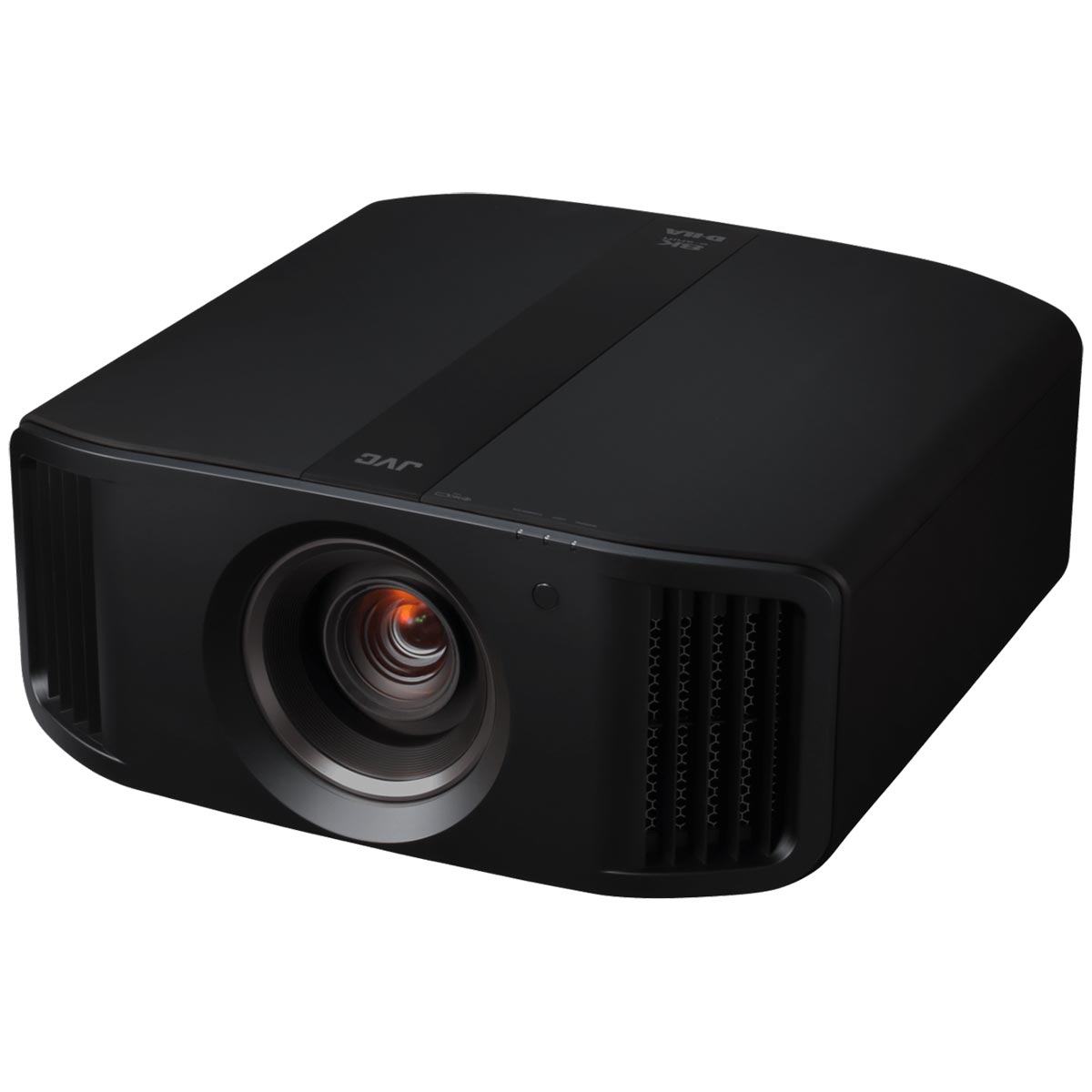

The DLA-NZ7 D-ILA projector is the world first home theatre projector to feature 8K/60p/4K120p input. It is equipped with a new 8K/e-shift proprietary technology to reproduce 8K-quality images. The projector is driven by three native 4K D-ILA devices, high-quality 65 mm glass lens, and Ultra-High Brightness of 2,200 lumens. The BLU-Escent laser diode light source also contributes to project images that come close to reality. Compatible with the latest HDR10+, the projector boasts industry leading HDR performance. 8K, Laser, and HDR are the keywords that describe JVCs DLA-NZ7.
*As a home theatre projector, as of September 2021; according to a research by JVCKENWOOD.
- 8K/e-shift technology reproduces 8K image quality
- BLU-Escent Laser Light Source
- High brightness of 2,200 lm provides vibrant and dynamic images
- Native Contrast Ratio of 40,000:1 translates to a spectacular Dynamic Contrast Ratio of Infinity:1
- 2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 8K60P and 4K120P input signals
- HDR10+ contains the metadata of the producer’s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
- Frame Adapt HDR* dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images close to reality as seen by human eyes. As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation
- New Theatre Optimiser** function, which works in Frame Adapt HDR mode, offers optimum HDR images by analysing usage environments using the screen size and gain information and intelligently adjusts tone mapping.
- Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality
- For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received
- New 0.69-inch 4K D-ILA (4096 x 2160) device x 3
- 17-element, 15-group all-glass 65mm diameter high-quality lens
- Nine settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect; stored installation modes for various environments can be called up.
- Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
World’s First Home Projector Capable of Inputting 8K 60p / 4K 120p Signals
These projectors adopt LSI's developed with the latest technology to process the vast amount of 8K input data, and an up converter to bring any source up to high definition 8K resolution. As a result, more beautiful and realistic video images full of contrast and reality can be enjoyed regardless of the source, from video streaming to 4K UHD-BD videos.

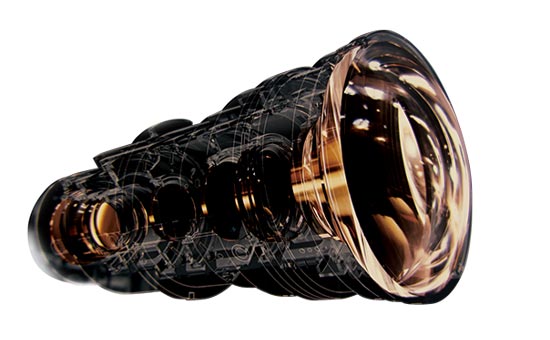

Essential All-Glass Lens to Depict all the Data in the 8K Image
The high-end DLA-NZ9 is equipped with an 18-element, 16-group all-glass lens featuring a full aluminium lens barrel*1. To project high resolution 8K images to every corner of the screen, the projector incorporates five ED lenses calibrated for differences in the R/G/B refractive index to reduce chromatic aberration and colour fringing when lens shift kicks in to deliver precise reproduction of 4K- or 8K-resolution*2 projection.
*1: 65 mm diameter, 17-element, 15-group all glass lens is featured on the DLA-NZ8, NZ7 and N5 models. *2: Resolution varies depending on the model.
HDR10+ Support Allows a Choice for Two Dynamic Tone Mappings
When it comes to reproducing the rich video information of HDR content including the extended brightness range, BT.2020 wide colour gamut and 10-bit gradation, rely on one of the new D-ILA projectors. New models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the latest HDR10+ signal format with dynamic metadata compatibility.
JVC projectors are compatible with the two dynamic tone mappings of HDR10+ and Frame Adapt HDR. HDR10+ contains the metadata of the producer's intentions for each scene, Frame Adapt HDR instantly analyses the peak brightness in HDR10 content using an original algorithm. Ensuring you can watch any HDR content in optimal picture quality.
4K 120p Input Ideal for Low Latency Mode
Because these projectors are equipped with 4K120p input, signal latency is infinitesimal, making it effective when displaying high frame-rate gaming content on large screens. What’s more, Low Latency Mode reduces delay in displaying PC signals and games, and improves response to the users’ rapid operations.

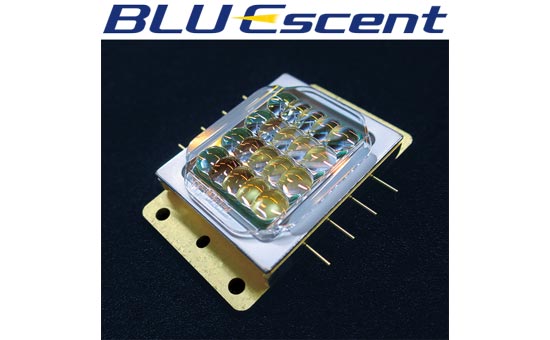

Reliability-Proven BLU-Escent Laser Diode for Exceptional Brightness and Longevity
The light source for these projectors is the latest blue laser diode BLU-Escent, which is featured in JVC projectors. BLU-Escent technology has been adopted for home theatre projectors to achieve exceptional brightness and longevity of 20,000 hours*. Laser diode allows dynamic control of brightness to reproduce images that are closer to human perception. Combining the latest BLU-Escent package with the D-ILA device achieves detailed, smooth, powerful video expression.
*In theory, this amounts to 20 years or more while watching a 2.5-hour movie every day.
|Chip Type||0.69 Inch 4K D-ILA Device|
|Native Resolution||4096 x 2160|
|Number Of Chips||3|
|Display Resolution||8192 x 4320|
|Type||BLU-Escent Laser Diode|
|Life Time (Standard Mode)||20,000 Hours|
|Dynamic Light Power Control||Yes|
|Dynamic Light Power Control - Modes||Mode 1 (Gentle), Mode 2 (Strong), Off|
|Manual Aperture - Range||-15 (Stops Down) to 0 (Opens Up)|
|100% Rec. 709||Yes|
|Colour Bit Depth||12 Bit|
|Frame Adapt HDR||Yes|
|Auto Tone Mapping||Yes|
|Mastering Info Display||Yes|
|Mastering Info Display - Info Data||MaxCLL and MaxFALL Mastering Data|
|HDR Picture Modes||BT.709 / BT.2020 / DCI / HDR|
|Build||17-Element, 15-Group in Full Aluminium Lens Barrel|
|Lens Shift - Range Horizontal||±34%|
|Lens Shift - Range Vertical||±80%|
|Projection Display Size (Diagonal)||60 - 200 Inch|
|Memory Function - Number of User Presets||10|
|Number of Connections||2|
|Data Rate||48 Gbps|
|8K 60p Signal Input||Yes|
|4K 120p Signal Input||Yes|
|4K 60p Signal Input||Yes|
|Video Signal Range||480p, 576p, 720p 60/50, 1080i 60/50, 1080p 120/100/60/50/30/25/24, 3840 x 2160p 120/100/60/50/30/25/24, 4096 x 2160p 120/100/60/50/30/25/24, 7680 x 4320p 60/50/30/25/24|
|PC Signal Range||VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)|
|Input Level Adjustment||Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)|
|Colour Space Range||Auto / YCbCr 4:4:4 / YCbCr 4:2:2 / RGB|
|EDID Modes||A and B (Older Hardware May Need to Use B Settings)|

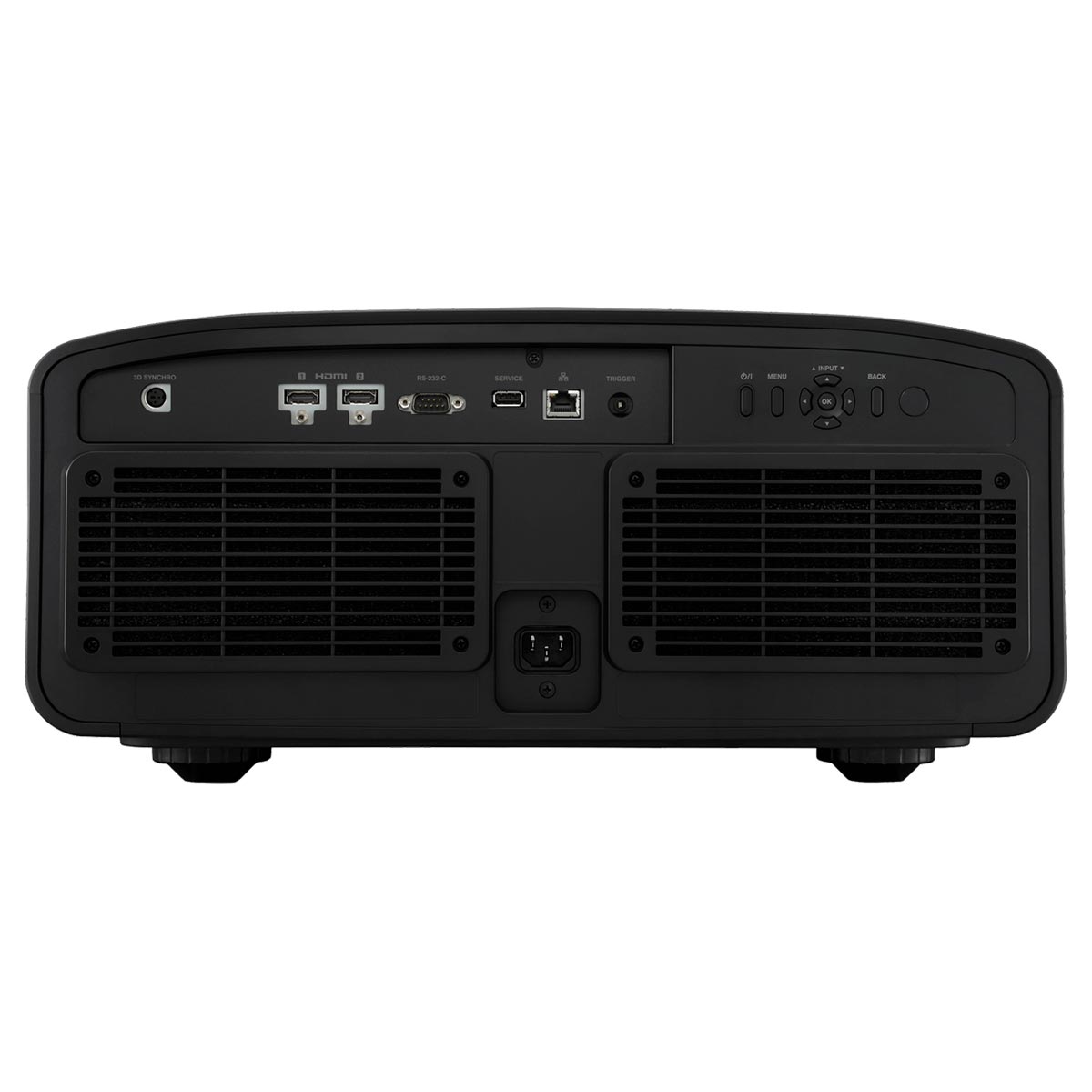

|Trigger Out - Connector||Mini-Jack (3.5 mm)|
|Trigger Out - Power||DC 12 V / 100 mA|
|3D Synchro - Connector||Mini DIN 3-Pin|
|LAN - Connector||RJ45|
|RS-232 - Connector||D-Sub 9-Pin|
|Service - Connector||USB (Type A) for Firmware Update|
|3D Versions||Frame Packing, Side-by-Side, Top & Bottom|
|Frame Packing Resolutions||720p 60/50, 1080p 24|
|Side-by-Side Resolutions||720p 60/50, 1080p 60/50/24, 1080i 60/50|
|Top & Bottom Resolution||720p 60/50, 1080p 24|
|3D Emitter (Optional)||Yes, PK-EM2|
|3D Glasses (Optional)||Yes, PK-AG3|
|Picture Modes||Natural, Cinema, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan PQ, 6 User Modes|
|Colour Temperatures||5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2|
|Gamma Processing Depth||12 Bit|
|Gamma Adjust||HDR (Auto), HDR (PQ), HDR (HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Pana PQ, 3 Custom Modes|
|Colour Management||6-Axis Adjustable CMS|
|Low Latency Mode||Yes|
|Clear Motion Drive||Yes|
|Auto Calibration - Optional Probe Needed||Yes|
|Installation Mode - Number of Presets||10|
|Installation Mode - Included Settings||Lens Control, Pixel Adjustment, Mask, Anamorphic On or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect|
|Anamorphic Modes||4 Modes (A, B, C, D)|
|Power & Environment|
|Power Requirement||AC 100-240 V, 50/60 Hz|
|Power Requirement - Projector in Use||420 W|
|Power Requirement - Standby||Eco Mode 0.2 W|
|Power Requirement - Network Standby||1.21 W (LAN), 0.94 W (RS-232C), 1.22 W (LAN + RS232C)|
|Power Requirement - Switchover Time||Approx. 15 min (To Standby or Networked Standby; Default)|
|Fan Noise||24 dB|
|Operating Temperature||5°C to 35°C|
|Operating Humidity||20% to 80%|
|Installation Angle||Horizontal +/- 5 Degree / Vertical +/- 10 Degree|
|Installation Height||Below 2,000 m|
|In The Box|

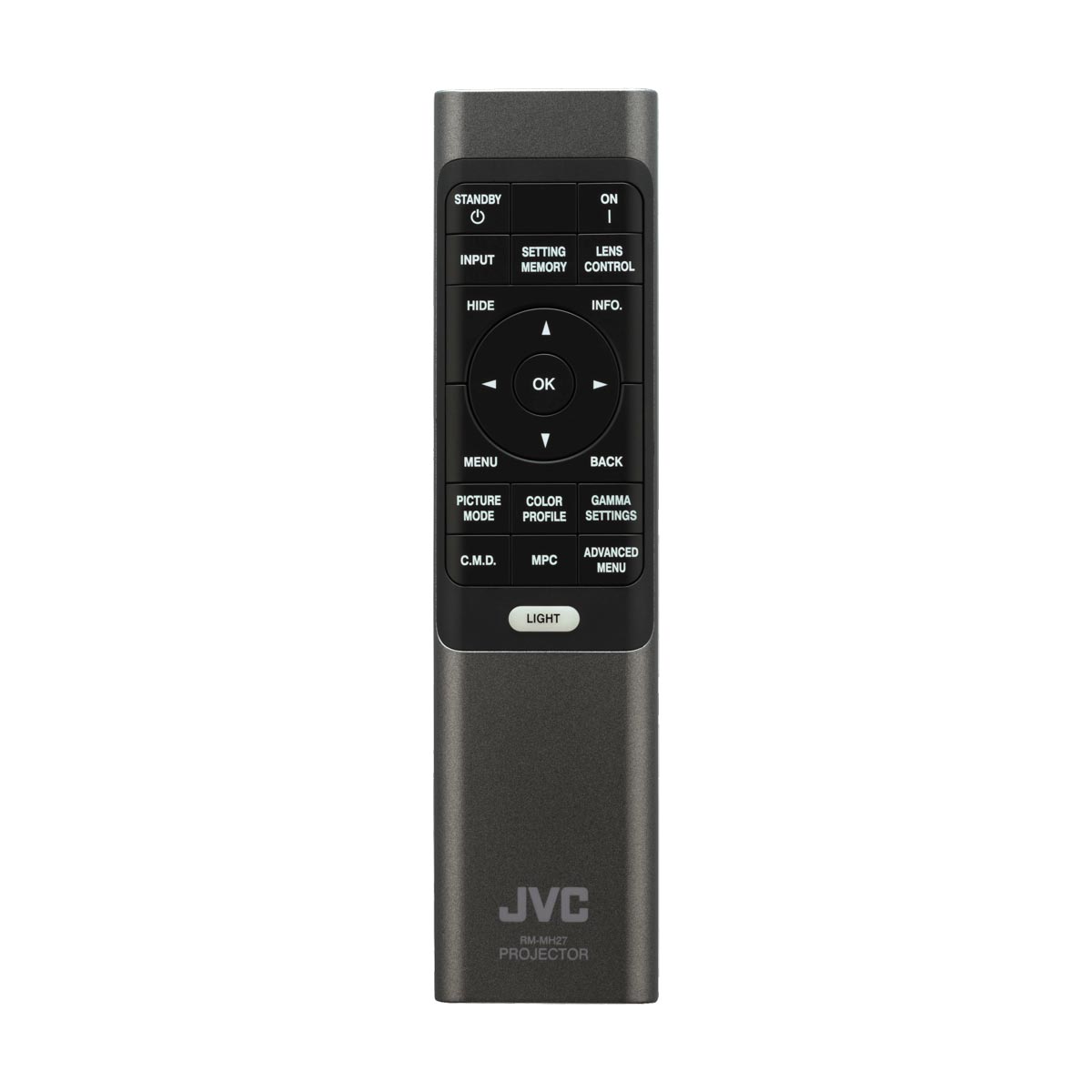

|Remote Control||Yes, RM-MH27|
|Batteries||Yes, 2 x AAA-Size Batteries|
|Dimensions & Weight|
|Product Dimensions (W x H x D)||500 x 234 x 505 mm|
|Product Weight||22.5 kg|
|Package Dimensions (W x H x D)||640 x 415 x 665 mm|
|Package Weight||27.9 kg|
