CW10

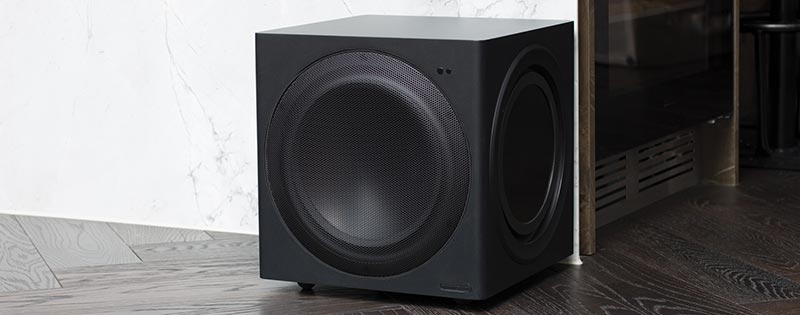

The new CW10 places all the power in the hands of installer and client. Engineered for control in operation, bass quality and concealment in-room, the compact CW10 cube will add explosive bass frequencies to music and AV systems when tucked behind furniture on room boundaries.
Each little bass-engine is generously specified with custom installation in mind, providing versatile input and control options including RS232 and a dedicated ‘SubConnect’ PC applet via a wired USB interface.

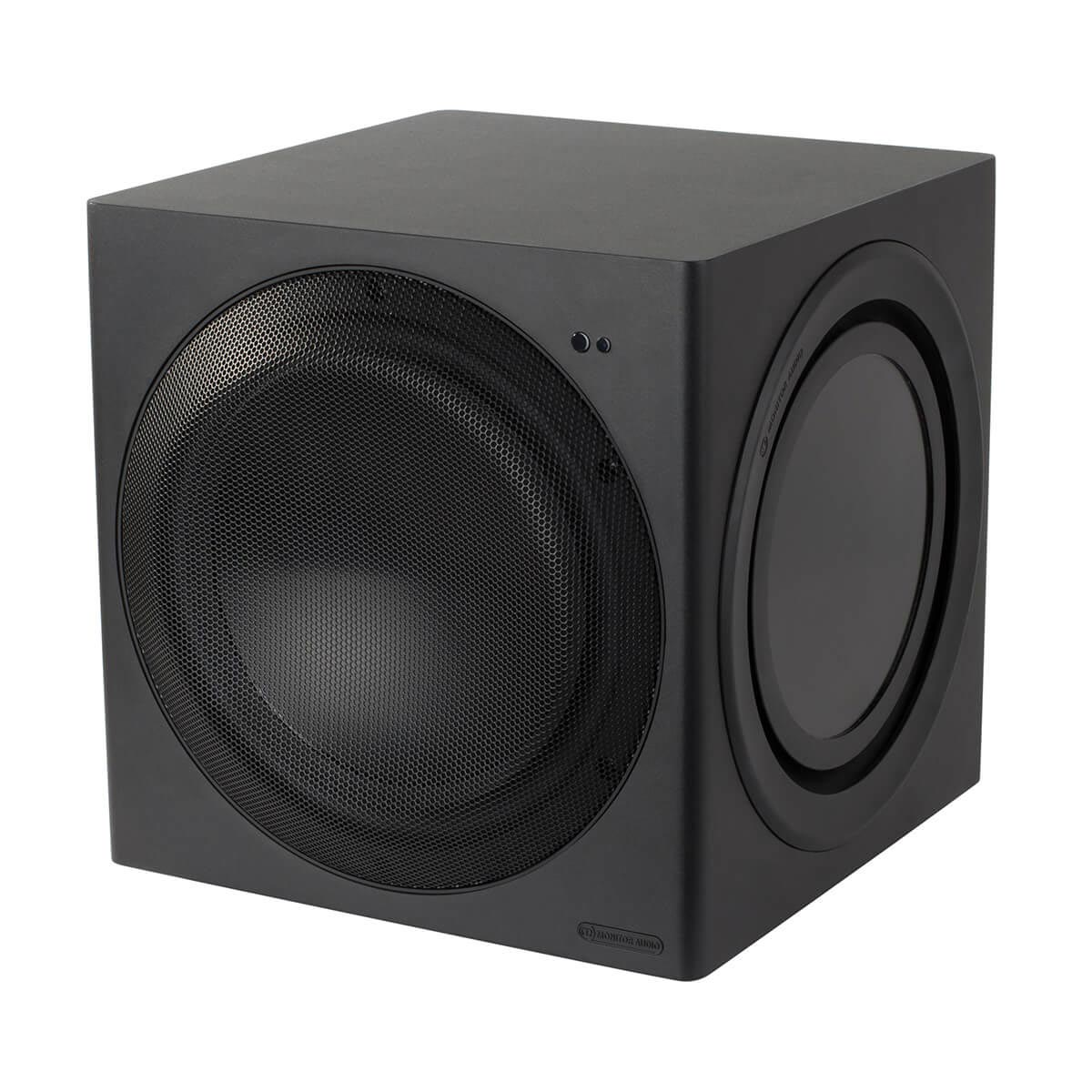

The compact rigid 18 mm MDF cubic cabinets with regular 30 cm dimensions incorporate no fewer than three robust, similarly sized 10" C-CAM drivers. Each system array comprises an active high-excursion drive unit powered and trimmed by potent DSP-tuned amplification, together with twin side-mounted ABRs (Auxiliary Bass Radiators).
Key Features
- Ultra-compact ‘cube’ shape designs
- Twin side-mounted ABRs for increased output and reduced distortion. Higher output than a sealed box and better control and zero air noise compared to a ported box
- High excursion woofers featuring signature C-CAM cone technology
- High-power Class-D amplifier delivering 400 watts
- DSP processing –all functions performed in the digital domain for precise control

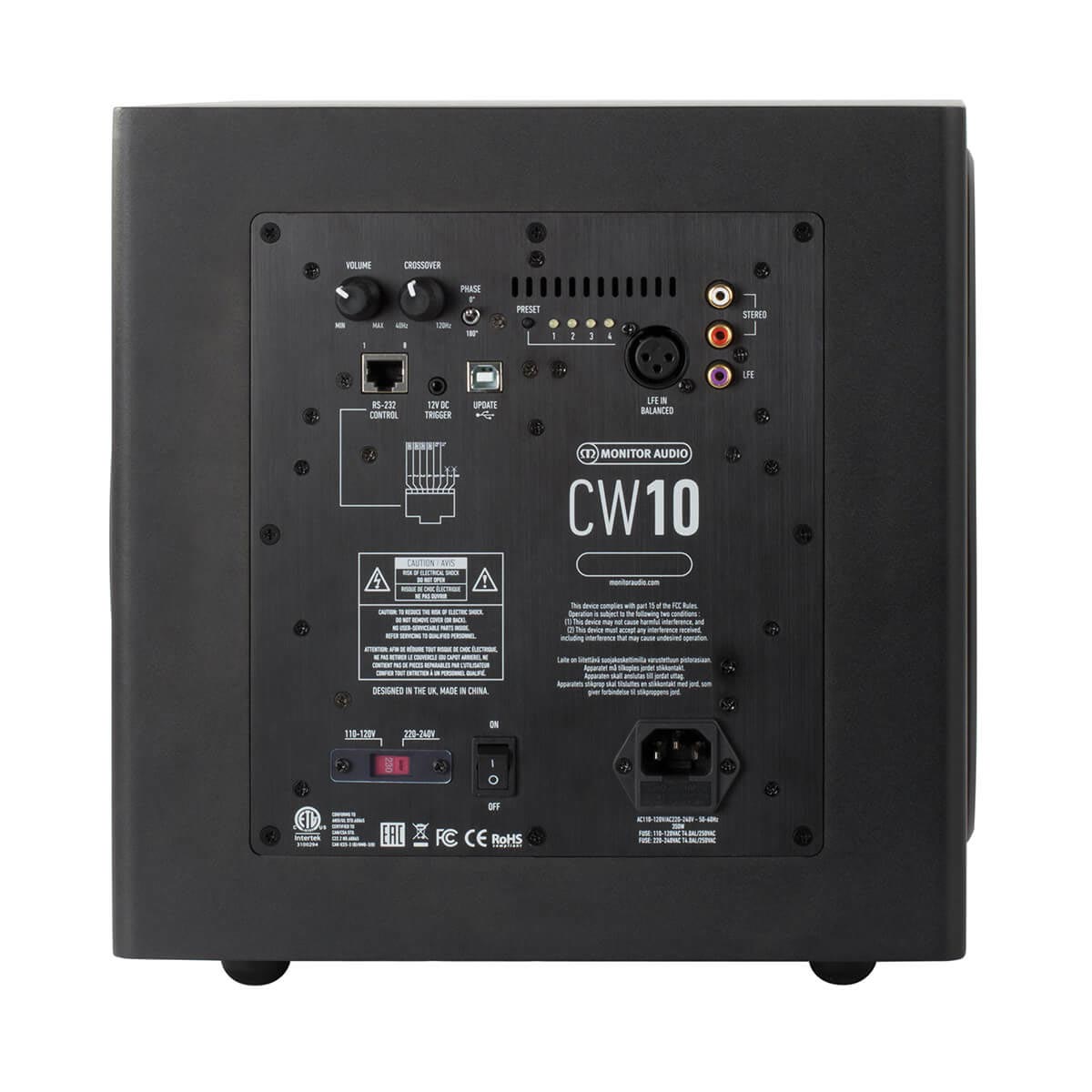

- RS-232 for integration with system controllers
- SubConnect’ PC Applet for full feature adjustment, installer set-up and firmware update using USB
- LFE Balanced XLR and unbalanced RCA Inputs
- Stereo RCA line level inputs
- Phase switch (0-180 degrees)
- 12 V trigger and auto signal sensing with timer control
- 4 x pre-set equalisation optimised for music, movie, flat and impact with customisation through ‘SubConnect’ Applet
- Robust metal mesh grille on front woofer
- Rigid MDF cabinet construction with durable vinyl finish
| Specifications | |
| System Format | Active Subwoofer System – Twin ABR. 18 mm MDF Cabinet (CARB2 Approved) |
| Lower Frequency Limit | 32 Hz (-6 dB) |
| Amplifier Output | 400 W RMS @ <1% THD+N |
| Maximum SPL | 105.8 dBA |
| Amplifier Classification | Class D Amplifier with Switch Mode Power Supply (SMPSU) |
| Inputs | Stereo RCA LFE (RCA) LFE Balanced (XLR) |
| EQ | Flat / Music / Movie / Impact |
| Phase Control | 0 & 180° |
| Auto Sensing | LFE Input <2 mV Auto Wireless Audio Input Signal Detection |
| Auto Standby | After Approximately 15 Minutes if no Signal Sensed Wireless Audio Source Turned Off |
| Drive Unit Complement | 1 x 10" (250 mm) C-CAM Long Throw Driver, 2 x 10" (250 mm) ABR |
| Input Impedance | >20 K ohms |
| Mains Input Voltage | 110 - 120 VAC / 220 - 240 VAC 50/60 Hz (Manual Switch Selection) |
| Dimensions (Including Feet (H x W x D)) | 315 x 305 x 320 mm (12 3/8 x 12 x 12 5/8") |
| Trigger Input | 5 - 12 V via 3.5mm Mono Mini-Jack Socket |
| Power Consumption | Standby: <0.5 W (ErP Approved), Typical Idle: <10 W, Max Rated: 400 W |
| Weight (Unpacked) | 12.64 kg (27 lb 12 oz) |
| Sold As | Single Unit |
