W380-IDC

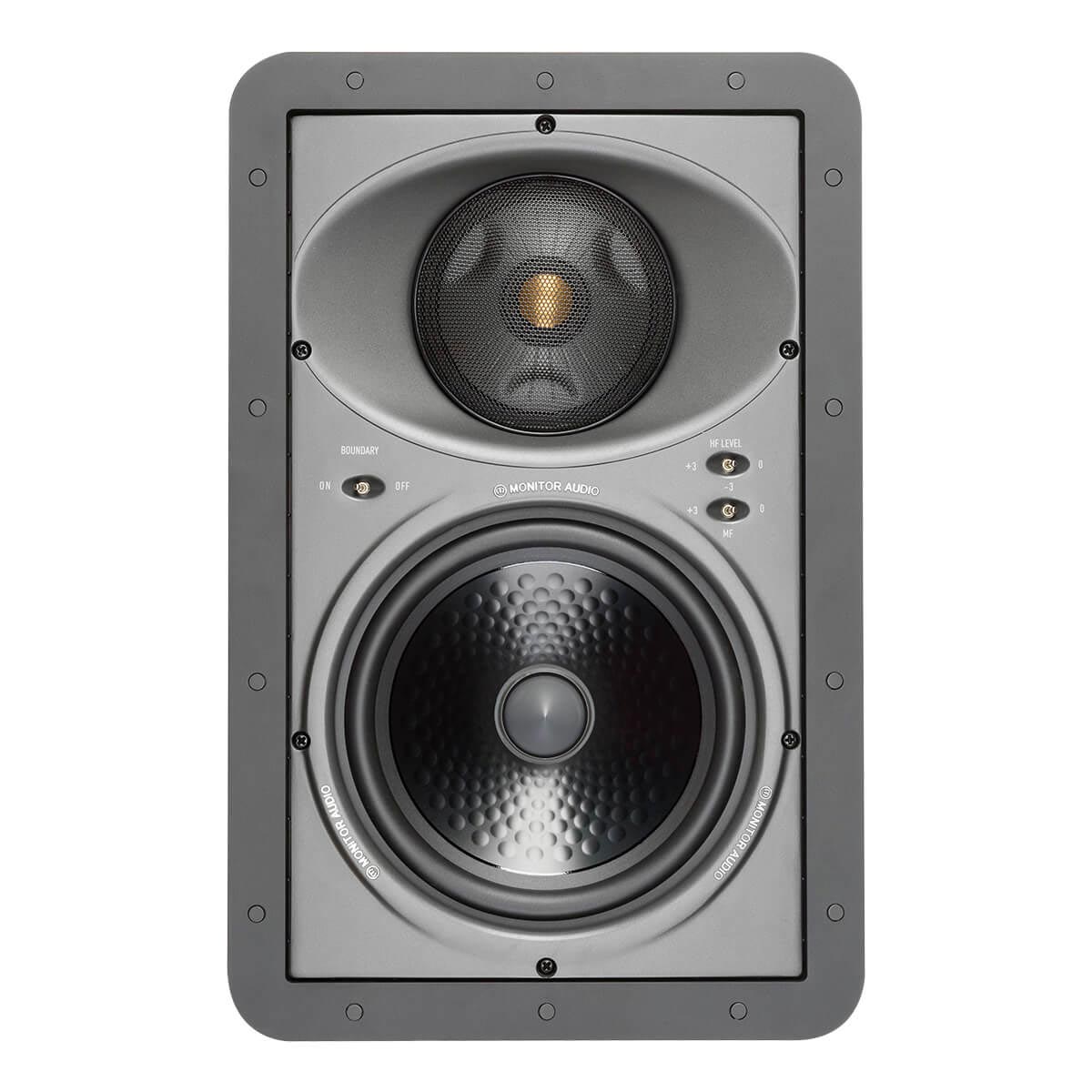

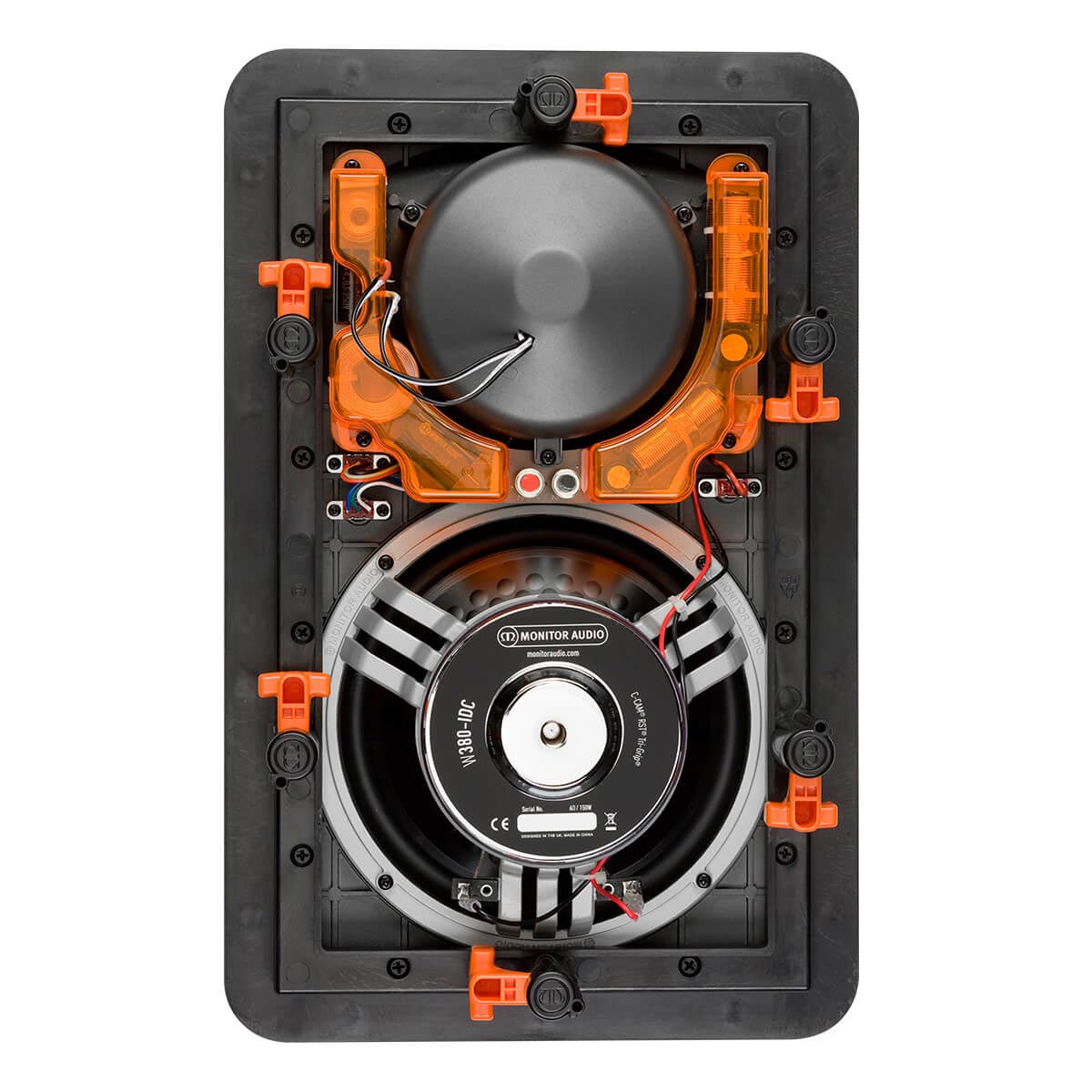

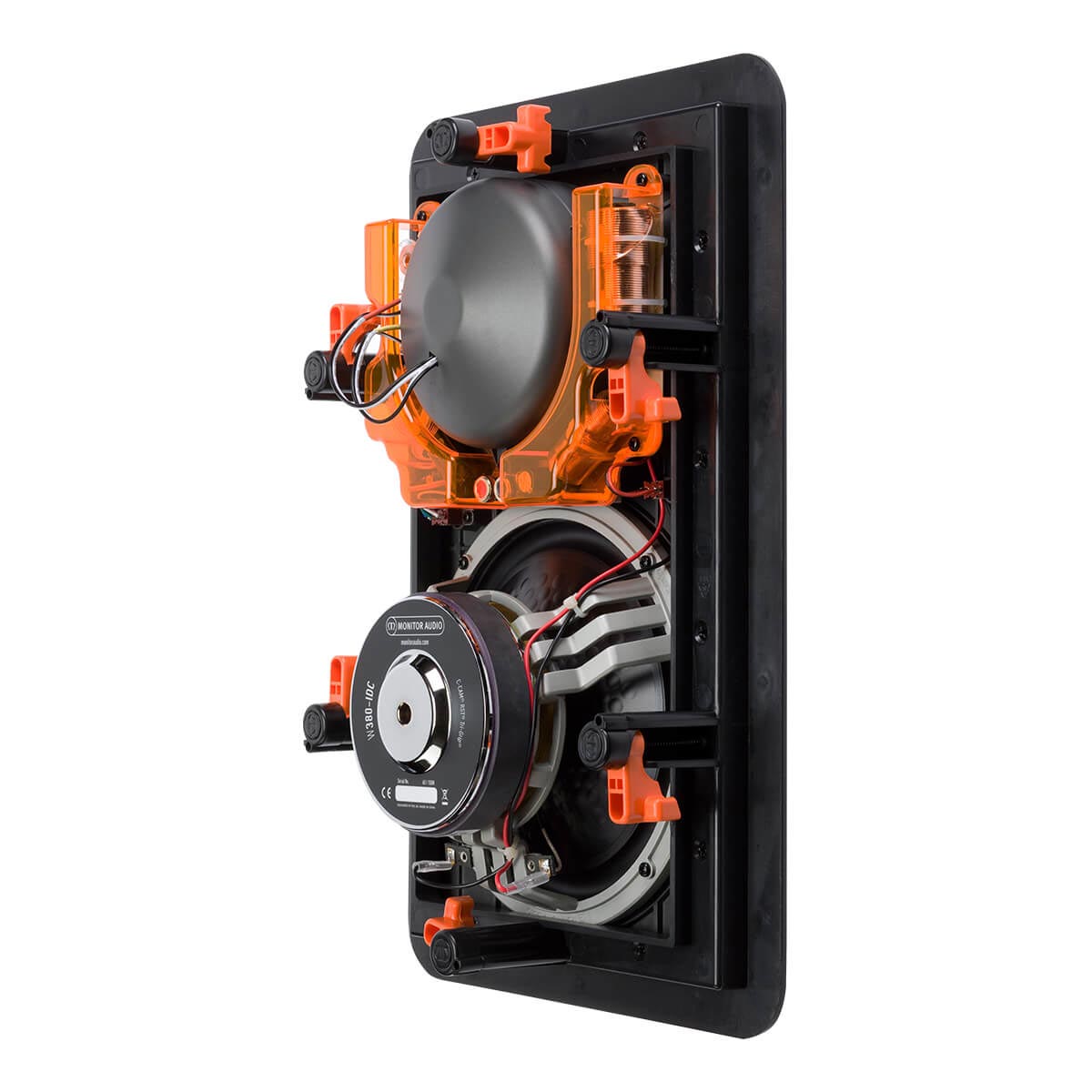

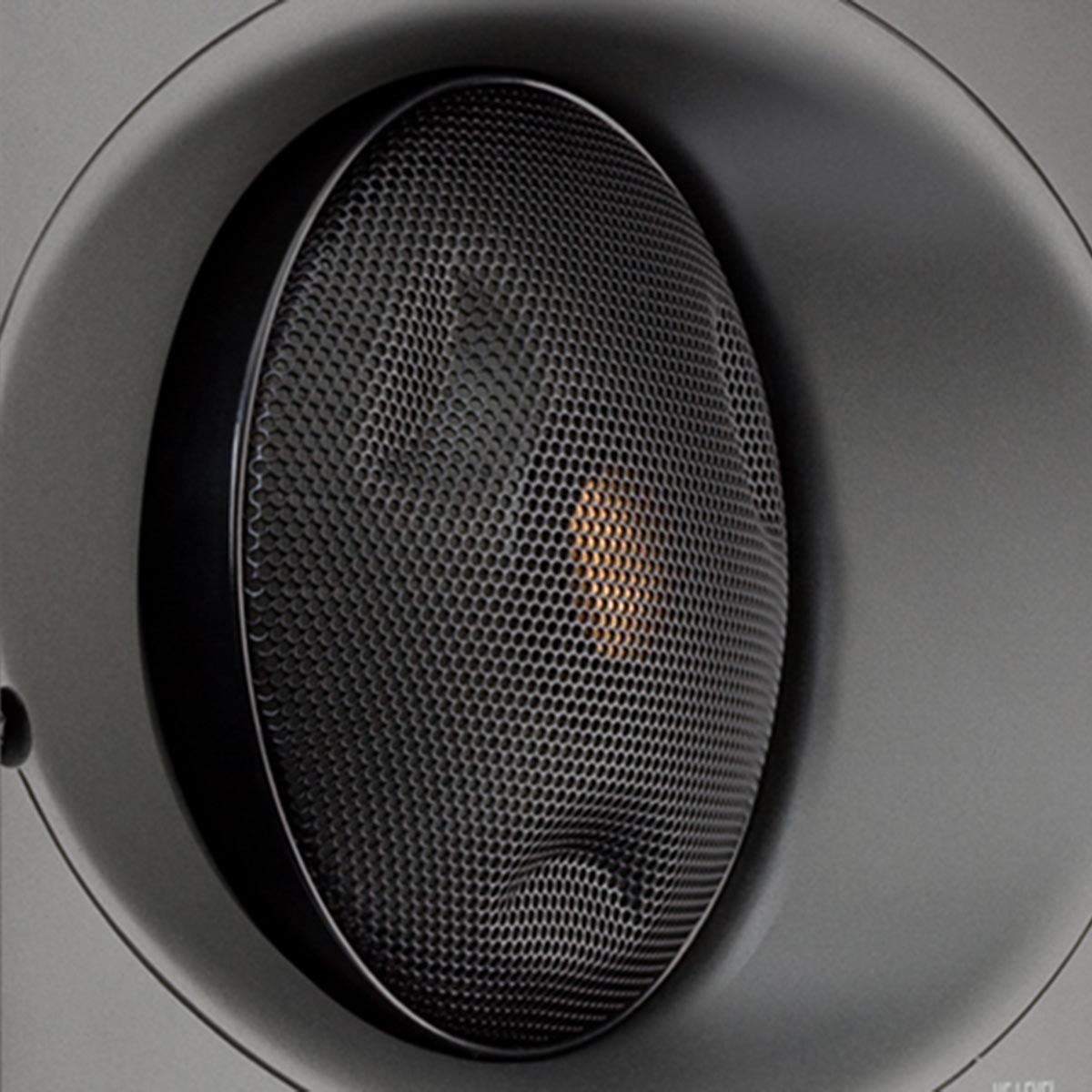

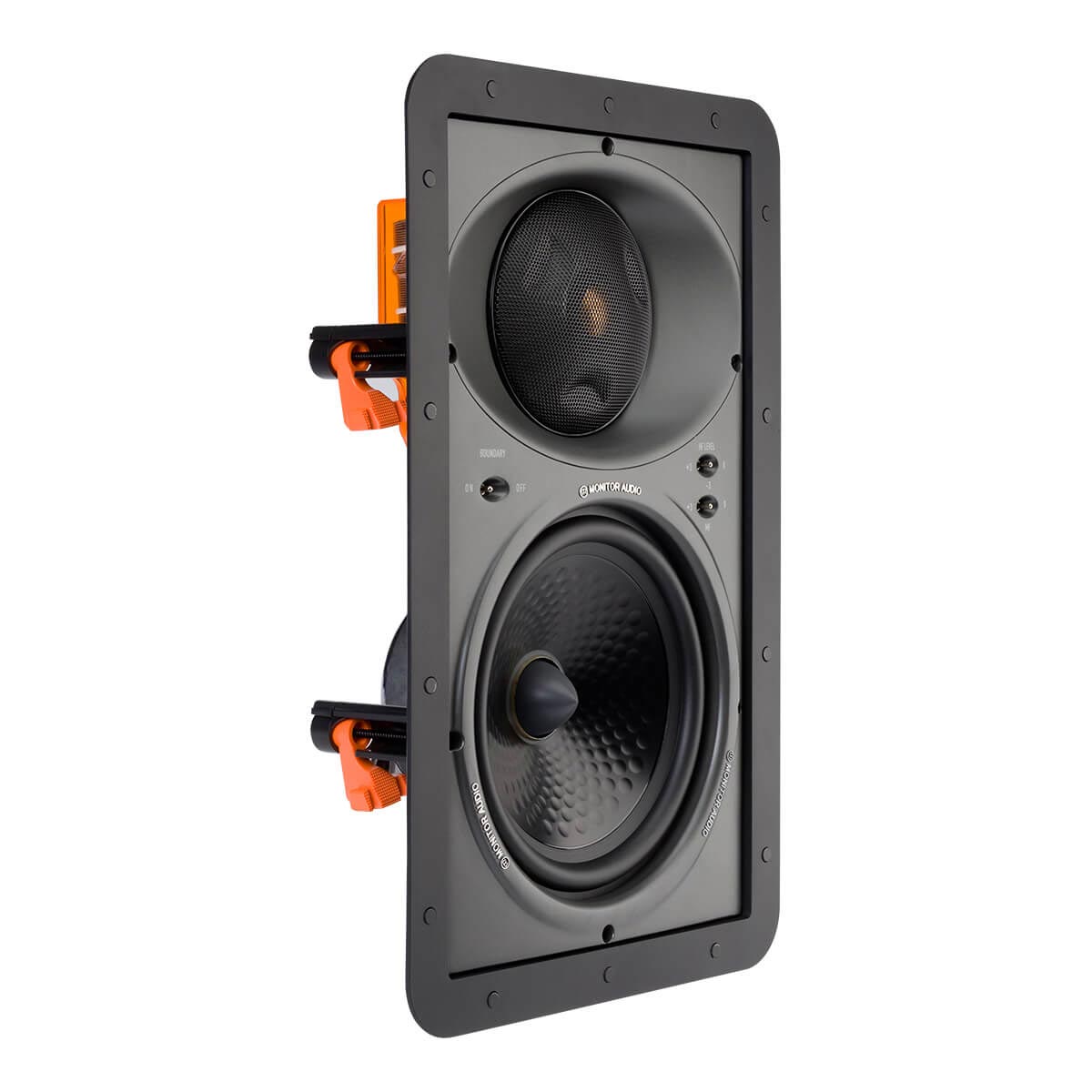

Configured with an 8-inch C-CAM RST bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.
True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation.
Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.
| Specifications | |
| Frequency Response | 45 Hz – 30 kHz |
| Nominal Impedance | 6 Ohms |
| Sensitivity (1 W @ 1 m) | 90 dB |
| Maximum SPL | 111.6 dBA |
| Power Handling (RMS) | 150 W |
| Recommended Amplifier Requirements | 40 – 150 W |
| Drive Unit Complement | 8" C-CAM Cone Bass Driver, Pivoting IDC Module Housing: 4" C-CAM RST Inverted Mid Range Driver and a 1" C-CAM Gold Dome Tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB), MF Level Switch (+3 dB / 0 dB / -3 dB), Boundary Compensation Switch |
| Overall Dimensions (Including Grille) | 441 x 288 mm (17 3/8 x 11 5/16") |
| Overall Depth (Including Grille) | 104 mm (4 1/8") |
| Mounting Depth | 100 mm (3 15/16") |
| Cut-Out Dimensions | 387 x 234 mm (15 1/4" x 9 3/16") |
| Fixing Type | 6 Position Tri-Grip Dog Fixings |
| Construction Material | Mineral Filled ABS, RoHS Compliant |
| Weight | 4.1 kg (9 lb) |
| Pre-Construction Bracket | WB8 Pre-Construction Bracket (Green) |
| Back Box | WCBOX-L |
| Sold As | Single Unit |
