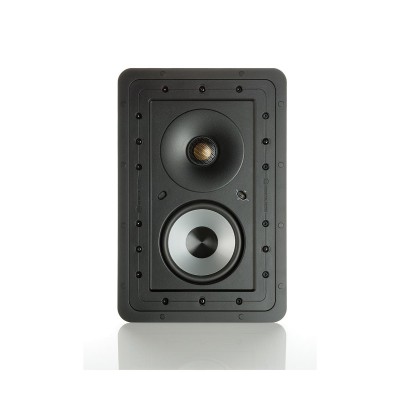

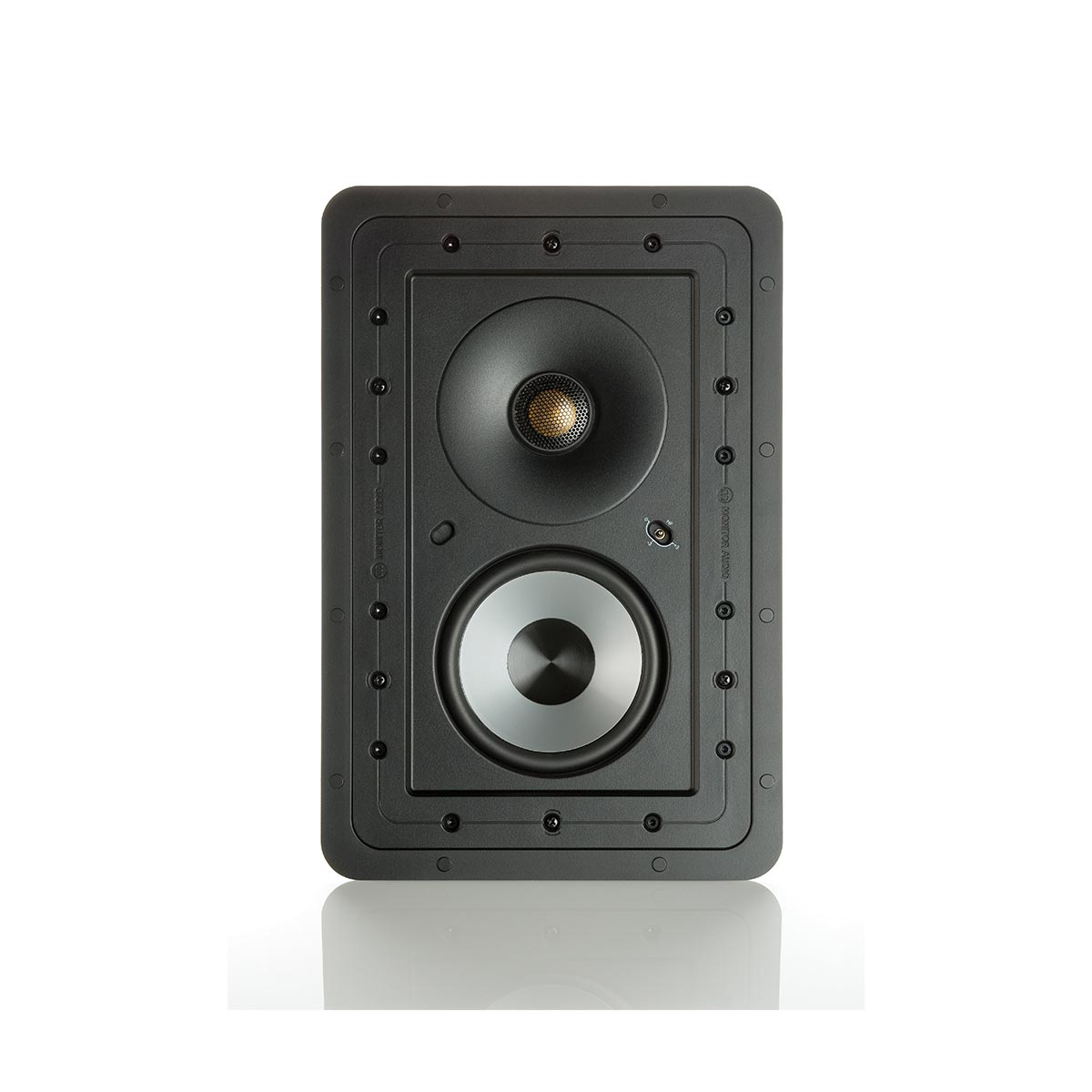

CP-WT150
Offering high impact audio and discreet trimless design for smaller environments the entry-level CP-WT150 in-wall model features a 5" MMP II bass driver, high frequency level adjustment (+3 dB / 0 dB / -3 dB) and a pivoting C-CAM tweeter.
Key Features

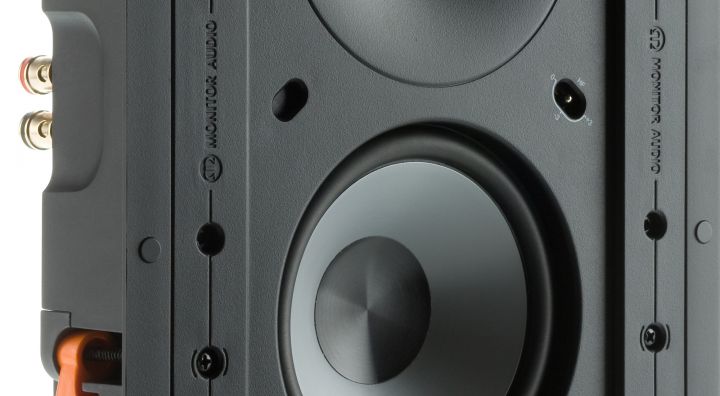

- Pivoting C-CAM Gold Dome tweeter and MMP II bass driver.
- High overall efficiency.
- High frequency level adjustment (+/-3 dB).

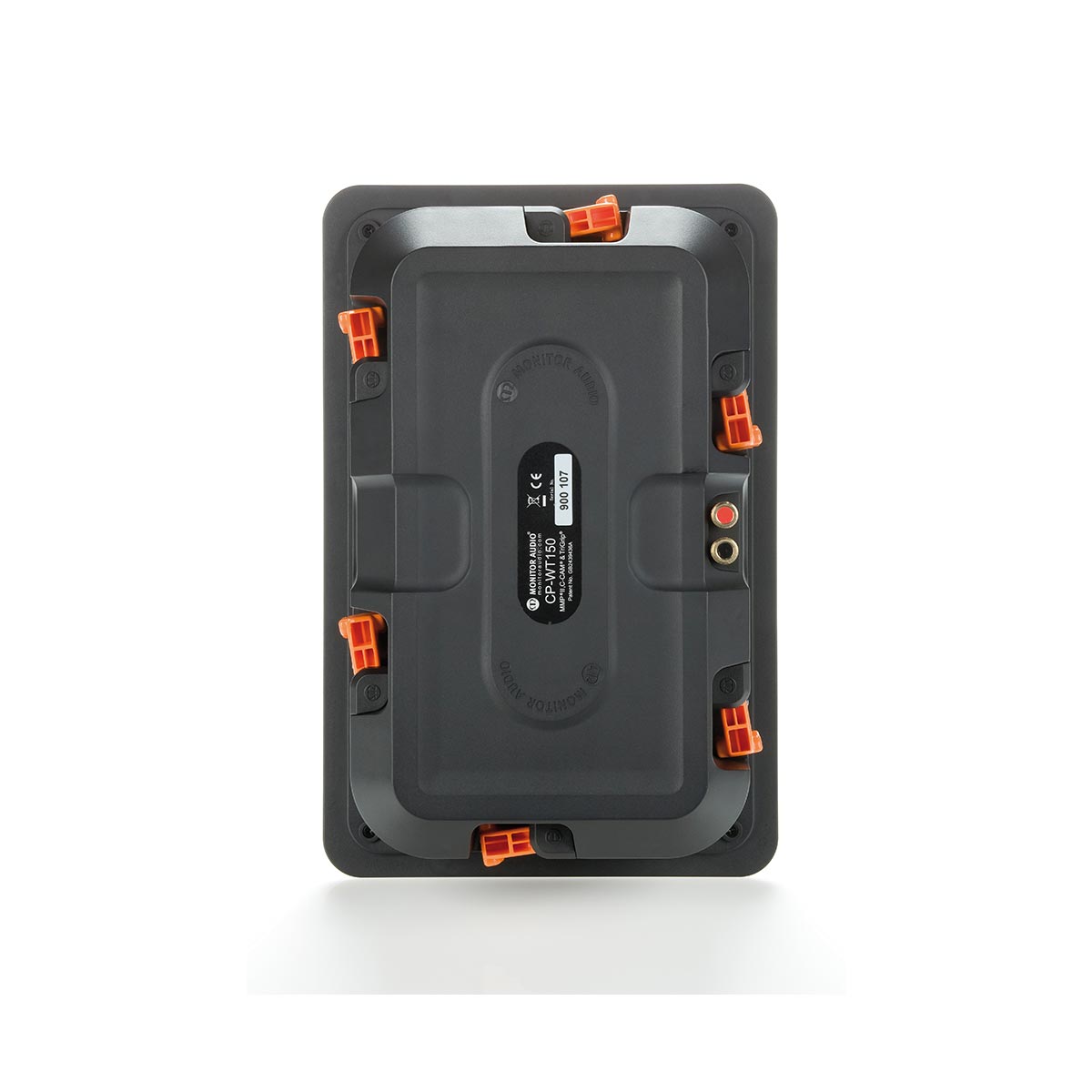

- Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

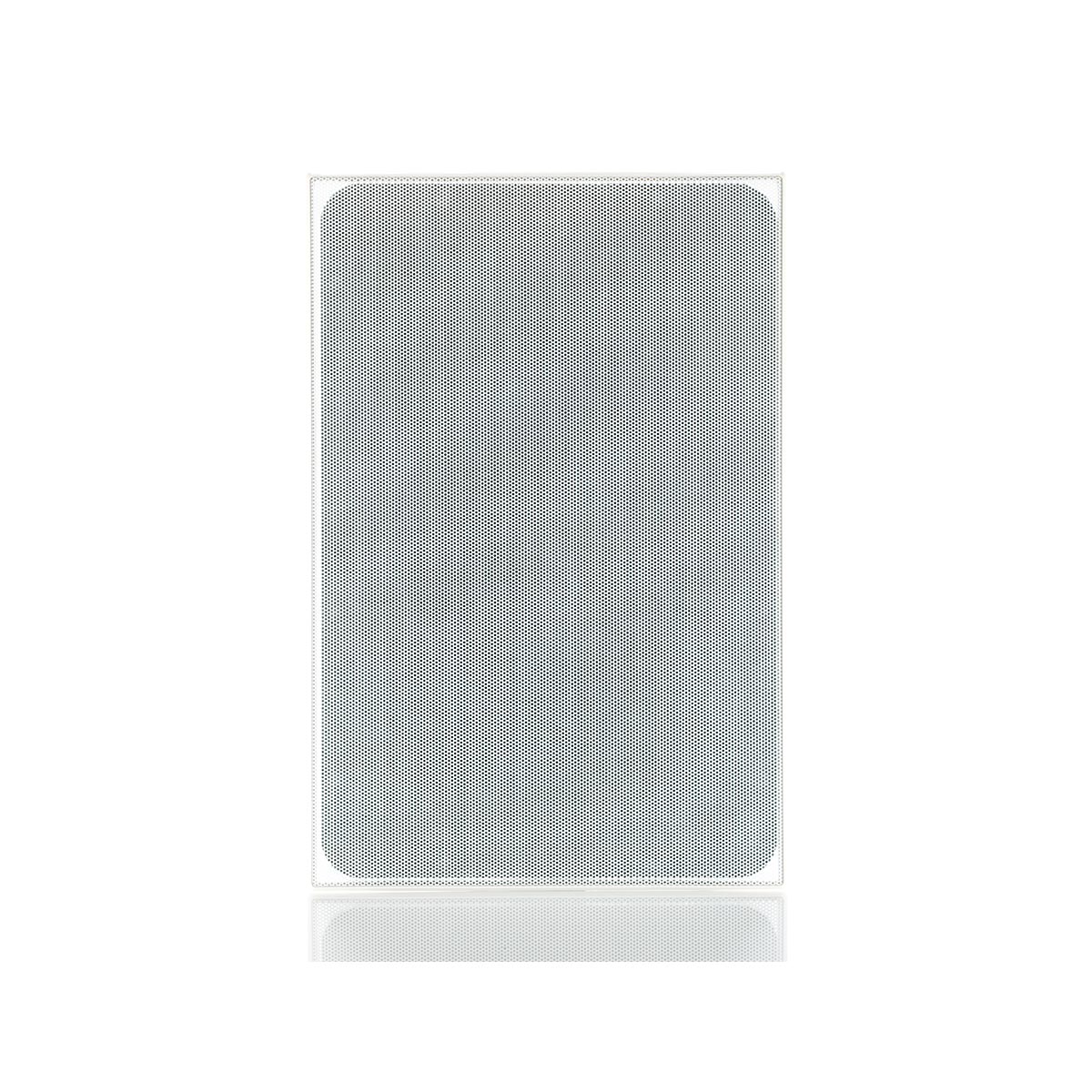

- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
| Specifications | |
| Frequency Response | 75 Hz – 25 kHz |
| Nominal Impedance | 6 Ohms |
| Sensitivity (1 W @ 1 m) | 85 dB |
| Maximum SPL | 102.8 dBA |
| Power Handling (RMS) | 50 W |
| Recommended Amplifier Requirements | 20 – 50 W |
| Crossover Frequency | 2.8 kHz @ 12 dB / Octave |
| Drive Unit Complement | 2-Way, 5" MMP II Cone Bass Driver, 1" C-CAM Gold Dome Tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB) |
| Overall Dimensions (H x W) | 360.5 x 242 mm (14 3/16 x 9 1/2") |
| Overall Depth (Including Grille) | 102 mm (4") |
| Mounting Depth | 96 mm (3 3/4") |
| Cut-Out Dimensions | 326 x 207 mm (12 13/16 x 8 1/8") |
| Connection | Gold Plated 'Push' Type Terminals |
| Fixing Type | 6 Position Tri-Grip Dog Leg Fixings |
| Construction Material | Mineral Filled ABS Plastic (RoHS 2 Compliant) |
| Weight | 2.65 kg (5 lb 14 oz) |
| Pre-Construction Bracket | WB6 Pre-Construction Bracket (Purple) |
| Sold As | Single Unit |
