CP-CT380IDC

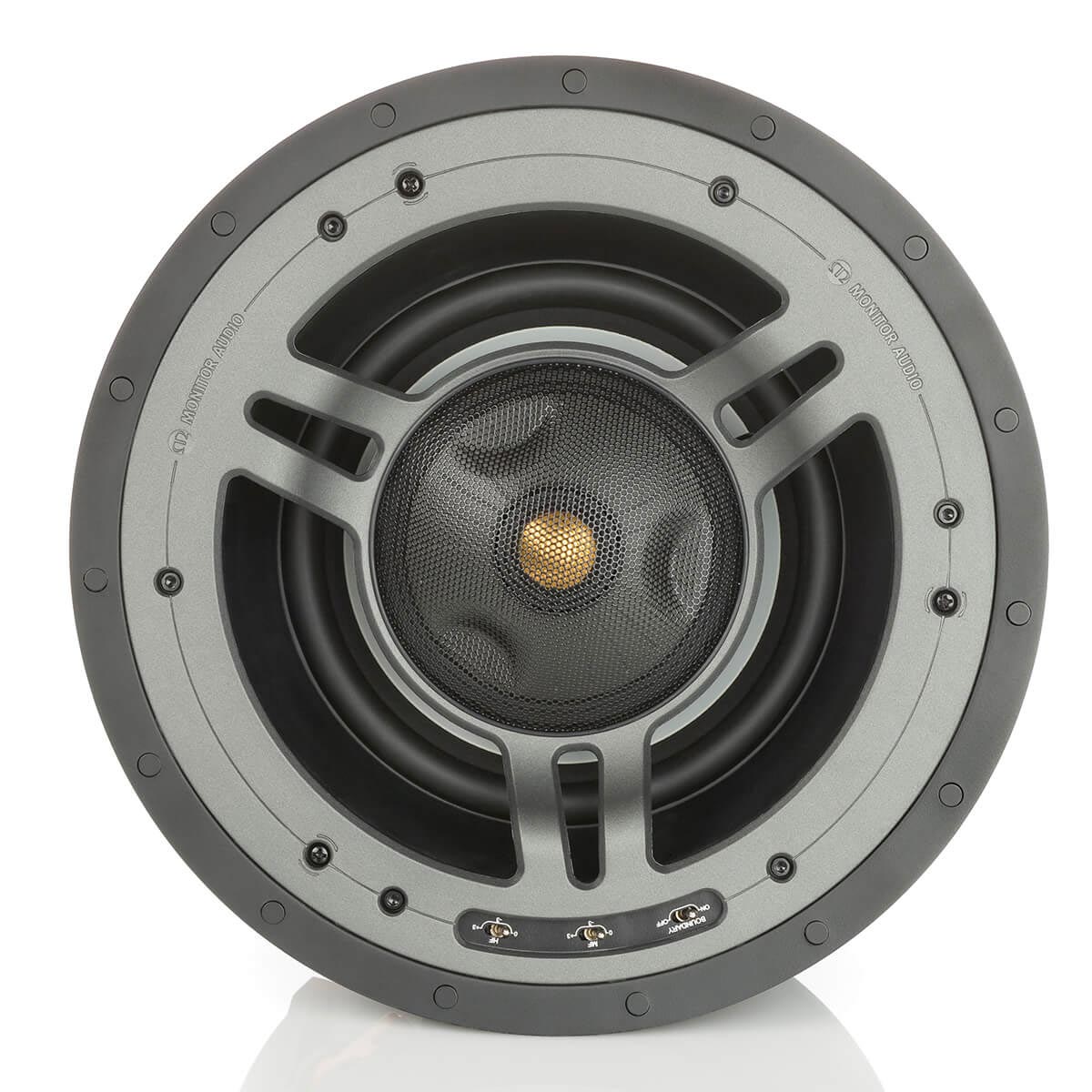

Incorporating Monitor Audio’s innovative, pivoting Inverted Dual Concentric (IDC) midrange/tweeter module and 8" RST C-CAM bass driver, the three-way CP-CT380IDC represents the highest level of new CP performance. The IDC module houses a 4" C-CAM inverted midrange driver surrounding a 25 mm C-CAM Gold Dome tweeter.
Optional square or premium grille can be used with this model.
Key Features
- Pivoting module consisting of IDC midrange driver and Gold Dome tweeter.
- C-CAM bass driver featuring Rigid Surface Technology (RST).
- High overall efficiency.
- High frequency level adjustment (+/-3 dB).
- Midrange frequency level adjustment (+/-3 dB).
- Boundary compensation controls.

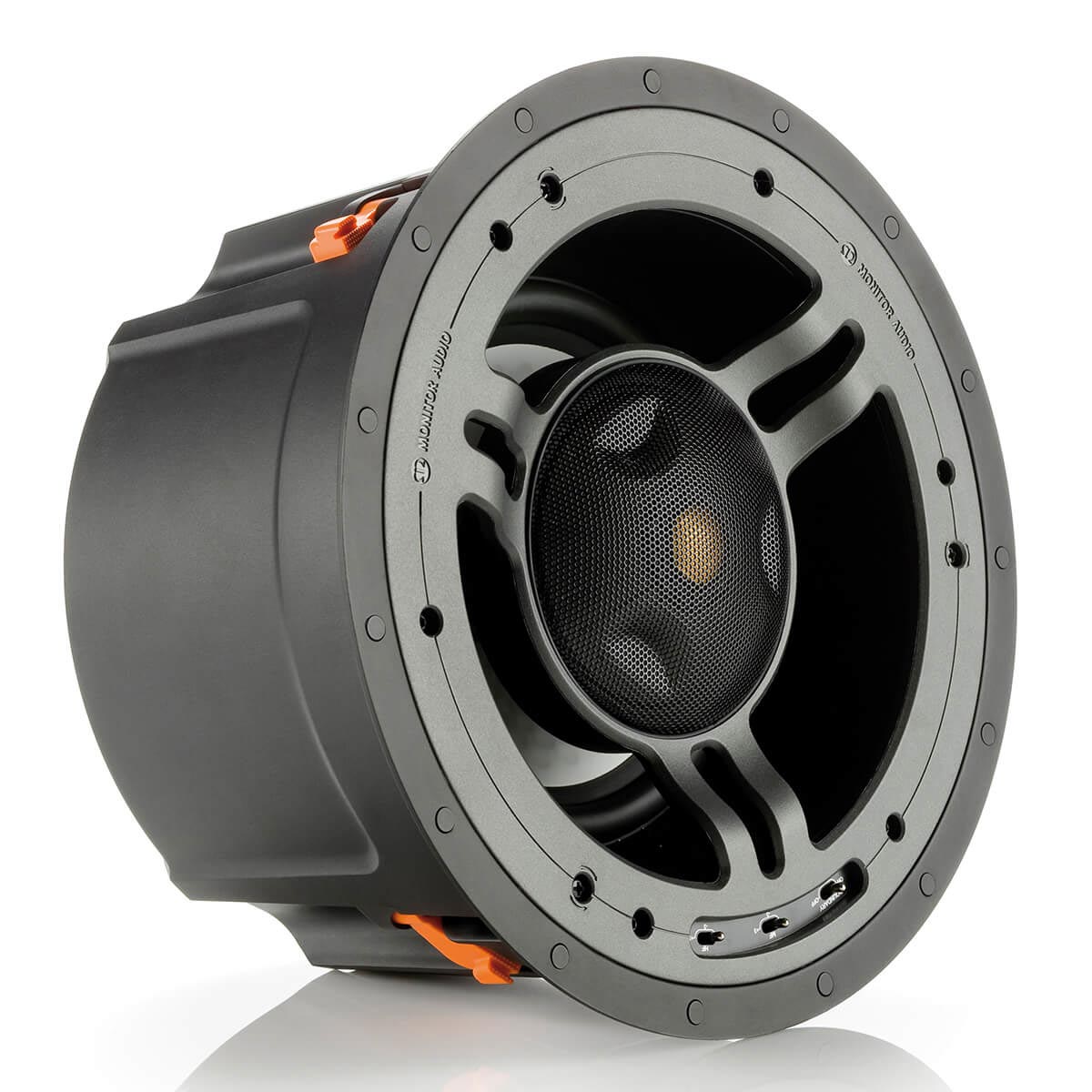

- Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

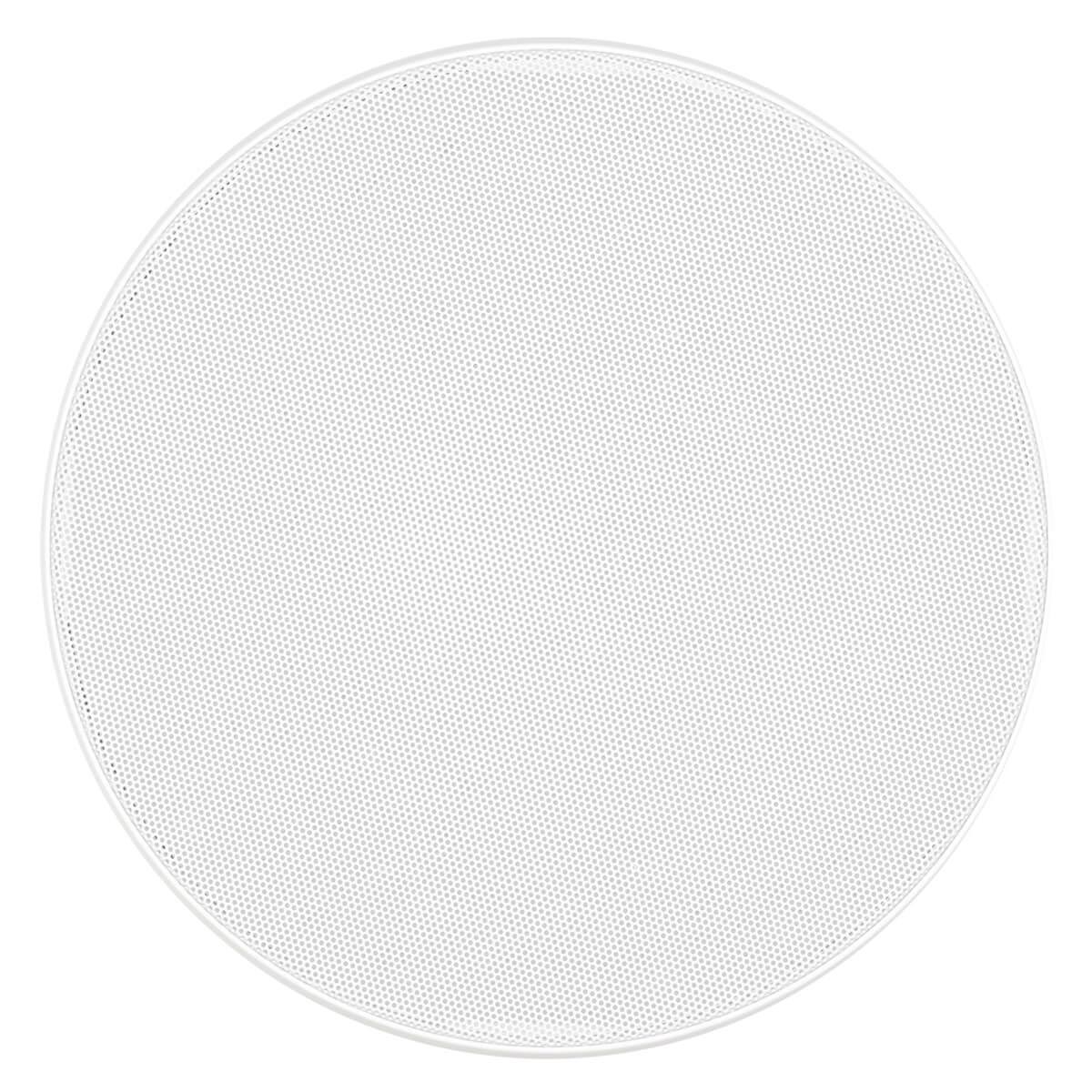

- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
| Specifications | |
| Frequency Response | 50 Hz – 30 kHz |
| Nominal Impedance | 6 Ohms |
| Sensitivity (1 W @ 1 m) | 89 dB |
| Maximum SPL | 109.6 dBA |
| Power Handling (RMS) | 120 W |
| Recommended Amplifier Requirements | 30 – 120 W |
| Crossover Frequency | Bass Low Pass: 300 Hz @ 6 dB / Octave, Mid: 300 Hz @ 6 dB / Octave & 3 kHz @ 12 dB / Octave |
| Drive Unit Complement | 3-Way, 8" C-CAM RST Cone Bass Driver, 4" C-CAM IDC Cone Mid Range Driver, 1" C-CAM Gold Dome Tweeter (Tweeter & Midrange Driver Combined in a Pivoting Module) |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB), MF Level Switch (+ 3dB/ 0 dB/ -3 dB), Boundary Compensation Switch |
| Overall Diameter (Including Grille) | 309 mm (12 3/16") |
| Overall Depth (Including Grille) | 187 mm (7 3/8") |
| Cut-Out Hole Diameter | 274 mm (10 13/16") |
| Mounting Depth | 181 mm (7 1/8") |
| Optional Square Grille - Outer Dimensions | 309 x 309 mm (12 3/16") |
| Fixing Type | 3 Position Tri-Grip Dog Fixings |

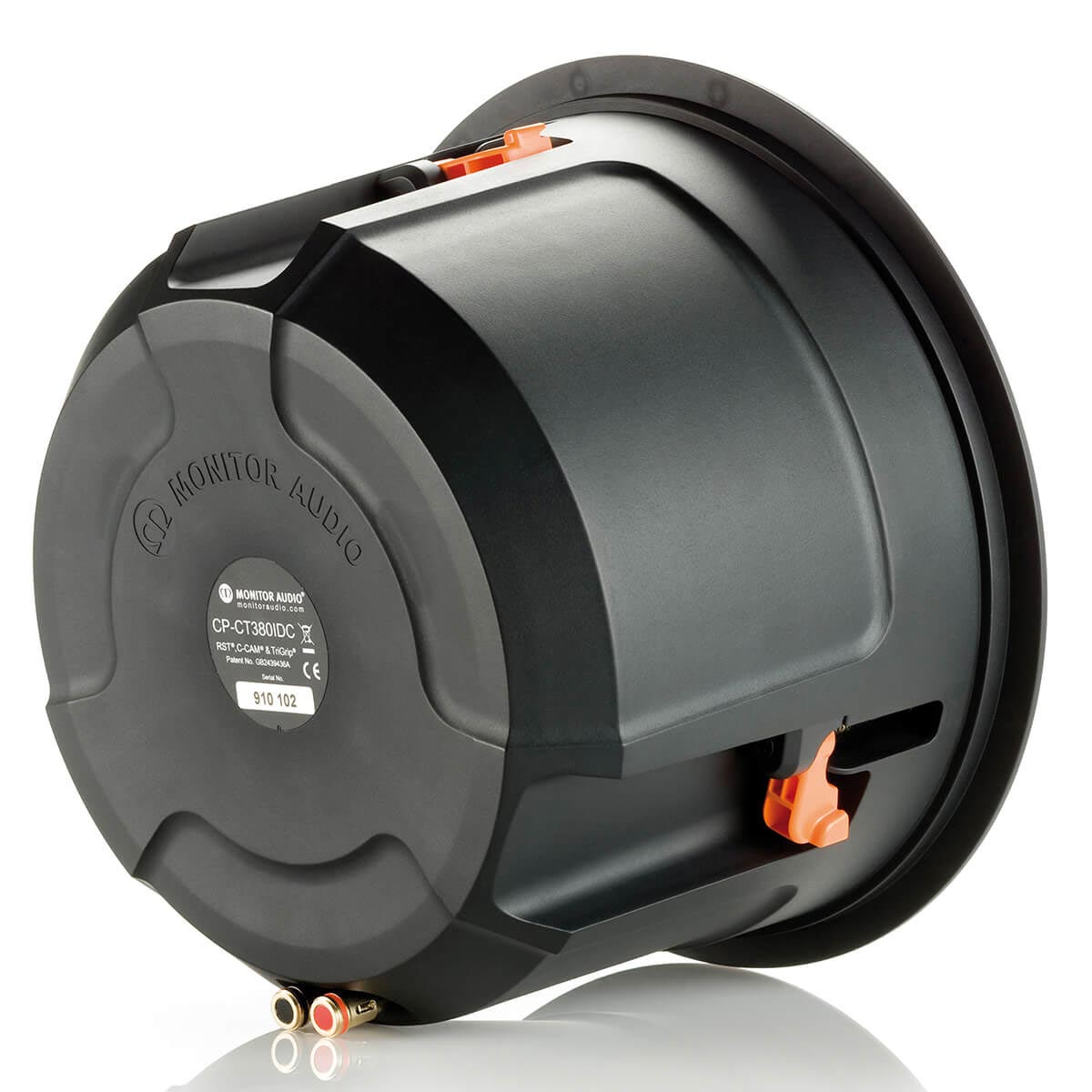

| Connection | Gold Plated 'Push' Type Terminals |
| Construction Material | Mineral Filled ABS Plastic (RoHS 2 Compliant) |
| Weight | 4.3 kg (9 lb 8 oz) |
| Pre-Construction Bracket | CB10 Pre-Construction Bracket (Light Brown) |
| Sold As | Single Unit |
