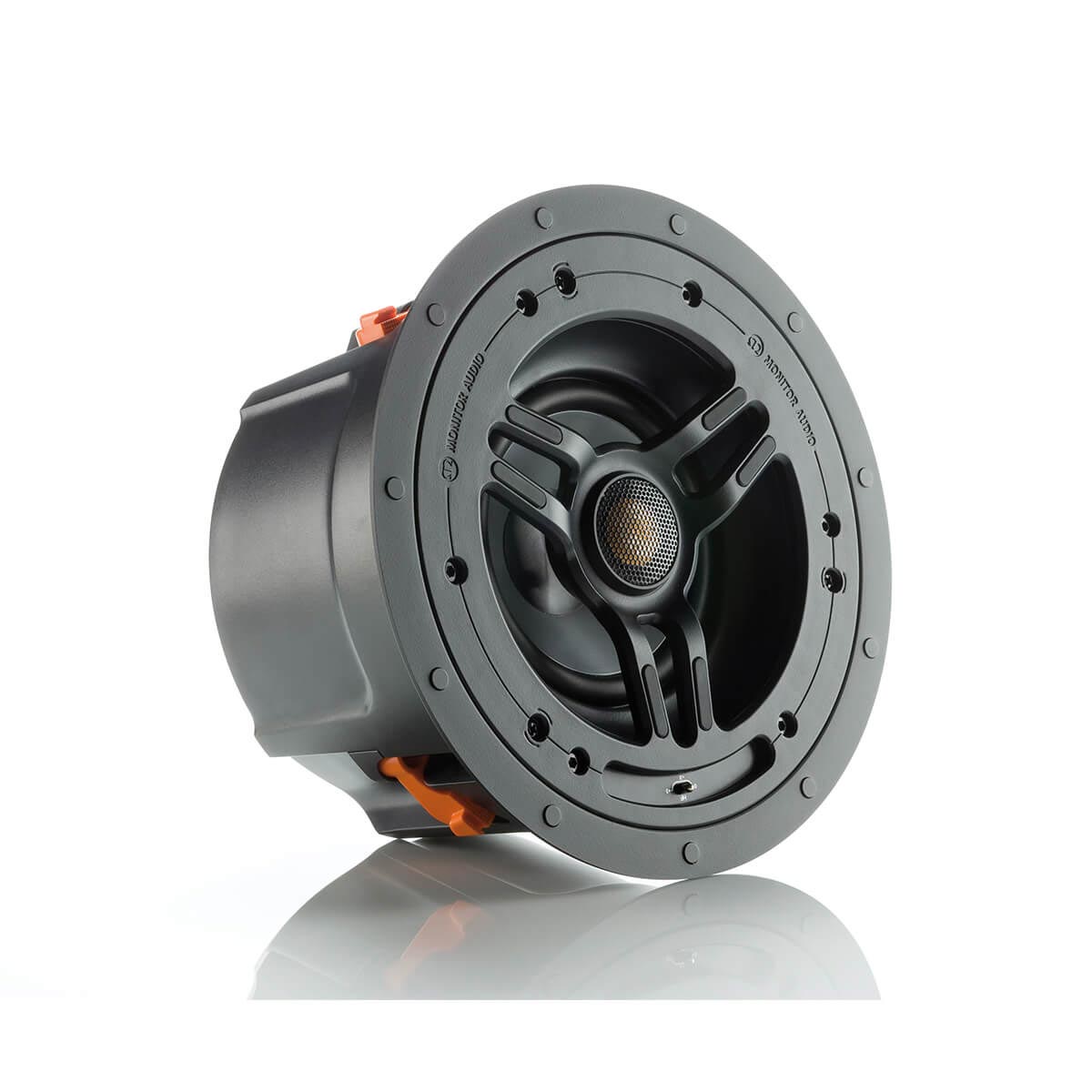

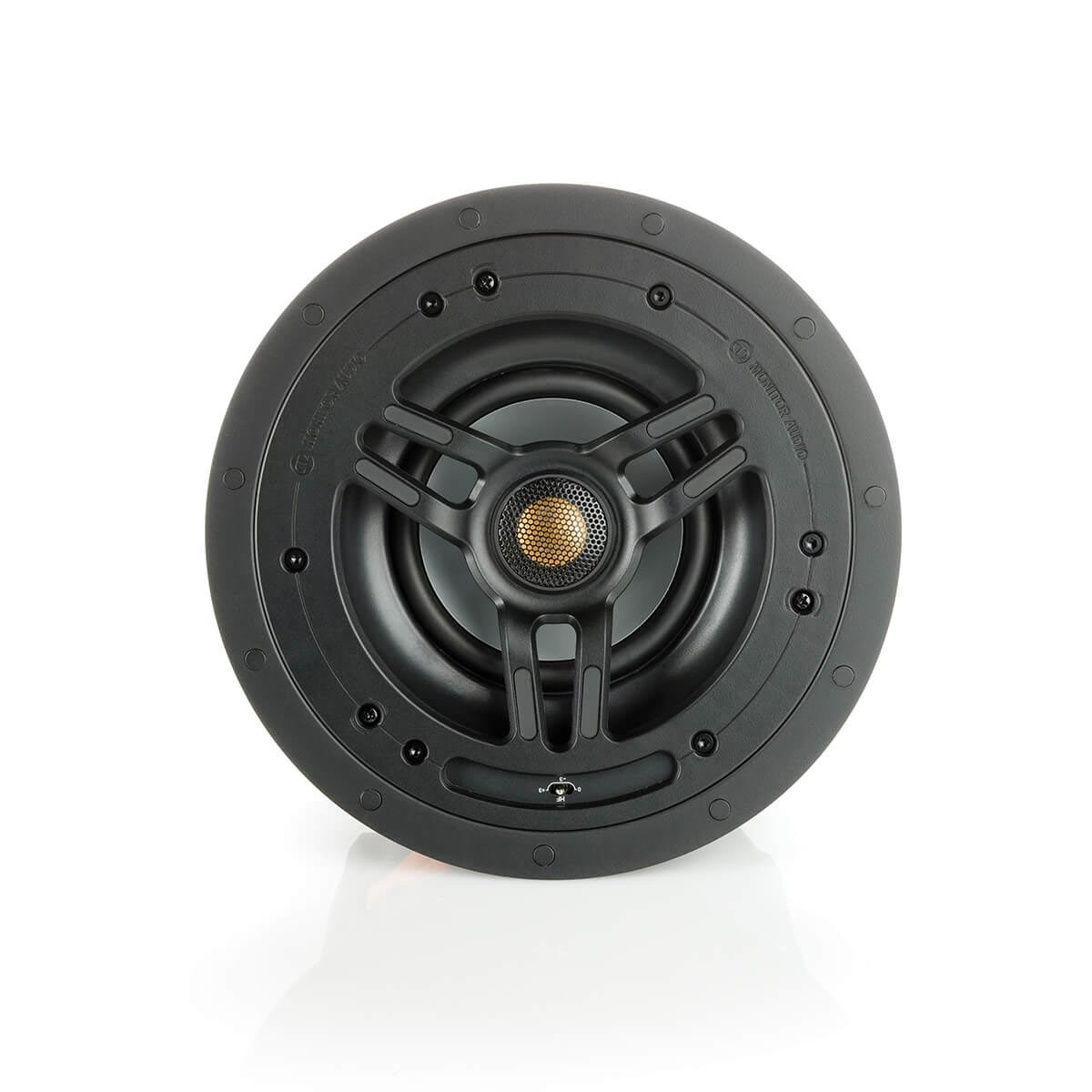

CP-CT150
Offering high impact audio and discreet trimless design for smaller environments the entry-level CP-CT150 in-ceiling model features a 5" MMP II bass driver, high frequency level adjustment (+3 dB / 0 dB / -3 dB) and a pivoting C-CAM tweeter.
Optional square or premium grille can be used with this model.
Key Features

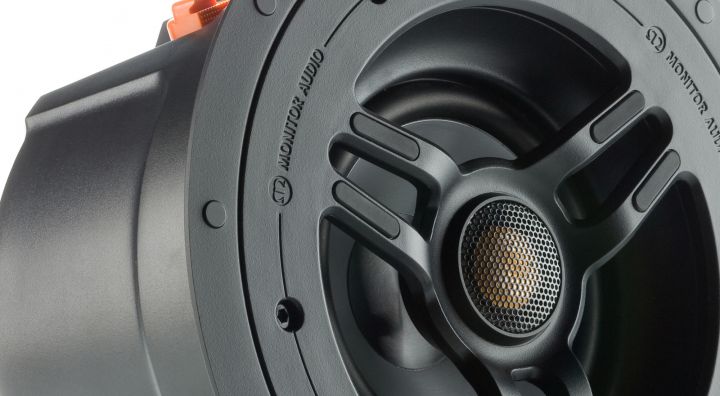

- Pivoting C-CAM Gold Dome tweeter and MMP II bass driver.
- High overall efficiency.
- High frequency level adjustment (+/-3 dB).
- Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
| Specifications | |
| Frequency Response | 75 Hz – 25 kHz |
| Nominal Impedance | 6 Ohms |
| Sensitivity (1 W @ 1 m) | 85 dB |
| Maximum SPL | 102.8 dBA |
| Power Handling (RMS) | 50 W |
| Recommended Amplifier Requirements | 20 – 50 W |
| Crossover Frequency | 2.8 kHz @ 12 dB / Octave |
| Drive Unit Complement | 2-Way, 5" MMP II Cone Bass Driver, 1" C-CAM Pivoting Gold Dome Tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB) |
| Overall Diameter (Including Grille) | 250 mm (9 13/16") |
| Overall Depth (Including Grille) | 155 mm (6 1/8") |
| Cut-Out Hole Diameter | 212 mm (8 3/8") |
| Mounting Depth | 151 mm (5 15/16") |
| Optional Square Grille - Outer Dimensions | 249 x 249 mm (9 3/16") |
| Fixing Type | 3 Position Tri-Grip Dog Fixings |
| Connection | Gold Plated 'Push' Type Terminals |
| Construction Material | Mineral Filled ABS Plastic (RoHS 2 Compliant) |
| Weight | 2.14 kg (4 lb 12 oz) |
| Pre-Construction Bracket | CB6 Pre-Construction Bracket (Purple) |
| Back Box | CCBOX-L |
| Sold As | Single Unit |
