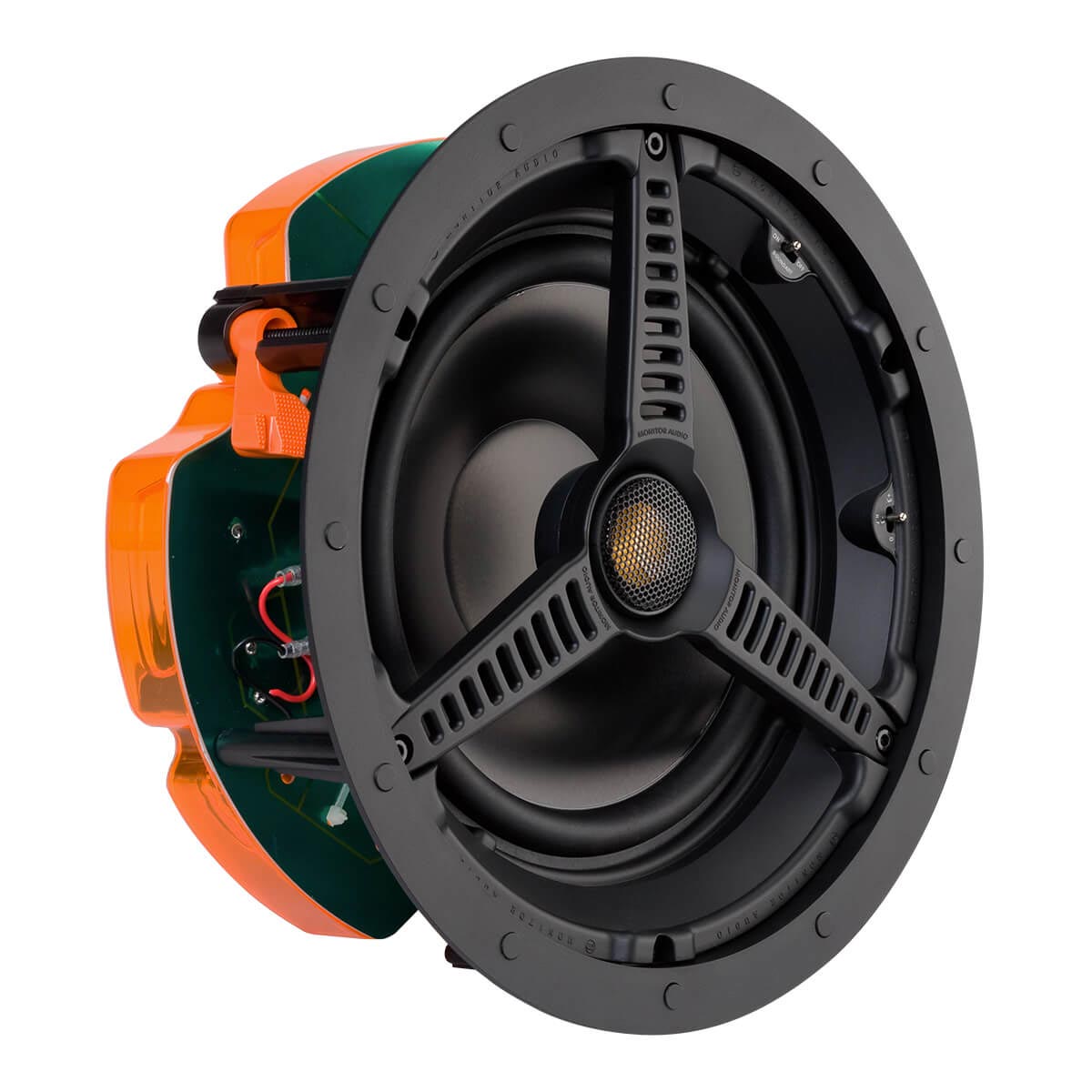

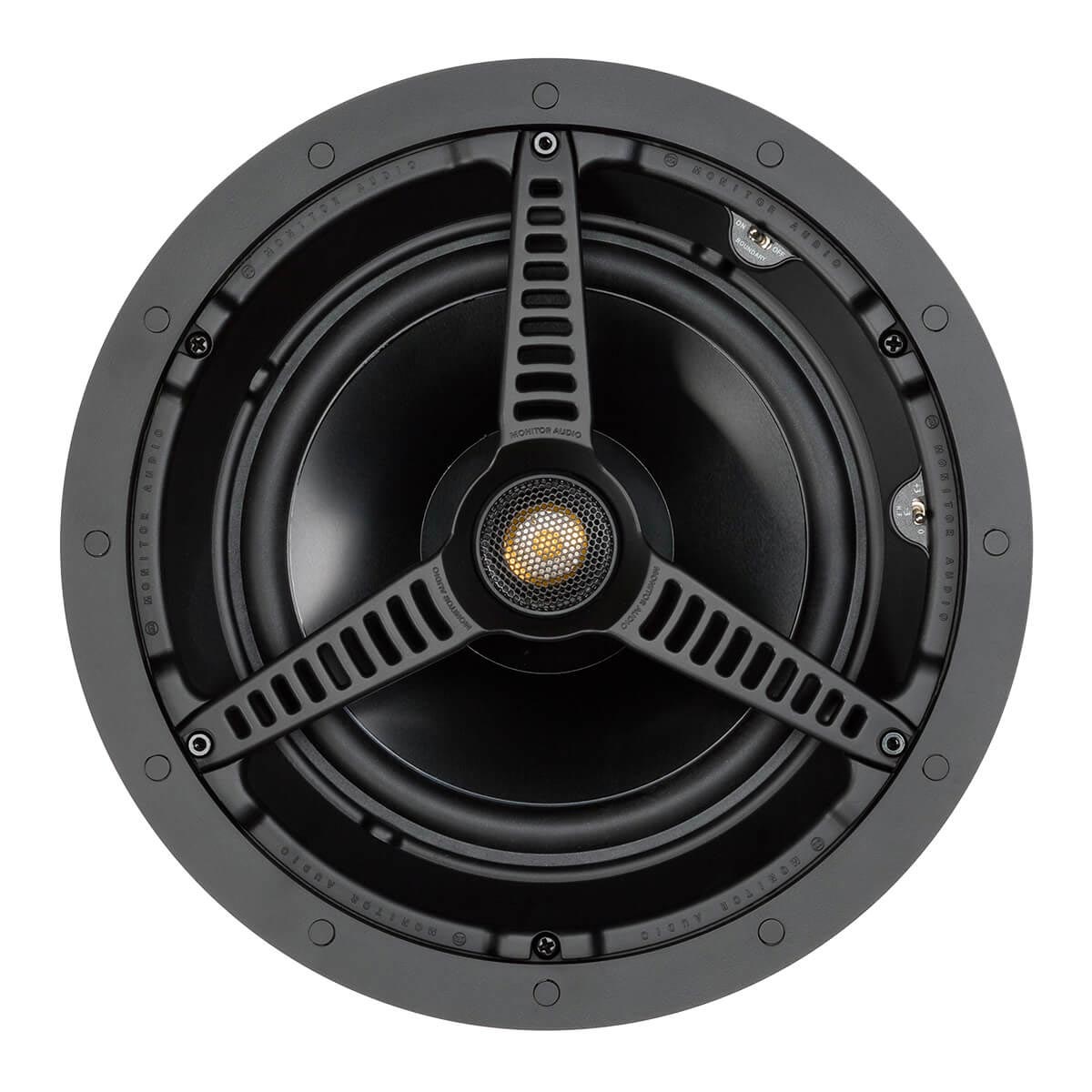

An 8-inch C-CAM bass driver and a more highly specified version of the C-CAM Gold Dome tweeter offer an extended high-frequency response to 30 kHz, as well as higher output and power handling capacity than the other 2-way models.
Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3 dB / 0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.

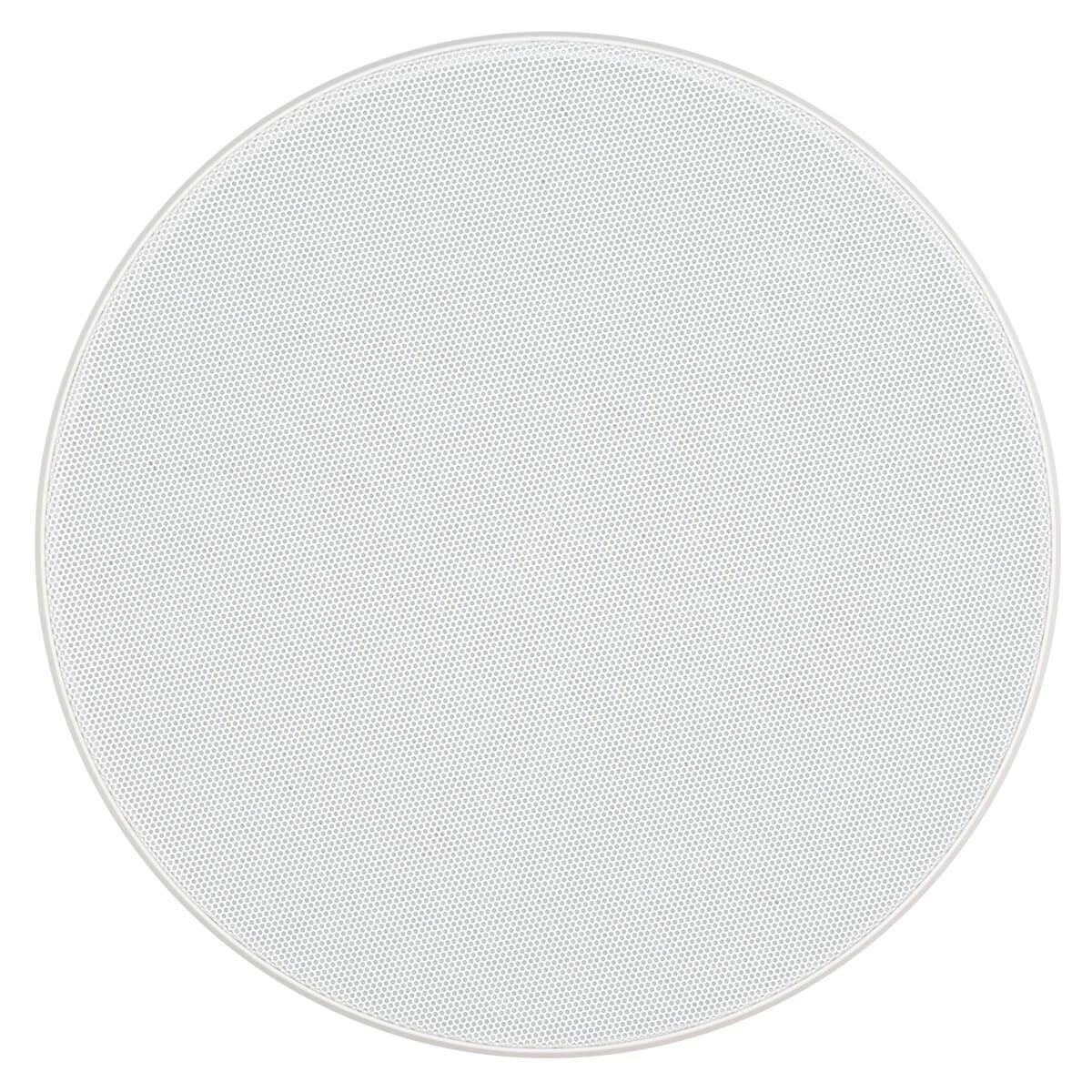

Optional square grille can be used with this model.
|Frequency Response||50 Hz – 30 kHz|
|Nominal Impedance||6 Ohms|
|Sensitivity (1 W @ 1 m)||90 dB|
|Maximum SPL||111.6 dBA|
|Power Handling (RMS)||120 W|
|Recommended Amplifier Requirements||30 – 120 W|
|Drive Unit Complement||8" C-CAM Cone Bass Driver, 1" C-CAM Pivoting Gold Dome Tweeter|
|Adjustment Controls||HF Level Switch (+3 dB / 0 dB / -3 dB), Boundary Compensation Switch|
|Overall Diameter (Including Grille)||285 mm (11 1/4")|
|Overall Depth (Including Grille)||126 mm (4 15/16")|
|Mounting Depth||122 mm (4 13/16")|
|Cut-Out Hole Diameter||247 mm (9 3/4")|
|Optional Square Grille - Outer Dimensions||285 x 285 mm (11 1/4")|
|Fixing Type||3 Position Tri-Grip Dog Fixings|
|Construction Material||Mineral Filled ABS, RoHS Compliant|
|Weight||2.8 kg (6 lb 2 oz)|
|Pre-Construction Bracket||CB8 Pre-Construction Bracket (Green)|
|Back Box||CCBOX-R, CMBOX-R|
|Sold As||Single Unit|
