Reference Theatre Pack
Klipsch has taken the premium materials and acoustic technology of their revered Reference series and designed a beautiful 5.1 surround sound system to pair with your favourite AV receiver. Complete with a powerful 10" subwoofer, the Reference Theatre Pack brings the Klipsch cinematic sound into your home with an incredibly minimal footprint.
- Flexible System Placement
- High Fidelity Subwoofer
- Cinematic Acoustics
- Spun Copper IMG Woofers
- Linear Travel Suspension Horn-Loaded Tweeters
The Reference Theatre Pack delivers superior acoustic performance by leveraging Injection Moulded Graphite (IMG) woofers. These exceptionally lightweight cones are extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion.
A Linear Travel Suspension (LTS) tweeter minimizes distortion for enhanced, detailed performance. LTS tweeters have been a hallmark of our Reference series product lines, making it a core component of some of the best speakers in the world.
Our exclusive Tractrix® Horn Technology and aluminium tweeters deliver the most impressive high-end response and greater extension, enhanced imaging and powerful dynamics. This creates the cleanest, most natural sound possible.

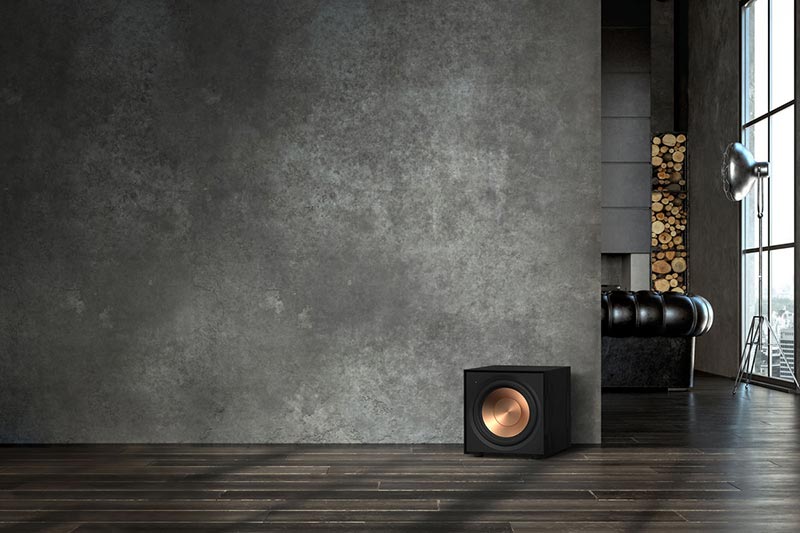

The Reference R-100SW subwoofer is the ideal companion for your 5.1 home theatre system. This high performance subwoofer provides deep bass and placement flexibility thanks to its front firing driver and all digital amplifier.
Flexible System Placement

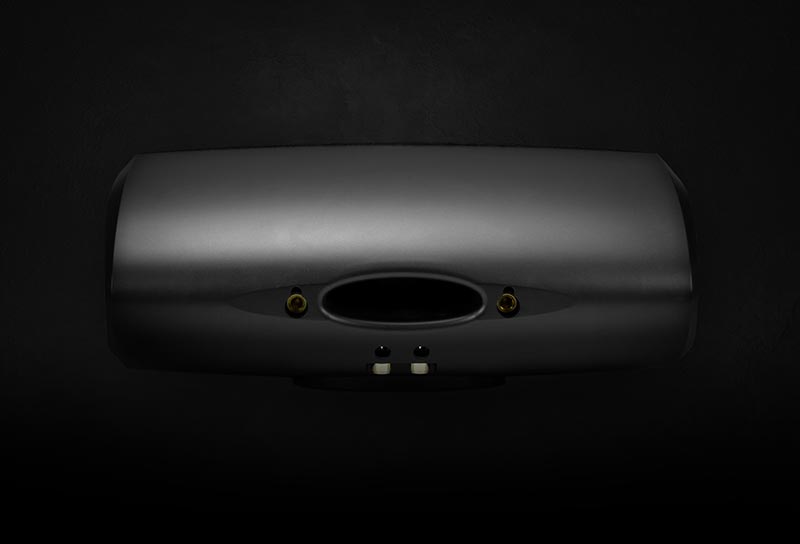

To complement the easy placement of the subwoofer, each satellite speaker has a keyhole mount and a ¼” x 20 threaded insert (the centre channel has dual keyhole / inserts) for maximum mounting flexibility.
|Frequency Response||110 Hz - 23 kHz +/- 3 dB|
|Sensitivity||Satellite: 91 dB @ 2.83 V / 1 m, Centre: 94 dB @ 2.83 V / 1 m|
|Power Handling (Continuous / Peak)||Satellite: 50 W / 200 W, Centre: 75 W / 300 W|
|Nominal Impedance||8 Ohms Compatible|
|High Frequency Driver||Satellite & Center: 3/4” (1.9 cm) Aluminium Diaphragm Compression Driver Mated to 90° x 90° Tractrix® Horn|
|Low Frequency Driver||Satellite: 3.5” (8.9 cm) Copper IMG Woofer, Center: Dual 3.5” (8.9 cm) Copper IMG Woofer|
|Dimensions (H x W x D)||Satellite: 19.7 x 11.1 x 13.7 cm (7.75” x 4.38” x 5.37”), Center: 11.1 x 27.3 x 13.7 cm (4.38” x 10.75” x 5.37”)|
|Weight||Satellite: 1.4 kg (3 lbs), Center: 2.3 kg (5 lbs)|
|Mounting||Satellite: Keyhole and 1/4” x 20 Threaded Insert, Center: Dual Keyhole with Dual 1/4” x 20 Threaded Insert|
|Speaker Wire||14-18 Gauge Compatible|
|R-100SW Subwoofer Specifications|
|Frequency Response||32 Hz - 120 kHz +/- 3 dB|
|Maximum Acoustic Output||112 dB|
|Amplifier Power (Continuous / Peak)||150 W / 300 W|
|Amplifier Features||Volume, Low-Pass, 0/180 Phase, Auto Power On|
|Driver Components||10” High Excursion Spun-Copper IMG Woofer|
|Enclosure Type||Bass-Reflex via Rear-Firing Port|
|Inputs||Line Level/LFE RCA Jacks|
|Height||368 mm (14.5”)|
|Width||318 mm (12.5”)|
|Depth||417 mm (16.4”)|
|Weight||10.9 kg (24 lbs)|
|Finish||Black Textured Wood Grain Vinyl|
