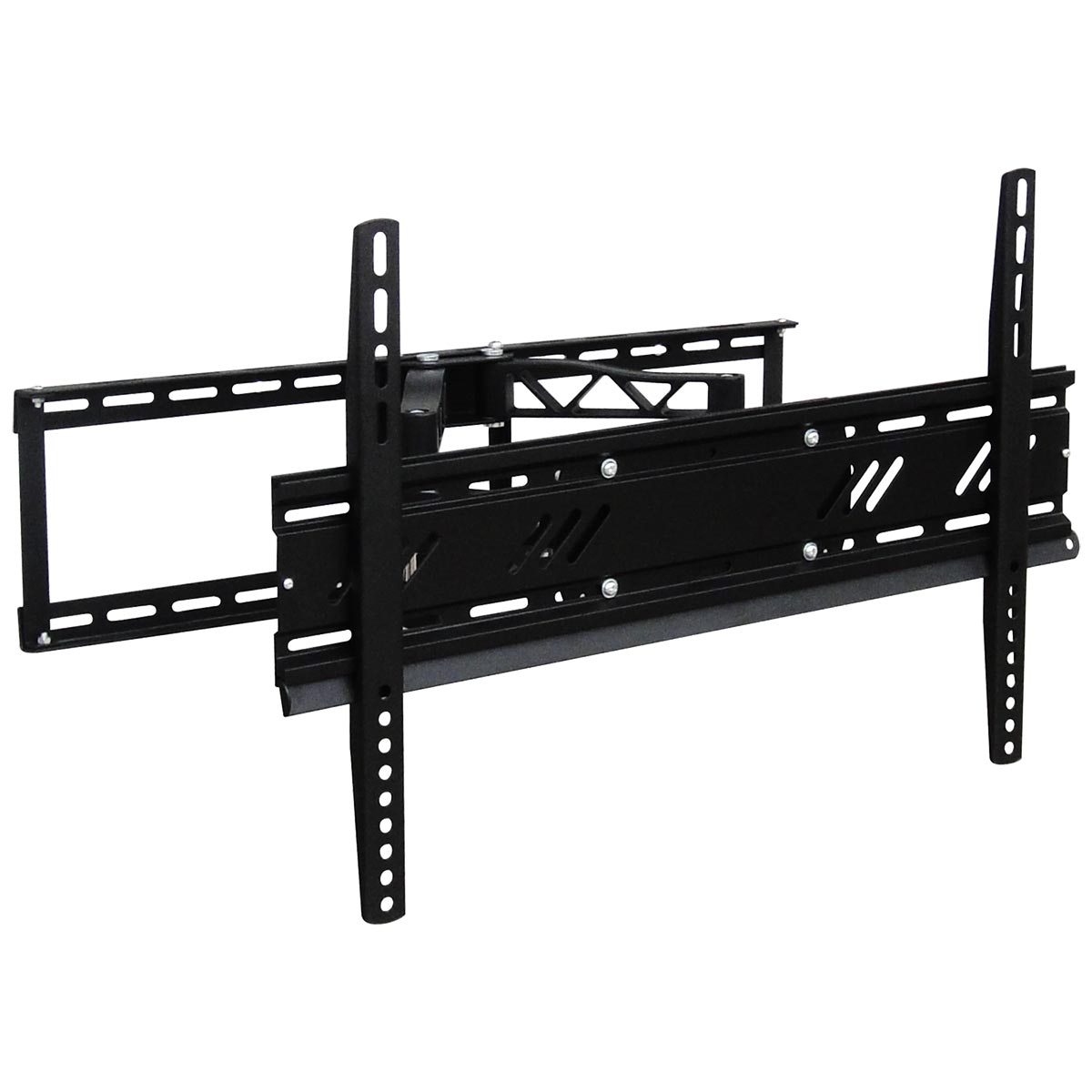

Full Motion TV Mounting Bracket - 600 x 400 mm Max - Up to 40 kg

Product Code: DOS-LCDP18B
Warranty: 12 Months
$149.00 $69.00
Free Shipping On Orders Over $99
256-Bit SSL Secure Ordering System
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

Ideal for Installers!

This Doss bracket is ready to go and has been designed to be set up straight out of the box, allowing you to get the job done quicker and more efficiently. This bracket has been packaged with most components in a preassembled state. All you need to do is to mount the bracket to the wall and attach the TV! There's no need to follow complicated instructions and wasting time trying to fit pieces together!

Suitable for TV's that weigh up to 40 kg. Take the guess work out of finding the right bracket that will match your TV. Doss brackets and mounts are extremely easy to install and include all the required mounting hardware and fixings to get the job done.

Key Features

  • Mounting position: Wall
  • Maximum weight: 40 kg
  • Recommended TV size: Up to 65" (see notes below)
  • Compliance: VESA, universal
  • Multi-Fit VESA / universal (maximum): 600 mm x 400 mm
  • Vertical tilt: 12°
  • Horizontal turn: 90°
  • Distance from wall: 75mm - 330 mm
  • Back plate dimensions (W x H): 560 mm x 172 mm
  • Material: Iron and aluminium alloy
  • Bracket weight: 12.5 kg
  • Colour: Black

TV Bracket Installation Notes

When selecting a bracket, there are two key factors to ensure a successful installation. The first being the load capacity and the second being the mounting holes. If both of these are compatible with the TV (or display) that will be mounted, then the bracket should be suitable.

As technology has advanced, TV's have become thinner and lighter. As a result, quite often a TV that exceeds the recommended maximum size can be mounted without any problems. In consideration of this, the recommended TV size should only be used as an approximate guideline. It is the maximum weight capacity of the bracket and the mounting holes that will ultimately be the determining factors.

Each bracket includes a variety of mounting hardware which will be suitable for most TV's. On the rare occasion where your TV requires different mounting bolts to those supplied, these may have been included with your TV or can be obtained through your local hardware store.

Please also ensure that this bracket is fixed to a timber stud when mounting onto a plaster (Gyprock) wall. If you have any further questions or require assistance in selecting the correct bracket, please don't hesitate to contact us.
